good quality Hydrocyclone for classifying and thickening of coal, mud and water classifying and thickening

PRIMARY PARAMETERS

Condition

New

Type

Gravity Separator, Mine hydrocyclone

Place of Origin

Shandong, China (Mainland)

Brand Name

Tongge

Model Number

Dimension(L*W*H)

Varies

Weight

hydrocyclone

Certification

ISO

Warranty

1 year

After-sales Service Provided

Engineers available to service machinery overseas

Color

At customers' request

Materials

Alumina ceramics, silicon carbide and high hardness carbon steel

Usage

hydrocyclone classifier

Maximum particle allowed in feed

1.5mm

Production Capacity

11-600m3/h

Cylinder ID

150mm

Vortex finder ID

60-100mm

Contact information

www.tonggepu.com

Name

Mining hydrocyclone

DETAIL DESCRIPTION

Good quality Hydrocyclone for classifying and thickening

Product Description

Weihai Tongge Technology Co.,Ltd established in 1992, is engaged in research, manufacture and sale of hydrocyclone and high performance polyurethane elastomer . The company was certified the Quality System Certification of GB/T 19001:2008-- ISO 9001:2008 Standard, ensuring the production management of international standard.

Our hydrocyclone has been extensively used for closed circuit grinding and classification system , thickening, desliming, dewatering , tailings filling, damming, recovery processes in ferrous, nonferrous metal and nonmetal mine industries, and is deeply popular with customers due to high classification efficiency, simple structure, large throughput, and small occupied area. also exported to USA, Brazil, Indonesia, and Russia and so on.

1. Good classification effective

2. High work efficiency

3. Longer use life

4. Reasonable price and reliable quality

5. Strong technical support

6. Timely and thoughtful after-sale service

Model and Technical parameters:

Model	Diameter	Angle of Cone(°)	Diameter of Overflow Outlet(mm)	Diameter of Spigot(mm)	Max Feeding Size (mm)	Inlet Pressure (Mpa)	Capacity	Separation Particle Size(um)	Overall Dimension	Unit Weight(Kg)
(mm)	(m3/h)	Length(mm)	Width(mm)	Hight(mm)
FX750	750	45	180~290	85~175	16	0.04~0.2	400~500	74~300	1210	910	2680
FX710	710	45	175~270	80~165	16	0.04~0.2	350~450	74~250	1255	1185	1040	1250
FX660	660	20	165~250	80~155	16	0.03-0.2	250~350	74-220	1140	1000	2920	800
FX660	45	165~250	80~155	16	0.03-0.2	250~350	74-220	1140	1000	2000	995
FX610	610	20	155~230	75~140	13	0.03~0.2	200~300	74~220	875	950	2560	550
FX610	45	155~230	75~140	13	0.03~0.2	200~300	74~220	875	950	1810	600
FX500	500	20	125~185	55~115	10	0.03~0.3	140~220	74~200	850	700	2050	380
15	74~150	850	700	2380	540
45	140~220	74-150	850	825	1630	430
FX350	350	20	80~120	30~70	6	0.04~0.3	60~100	50~150	775	620	1765	208
15	50~120	775	620	1970	210
FX300	300	20	65~115	20~50	5	0.04~0.3	45~85	50~150	498	485	1415	105
15	40~100	498	485	1642	169
FX250	250	20	60~100	16~45	3	0.06~0.35	40~60	40~100	410	380	1215	75
15	40~100	410	380	1405	73
10	30~100	410	380	1788	85
FX200	200	20	40~65	16~32	2	0.06~0.35	25~40	40~100	365	330	1030	45
15	30~100	410	330	1083	54
10	30~100	400	365	1490	60
FX150	150	20	30~45	8~22	1.5	0.06~0.35	11~20	30~74	310	265	820	29
15	30~74	310	265	878	30
10	30~74	310	265	1160	35
FX125	125	17	25~40	8~18	1	0.06~0.35	8~15	20~100	260	218	620	10.2
8	20~74	260	218	870	33
FX100	100	20	20~40	8~18	1	0.06~0.35	5~15	20~100	260	210	525	8.6
15	20~100	268	215	720	13
8	20~100	365	150	1065	23
5	20-100	365	150	1505	30
FX75	75	15	15~22	6~12	0.6	0.1~0.4	2~5	20~74	240	230	420	2.2
5	5~40	240	230	778	4
FX50	50	15	11~16	3~8	0.3	0.1~0.4	1~2	10~74	160	137	400	1.5
5	160	137	680	2.8
FX10	10	4	3~4	2~3	0.2	0.2-0.4	0.1-0.2	2-10	30	30	195

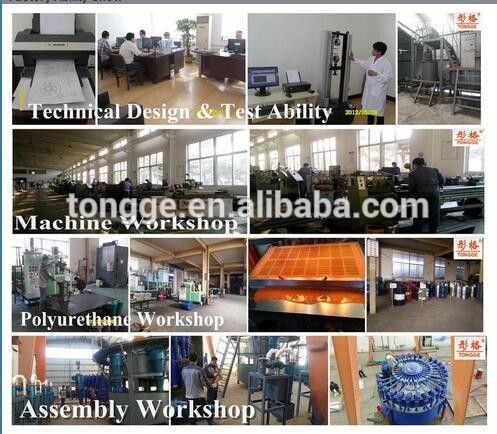

Company Information

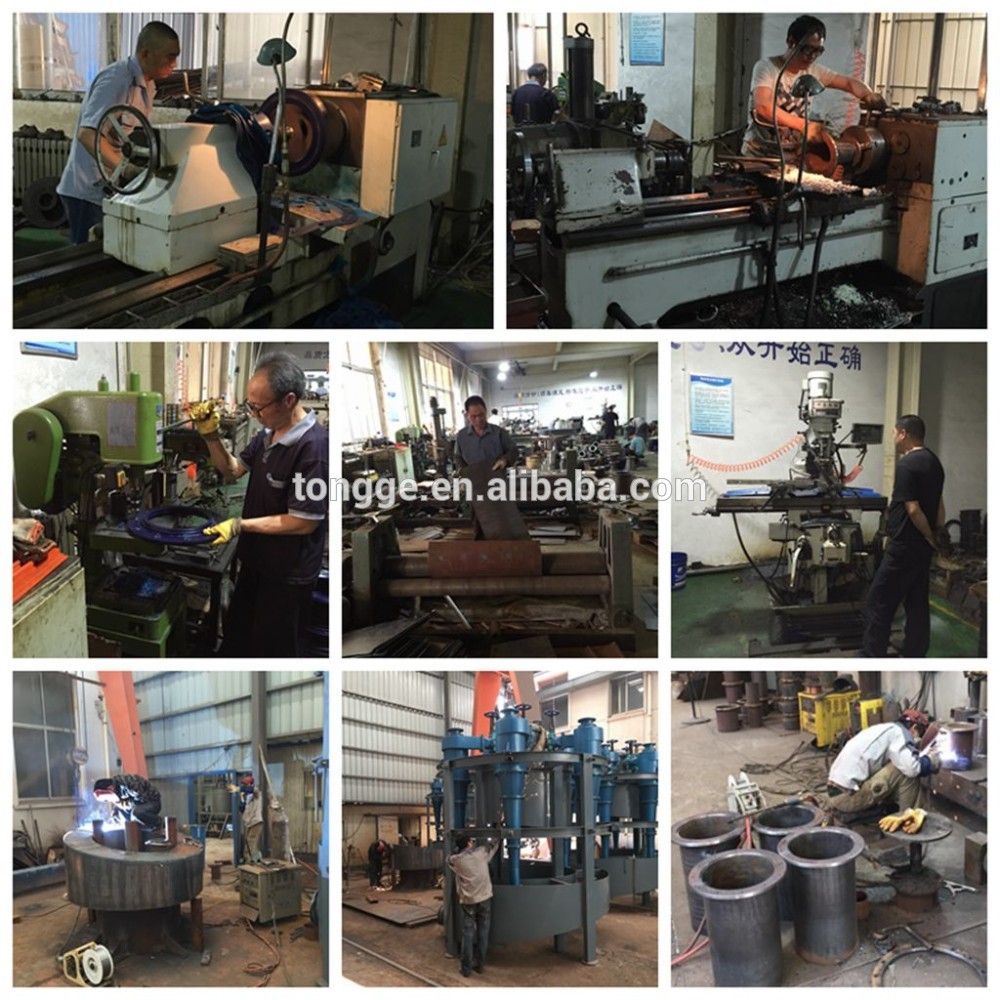

Production Flow

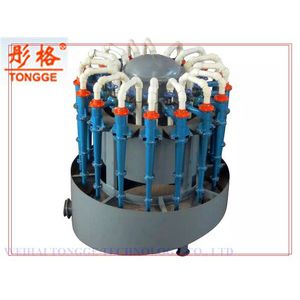

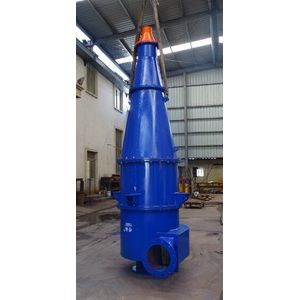

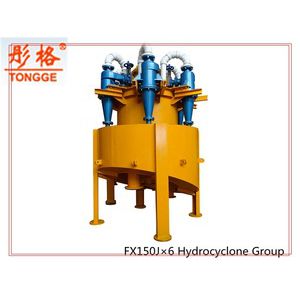

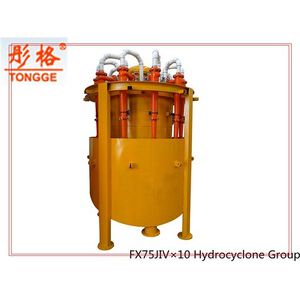

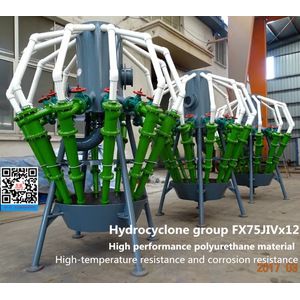

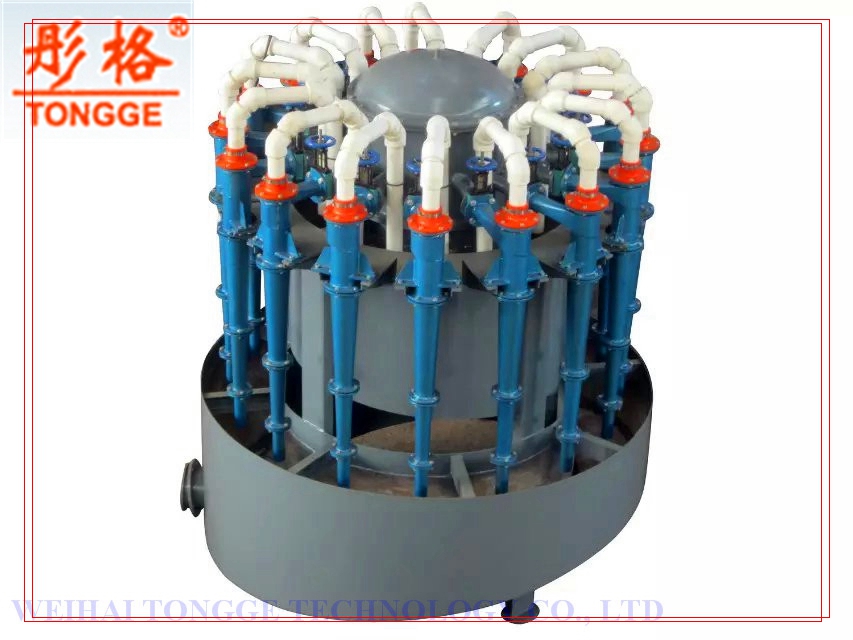

Finished Products

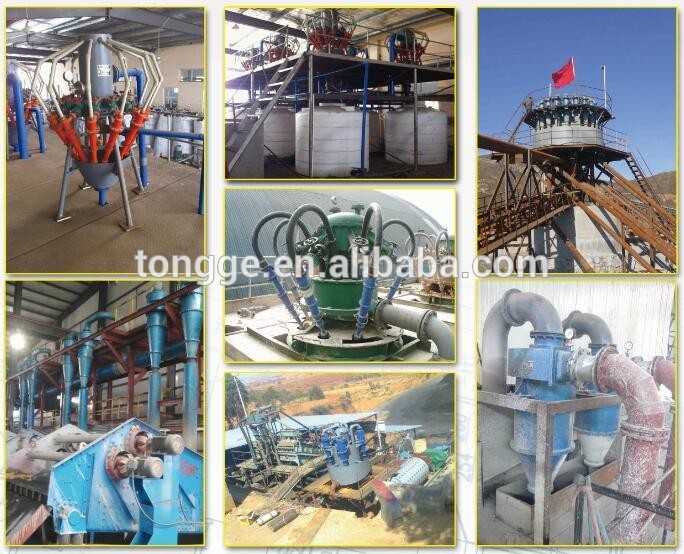

Field Application:

TONGGE hydrocyclone has been extensively used for closed circuit grinding and classification system , thickening, desliming, dewatering , tailings filling, damming, recovery processes in ferrous, nonferrous metal and nonmetal mine industries, and is deeply popular with customers due to high classification efficiency, simple structure, large throughput, and small occupied area.

Trade Shows

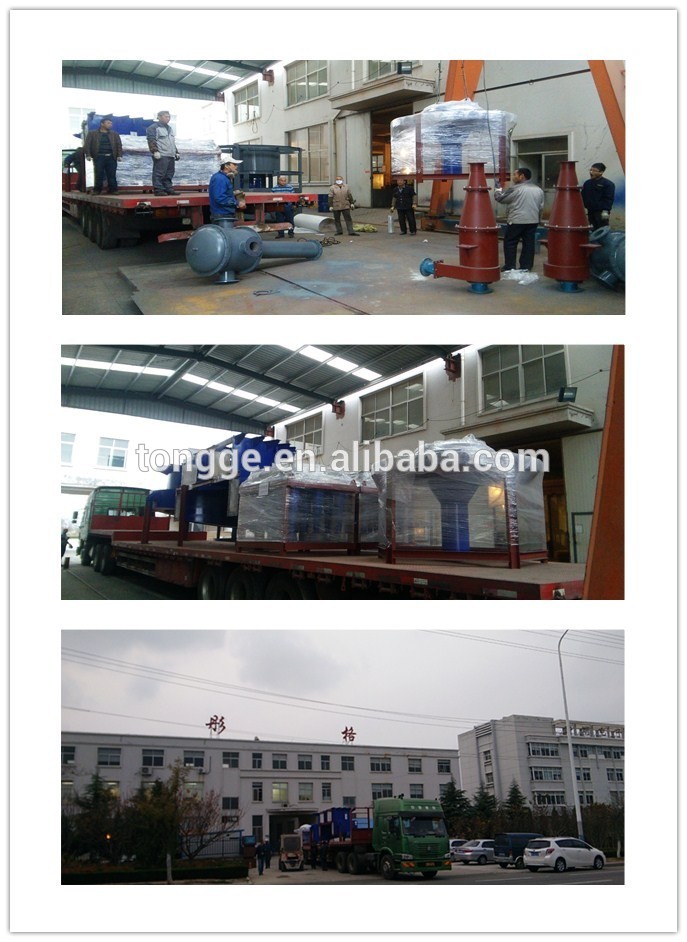

Packaging & Shipping

Our Services

1. Our R&D team: we have our own professional research and development team;

2. Unique product prescription: Our prescription greatly improve the quality of our products;

3. Wide range of application: We have established long business relationship with many famous international companies

4. Production capacity: We have a big factory, so our production capacity is strong.

5. Short delivery time: All products you want can be completed within short time.

FAQ

The Seller shall guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and performance as stipulated in this Contract. The Seller shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 months after acceptance protocol’s signature.

Coverage :

The warranty foresees the supply, free of charge, of the parts of the machine that get broken due to manufacturing defects.

The warranty does not cover damages and/or loss of production due to machine stops or for the bad running caused by the damage.

The warranty does not cover the time required for the arrival of the new parts.
