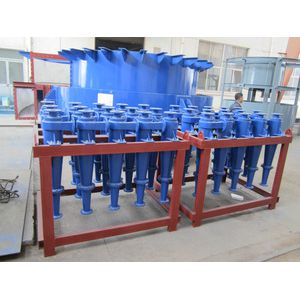

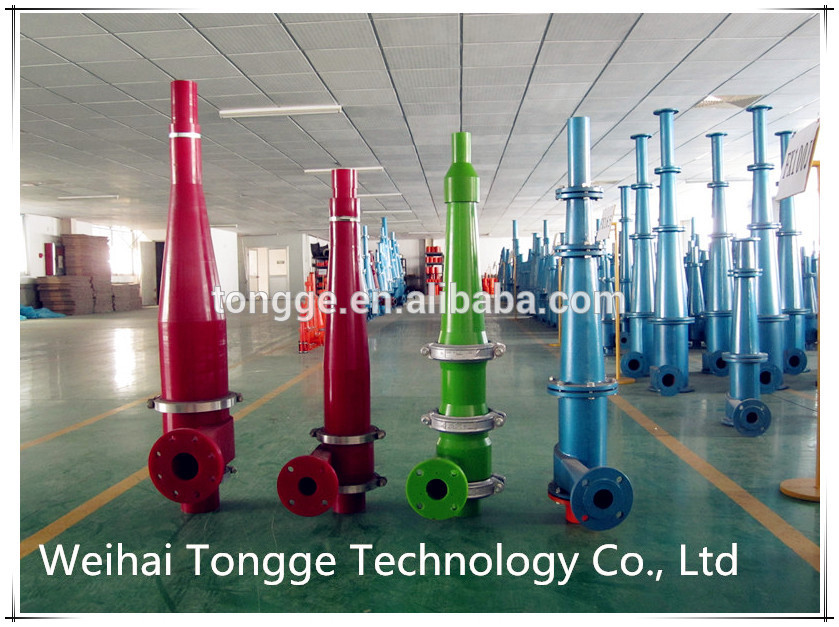

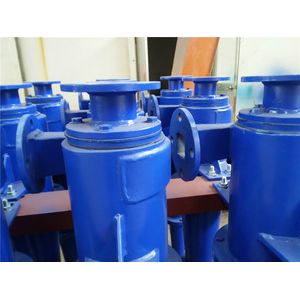

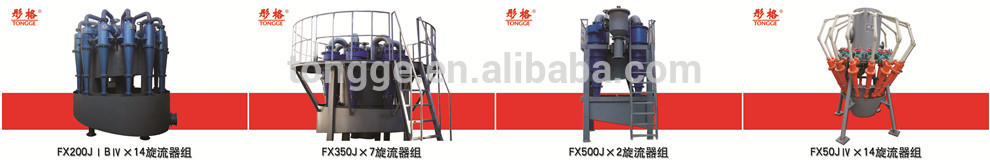

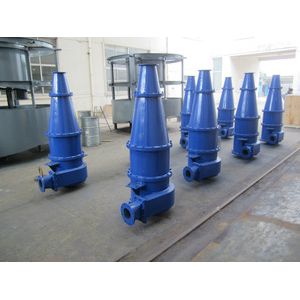

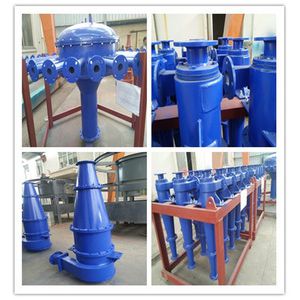

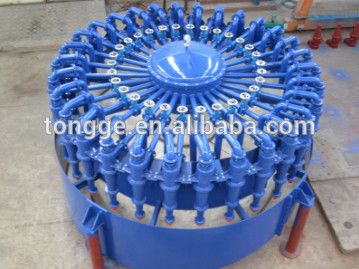

Name: Hrdrocyclone for coal, mud and water classifying and thickening
Weihai Tongge Technology Co.,Ltd established in 1992, is engaged in research, manufacture and sale of hydrocyclone and high performance polyurethane elastomer . The company was certified the Quality System Certification of GB/T 19001:2008-- ISO 9001:2008 Standard, ensuring the production management of international standard.
Our hydrocyclone has been extensively used for closed circuit grinding and classification system , thickening, desliming, dewatering , tailings filling, damming, recovery processes in ferrous, nonferrous metal and nonmetal mine industries, and is deeply popular with customers due to high classification efficiency, simple structure, large throughput, and small occupied area. also exported to USA, Brazil, Indonesia, and Russia and so on.
1. Good classification effective
2. High work efficiency
3. Longer use life
4. Reasonable price and reliable quality
5. Strong technical support
6. Timely and thoughtful after-sale service
Model and Technical parameters
| Model | Dimeter(mm) | Angle of Cone (°) | Diameter of Overflow Outlet | Diameter of Spigot | Max Feeding Size(mm) | Inlet Pressure (MPa) | Capacity (m³/h) | Separation Particle Size (um) | Overall Dimension /mm ( LWH) | Unit Weight (Kg) |
| FX750 | 750 | 20 | 180-290 | 85-175 | 16 | 0.04-0.2 | 400-550 | 74-300 | 1210×910×2680 | |
| FX710 | 710 | 20 | 175-270 | 80-165 | 16 | 0.04-0.2 | 350-450 | 74-250 | 1255×1185×1040 | 1250 |
| FX660 | 660 | 45 | 165-250 | 80-155 | 16 | 0.03-0.2 | 250-350 | 74-220 | 1140×1000×2000 | 995 |
| FX610 | 610 | 45 | 155-230 | 75-140 | 13 | 0.03-0.2 | 200-300 | 74-220 | 875×950×1810 | 600 |
| FX500 | 500 | 20 | 125-185 | 55-115 | 10 | 0.03-0.3 | 140-220 | 74-200 | 850×700×2050 | 380 |
| 15 | 74-150 | 850×700×2380 | 540 | |||||||
| 45 | 74-150 | 850×825×1630 | 430 | |||||||
| FX350 | 350 | 20 | 80-120 | 30-70 | 6 | 0.04-0.3 | 60-100 | 50-150 | 775×620×1765 | 208 |
| 15 | 50-120 | 775×620×2115 | 210 | |||||||
| FX300 | 300 | 20 | 65-115 | 20-50 | 5 | 0.04-0.3 | 45-85 | 50-150 | 498×485×1415 | 105 |
| 15 | 40-100 | 498×485×1642 | 169 | |||||||
| FX250 | 250 | 20 | 60-100 | 16-45 | 3 | 0.06-0.35 | 40-60 | 40-100 | 410×380×1215 | 75 |
| 15 | 40-100 | 410×380×1405 | 73 | |||||||
| 10 | 30-100 | 410×380×1788 | 85 | |||||||
| FX200 | 200 | 20 | 40-65 | 16-32 | 2 | 0.06-0.35 | 25-40 | 40-100 | 365×330×1030 | 45 |
| 15 | 30-100 | 410×330×1083 | 54 | |||||||
| 10 | 30-100 | 365×330×1490 | 60 | |||||||
| FX150 | 150 | 20 | 30-45 | 8-22 | 1.5 | 0.06-0.35 | 11-20 | 30-74 | 310×265×820 | 29 |
| 15 | 30-74 | 310×265×878 | 30 | |||||||
| 10 | 30-74 | 310×265×1160 | 35 | |||||||
| FX125 | 125 | 17 | 25-40 | 8-18 | 1 | 0.06-0.35 | 8-15 | 20-100 | 260×218×620 | 10.2 |
| 8 | 20-74 | 260×218×870 | 33 | |||||||
| FX100 | 100 | 20 | 20-40 | 8-18 | 1 | 0.06-0.35 | 5-15 | 20-100 | 260×210×525 | 8.6 |
| 15 | 20-100 | 268×215×720 | 13 | |||||||
| 8 | 20-100 | 365×150×1065 | 23 | |||||||
| 5 | 20-100 | 365×150×1505 | 30 | |||||||
| FX75 | 75 | 15 | 15-22 | 6-12 | 0.6 | 0.1-0.4 | 2-5 | 20-74 | 240×230×420 | 2.2 |
| 5 | 5-40 | 240×230×778 | 4 | |||||||
| FX50 | 50 | 15 | 11-16 | 3-8 | 0.3 | 0.1-0.4 | 1-2 | 10-74 | 160×137×400 | 1.5 |
| 5 | 160×137×680 | 2.8 | ||||||||
| FX10 | 10 | 4 | 3-4 | 2-3 | 0.2 | 0.2-0.4 | 0.1-0.2 | 2-10 | 30×30×195 |
1. Our R&D team: we have our own professional research and development team;
2. Unique product prescription: Our prescription greatly improve the quality of our products;
3. Wide range of application: We have established long business relationship with many famous international companies

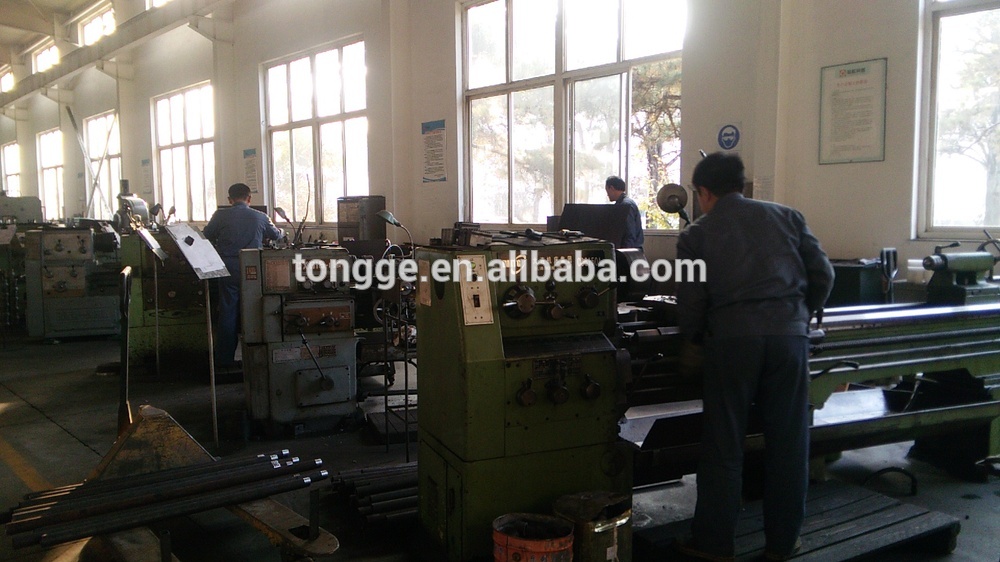

4. Production capacity: We have a big factory, so our production capacity is strong.
5. Short delivery time: All products you want can be completed within short time.
Weihai Tongge Technology Co., Ltd
Address: Weihai City Torch High-tech District Road No. 328
Phone: 0631-5662123
Fax: 0631-5662158
Web site: www.tonggepu.com
The Seller shall guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and performance as stipulated in this Contract. The Seller shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 months after acceptance protocol’s signature.
Coverage :
The warranty foresees the supply, free of charge, of the parts of the machine that get broken due to manufacturing defects.
The warranty does not cover damages and/or loss of production due to machine stops or for the bad running caused by the damage.
The warranty does not cover the time required for the arrival of the new parts.
