Wear resistant cyclone desander

The company was certified the Quality System Certification of GB/T 19001:2008-- ISO 9001:2008 Standard, ensuring the production management of international standard.

Technical Feature

  • New
  • Sprial Separator, Flotation Separator
  • Shandong, China (Mainland)
  • TONGGE
  • TG
  • 220V/380V, 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~9

PRIMARY PARAMETERS

Condition
New
Type
Sprial Separator, Flotation Separator
Place of Origin
Shandong, China (Mainland)
Brand Name
TONGGE
Model Number
TG
Voltage
220V/380V, 380V
Dimension(L*W*H)
Varies
Weight
3000kg-10000kg
Certification
ISO9001
Warranty
1 YEAR, 1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Color
As customers' request
Materials
wear-resistant polyurethane and carbon steel
Usage
classification, thickening, desliming, dewatering
Manufactor
Weihai Tongge Technology Co., Ltd
Product name
Wear resistant polyurethane cyclone desander

DETAIL DESCRIPTION

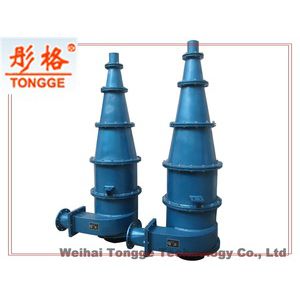

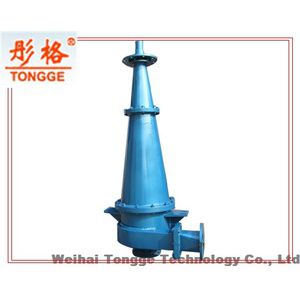

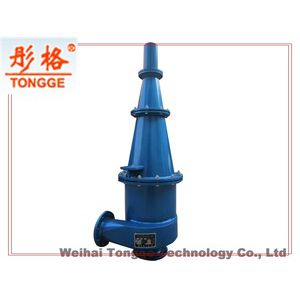

 Name:  Wear resistant polyurethane cyclone desander

Product Description

Weihai Tongge Technology Co.,Ltd established in 1992, is engaged in research, manufacture and sale of hydrocyclone and high performance polyurethane elastomer . The company was certified the Quality System Certification of GB/T 19001:2008-- ISO 9001:2008 Standard, ensuring the production management of international standard.

We pay attention to independent research and development, also cooperate with domestic relevant science and research institutes on technology.

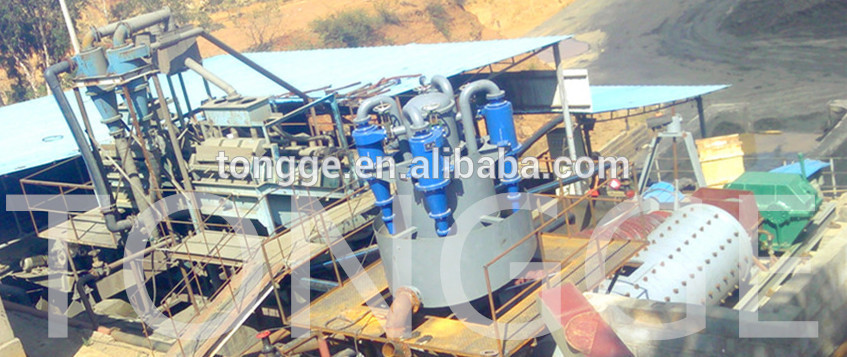

TONGGE hydrocyclone has been extensively used for closed circuit grinding and classification system , thickening, desliming, dewatering , tailings filling, damming, recovery processes in ferrous, nonferrous metal and nonmetal mine industries, and is deeply popular with customers due to high classification efficiency, simple structure, large throughput, and small occupied area.

1. Good classification effective

2. High work efficiency

3. Longer use life

4. Reasonable price and reliable quality

5. Strong technical support

6. Timely and thoughtful after-sale service

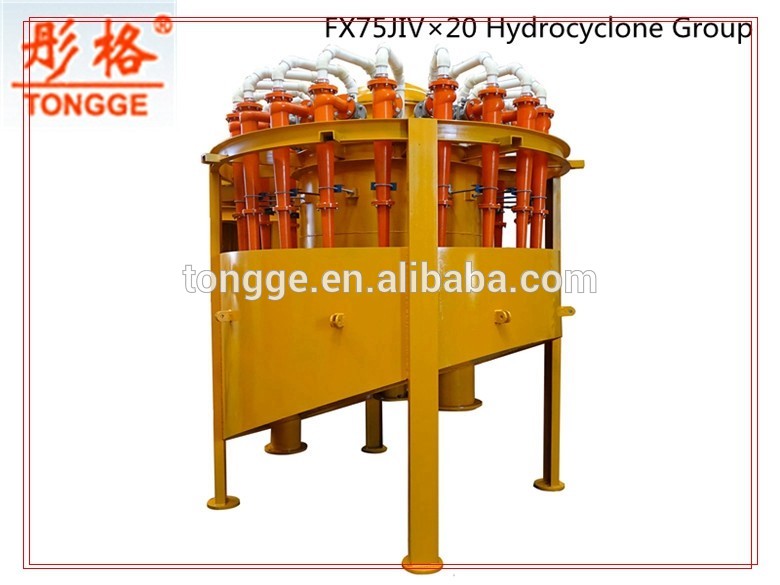

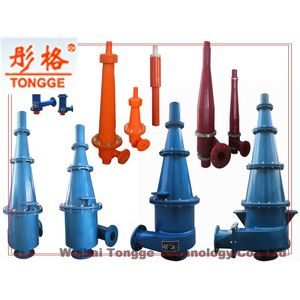

Model and Technical parameters:

ModelDiameterAngle of Cone(°)Diameter of Overflow Outlet(mm)Diameter of Spigot(mm)Max Feeding Size (mm)Inlet Pressure (Mpa)CapacitySeparation Particle Size(um)Overall DimensionUnit Weight(Kg)
(mm)(m3/h)Length(mm)Width(mm)Hight(mm)
  FX750 75045 180~290 85~175   16 0.04~0.2 400~500 74~300  1210  910 2680
FX710 71045 175~270 80~165   16 0.04~0.2 350~450 74~250  1255 1185 1040 1250
FX66066020165~25080~155160.03-0.2250~35074-220114010002920800
FX66045165~25080~155160.03-0.2250~35074-220114010002000995
FX610 61020155~230 75~14013  0.03~0.2200~300 74~220 8759502560550
FX61045155~230 75~14013  0.03~0.2200~300 74~220 875950 1810 600
FX50050020125~18555~115100.03~0.3140~22074~2008507002050380
1574~1508507002380540
 45 140~220 74-150 8508251630  430
FX3503502080~12030~7060.04~0.360~10050~1507756201765208
1550~1207756201970210
FX3003002065~11520~5050.04~0.345~8550~1504984851415105
1540~1004984851642169
FX2502502060~10016~4530.06~0.3540~6040~100410380121575
1540~100410380140573
1030~100410380178885
FX2002002040~6516~3220.06~0.3525~4040~100365330103045
1530~100410330108354
1030~100400365149060
FX1501502030~458~221.50.06~0.3511~2030~7431026582029
1530~7431026587830
1030~74310265116035
FX1251251725~408~1810.06~0.358~1520~10026021862010.2
820~7426021887033
FX1001002020~408~1810.06~0.355~1520~1002602105258.6
1520~10026821572013
820~100365150106523
 520-100365150150530
FX75751515~226~120.60.1~0.42~520~742402304202.2
55~402402307784
FX50501511~163~80.30.1~0.41~210~741601374001.5
51601376802.8
 FX10 10  4   3~4   2~3   0.20.2-0.40.1-0.22-103030195

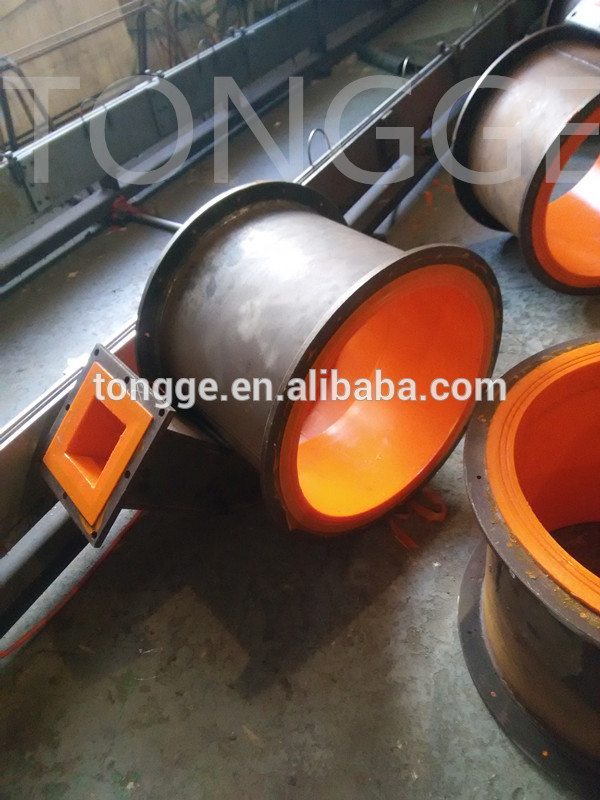

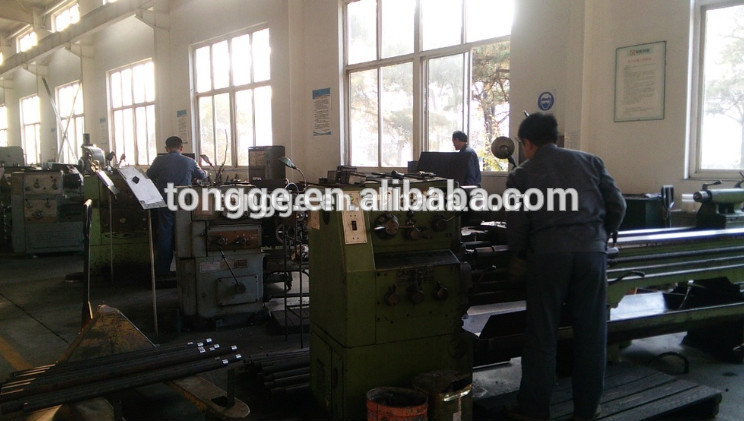

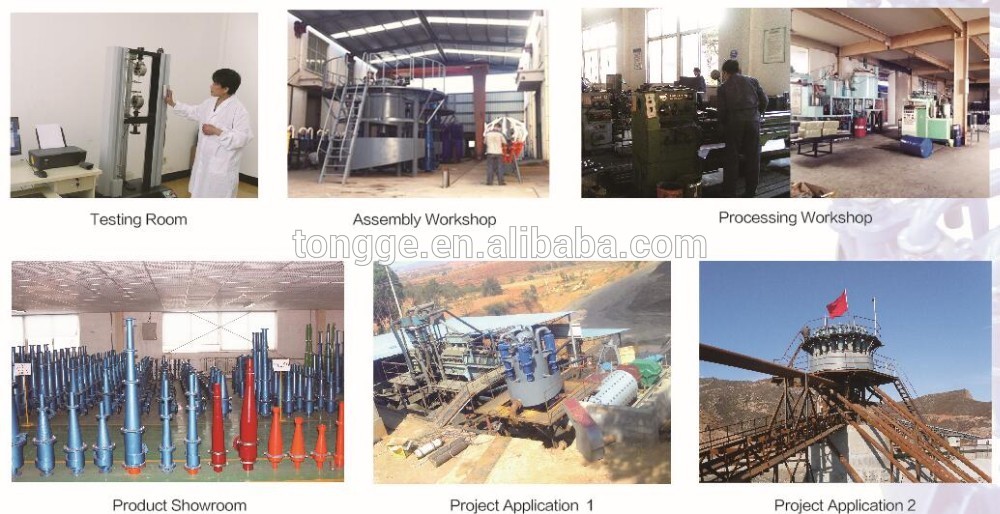

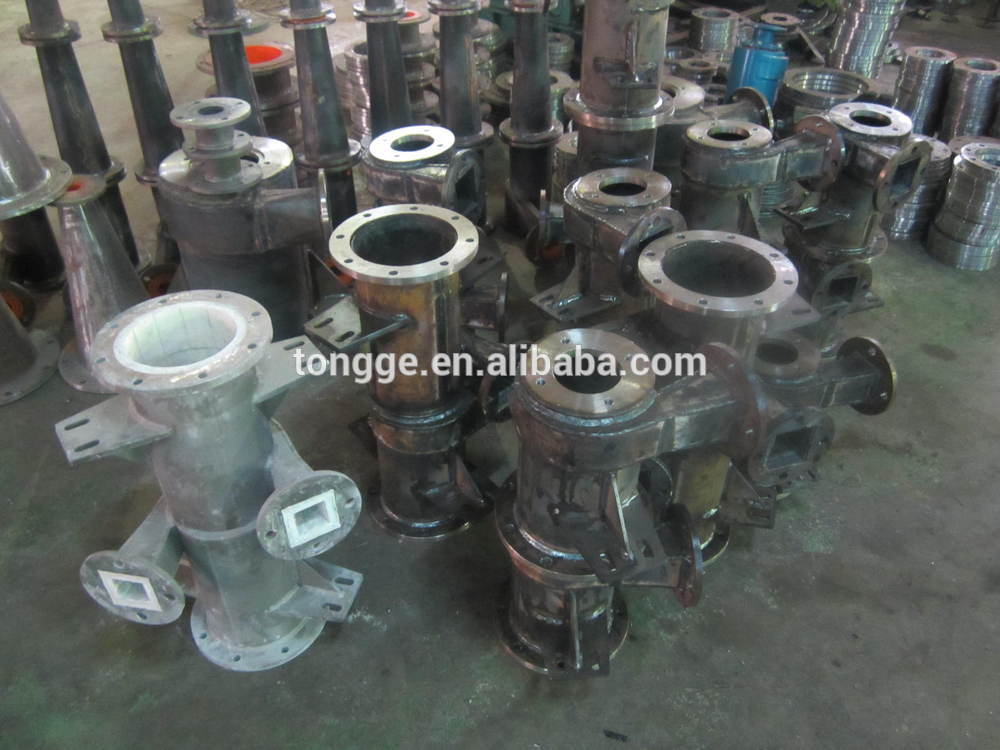

Production Flow

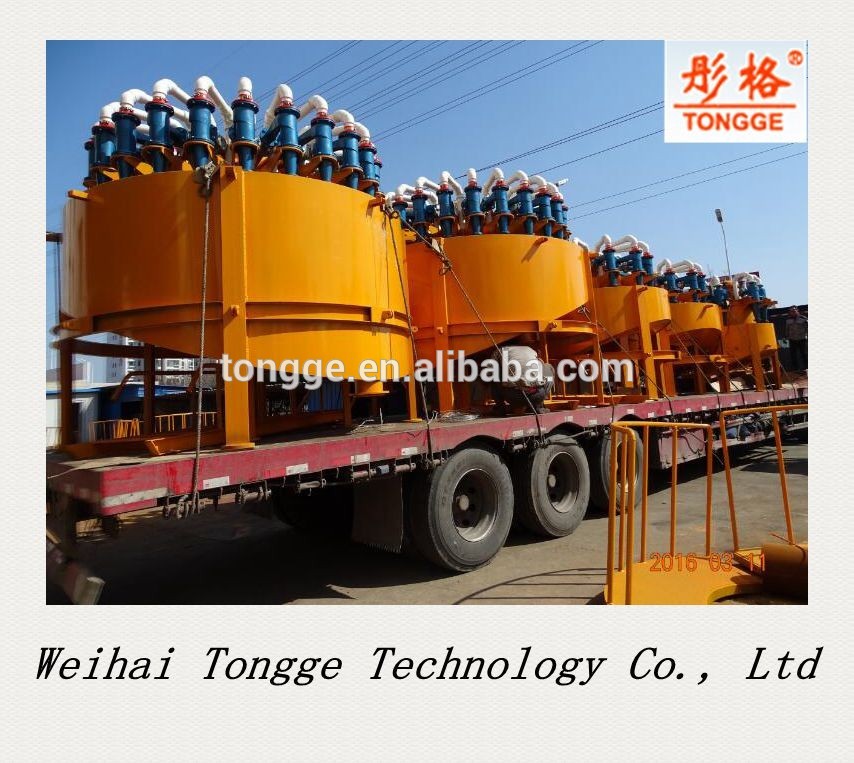

Packaging & Shipping


Our Services



1. Our R&D team: we have our own professional research and development team;

2. Unique product prescription: Our prescription greatly improve the quality of our products;

3. Wide range of application: We have established long business relationship with many famous international companies

4. Production capacity: We have a big factory, so our production capacity is strong.

5. Short delivery time: All products you want can be completed within short time.



Company Information



Weihai Tongge Technology Co., Ltd

Address: Weihai City Torch High-tech District Road No. 328

Phone: 0631-5662123

Fax: 0631-5662158

Web site: www.tonggepu.com



FAQ



The Seller shall guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and performance as stipulated in this Contract. The Seller shall guarantee that the goods, when correctly mounted and properly operated and maintained, shall give satisfactory performance for a period of 12 months after acceptance protocol’s signature.



Coverage :

The warranty foresees the supply, free of charge, of the parts of the machine that get broken due to manufacturing defects.

The warranty does not cover damages and/or loss of production due to machine stops or for the bad running caused by the damage.

The warranty does not cover the time required for the arrival of the new parts.
