XBSY Starch Separator
Product specification:

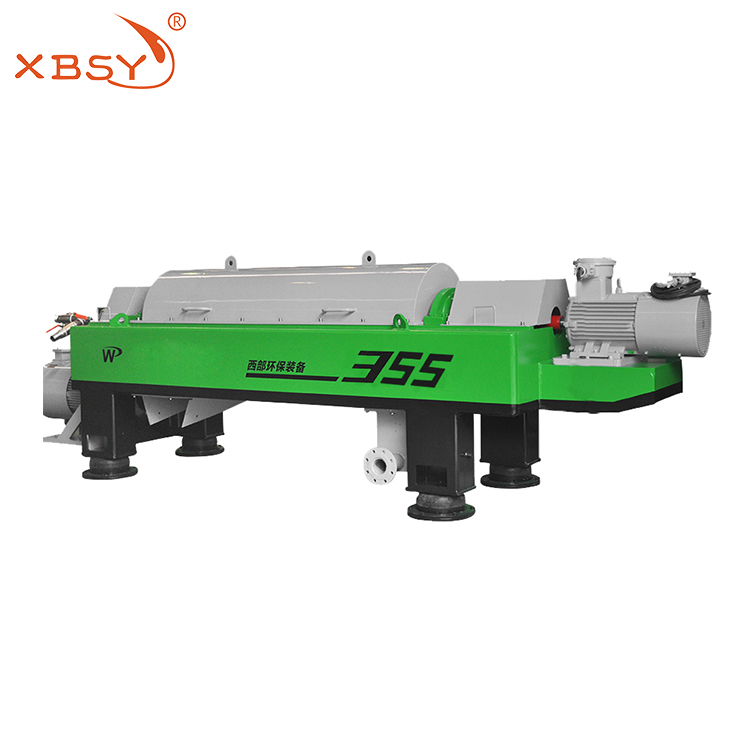

Horizontal spiral discharge sedimentation centrifuge (referred to as decanter centrifuge) is an effective separation equipment which use centrifugal acceleration generated by high-speed rotation into the acceleration of gravity to shorten thousands of times of the settlement time of solid particles than in the gravity field. The solid particles are discharged from the drum through the screw conveyor continuously and without interruption.
LW series Industry Decanter centrifuge is widely used in wastewater treatment, crude oil recovery, coal tar recovery, palm oil recovery, fruit juice production, protein production, DDGS production, starch production, food waste treatment, etc. with VFD, and PLC Control, can choose 2/3 phase separation.
Centrifuge Drum and spiral parts titanium welding with 304/316 / 316L/321 stainless steel, stale performance and long service, warmly welcomed by the customers at home and abroad.
Scope of Application
City tap water, domestic sludge dewatering;
Oil drilling mud dewatering;
Sludge Oil Recovery;
Refinery sludge concentrated dehydration;
Distiller ‘s grains dehydration;
Paper, printing and dyeing wastewater separation;
Medical sludge dewatering;
Soy protein dehydration;
Plant oil clarification and separation;
Cosmetic clarification and separation;
Bleaching powder separation.
Two phase centrifuge specification
Model | Dia mm | Ratio | Speed rpm | G force | Main Motor kW | Back Motor kW | Capacity m3/h | Weight kg | Dimension (L×W×H)mm |
LW250×1025B | 250 | 4.1 | 5000 | 3500 | 7.5~11 | 3~4 | 1~3 | 1150 | 2300×750×1100 |
LW350×1435B | 350 | 4.1 | 4000 | 3136 | 15~22 | 4~5.5 | 3~6 | 2500 | 3400×900×1400 |
LW450×1845B | 450 | 4.1 | 3800 | 3640 | 30~37 | 7.5~11 | 6~10 | 4000 | 4500×1000×1400 |
LW500×2050B | 500 | 4.1 | 3500 | 3430 | 45~55 | 7.5~11 | 8~12 | 5000 | 4900×1200×1470 |
LW530×2173B | 530 | 4.1 | 3300 | 3232 | 55~75 | 11~18.5 | 10~15 | 5600 | 5100×1250×1500 |
LW585×2400B | 580 | 4.1 | 3000 | 2948 | 75~90 | 15~18.5 | 15~20 | 6500 | 5300×1300×1750 |
LW630×2583B | 630 | 4.1 | 3100 | 3390 | 90~110 | 18.5~22 | 30~45 | 7800 | 5100×1550×1400 |
LW720×2950B | 720 | 4.1 | 2200 | 1951 | 110~160 | 22~30 | 70~120 | 9000 | 6000×3250×1500 |
High-Performance B type Three Phase Centrifuge Specification
Model | Dia mm | Ratio | Speed rpm | G force | Main Motor kW | Back Motor kW | Capacity m3/h | Weight kg | Dimension (L×W×H)mm |
LWS250×1025B | 250 | 4.1 | 5000 | 3500 | 7.5~11 | 3~4 | 1~3 | 1150 | 2300×750×1100 |
LWS350×1435B | 350 | 4.1 | 4000 | 3136 | 15~22 | 4~5.5 | 3~6 | 2500 | 3400×900×1400 |
LWS450×1845B | 450 | 4.1 | 3800 | 3640 | 30~37 | 7.5~11 | 6~10 | 4000 | 4500×1000×1400 |
LWS500×2050B | 500 | 4.1 | 3500 | 3430 | 45~55 | 7.5~11 | 8~12 | 5000 | 4900×1200×1470 |
LWS530×2173B | 530 | 4.1 | 3300 | 3232 | 55~75 | 11~18.5 | 10~15 | 5600 | 5100×1250×1500 |
LWS585×2400B | 580 | 4.1 | 3000 | 2948 | 75~90 | 15~18.5 | 15~20 | 6500 | 5300×1300×1750 |
LWS630×2583B | 630 | 4.1 | 3000 | 3175 | 90~110 | 30 | 30~40 | 7800 | 5100×1550×1400 |
