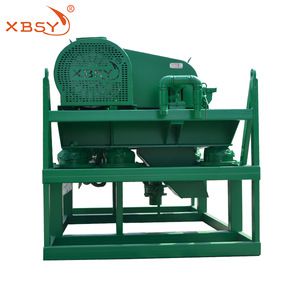

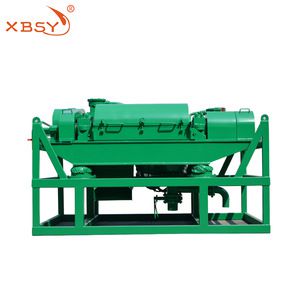

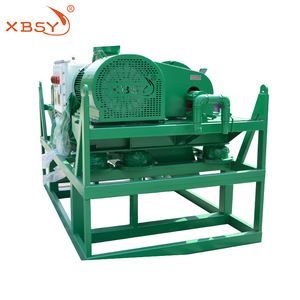

horizontal drilling fluid decanting centrifugal separator

sets are widely used in overseas market including United States, Russia, South America, Middle Asia and Middle East.

Technical Feature

New

Centrifuge

solid control

Sichuan, China (Mainland)

XBSY

Send Standard Inquiry

Add Inquiry List

$30~50

PRIMARY PARAMETERS

Condition

New

Type

Centrifuge

Product Type

solid control

Place of Origin

Sichuan, China (Mainland)

Brand Name

XBSY

Model Number

Voltage

380V or 460V

Power(W)

50Hz or 60Hz

Weight

3300kg

Dimension(L*W*H)

3000x1476x1620mm

Certification

BV or ISO

Warranty

one year

After-sales Service Provided

Engineers available to service machinery overseas

Model

LW355X1257

speed

adjustable

operation

easy and simple

repair and maintenance

low cost

DETAIL DESCRIPTION

Drilling mud decanter centrifuge used in wastewater treatment

1. Over 400 sets are widely used in overseas market including United States, Russia, South America, Middle Asia and Middle East.

2. With 7 patents given including a special controller for flow ajustment

3. Centrifuge Bowl and screw conveyor are made of stainless steel (No. 304) for high resistance to wearing and erosion.

4. Screw conveyor are bonded with hard alloy blocks that improves the service life up to 5 years..

5. Max through capacity up to 80 m³/h (SG<1.1)

6. It is a large-displacement model with high rev. and large treatment volume developed by us and a unique model among domestic petroleum drilling fluid-purpose centrifuges.

Technical spec.	Unit	Rate freq. LW355×1257-N	Variable freq. LW355×1257BP-N
Inner diameter of bowl	mm	355
Active length of bowl	mm	1257
Max. rotation speed of bowl	r/min	3400
Active rotation of bowl	r/min	2800	3000	≤3200
G-force		1558	1789	≤2035
Differential speed of conveyor	r/min	27 - 52	≤60
Max. throughput (SG<1.1)	m³/h	22-30	36
Main motor	Model		YB200L-4
Rated power	kW	30
Rated speed	r/min	1470
Accessorial motor	Model		YB160L-6
Rated power	kW	7.5
Rated speed	r/min	970
Feed pump model		Centrifugal pump LSB23J, SB23J or screw pump
Dimension	length	mm	3000
width	1476
height	1620
Weightincluding the feed pump	kg	3300	Including control cabinet
