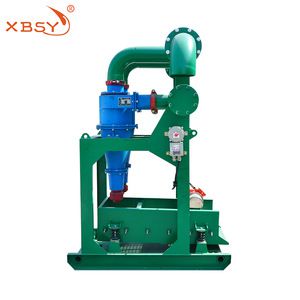

XBSY API Cyclone Desander Slurry Mud Separation

The production can be widely applied in the triple-process cleanse of the drilling fluid and when it is used efficiently, it can effectively clear the suspended solid-phase granules with more than 30 microns in the drilling fluid.

Technical Feature

  • New
  • Sprial Separator
  • 200-240 m3/h
  • Sichuan, China (Mainland)
  • XBSY
  • CSS
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~8

PRIMARY PARAMETERS

Condition
New
Type
Sprial Separator
Production Capacity
200-240 m3/h
Place of Origin
Sichuan, China (Mainland)
Brand Name
XBSY
Model Number
CSS
Voltage
380V
Power(W)
1.5 kw
Dimension(L*W*H)
1510X1625X2315 mm
Weight
1050kg
Certification
API
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Work pressure
0.2-0.45 Mpa
Capacity
200-240 m3/h
Type of mesh
150-200 mesh
Motor power
1.5 kw
Separate particle
30-74 micron

DETAIL DESCRIPTION

XBSY API Cyclone Desander Slurry Mud Separation

Product Description





Product Specification:

The production can be widely applied in the triple-process cleanse of the drilling fluid and when it is used efficiently, it can effectively clear the suspended solid-phase granules with more than 30 microns in the drilling fluid. It is one indispensable device for stabilizing and adjusting the drilling fluid technical parameters and suitable for those drillers as ZJ70, ZJ50 and ZJ40. It can be used together with the sealed circulatory system of the drilling fluid.



Type of Qty of cyclon mixer

DN300X12(or)DN250X2

Work pressure

0.2-0.45 Mpa

Capacity

200-240 m3/h

Type of screen

150-220 mesh

Motor power

1.5 kw

Separate particle

30-74 micron
