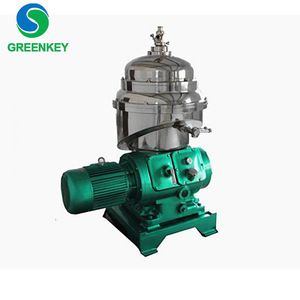

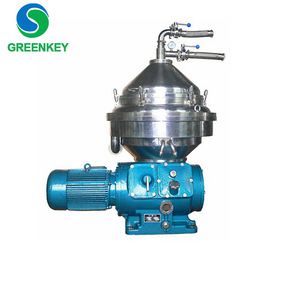

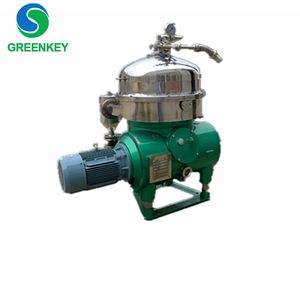

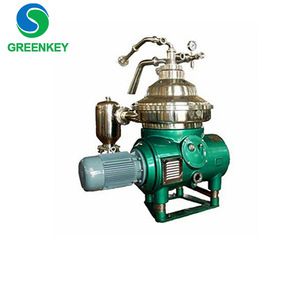

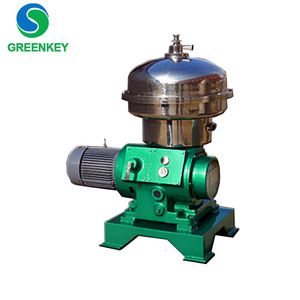

Description:

They are specially designed for extremely demanding separation jobs. The key features of separator centrifuge is it can  handle high flow rates, high solid content and high-temperature process. These functions make the centrifuge separator as the ideal choice to handle the tough conditions encountered in the animal and fish processing, or heavy oil industries, etc.

In addition, our centrifuge separator combines a high G-force from 6500 to 9800, high sludge capabilities and automated operation. The centrifuge bowl can be made by Super Duplex stainless or normal SS304, which makes it possible to combine extremely high erosion resistance with very high bowl speed for demanding separation duty.

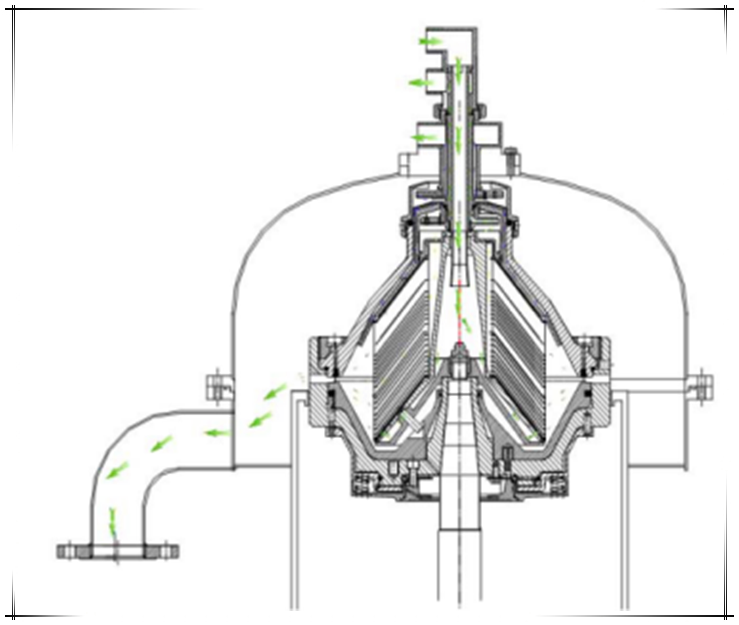

The centrifuge separator is designed for intermittent discharge of solids, while separating two intermixed and mutually insoluble liquid phases of different densities. In different optimized executions, it is used for a large number of duties, from handing separation of fish press liquid, stick water and extract, and on the other hand purification of fish oil and olive oil, animal fats, peel oil and similar oil products.

Basic equipment

Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.

Optional extras

      Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status

Specification:

Material:

Bowl body , hood and locking ring S.S304

Solids cover and frame hood S.S

Frame bottom parts green cast iron ,

Inlet and outlet parts S.S

Gasket and o-ring Nitrile rubbe

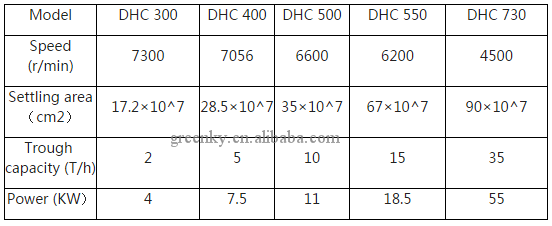

Datas:

Application:

Disc centrifuge is widely used in pharmaceutical, food, chemical, biological products, beverage products, biodiesel, corn oil, peanut oil, palm oil, coconut oil, fish oil, lard, chicken fat, butter, vegetable juice, plant and herbal extracts, waste oil purification, tea seeds, peanuts, angelica oil, seaweed industry and etc.

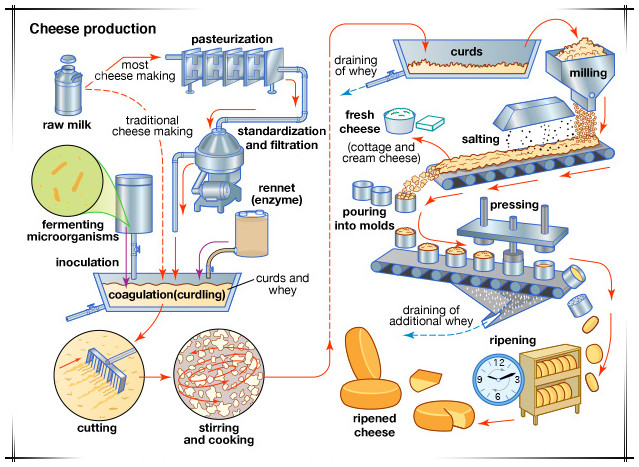

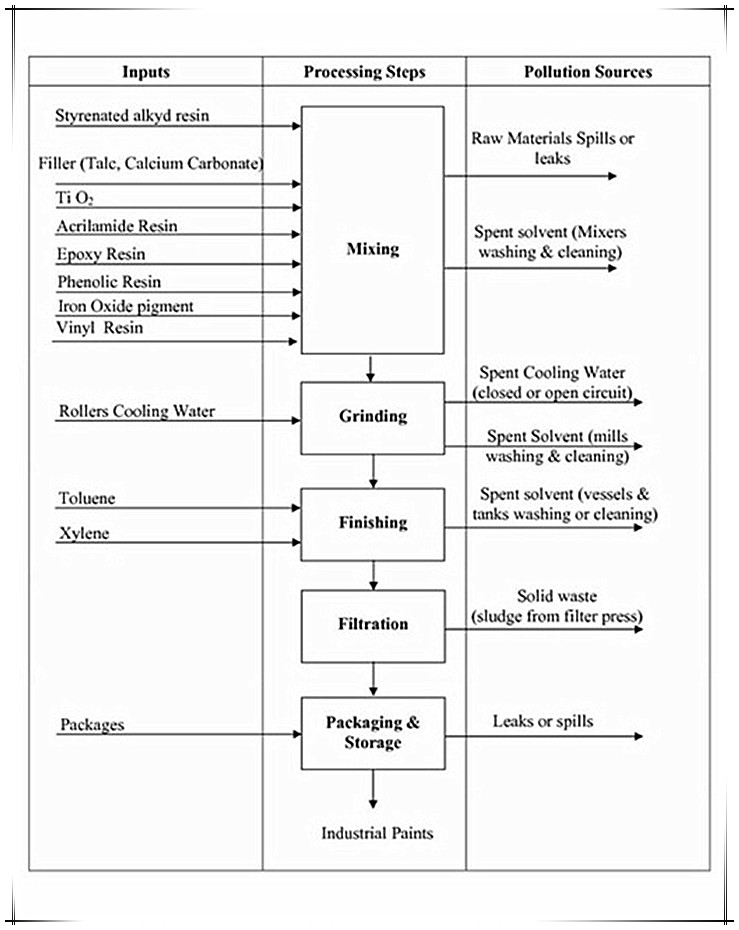

The following pictures are disc centrifuges applied in cheese production, ink production, and white sugar production.

About us

GREENKEY was founded in 1970, in 1980 GREENKEY started to specialize in the production of environmentally friendly water treatment equipment and there was a joint venture between GREENKEY and the U.S. company-Westech (Western technology) in 2015. GREENKEY is the former State Ministry of Construction, the Ministry of Machinery Industry sentinel production of environmentally friendly water treatment machinery and equipment of professional manufacturer. Executive director unit of China Environmental Protection Industry Association, Vice chairman unit of Henan Industrial Association. In 1996 the State Environmental Protection Administration awarded the "advanced enterprise" and "advanced science and technology enterprises". China's environmental protection industry backbone enterprises for 15 consecutive years (2000--2015), National High-Tech Enterprise, ISO9001 quality system certification enterprise, ISO14001 environmental system certification enterprise, OHSAS18001 health system certification enterprise, Henan “respect the contract and keep promise” enterprise, National "AAA" credit-class enterprise, Henan quality integrity AAA enterprise, the top ten environmental protection enterprise in Henan Province, Henan Province focus on nurturing equipment manufacturing enterprise, Henan famous brand. Henan water treatment equipment engineering technology research center is located in GREENKEY.
Our head office is located in central China's electricity business port in Zhengzhou city, Henan province and has excellent office conditions. Company currently employees 1550 staffs (including branch) which has 165 senior technical staffs and 332 intermediate technical staffs.

1. All-around Pre-sale Technical Support
2. Strict Quality Control Manufacturing
3. Professional In the sale of Services
4. Professional After-Sales Service Team: Six Experienced Engineers, The Equipment Is Expanding
5. Installation Support: we can organize engineers to install the machines in factorys of the client,
6. Maintenance: Response will be given within 24 hours once customers tell us any past a malfunction, we can also arrange engineers to your factory to maintain the machines.

Honor certificates:

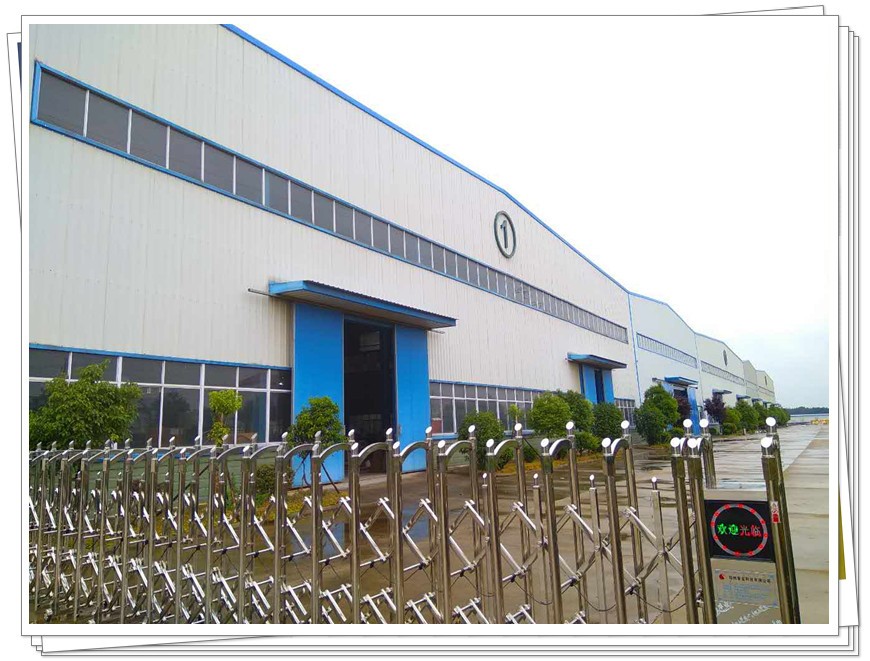

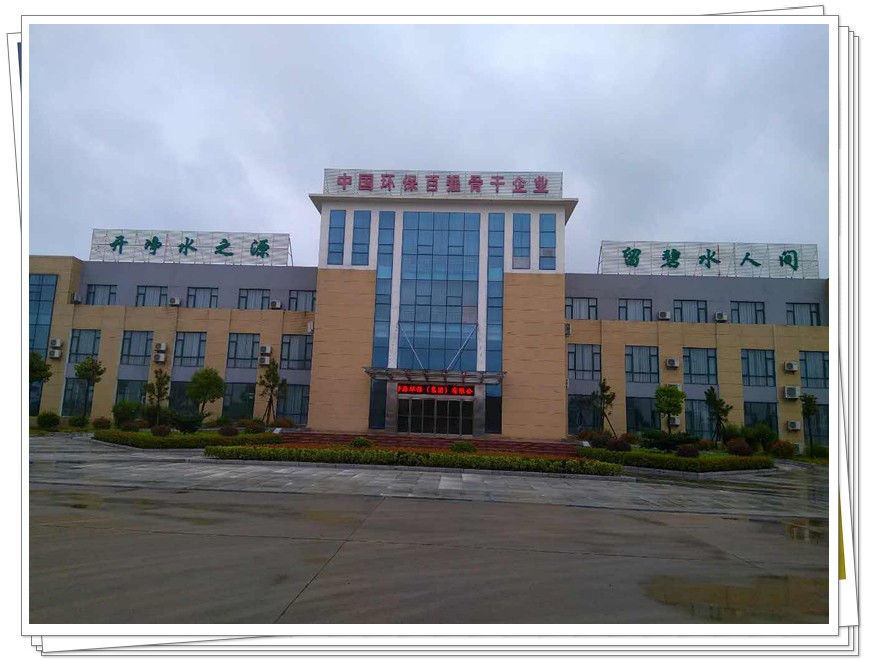

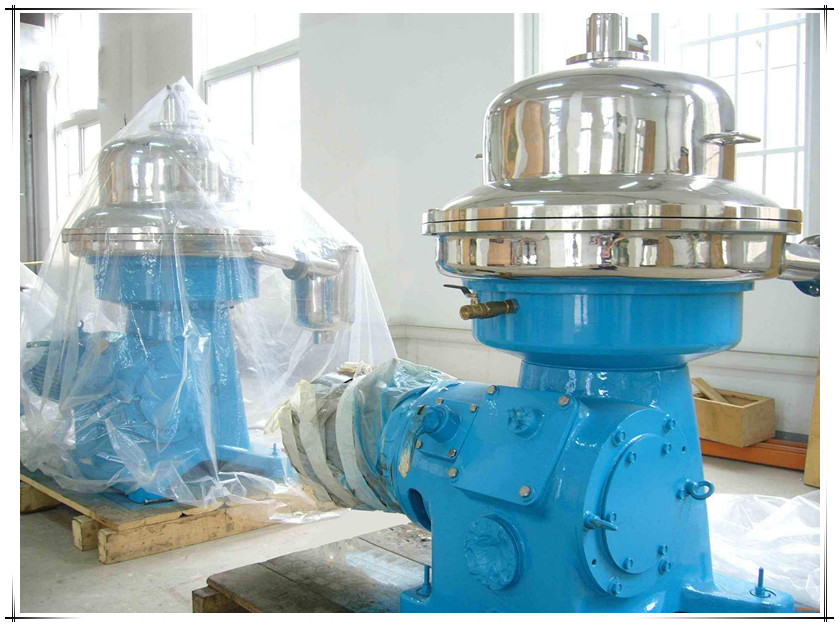

Factory scan:
