ion exchange resin system for Water Treatment

Product description

Ion exchanger is also known as the sodium softener, water softener. It uses cation resin for raw water softening. The main purpose is to let the cation resin adsorb the calcium and magnesium ions (the main component of scale forming) aim to reduce water hardness, and can carry out intelligent resin regeneration, recycling use.

Working condition

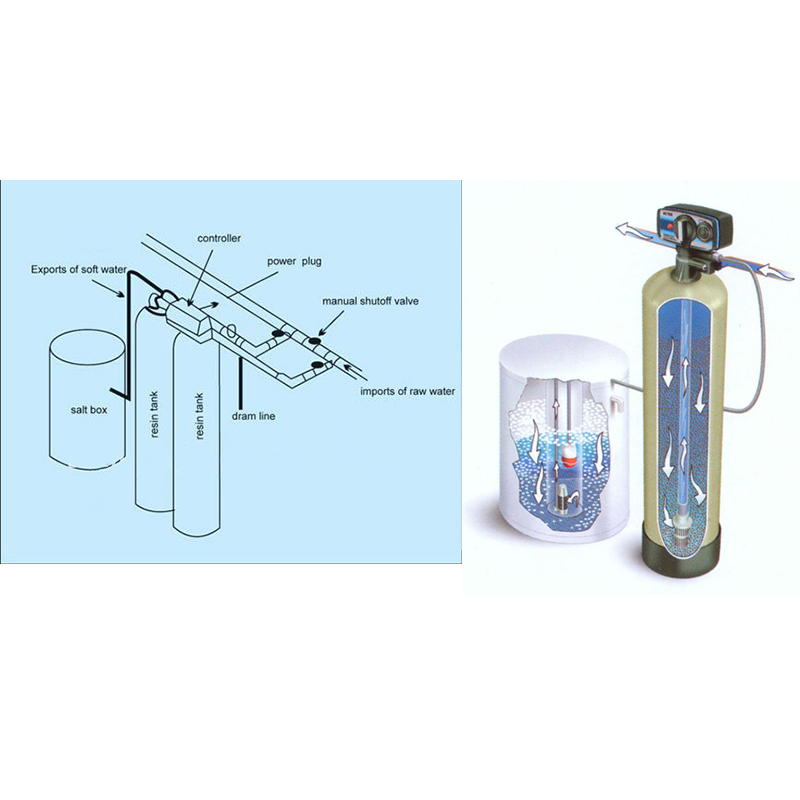

An automatic ion exchanger consists of a multi-outlet control valve, a controller, a resin tank and a salt tank. The multi-outlet control valve operates automatically switches of several valves under the instruction of the controller. In this way no change for salt liquid pumps is needed in the whole working, bachwashing, exchanging and washing process

Three sets to be choosen

One valve+one tank (for discontinuous water supply)

Including a exchanging tank, a controlling valve and a salt tank. The set has to stop operating for 2 hours during regeneration and is suitable for discontinuous water supply. An extra water tank is needed for continuous water supply.

One valve+two tanks (for continuous water supply)

Including two exchanging tanks, a controlling valve and a salt tank. One exchanging tank stops operating for regeneration after producing required water while another tank begins operating. This set is suitable for continuous water supply.

Two valves+two tanks (for continuous and large amount of water supply)

Including two exchanging tanks, two controlling valves and two salt tanks. One exchanging tank stops operating for regeneration after producing required water while another tank begins operating. Then the first exchanging tank resumes operation after finishing regeneration. At the same time, the second exchanging tank began regeneration. In this way two tanks supply water at the same time. This set is suitable for continuous and large amout of water supply.

Parameter

Raw water temperature: 5℃~50℃

Raw water pressure:0.2~0.6MPa

Raw water hardness: ≤6mmol/L

Produced water hardness: 0.03mmol/L

Power consumption:10~40W

Voltage: 220v/50Hz

Salt consumption: <100g

Application

(1)Water treatment - ion exchange equipment

(2)Food Industry

(3)Pharmaceutical industry

(4)Synthetic chemistry and petrochemical industry

(5)Environmental protection

(6)Wet metallurgy and others

Our service

Service and Advantage:

♦ Sales service time: 24 hours for one day, 5 days for one week to supply completely service for you any time.

♦ Warranty time: 12 months.

Delivery Service :

♦ Export standard , safety and environmental packing,

  Quick lead time for mass production.

Payment Terms Service:

♦ T/T, Western Union, L/C.

Technical Service:
♦ Professional Engineering supplies technical supporting.

Quality Service:

♦ 100% quality testing for every finished products before delivery;

♦ Professional function testing for every process.

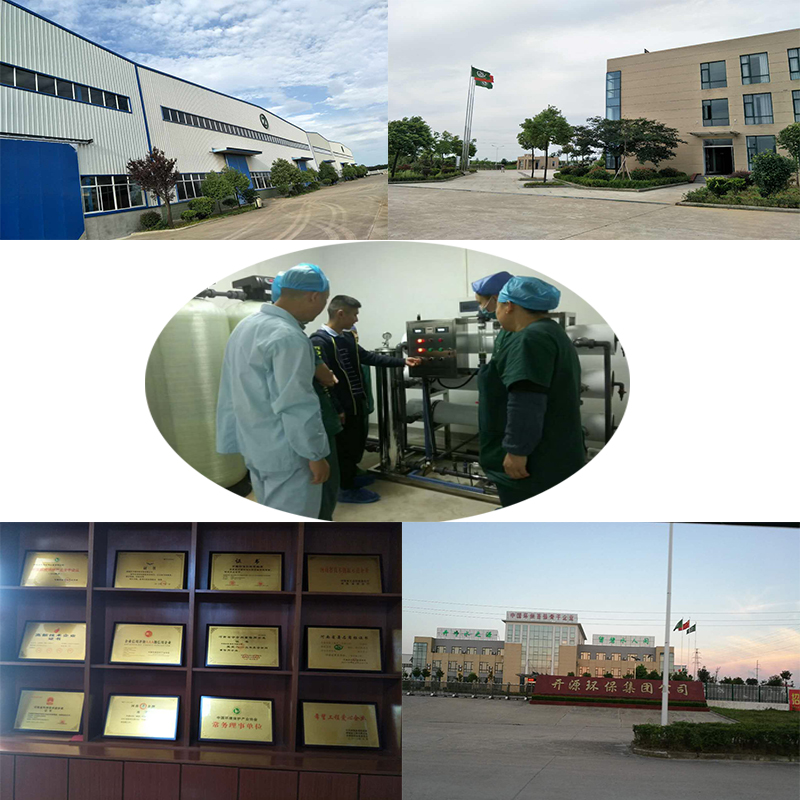

About us

GRKY was founded in 1970, in 1980 GRKY started to specialize in the production of environmentally friendly water treatment equipment and there was a joint venture between GRKY and the U.S. company-Westech (Western technology) in 2015. GRKY is the former State Ministry of Construction, the Ministry of Machinery Industry sentinel production of environmentally friendly water treatment machinery and equipment of professional manufacturer. Executive director unit of China Environmental Protection Industry Association, Vice chairman unit of Henan Industrial Association. In 1996 the State Environmental Protection Administration awarded the "advanced enterprise" and "advanced science and technology enterprises". China's environmental protection industry backbone enterprises for 15 consecutive years (2000--2015), National High-Tech Enterprise, ISO9001 quality system certification enterprise, ISO14001 environmental system certification enterprise, OHSAS18001 health system certification enterprise, Henan “respect the contract and keep promise” enterprise, National "AAA" credit-class enterprise, Henan quality integrity AAA enterprise, the top ten environmental protection enterprise in Henan Province, Henan Province focus on nurturing equipment manufacturing enterprise, Henan famous brand. Henan water treatment equipment engineering technology research center is located in GRKY.
