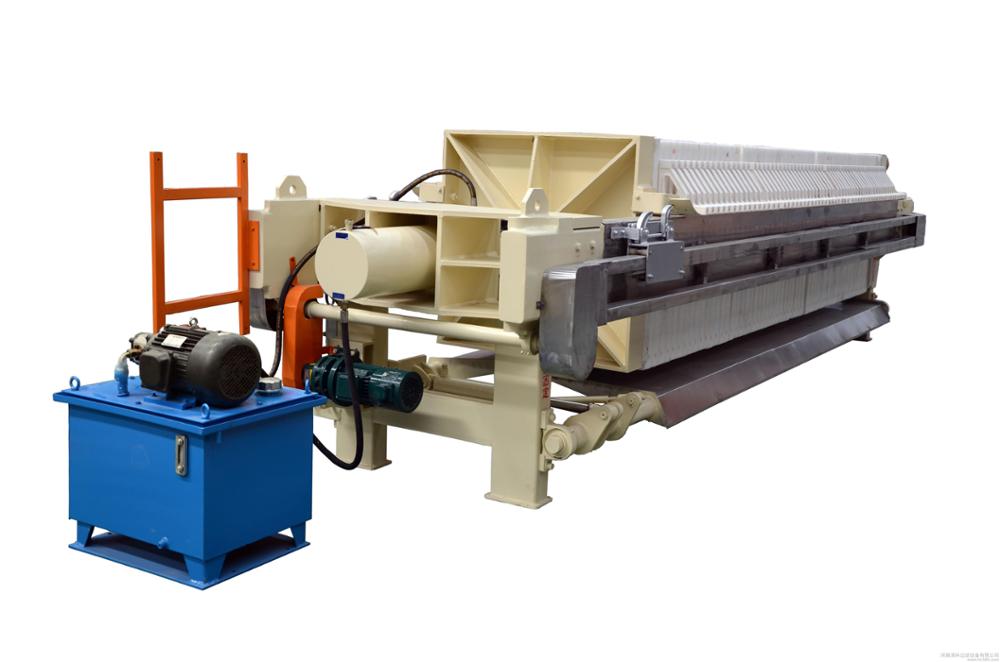

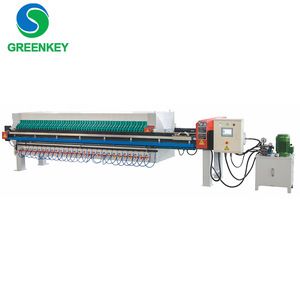

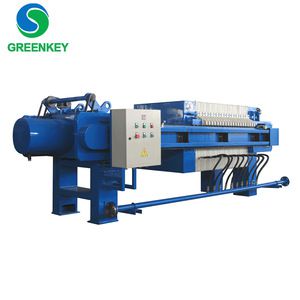

Municipal sewage treatment full automatic sludge dewatering press membrane filter press

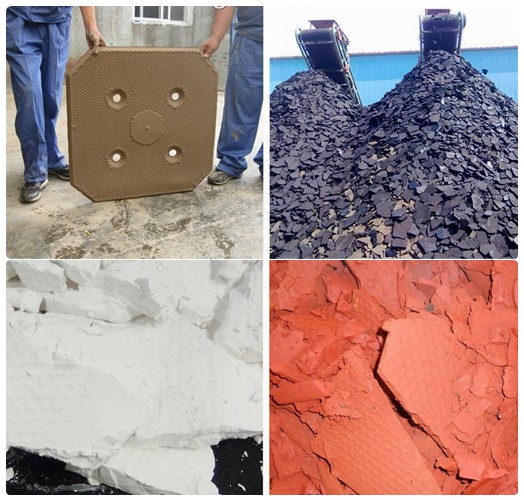

Membrane filter press plates consists of membrane plate and chamber plate. Slurry is sent to the filter chamber by feeding pump. Liquid passes through the filter cloth and discharges, leaving solid behind to form cakes. Then the air will be pressed to the chamber for second squeezing, which make the moisture content more lower than normally filter press.

Our plates of membrane filter press adopt high quality PP, which are non-toxic, with good flexibility, smooth operation in high pressure. The inner part of membrane plates are hollow, which are made and pressed by high pressure and high temperature machines. The feature of membrane filter press are second compression. When the primary compression is over, the air will be feed in through the middle hole of the plates, which make each hollow plates expand, thus the material between the plates would be second compressed. And the air also helps the liquid oil fall out to drain.

Advantages of hydraulic membrane filter press:

1. Twice squeezing make low moisture cake

2. PLC control realizes fully auto operation: auto pressing, pressure maintenance, filtering, blowing, squeezing and cake discharging

3. More pure and clear filtrate

4. Long service life

5. Acid an Alkaline resistance

6. Shorter filtration circle, more efficient and energy saving.

Material of membrane filter press

1. The material of frame is Q235B, which has high tensile strength, it makes our filter press operation more safe and stable.

2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.

3. The main beam of hydraulic membrane filter press is designed by adopting welded box construction, and manufactured

by making use of submerged arc auto welding technology.

4. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale.

5. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion.

6. Membrane plate are made of strengthened PP&TPE through mold pressing, it is characterized with the feature of light weight, easy operation, acid and alkali resistance, high temperature and high pressure resistance.

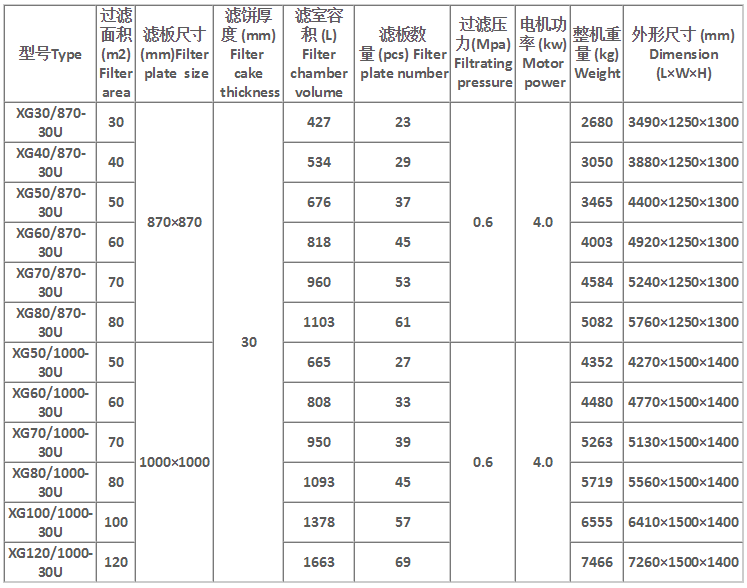

Technical parameter:

Application

(1) Chemical: Coating, paint, silica, caustic soda, soda ash etc.
(2)Foods:Vegetable oil, glucose, starch sugar, plant sweet, maltose, starch etc.
(3)Sewage:Municipal wastewater,Printing and dyeing wastewater, leather, pharmacy,electroplating wastewater,electrolysis etc.
(4) Metallurgy, coal:Gold, silver, copper, zinc ore mineral powder, etc

After sale serivce

1. After-sale Service Team: Six Experienced engineers, the team is expanding

2. Installation: We can arrange engineers to install machines in customer's factorys

3. Maintenance: Reply will be given within 48 hours once customer tell us any malfunction happened, we can also arrange engineers to your factory to maintain machines.

4. Training: We can train in customers' factory& our factory, training in our factory is for free.

5. Warranty: One year since the date og delivery. If there is any wearing part be broken within the warranty and isn't caused by improperly operation, we would offer the new parts for free.
