Specifications

Reyes-Tech Centrifuge Separator can apply to various industry with high quality and stable performance.

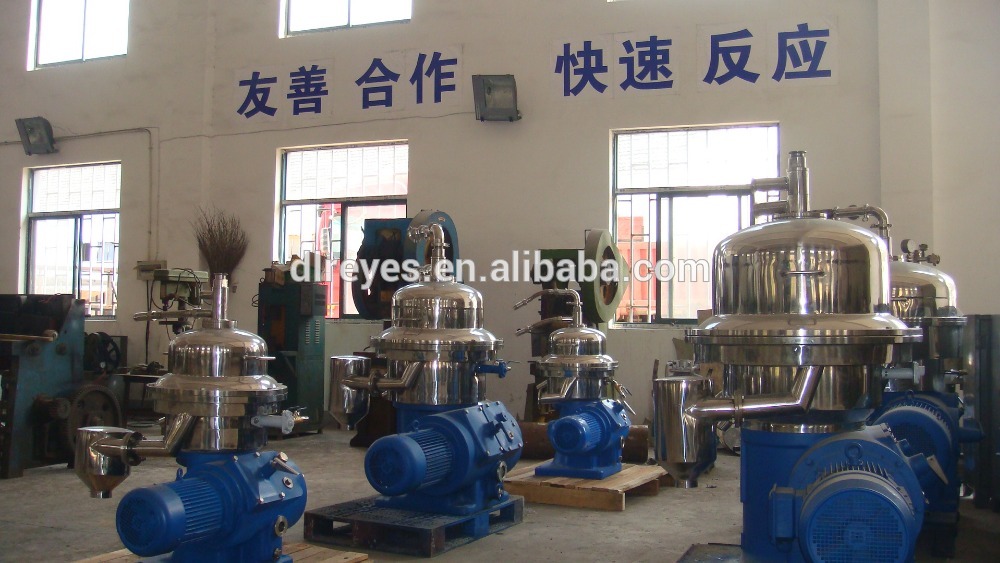

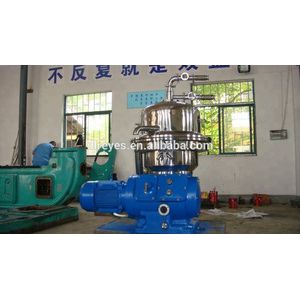

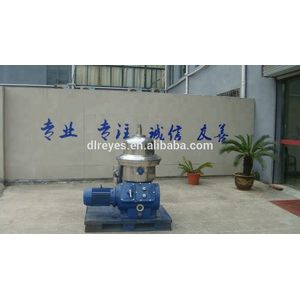

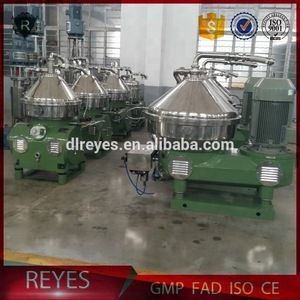

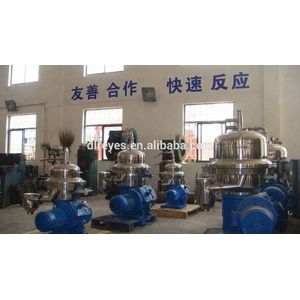

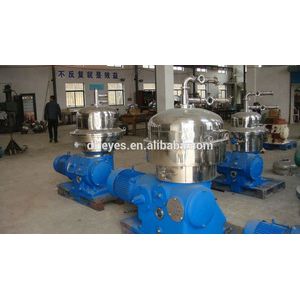

Disc Stack Centrifuge Series :

Reyes separator centrifuge were specially and professional designed for extremely demanding separation jobs. Key features of Reyes separator centrifuge are its ability to handle high flow rates, high solid content and high-termperature process.

These functions make the centrifuge separator as the ideal choice to handle the tough conditions encountered in the animal and fish processing industries.

In addition , the Reyes centrifuge separator combines a high G-force from 6500 to 9800 , high sludge capabilities and automated operation. The centrifuge bowl can be made by Super Duplex stainless or normal Sus304, which makes it possible to combine extremely high erosion resistance with very high bowl speed for demanding separation duty.

Application

The Reyes Centrifuge separator is designed for intermittent discharge of solids , while separating two intermixed and mutually insoluble liquid phases of different densities. In different optimized executions it is used for a large number of duties, from handing separation of fish press liquid , stick water and extract, and on the other hand purification of fish oil and liver oil , animal fats , peel oil and similar oil products.

Performance


The actual throughputs depend on variables such as the amount and type of solid , the temperature , viscosity and degree of separation required. The following figures indicate the rate of performance, although no guarantees are given.

Reyes Centrifuge Separator representatives or sale man will be please to provide you with further information and details.

Standard design


The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear , lubricating oil bath and vertical bowl spindle in the lower part.

The bowl is mounted on top of the spindle in the lower part. The bowl is mounted on top of the spindle , inside the space formed by the upper parts of the frame , the ring solid cover, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable frequency drive type or of controlled-torque type.

Basic equipment


Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.

Optional extras


Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status

Material data


Bowl body , hood and locking ring S.S304

Solids cover and frame hood S.S

Frame bottom parts green cast iron , cald with

In and outlet parts S.S

Gasket and o-ring Nitrile rubber

Centrifuge Main Parameter:
