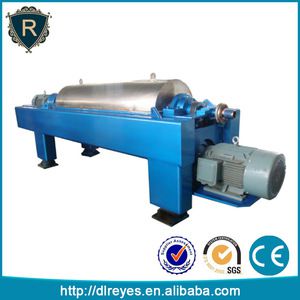

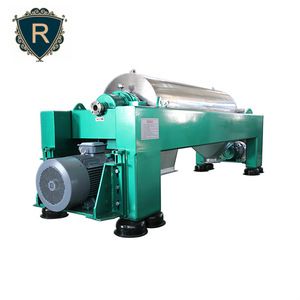

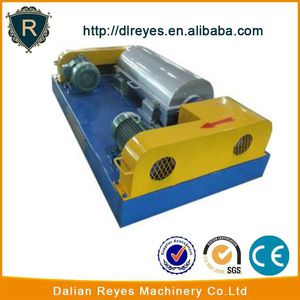

Decanter centrifuge Features:
The decanter centrifuge can be adjusted to suit individual requirements by varying:
1. Decanter centrifuge bowl speed to ensure the exact relative centrifugal force required for optimized separation.
2. Decanter centrifuge differential speed, for optimized balance between liquid clarity and solids discharge capacity.
3. Decanter centrifuge pond depth in the bowl for optimized balance between liquid clarity and solid dryness.
Decanter centrifuge Application:
Decanter centrifuge is widely used in industries as municipal and industrial waste water treatment, food processing, pharmaceuticals and chemicals, etc.
1. Decanter centrifuge solid phase dehydration: dehydration effect for processing materials of solid particles.
2. Decanter centrifuge particle size classification: used in the removal of material of large diameter solid particles.
3. Decanter centrifuge liquid clarification: used for removing solid particles in the suspension liquid are clarified.
Working Principl of the decanter centrifuge:

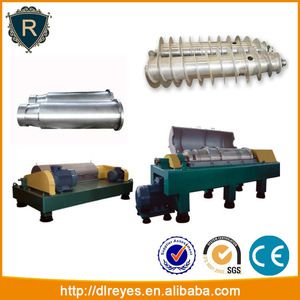

Decanter centrifuge separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor. The processing material is fed into the bowl through a stationery inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.
Decanter centrifuge Technical Parameters:
Model | Diameter | Max. Speed | Separation Factor | Capacity (M3/H) | Power | Weight (kg) | Overall Size |
LW250×1000 | 250 | 5400 | 4080 | 2-10 | 11-15 | 1000 | 2600×760×1115 |
LW300×700 | 250 | 4600 | 3553 | 2-10 | 11-15 | 1120 | 2335×814×1170 |
LW300×1000 | 300 | 4600 | 3553 | 2-10 | 11-18.5 | 1380 | 2635×814×1170 |
LW350×1000 | 350 | 4200 | 3450 | 2-18 | 15-30 | 1950 | 2712×872×1244 |
LW350×1320 | 350 | 4200 | 3450 | 3-22 | 22-30 | 2200 | 3012×872×1244 |
LW350×1550 | 350 | 4200 | 3450 | 2-18 | 15-30 | 1950 | 2800×1380×850 |
LW430×1320 | 430 | 4000 | 3845 | 4-28 | 22-37 | 2500 | 3120×940×1320 |
LW430×1600 | 430 | 4000 | 3845 | 4-28 | 22-37 | 2500 | 3000×1500×1000 |
LW430×1800 | 430 | 4000 | 3845 | 4-28 | 22-37 | 2950 | 3600×940×1320 |
LW480×1800 | 480 | 3650 | 3580 | 6-35 | 37-45 | 4550 | 3650×1010×1396 |
LW480×2000 | 480 | 3650 | 3580 | 8-40 | 45-55 | 5050 | 3850×1010×1396 |
LW500×2000 | 500 | 3500 | 3423 | 8-40 | 45-55 | 5800 | 4150×1380×1558 |
LW530×2120 | 530 | 3500 | 3630 | 10-50 | 45-75 | 7200 | 4270×1380×1558 |
LW530×2200 | 530 | 3500 | 3630 | 10-50 | 45-75 | 7200 | 3800×2350×1200 |
LW580×2120 | 580 | 3000 | 29180 | 12-55 | 55-75 | 7800 | 4290×1450×1638 |
LW650×2400 | 650 | 2800 | 29180 | 15-60 | 75-90 | 8300 | 4330×1560×1768 |

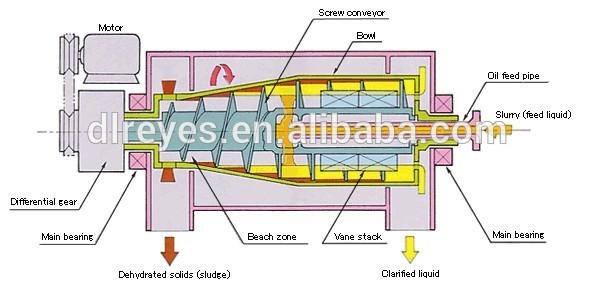

Decanter centrifuge Structural drawings

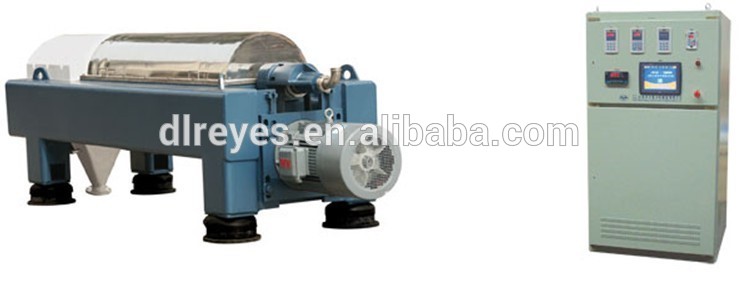

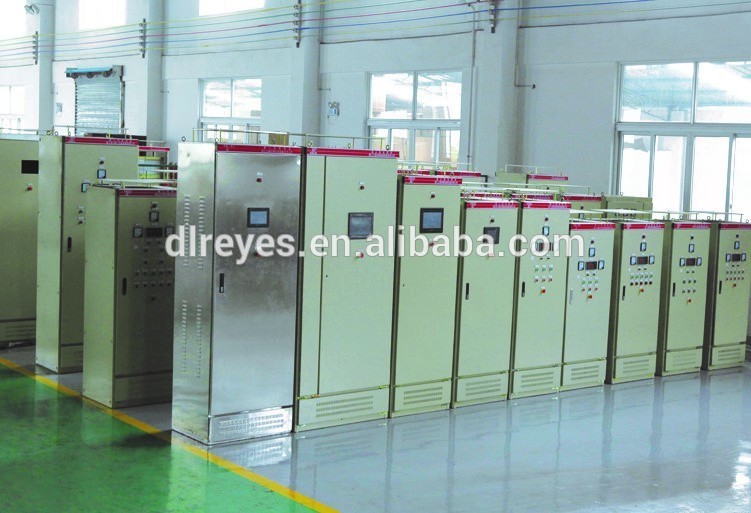

Decanter centrifuge Electric control cabine
decanter centrifuge Main application field

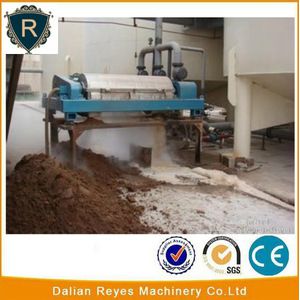

sewage treatment starch Chinese traditional medicine fruit juice process
Dalian Reyes Import & Export Co., Ltd. belongs to REYES international Group. We are the professional manufacturer of Centrifuge & Separator, Liquid Filling Machine and packing machine. With many years producing experience, our factory have become leading manufacturer with professional technical team and Independent after-sale department.
Our international trade department can supply the whole project service. With many years development, we have known which factories have strong product with competitive price and we have built long-term and stable cooperation relationship with them. Our main area are the food and pharmacy project. Our successful project are coconut oil production line, liquid filling production line, packing production line and the tablet press production line, soft gelatin production line and so on. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers!
Exported country:
At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania and so on more than 30 countries

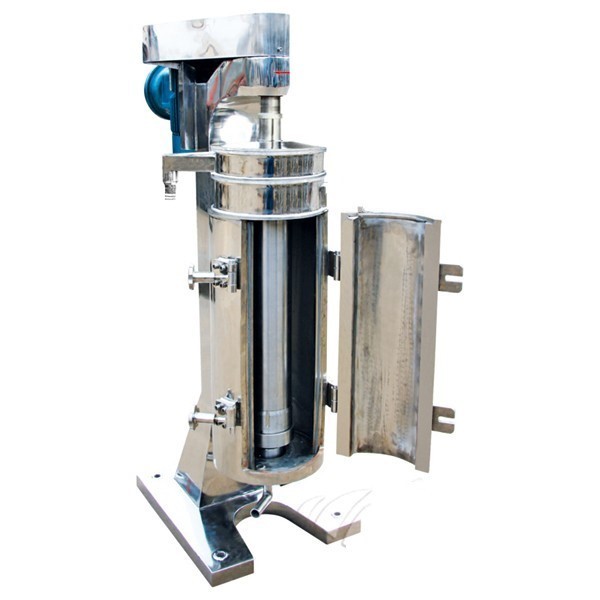

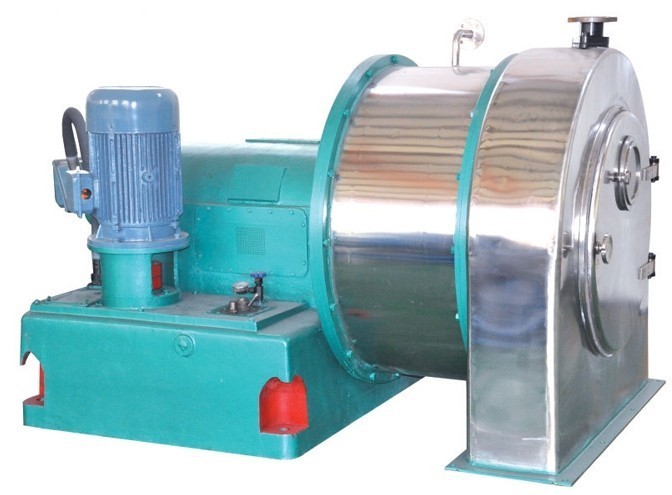

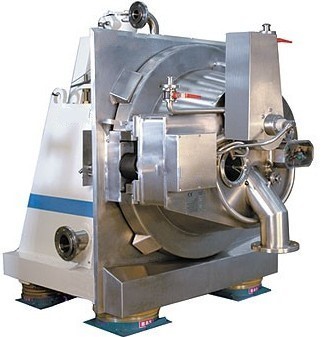

Other Porduct:
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 2 years’ warranty and life maintenance.
4. 24-hour hot line: 86-13674188053 Once receive the customer complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support. Hot line: 86-13674188053
