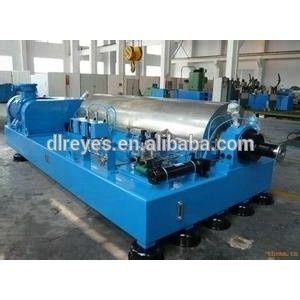

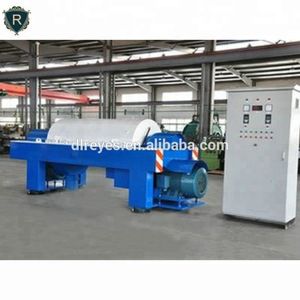

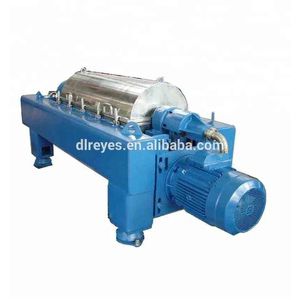

Automatic Horizontal Decanter Centrifuges For coagulated blood
Main advantages
1. Continuous feeding, separating and discharging
2. Low energy consumption
3. Simple operation and easy maintenance
4. CE, ISO, TUV
Properties
Application: water sludge separation
Motor brand: ABB,SIEMENS
Bearing:SKF
Length-dia-ration: more than 4
Conveyor flight: lining or tiled
Control PLC system: with or without
Basic principles
For the auto decanter centrifuges stable performance sludge dewatering separator, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.
Structure
1. Feeding pipe 2. Discharge screw 3. Drum 4. Casing 5. Differential mechanism

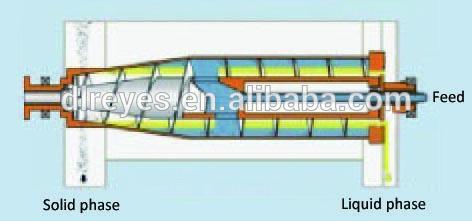

Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material
is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding
up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine. The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.
Advantage:
- automatic continuous operation
- Water level adjustable
- Highest efficiency and lowest power consumption
- PLC control
- Screw conveyor full tiled.
Competitive Advantages:
- MOC:Stainless steel
- Scroll discharge
- PLC control
- Big working capacity
- Continuous operation
Specifications:
Model | Drum | G-force | Capacity (m3/h) | Max solid discharge (m3/h) | Power (kw) | Weight (kg) | Overall size (L×W×H) (mm) | |||
Diameter (mm) | Speed (rpm) | Length (mm) | Length-to-diameter rate | |||||||
PDW-10-W | 250 | 5400 | 1000 | 4 | 4080 | 0.5~5 | 0.4 | 11/4 | 1000 | 2410 × 800 × 1080 |
PDW-12-4-W | 300 | 4200 | 1200 | 4 | 3500 | 1~5 | 0.6 | 11/4 | 1200 | 2610 × 800 × 1080 |
PDW-12-4.5-W | 300 | 4200 | 1350 | 4.5 | 3000 | 1~10 | 0.8 | 11/4 | 1400 | 2760 × 800 × 1080 |
PDW-14-W | 355 | 4000 | 1600 | 4.5 | 3180 | 1~20 | 1.2 | 18.5/7.5 | 1800 | 3495 × 840 × 1180 |
PDW-16-W | 400 | 3650 | 1800 | 4.5 | 3000 | 2~25 | 2 | 22/7.5 | 2500 | 3890 × 1020 × 1205 |
PDW-18-4.4-W | 450 | 3200 | 2000 | 4.4 | 2600 | 3~35 | 2.8 | 30/11 | 3000 | 4297 × 1080 × 1385 |
PDW-18-4.8-W | 450 | 3200 | 2150 | 4.8 | 2600 | 4~40 | 3 | 37/11 | 3200 | 4447 × 1080 × 1385 |
PDW-20-4-W | 500 | 3000 | 2000 | 4 | 2500 | 5~45 | 3.2 | 37/11 | 3800 | 4330 × 1140 × 1470 |
PDW-20-4.5-W | 500 | 3000 | 2250 | 4.5 | 2500 | 8~50 | 3.5 | 45/15 | 4000 | 4580 × 1140 × 1470 |
PDW-21-W | 530 | 2900 | 2280 | 4.3 | 2500 | 15~65 | 5 | 55/15 | 5000 | 4924 × 1170 × 1540 |
PDW-23-W | 580 | 2780 | 2500 | 4.3 | 2500 | 20~80 | 6.5 | 75/18.5 | 6500 | 5205 × 1270 × 1540 |
PDW-26-W | 650 | 2500 | 2800 | 4.3 | 2270 | 25~110 | 8 | 75/18.5 | 7000 | 4300 × 1900 × 1350 |
Separation principle
In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.
The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated.The decanter centrifuge is applicable to the separating of suspension containing solid-phase granules with diameter greater than 0.005 mm and with the concentration being 2~40%.
Structure
Competitive Advantages
- MOC Stainless Steel ,to meet GMP grade
- Big capacity
- Corrosion resistant an resistant key parts
- Flexible drive and speed adjust mode
- Famous and reliable electrical components
- Process of the fish oil and fishmeal flow chart
Guarantee
Reyes Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
