New Screw Sludge Dewatering Press

System can be programmed to make the operation more convenient and accurate.

Technical Feature

  • Jiangsu, China (Mainland)
  • EASTFAST
  • ET-251
  • new Screw Dewatering Press drill mud dewater machine
  • dewatering machine
  • Stainless Steel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$6~80

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
EASTFAST
Model Number
ET-251
Product name
new Screw Dewatering Press drill mud dewater machine
Key words
dewatering machine
Material
Stainless Steel
Mechnical Dimension (mm)
2690*880*1600
Cleaning Water Pressure
>1kg/cm2
Cleaning water Consumption(L/h)
32
Net Weight(kg)
500
Processing Weight(kg)
805
Dried Sludge Throughput(kg/h)
15~25
Maintenance Time
10 minutes/day

DETAIL DESCRIPTION

new Volute Dewatering Press drill mud dewater machine

Product namenew Screw Dewatering Press drill mud dewater machine
MaterialStainless Steel
Mechnical Dimension (mm)   2690*880*1600
1.Advantages
1.Low operation cost
2.Power-saving
3.Water-saving
4.Saving-drugs saving around 60%
5.Compact
6.Non-clogging
2.Features
1.Simple processing,low investment system,energy-efficient in dewatering
2.System can be programmed to make the operation more convenient and accurate.
3.Unique flocculating agent make sludge dewatering easier.

4.Uniform and accurate dispensing,saving costs.

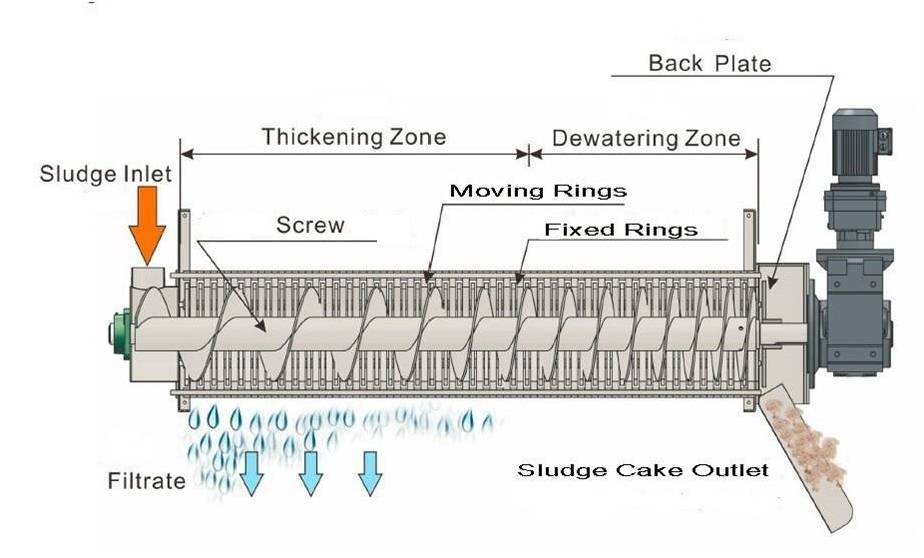

3.Working principle

      When the machine starts runing, the sludge will be pushed into the filter cartridge from the feed inlet and then moves to the sludge cake outlet. The pitch of the screw narrows and the gaps between the rings decrease towards the end-plate where sludge cakes are discharged.

      The pressure in the dewatering drum increases, then the water comes out from the gaps between the fixed rings and moving rings. Depending on the self-clean function, the machine can clean the filter gaps automatically to avoid block. The sludge cake will be well dewatered and discharged from the outlet with push of the screw.

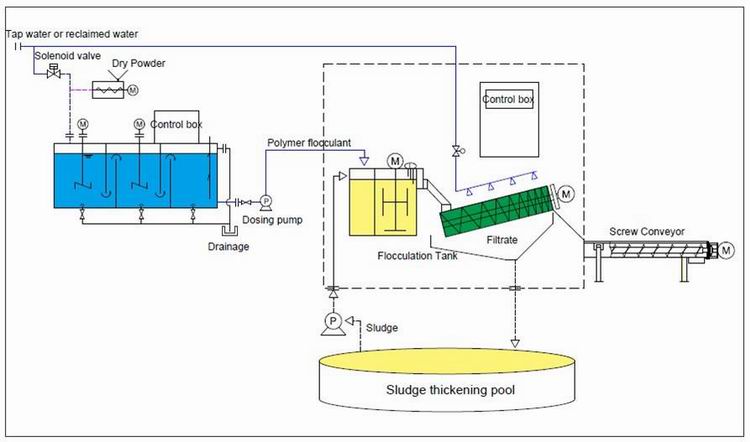

4.Process Flow



5.Mechanical Chart

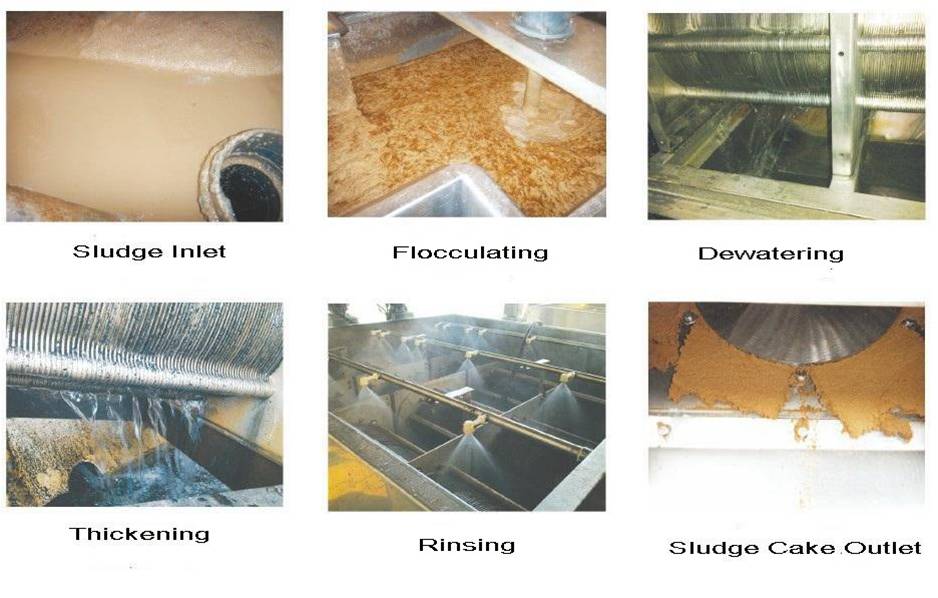

6.Process of Treatment

7.Screw

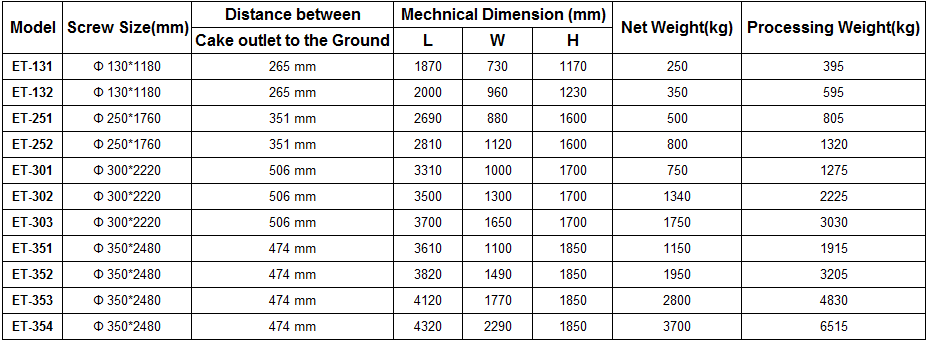

8.Model Section

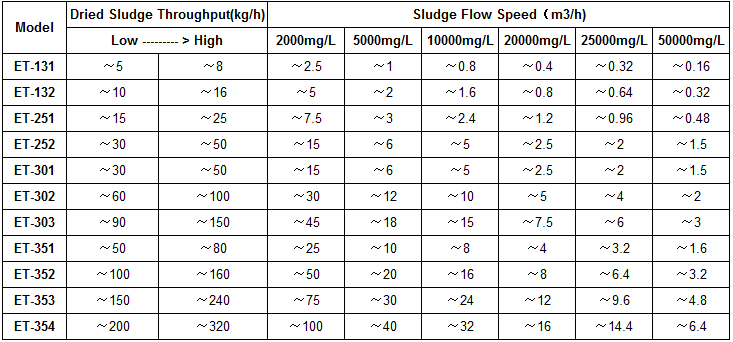

9.Specifications

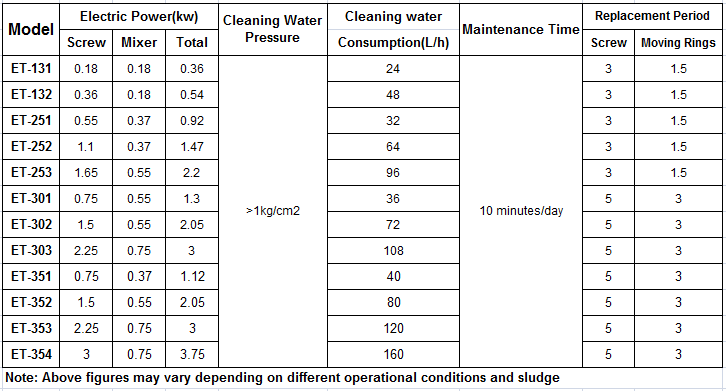

10.Operation Conditions

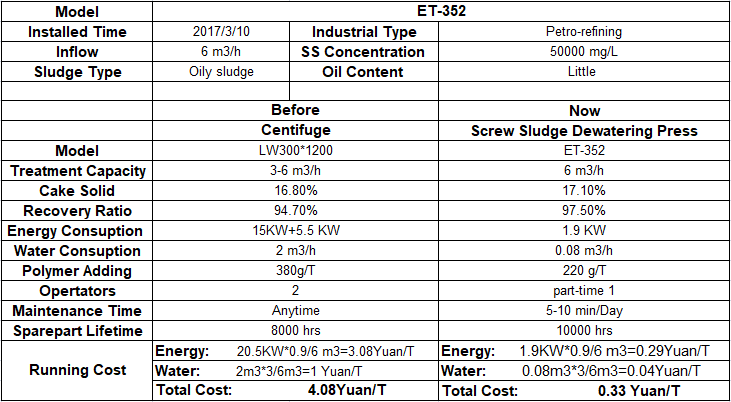

11.Advantage Comparation











12.Global Installations





new Volute Dewatering Press drill mud dewater machine
