Chinese cheap Belt type vacuum rotary drum filter

The filtered raw water flows into the inner of the drum by gravity, and clean water flows out of the drm through the filter cloth in stainless steel material or PE.

Technical Feature

  • Jiangsu, China (Mainland)
  • EASTFAST
  • ETDM-500,800,1200,1600,2000,2400
  • Chinese cheap Belt type vacuum rotary drum filter
  • Rotary drum filter
  • Stainless Steel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~50

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
EASTFAST
Model Number
ETDM-500,800,1200,1600,2000,2400
Product name
Chinese cheap Belt type vacuum rotary drum filter
Key words
Rotary drum filter
Material
Stainless Steel
Drum Diameter(MM)
500~2400
Total Drum Area(M2)
2.2~27.9
Power(KW)
1~3.9
Application
Waste Water Treatment
Capacity
10-5000 M3 / d
Type
Water Filter Parts
Package
Plywood case with pallet

DETAIL DESCRIPTION

Chinese cheap Belt type vacuum rotary drum filter

Product nameChinese cheap Belt type vacuum rotary drum filter
MaterialStainless Steel
1.Advantages
1.Compact Structure, Small Volume
2.Construction Materials: SS 304, SS 316 or SS 2205
3.Filter Cloth: Stainles steel or PE
4.Easy to replace filter cloth
5.The drum keeps running when filtering

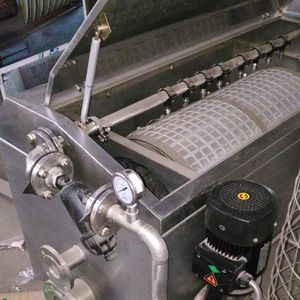

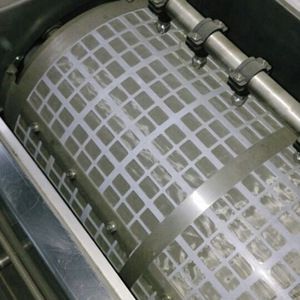

2. Working Principle



      The filtered raw water flows into the inner of the drum by gravity, and clean water flows out of the drm through the filter cloth in stainless steel material or PE.

      The suspended material stays inside of the filter cloth. The drum rotates slowly and uniformly, and the flushing water with high pressure is flushed through the spray at the upper part of the drum.The accumulated dirt inside the filte r cloth will be flushed into the sump in the drum.

      Backwash water is the water that comes out the drum. The dirt in the sump is discharged through the drain pipe under gravity.





3. Applications


a) Purification of scrubber water
b) Polishing effluent from Municipal wastewater treatment plants also can replace primary clarifiers.
c) Fishing and agricultrual intake water
d) Treatent of wastewater and process water in food processing industries
e) Pretreatment of MBR to remove fibre and hair



4.Models Section





Chinese cheap Belt type vacuum rotary drum filter
