Cheap Automatic Rotary Disc Filter Price Vacuum Filter

The water to be treated flows by gravity into the filter segments from the centre drum.

Technical Feature

  • Jiangsu, China (Mainland)
  • EASTFAST
  • ETDK-1204,1206,1208,1210,1704,1706,1708,1710,1712
  • New
  • Engineers available to service machinery overseas
  • Cheap Automatic Rotary Disc Filter Price Vacuum Filter
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~100

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
EASTFAST
Model Number
ETDK-1204,1206,1208,1210,1704,1706,1708,1710,1712
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Cheap Automatic Rotary Disc Filter Price Vacuum Filter
Key words
Rotary Disc Filter
Material
Stainless Steel
Disc Diameter(MM)
1200~1700
Total Disc Area(M2)
6.4~42
Power(KW)
0.8~2.8
Application
non-ferrous metallurgy, chemical
Capacity
1-30 tons / h
Spindle speed
adjustable
Package
Plywood case with pallet

DETAIL DESCRIPTION

Cheap Automatic  Rotary Disc Filter Price Vacuum Filter

Product nameCheap Automatic  Rotary Disc Filter Price Vacuum Filter
MaterialStainless Steel



1. Features

      a) 70-80% less coverage, compared with traditional sand filter
      b) Low installation and running cost
      c) Low water loss
      d) compact construction ( SS304 or SS316)



2.Applications





MunicipalEffluent polishing
 Prefiltration of portable water
 Storm water
Pulp and paperIntake water
 Process water
 Effluent
Other IndustrialIntake water
 Cooling system
 Food processing
AgricultureIntake water
 Recirculation
 Sludge Thickening

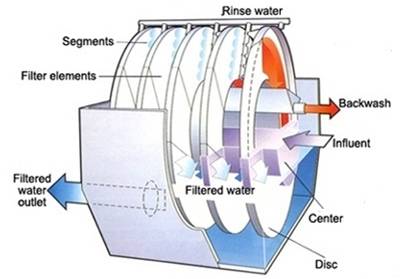

3. Working Principle



      a) The water to be treated flows by gravity into the filter segments from the centre drum. Solids catch on th enside of the filter panels mounted on the two sides of the disc segments.

      b) As the solids catch on the inside of the filter media impeding the flow of water trough the disc, the water level inside the discs begin to rise, triggering a level sensor to start the discs to rotate and a backwash cycle begins.

      c) High pressure rinse water backs the solids off the filter media and into the solids collection. Typically teh backwash requires 0.05%-3% of the total flow and filtered water is used.

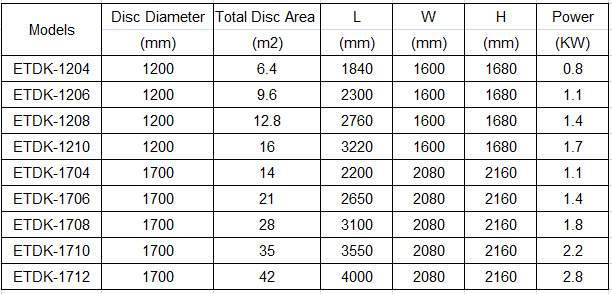

4.  Model Section

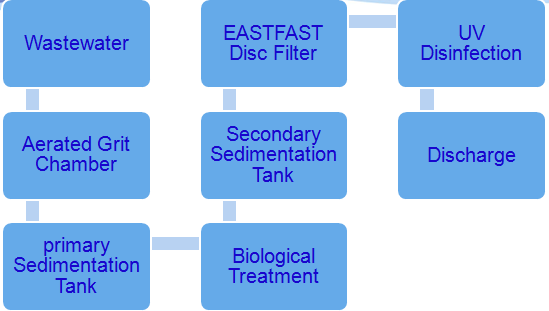

5. Typical process in wastewater treatment





6. Typical process in Reclaimed Water Reuse





7. Typical Process in MBR Treatment
