Introduction of food waste dewater filter press
Double screw Food Residue kitchen waste dewatering machine mainly used to dewatering the material to get dry material.Finished material moisture content 50-60%.Widely used in many area see the belows
Applicable Materials
Suitabel for all kinds of fruits, such as apples, pears, watermelons, oranges, pineapple, plum,etc.
Using for all kinds of vagetable, potato, carrot, beetroot, cassava, ginger, pepper, cabbage,grass
Also applicable to crush and press various food residue, kitchen waste, fermentation residue, etc.
Technical Specification of food waste dewater filter press
Model | FR-180 | FR-260 | FR-350 | FR-420 | FR-500 | |
Capacity | 0.2-0.5t/h | 1-1.5t/h | 1.5-3t/h | 3-5t/h | 6-10t/h | |
Conveyor screw | Diameter | 180mm | 260mm | 350mm | 420mm | 500mm |
Pitch | 100mm | 150mm | 200mm | 210mm | 280mm | |
Speed | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Pressing spiral | Diameter | 180mm | 260mm | 350mm | 420mm | 500mm |
Speed | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | 5-15r/min | |
Hydraulic pressure | Diameter | Spring adjustment | Spring adjustment | Spring adjustment | ≤6Mpa | ≤6Mpa |
Power | 0.55kw | 1.1KW | ||||
Motor power | 3KW | 5.5KW | 7.5KW | 11KW | 18.5KW | |
Mesh size | 190mm | 270mm | 360mm | 430mm | 510mm | |
Dimensions | 1700*500*800 | 2200*600*900 | 3500*700*1000 | 3580*1000*1470 | 3740*1200*1650 | |
Weight | 550KG | 900KG | 1300KG | 2600KG | 3050KG |

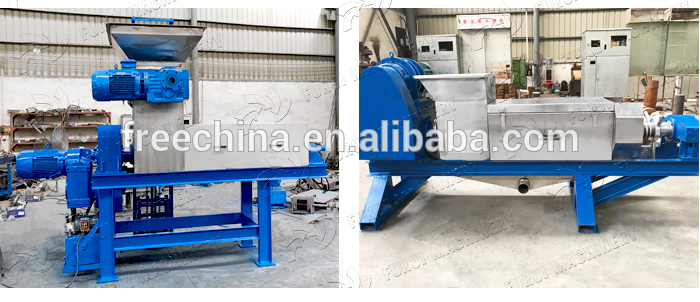

Features of food waste dewater filter press

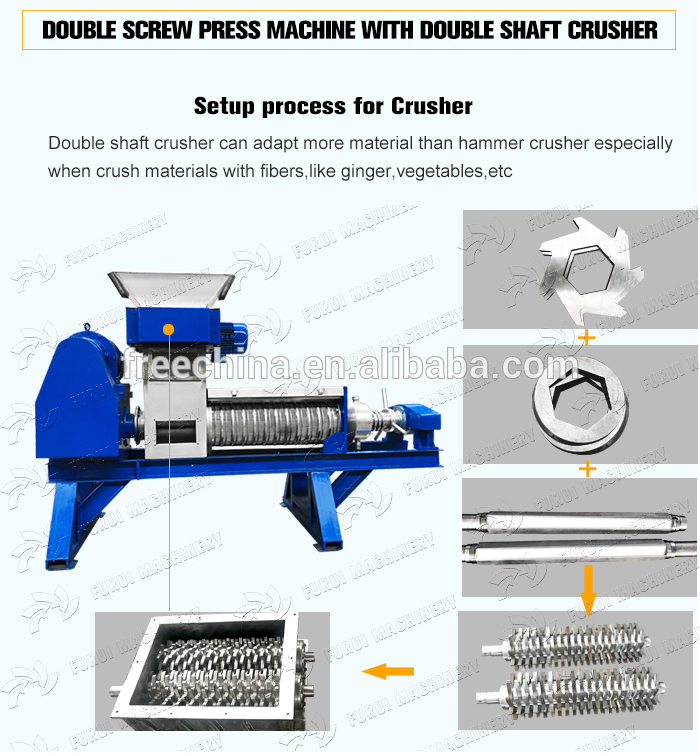

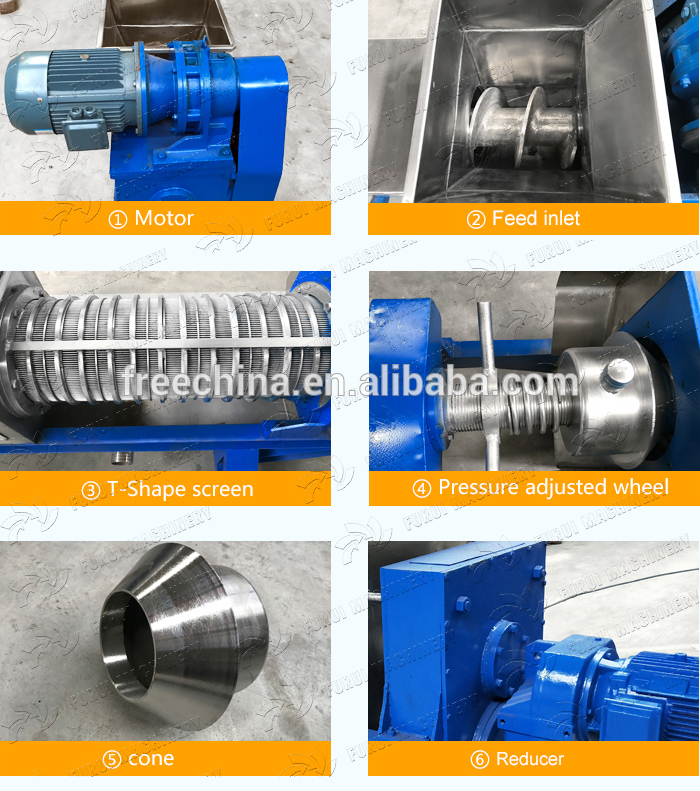

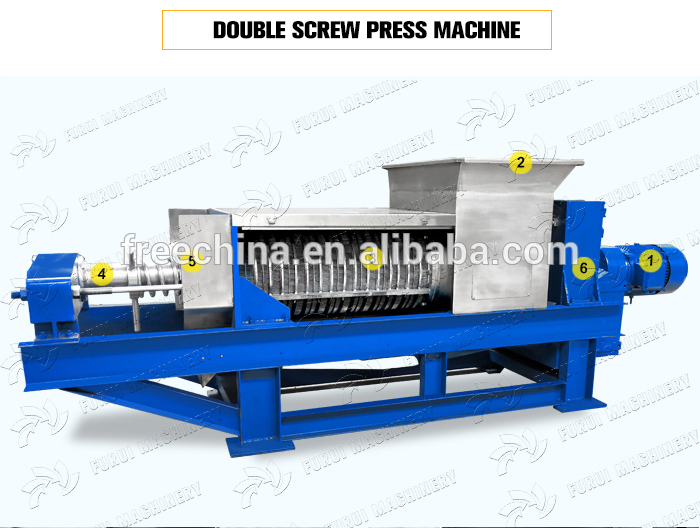

1. The consists of double shaft shredder,frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components.
2. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.
