commercial orange juicer machine/tea drying machine/wheat grass juicer

This dewatering screw press has two functions,it can crush the large size raw material first, then extract to be juice,it is suitable for extracting juice from grape, tomato, fruits and vegetables.

Technical Feature

  • Henan, China (Mainland)
  • FR
  • FR-180
  • 3Kw
  • CE ISO
  • 1600*800*1000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~3

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
FR
Model Number
FR-180
Power
3Kw
Certification
CE ISO
Dimension
1600*800*1000
Name
food waste recycling machine
Product name
dewatering screw press
Capacity
0.5T/H
Mesh size (mm)
1mm (adjustable)
Material
Stainless Steel
Weight
550Kg
Type
commercial orange juicer machine

DETAIL DESCRIPTION



commercial orange juicer machine/tea drying machine/wheat grass juicer







Application of commercial orange juicer machine:

(1) This dewatering screw press has two functions,it can crush the large size raw material first, then extract to be juice,it is suitable for extracting juice from grape, tomato, fruits and vegetables. separating residues and juice.Also suit for cassava residue( Vietnam cassava residue), coffee extraction residue, wheat bran, soybean residue, corncob residue, corn residue, vegetable market food waste,kitchen waste,beer residue ,wheat grass,ect



(2)food waste recycling machine's range of extracting ratio is very wide. The space between screw stem and cylinder can be adjusted according to different material extracted(kitchen food waste disposal machine)



Application:



Technical parameter of commercial orange juicer machine:

Model

FR-180

FR-260

FR-350

FR-420

FR-500

FR-600

Capacity(T/H)

0.2-T0.5T

1T-1.5T

1.5T-3T

3T-5T

6T-10T

10t-15t

Power

3kw

5.5kw

7.5kw

11kw

18.5KW

22KW

Diameter of screw

180mm

260mm

350mm

420mm

500mm

600

Speed

12r/min

12r/min

12r/min

12r/min

12r/min

12r/min

Adjustment method

Spring adjustment

Spring adjustment

Spring adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Mesh size

(mm)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

Material

304 stainless steel for the suspension contacts part, add fee can customized to be whole stainless steel

Voltage

380V/220V

380V/220V

380V/220V

380V/220V

380V/220V

380V/220V

Weight

550kg

900kg

1300kg

26000kg

3050kg

4300kg

Dimension(cm)

170*50*80

220*60*90

350*70*100

358*100*147

374*120*165

450*130*165



Features of commercial orange juicer machine :

1. Made of high-quality acid-proof stainless steel .

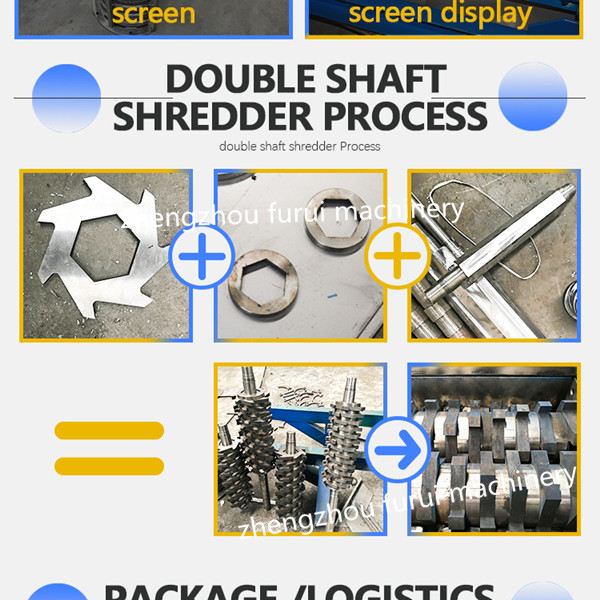

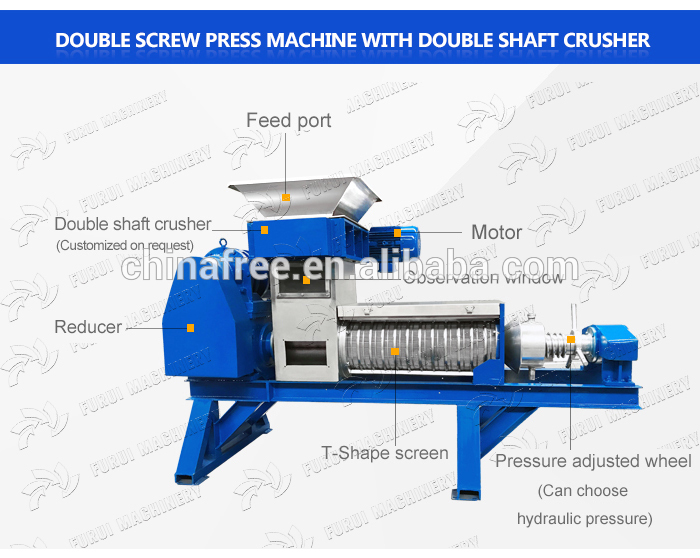

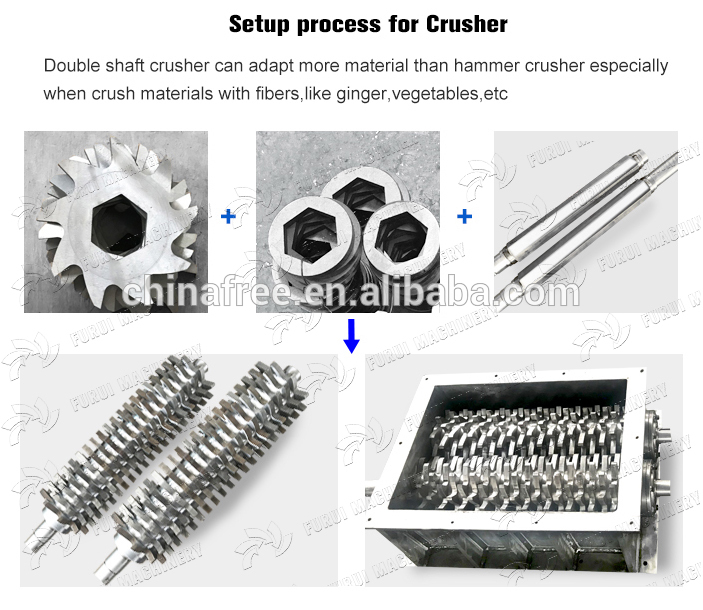

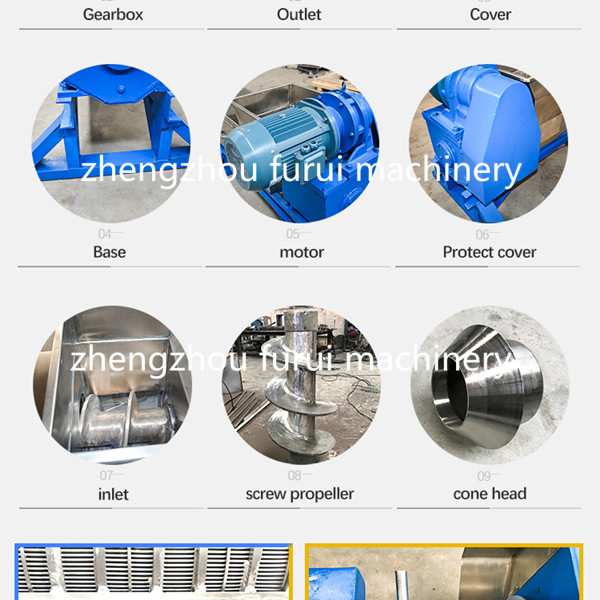

2. The consists of double shaft shredder,frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components.



3. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.

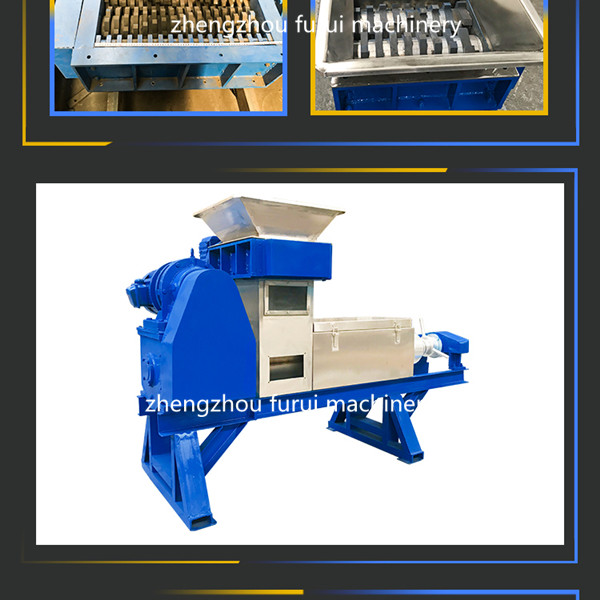

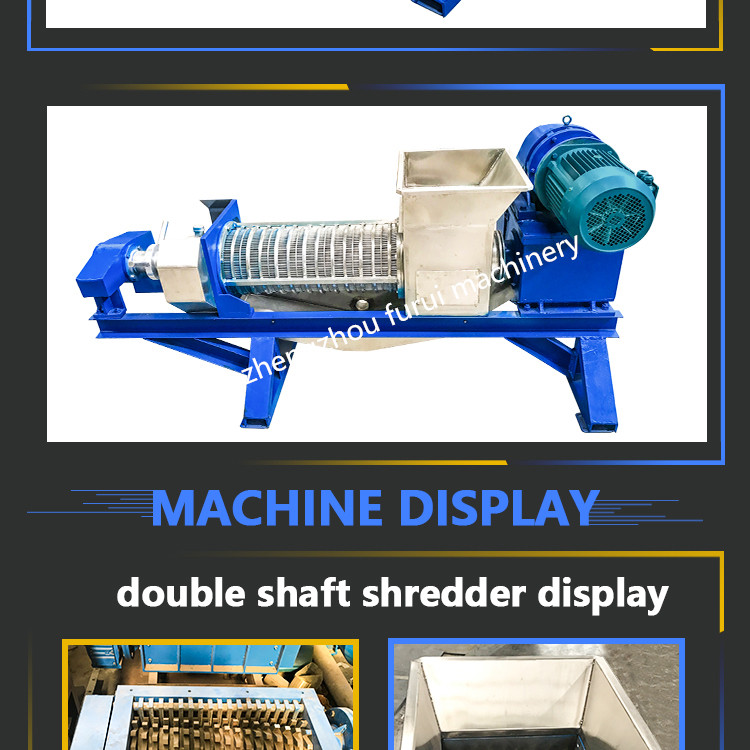

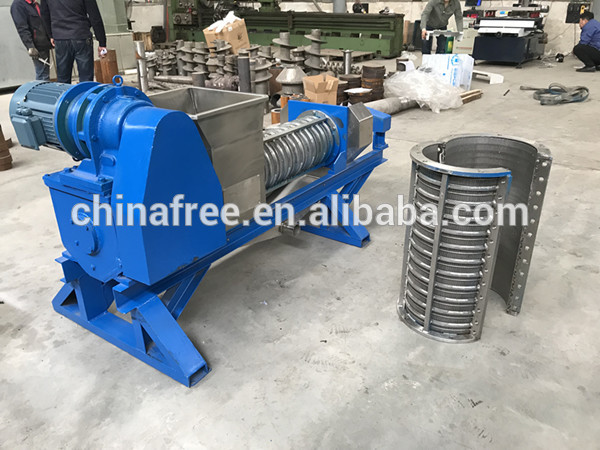

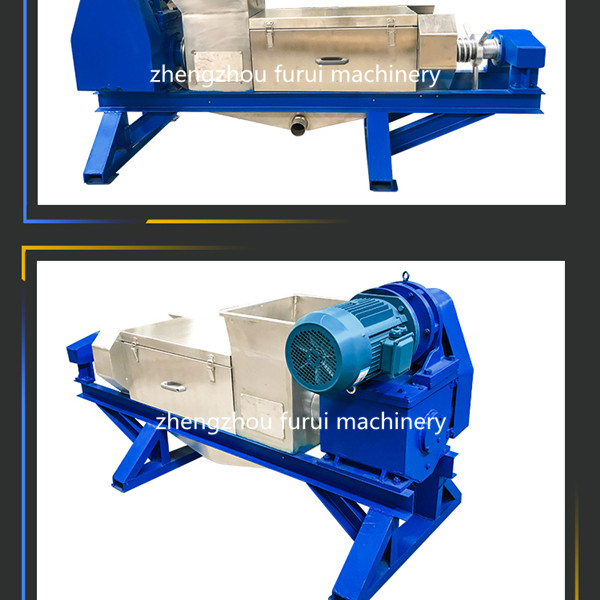

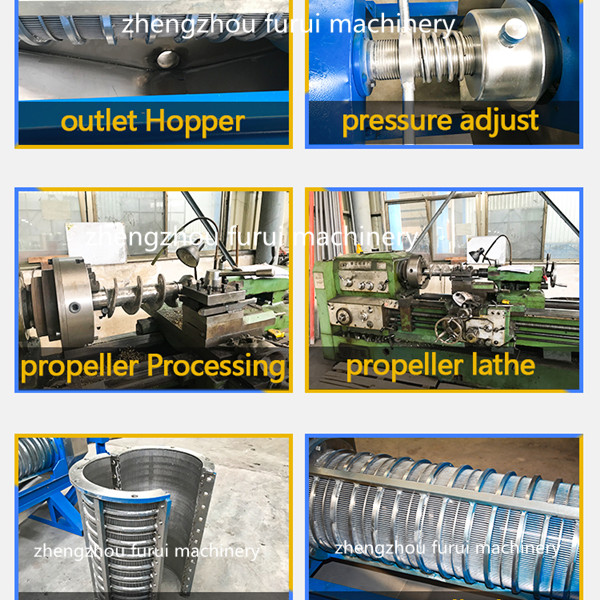

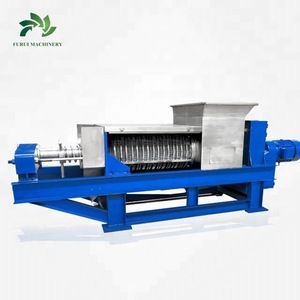

More picture for commercial orange juicer machine:



commercial orange juicer machine with crusher function:
