domestic waste dehydrator/household garbage dewatering
machine/dewatering screw press for home rubish
Application of dewatering screw press for home rubish:
(1) This dewatering screw press has two functions,it can crush the large size raw material first, then extract to be juice,it is suitable for extracting juice from grape, tomato, fruits and vegetables. separating residues and juice.Also suit for cassava residue( Vietnam cassava residue), coffee extraction residue, wheat bran, soybean residue, corncob residue, corn residue, vegetable market food waste,kitchen waste,beer residue ,wheat grass,ect
(2)food waste recycling machine's range of extracting ratio is very wide. The space between screw stem and cylinder can be adjusted according to different material extracted(kitchen food waste disposal machine)
Technical parameter of dewatering screw press for home rubish:
Model | FR-180 | FR-260 | FR-350 | FR-420 | FR-500 | FR-600 |
Capacity(T/H) | 0.2-T0.5T | 1T-1.5T | 1.5T-3T | 3T-5T | 6T-10T | 10t-15t |
Power | 3kw | 5.5kw | 7.5kw | 11kw | 18.5KW | 22KW |
Diameter of screw | 180mm | 260mm | 350mm | 420mm | 500mm | 600 |
Speed | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min | 12r/min |

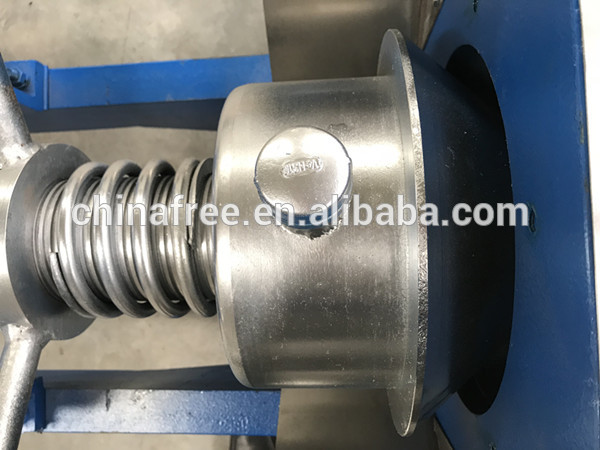

Adjustment method | Spring adjustment | Spring adjustment | Spring adjustment | Hydraulic adjustment | Hydraulic adjustment | Hydraulic adjustment |

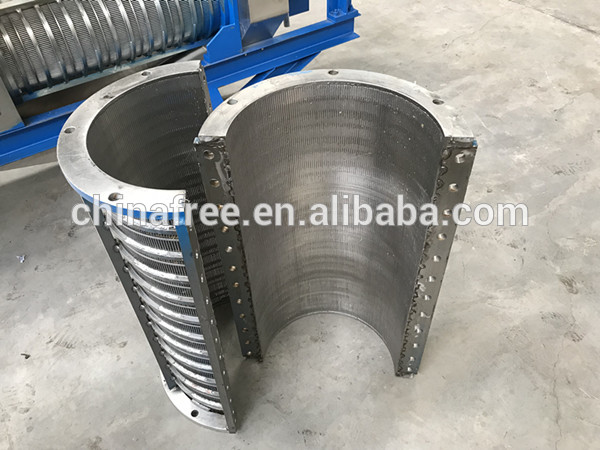

Mesh size (mm) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) | 1mm (adjustable) |
Material | 304 stainless steel for the suspension contacts part, add fee can customized to be whole stainless steel | |||||
Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
Weight | 550kg | 900kg | 1300kg | 26000kg | 3050kg | 4300kg |
Dimension(cm) | 170*50*80 | 220*60*90 | 350*70*100 | 358*100*147 | 374*120*165 | 450*130*165 |
Features of dewatering screw press for home rubish:
1. Made of high-quality acid-proof stainless steel .
2. The consists of double shaft shredder,frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components.

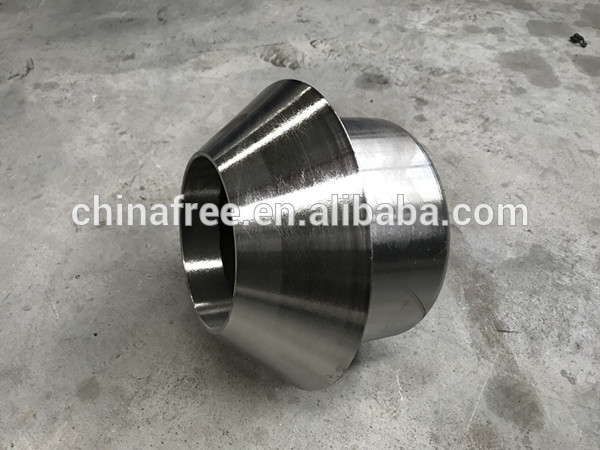

3. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.

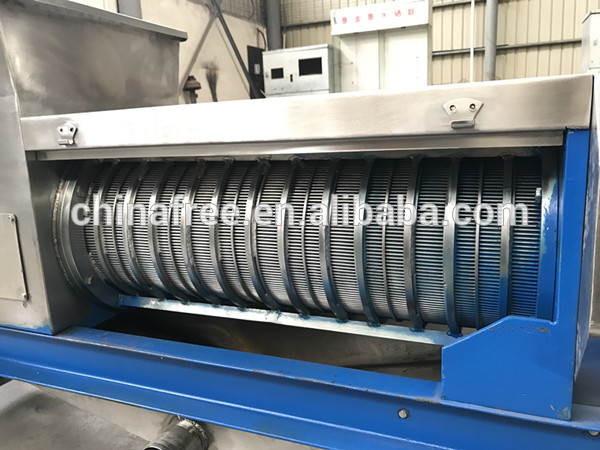

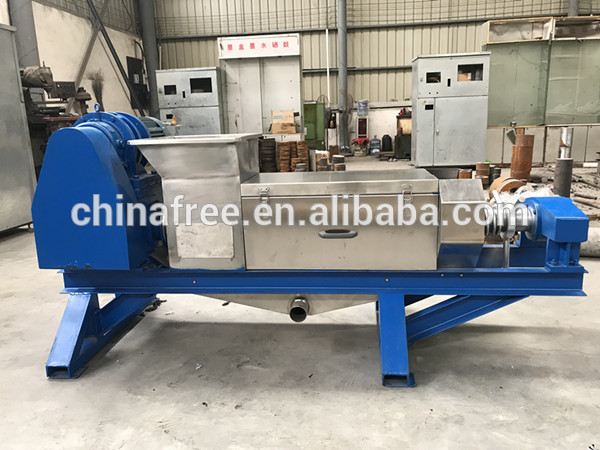

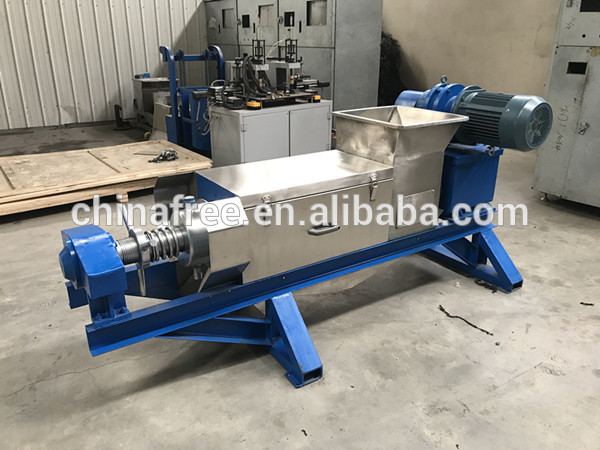

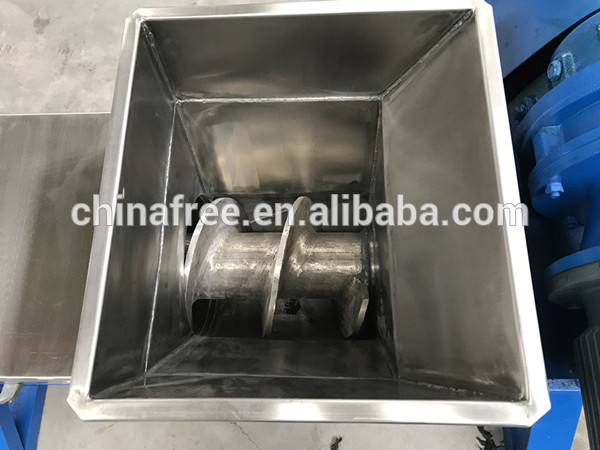

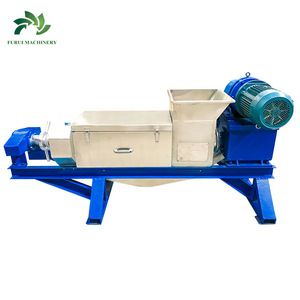

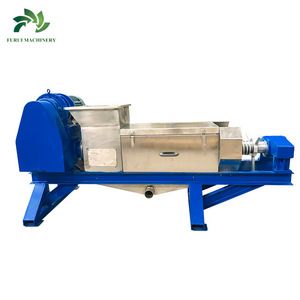

More picture for dewatering screw press for home rubish:

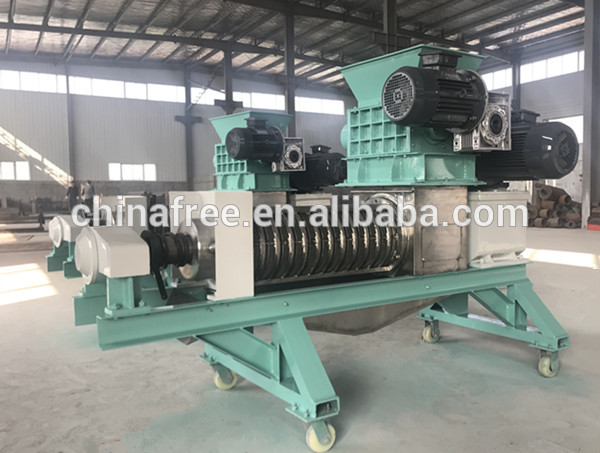

Fodd waster recyling machine with crusher function:

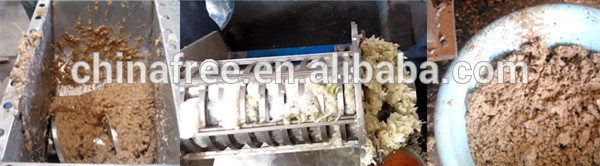

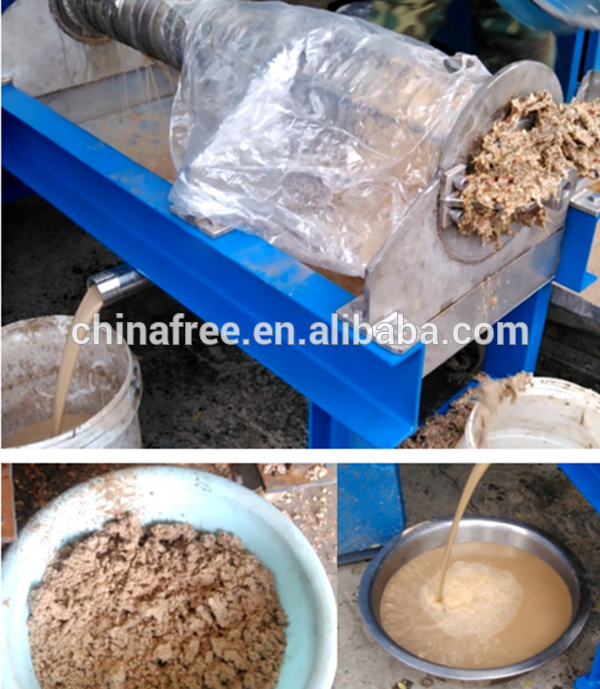

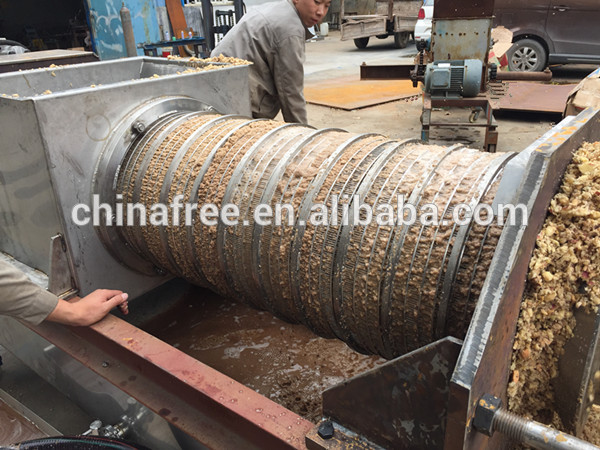

Effection for dewatering screw press/food waste recycling machine:
If you are interested in our products, please contact me , we will reply within 24 hours!!! (kitchen food waste disposal machine)
