Pure Soybean vegetable cooking oil machine flowchart:
Oilseeds → cleaning → softening → flaking → extrusion → drying → to extraction workshop →DTDC →first and second evaporation →stripping tower →condenser →solvent
recovery
Pure Soybean vegetable cooking oil machine brief introduction:
a. Cleaning device:remove the raw material peanut in various impurities, such as: iron,
stones, clump, such as the plant leaf, clean up till impurity content does not exceed 0.2%.
b.Crushing machine: peanut is crushed into 6-8 pieces. In order to meet the requirements
of crushing, the peanut is suitable for crushing with the moisture of 7% to 12%.
c. Softening process:the purpose of softening is to adjust the moisture and temperature
of oil, and make it soft.
d.Flaking process: rolling raw material into flakes, and the purpose is to increae surface
area, destroy the peanut cell tissue, shorten the way of oil out from cake.
e:Extrusion:through high temperature and high pressure, soybean flakes are transfered into expanded pellet, which is easy to extract oil from, and keep high nutritive value.

Cashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

Extraction process:

1. Solvent pumps: continuously spray solvent to the rotary-type extractor

2. Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be diss-olved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).

3. DTDC: usd to separate the solvent from the wet meal.

4. Miscella tank 1st evaporation:pump the miscella (oil with solvent) in to the miscella 1st , then addsaline water to it. The phospholipid in the miscella will react with the saline water, at last the reactant

precipitate, reaching the goal of purifying.

5. Miscella tank 2nd evaporation: the purified miscella will be pumped into it, and use high temperature steam to let solvent evaporate out.

6. Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

7. Condensers:  to cooling the solvent gas separated from the wet meal and miscella for recyclingCashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

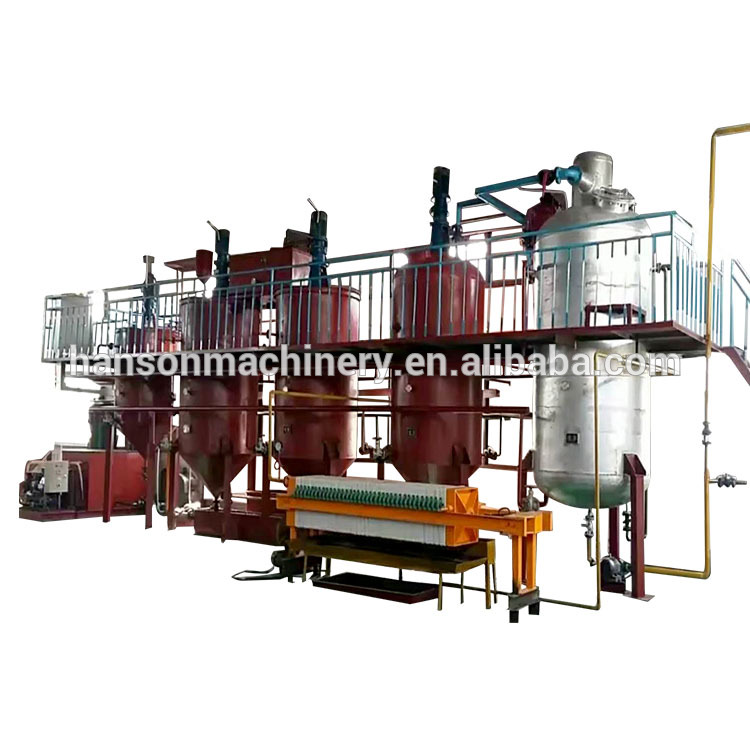

Picture show in oil extraction line:

Our company always put the interests of customers and product quality to the first place,
and always adhere to the"no best, only better"
1.Ensure to timely provide complete sets of equipment and accessories.
2.Ensure that one-time installation debugging acceptance.
3.To provide high quality material with preferential price.
4.Priority to provide customer our new craftworks and products.
5.Free training technological operator to ensure the trained staff can operation independently.
6.In the installation process,we will appoint a installation supervision staff on the spot.
7.we will offer an experienced project manager, organize a good installation team for the
work of field installation debugging.
8.After the equipment field assembly and installation, we will be also responsible for the
single equipment debugging, online debugging and Feeding trial operation, to ensure
that equipments can normal operate in full load conditions. We will provide all kinds of
information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements within one month after acceptance.

Cashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

 Henan Hanson Machinery Co., ltd. is a domestic and foreign oil equipmentengineering contractor, is a collection r & d, design, manufacturing, general contracting of an integrated entity enterprises, business covers grain and oil machinery, chemical equipment, feed machinery, environmental machinery , pressure vessels, mechanical and electrical equipment design, manufacture, installation, commissioning, personnel training and other fields.

Cashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

Cashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

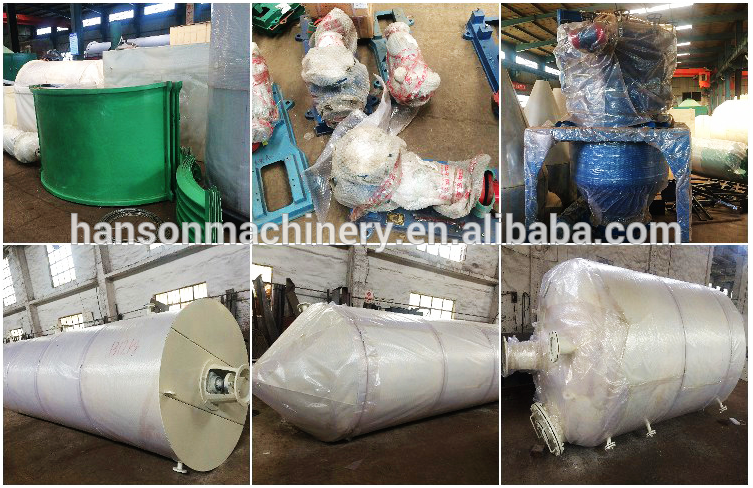

Damp-proof packing for motors
40HQ, 40OT,40 FR, or bulk cargo ship.

Cashew Nut Shelling Machine Palm Able Operators Walnut Processing Machine Screw Cold Oil Machine

1. Payment accepted: After confirming all the details with our sales, we will make contract for you to make deposit first and the balance need to be cleared against shipping. Generally we accept most of the payment methods like TT, L/C, PayPal, West union, Moneygram.

2. Lead time: 7 working days against your deposit.

3. What about the quality: We use the national certified steel and top brand e-parts

4. Warranty: 12 months warranty and life time service.

5. Certificate: ISO, CE, CCC

6. How can I get to your company: We are located in xinxiang City. You can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you up there.

7. Raw Material: It is multifunctional, all the oil corps on the market can be processed.

Looing forward for your enquiry! Welcome to our factory!!!
