1. Introduction

(1) Function: Leaching system is an oil extraction through soaking or spraying pre-pressed cake by a certain organic solvent. The principle of this part is the different solubility of solvent.

(2) Use range: Solvent extraction fits for pre-press extraction of high-oil-content materials and direct once time extraction of low-oil-content materials.

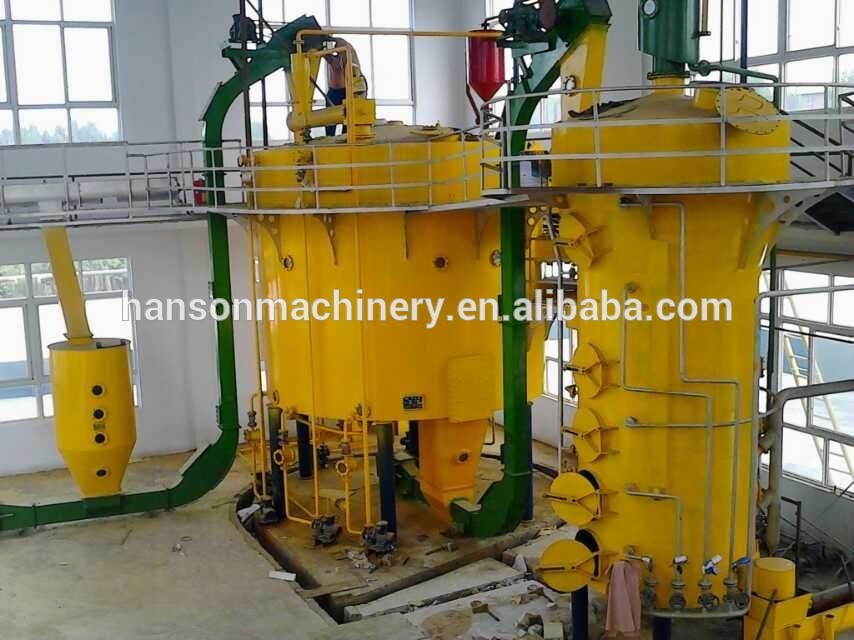

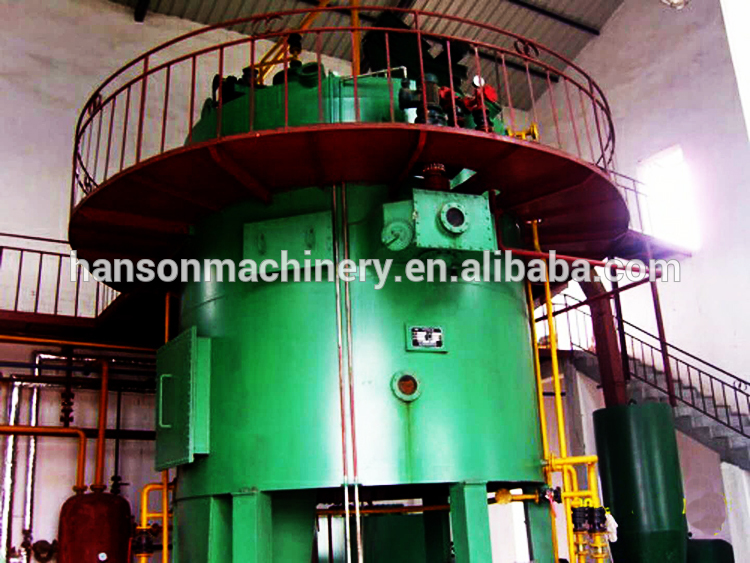

(3) Main parts: The extraction series includes rotary extractor, toaster, 1st evaporator, 2nd evaporator, stripping tower, condenser, etc.

2. Main Process

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated.

Quick-wear spare parts of screw and hydraulic oil press/expeller /extracting machine

3.Processing:

Solvent storage→   solvent tank    ←water tank  ←condenser   ←condenser

                                        ↓

                                   Solvent

                                        ↓

   Soybean     →       Extractor →  DTDC toaster → Meal

                                        ↓

                                 Mixed oil→ Evaporation→   stripping→   crude oil

Quick-wear spare parts of screw and hydraulic oil press/expeller /extracting machine

 Production process conditions:

Plant raw materials: Rice bran, soybean, peanut, rapeseed, cottonseed, sunflower, palm, teaseed, flaxseed, corn germ, sesame, flaxseed, walnut, peony seed, castor bean, safflower seed, wheat germ...

Animal raw materials: Pigs, cattle, sheep, chickens, ducks, fish, foxes, minks and other animals meat or meat residue

Quick-wear spare parts of screw and hydraulic oil press/expeller /extracting machine

Quick-wear spare parts of screw and hydraulic oil press/expeller /extracting machine

Our company always put the interests of customers and product quality to the first place, and always adhere to the"no best, only better"
1.Ensure to timely provide complete sets of equipment and accessories.
2.Ensure that one-time installation debugging acceptance.
3.To provide high quality material with preferential price.
4.Priority to provide customer our new craftworks and products.
5.Free training technological operator to ensure the trained staff can operation independently.

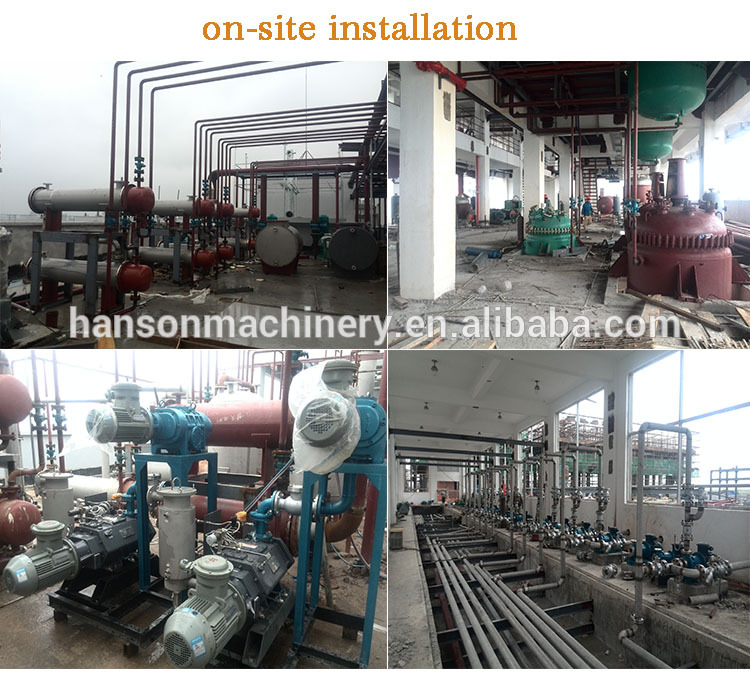

6.In the installation process,we will appoint a installation supervision staff on the spot.
7.we will offer an experienced project manager, organize a good installation team for the
work of field installation debugging.
8.After the equipment field assembly and installation, we will be also responsible for the
single equipment debugging, online debugging and Feeding trial operation, to ensure
that equipments can normal operate in full load conditions. We will provide all kinds of
information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements within one month after acceptance.

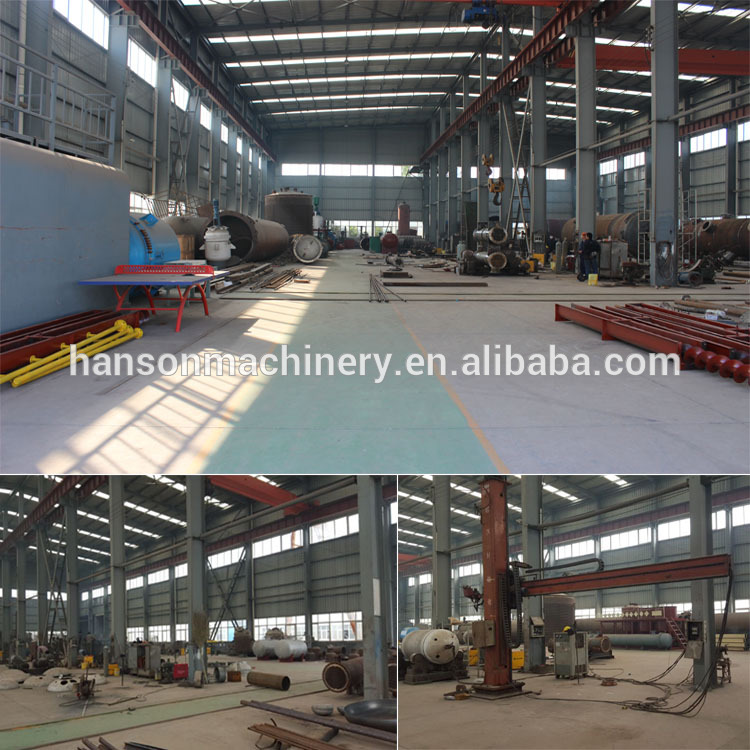

More than 95% of the machines and components are manufactured in our factory. From price, delivery to installation and training, you will enjoy 100% factory professional service

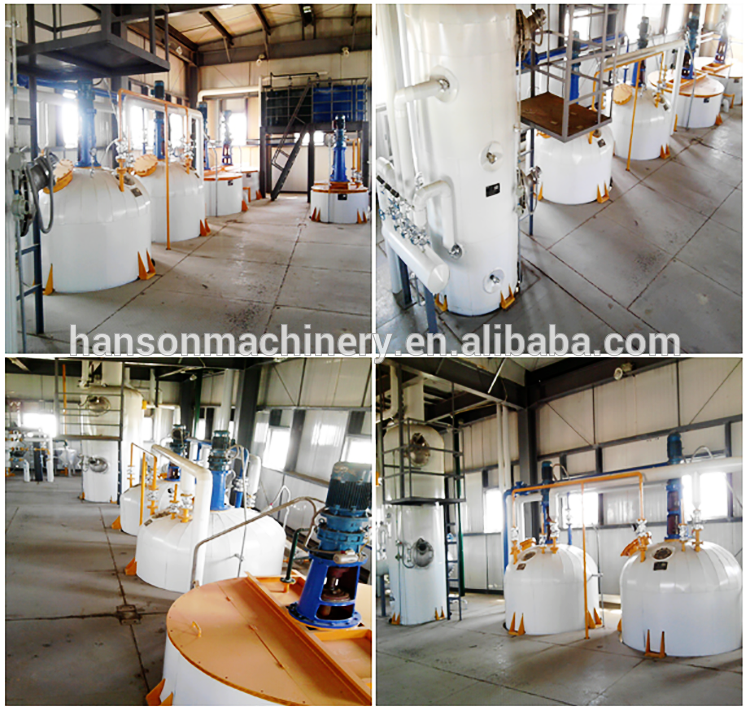

Hanson has applied the automatic control system with advancedness, security, reliability into the pretreatment, extraction, refining and fractionation in large oil plants. For its application in automatic control system, it can control the production in the entire workshop and monitor the operational status of each device by controlling the computer terminals in the room. One person only can operate the entire workshop, with efficient production management. It has reduced the production cost greatly and improved the management efficiency.

Quick-wear spare parts of screw and hydraulic oil press/expeller /extracting machine

GOOD BUSINESS BEGIN FROM SINCERELY NEGOTIATION.

Please don't be precious little words.

Let us know your idea, no matter what it is.

We will service you all the time no matter what time you come back.

If you like our product, please contact me:

maybe the following question we should know before we give you the solution and quotation:

a, what is your raw material ? what kind of oilseeds or crude oil from oil crushing mill?

b, what processing capacity do you plan to process?

c, what is your detail plan? what kind of finished product do you need?

Looing forward for your enquiry! Welcome to our factory!!!
