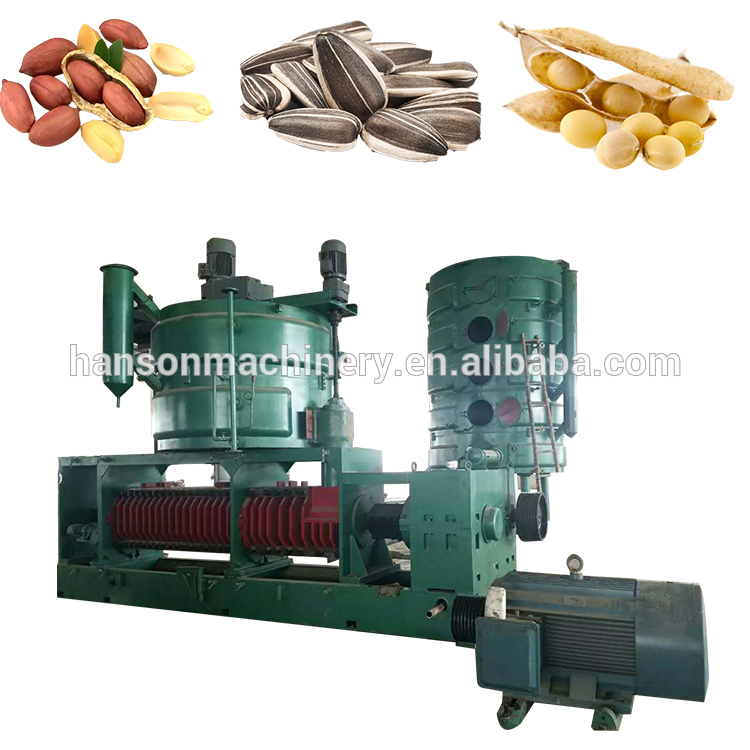

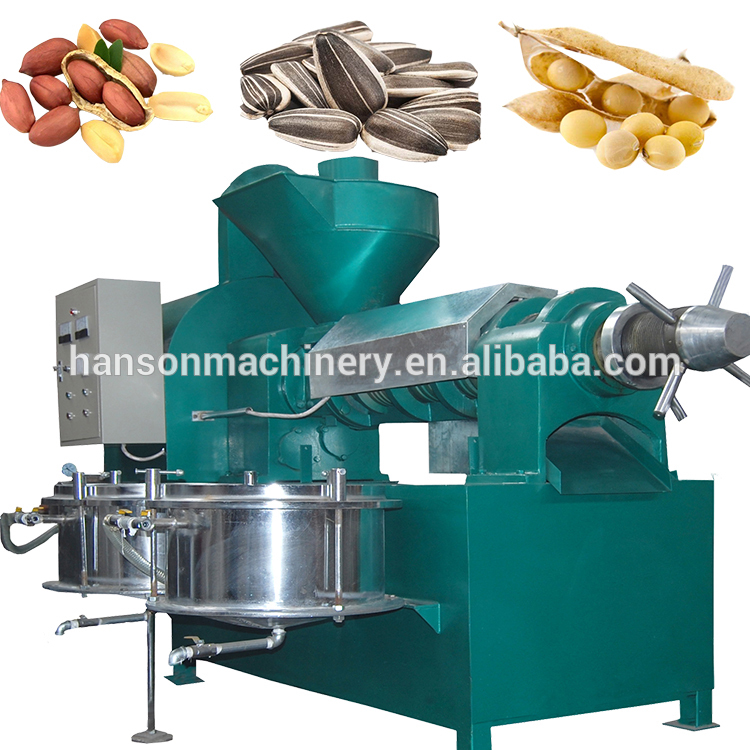

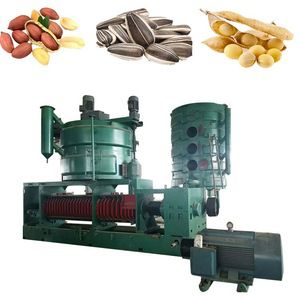

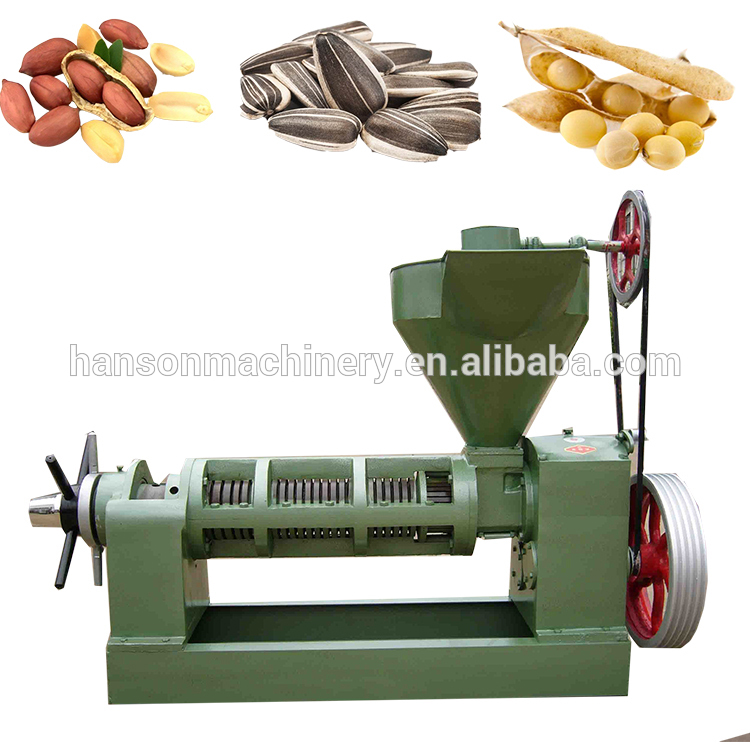

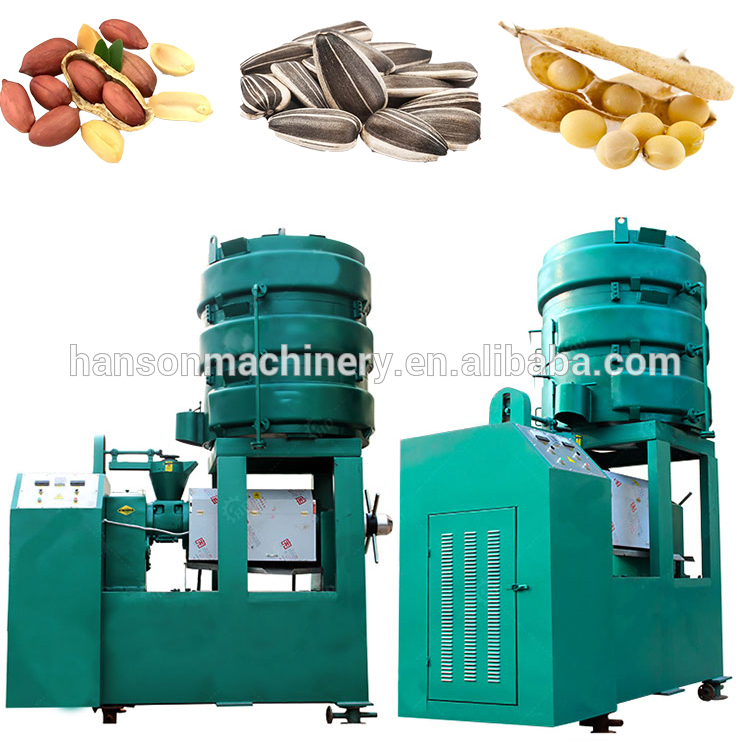

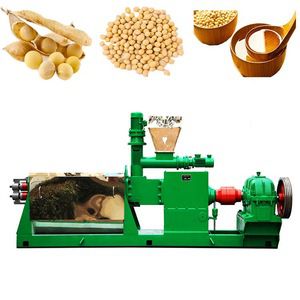

I.Professional technology soybean oil press-machine

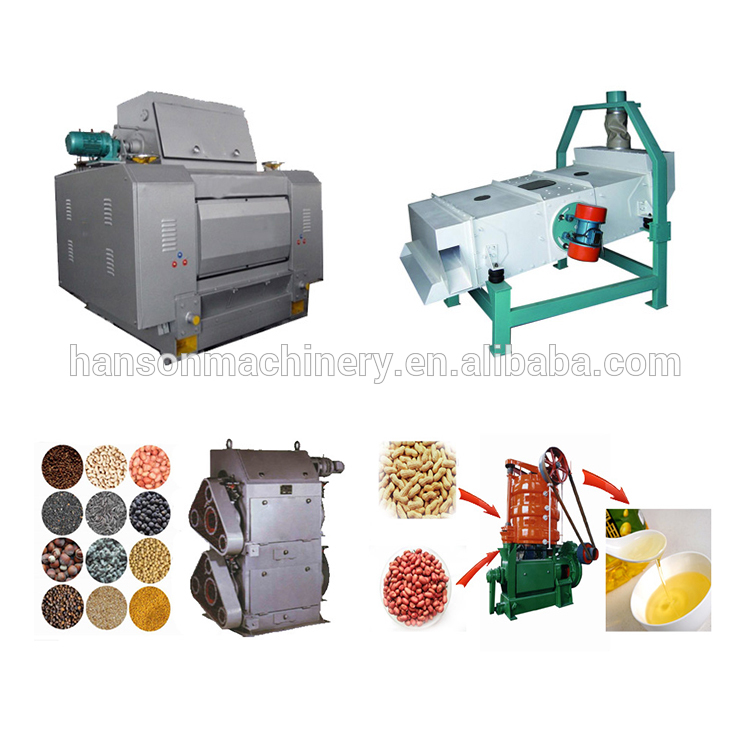

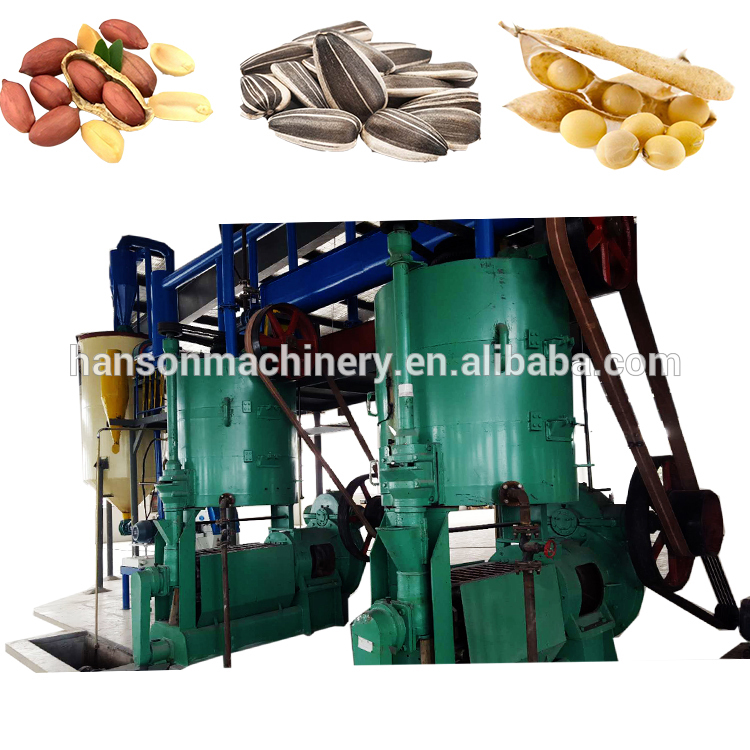

Oil pretreatment & oil pressing processing line of soybean oil press-machine

The simple processing of oil pretreatment includes pressing, high temperature pressing, cold pressing (less than 70 degrees) etc.

1,Formal oil pressing can adopt one time or twice pressing of oilseeds. It is applicable for low capacity required oil processing oil plant.

2,High capacity oilseeds pretreatment and oil pressing equipped with oil extraction treatment, is used in high capacity and large-scale oil pressing plant, or high oil content oilseeds processing plant.

3,Oil prepressing can get up 70% oil fat of embryo, and residual oil inside pre-pressed cake can be extracted by organic solvent.

II.Oil extraction machine of soybean oil press-machine

Requirements for extraction cake ,steam ,water. Electricity etc:

1,Moisture of extraction material: 5-8%;

2,Temperature of extraction material: 50-55°c;

3,Oil content of extraction material:14-18%;

4,Thickness of extraction cake : Less than 13mm;

5,Powder porosity of extraction material: Less than 15% (30 mesh);

6,Steam : More than 0.6mpa;

7,Solvent : National standard no. 6 solvent oil;

8,Electric power:50hz 3*380v±10%

   Electric lighting : 50hz 220v ±10%;

9,tempreture of supplement water : Less than 25°c,

   Hardness : Less than 10.

10,Volume of supplement water: 1-2m/t raw material;

11,Temperature of recycle water: Less than 32°c.

Damp-proof packing for motors
mini cooking oil refining plant ,small scale oil refinery machine ,mini crude oil refinery

Delivery Time: Shipped in 45 days after payment

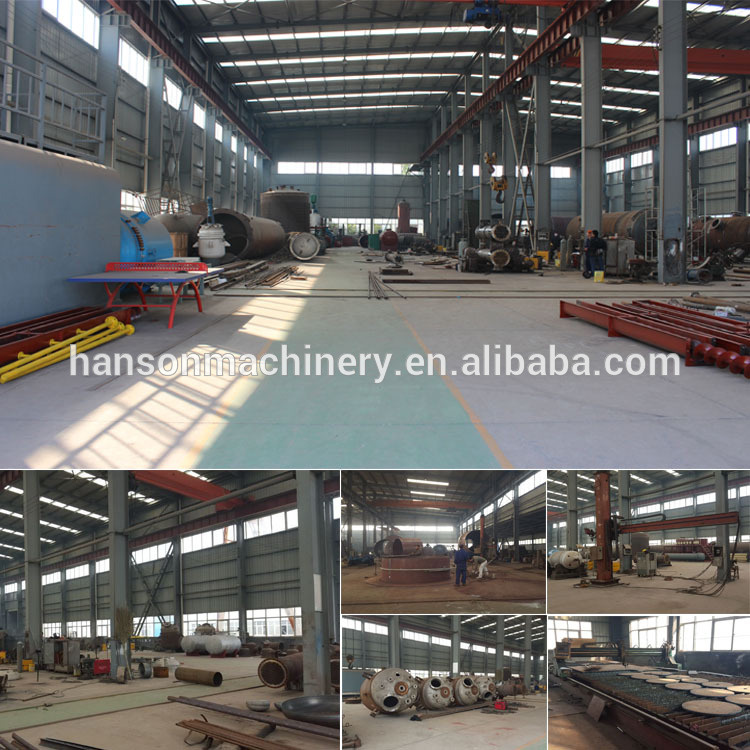

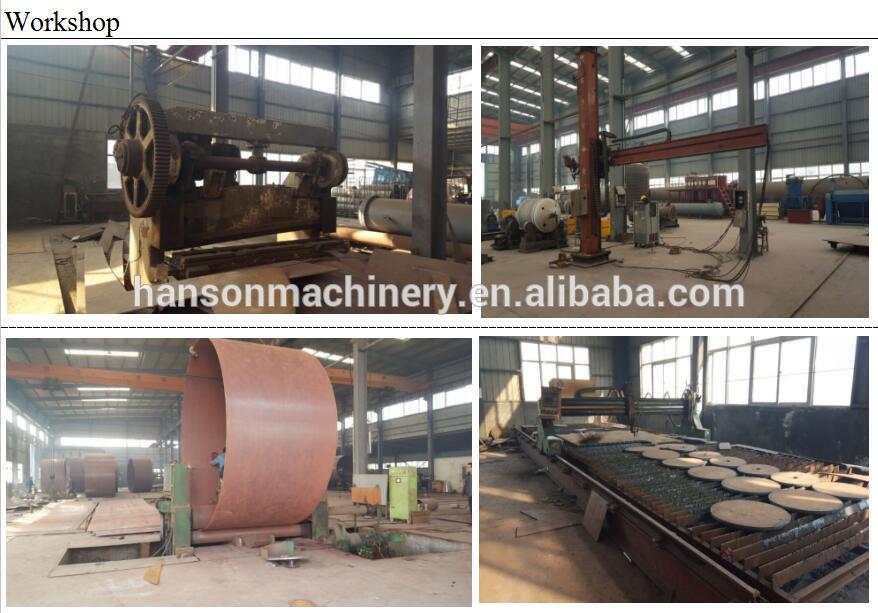

 Henan Hanson Machinery Co., ltd. is a domestic and foreign oil equipmentengineering

contractor, is a collection r & d, design, manufacturing, general contracting of an integrated entity enterprises, business covers grain and oil machinery, chemical equipment, feed machinery, environmental machinery , pressure vessels, mechanical and electrical equipment design, manufacture, installation, commissioning, personnel training and other fields.

1.Do you supply engineers to install the machine and train our workers ?

Sure, we are the manufacturer, we supply turn-key project line for our customer.

Our engineer will give your workers free training .

2.Do you supply after sales service and how you guarantee you have the ability and the quality ?

We are big company .we are manufacturer , not trade company .We offer one year guarantee time for your machine .
