CE certificated vibration screen manufacturer vibrating sieve for wood / flour(Circular Motion)

contained equipment working on the principle of gyratory motion using low powered motor.

Technical Feature

  • Henan, China (Mainland)
  • PK
  • XZS 400/600/800/1000/1200/1500
  • Separation, classification,vibrating sieve
  • Engineers available to service machinery overseas
  • Carbon steel, stainless steel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~990

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
PK
Model Number
XZS 400/600/800/1000/1200/1500
Type
Separation, classification,vibrating sieve
After-sales Service Provided
Engineers available to service machinery overseas
Construction
Carbon steel, stainless steel
Deck
1-3 decks
Feeding Size
<10mm
Driving Device
Vertical vibration motor
Screening area
0.09/0.22/0.4/0.63/0.95/1.5m2
Frequency
1500rpm
Amplitude
1~2mm
Capacity
0.3~4.5m3/h
Power
0.18/0.25/0.55/0.75/1.1/1.5kw
Name
vibrating sieve

DETAIL DESCRIPTION

Product Description

CE certificated vibration screen manufacturer vibrating sieve for wood / flour(Circular Motion)

 I Biref Introduction Of Vibration Sieve

1. Operating Principles

Vibrating sieve is a self-contained equipment working on the principle of gyratory motion using low powered motor. It separates bulk solid materials from solids and slurries, utilizing multi-plane, inertial vibration that causes particles to pass through apertures in the screen or to travel across the screen surface in controlled pathways.

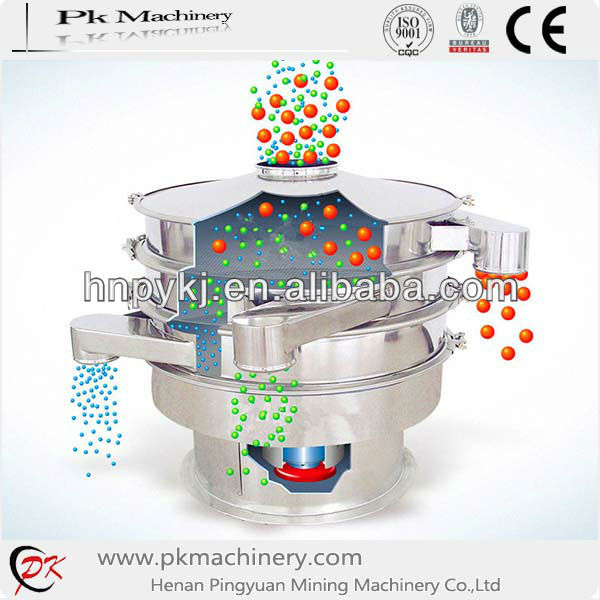

♦ Mimic Picture

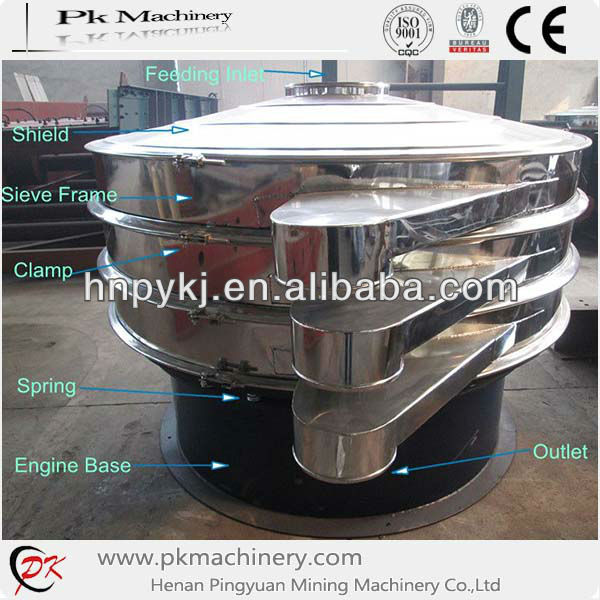

♦ Structual Picture of Vibrating Sieve



2. Main Parameters

♦ It handles dry/wet screening of particles from 30mm down to 500 mesh in size.

♦ Vibrating Sieve ranges in diameter from 600mm to 2000mm, with single or multiple screening decks (up to three)



II Typical Applications Of Vibrating Sieve

1. Dry separation-Separation of different materials on the basis of their particle shape

2. Dry classification-Separation of solid particles into precise sized fractions

3. Solid/Liquid separation-Dewatering of solids and clarification of liquids



♦ Applicable Material

Chemical, medical powder and particle, coating, pigment, cosmetic, grease, resin, ceramic sauce, slurry, quicklime, fireproofing powder, metallurgy powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, sewage, waste oil, dung, etc.

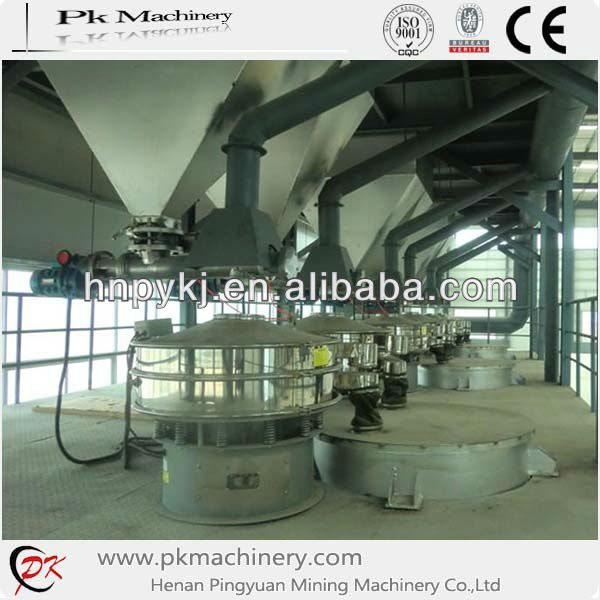

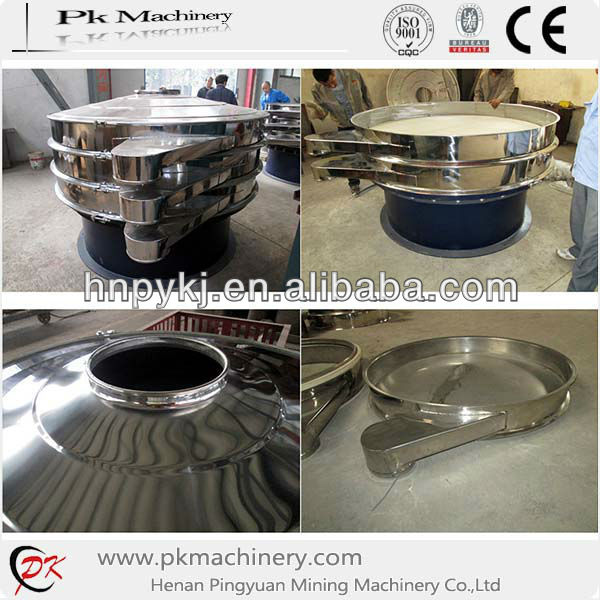

♦ Site Pictures of Vibrating Sieve




III Main Features Of Vibrating Sieve

1. Small volume with easy moving; easy operation and maintenance

2. High efficiency with compact structure

3. Long screen life, easy&quick screen cloth exchange; equipped with anti-blinding device



IV Technical Parameters Of Vibration Screen Sieve

Model

Diameter

Screen Surface

Feeding Granularity

Screen Opening

Deck

Power

Diameter

Area

(mm)

(mm)

(m2)

(mm)

(kw)

XZS-600

600

540

0.2281

<10

2-500 mesh

1-3

0.55

XZS-800

800

730

0.4183

0.75

XZS-1000

1000

900

0.6359

1.1

XZS-1200

1200

1100

0.9499

1.5

XZS-1500

1500

1400

1.5386

2.2

XZS-1800

1800

1700

2.2687

3.0

XZS-2000

2000

1886

2.7922

3.7



V Machine Pictures Of Vibration Screen Sieve

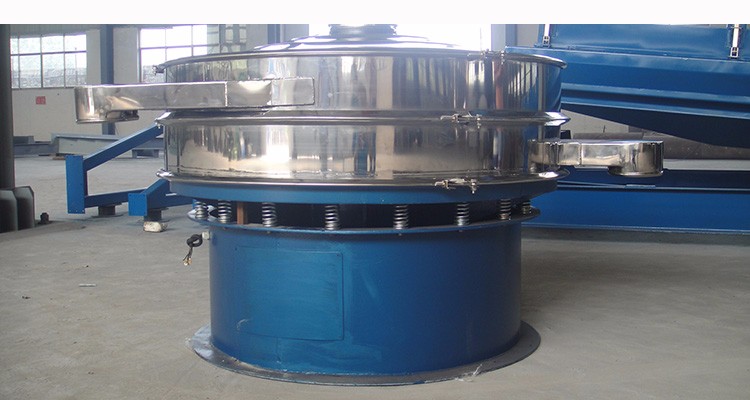

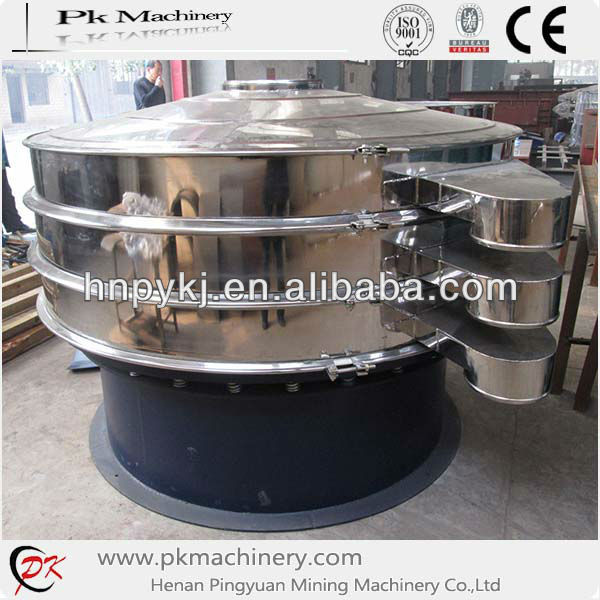

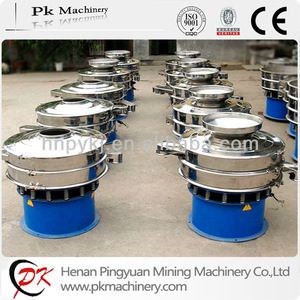

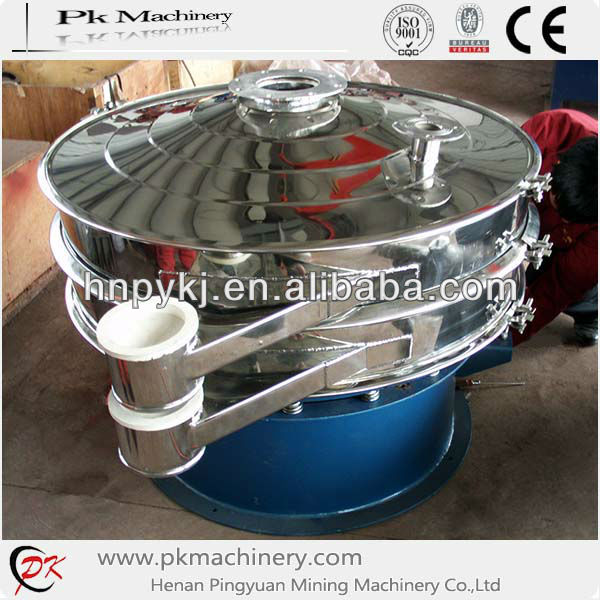

1. Complete Machine

♦ Picture 1



♦ Picture 2

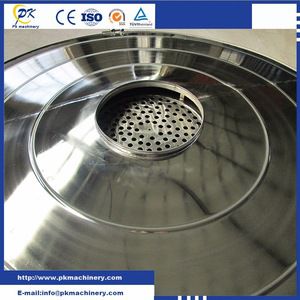

2. Inlet & Deck Frame

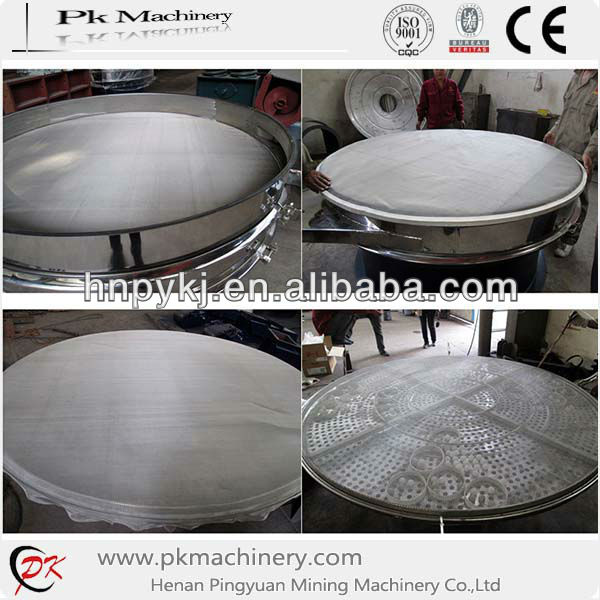

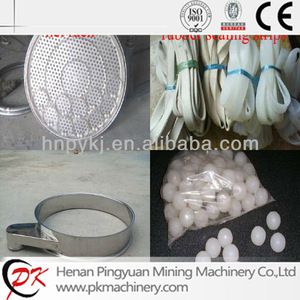

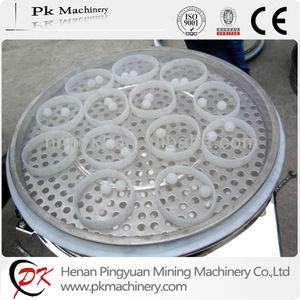

3. Screen Surface & Anti-blocking Device (Rubber Bouncing Balls)

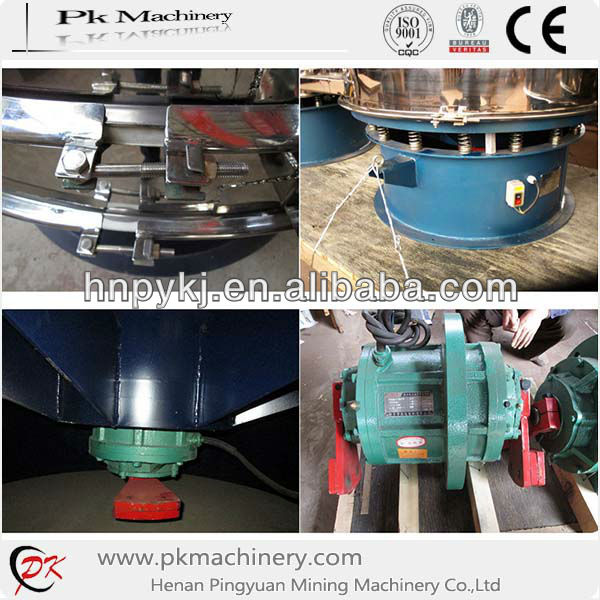

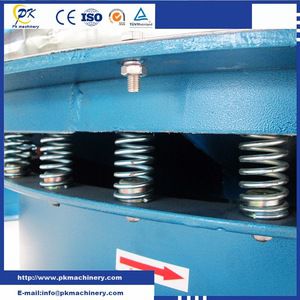

4. Clamp & Steel Spring & Driving Device (Vertical Vibration Motor)

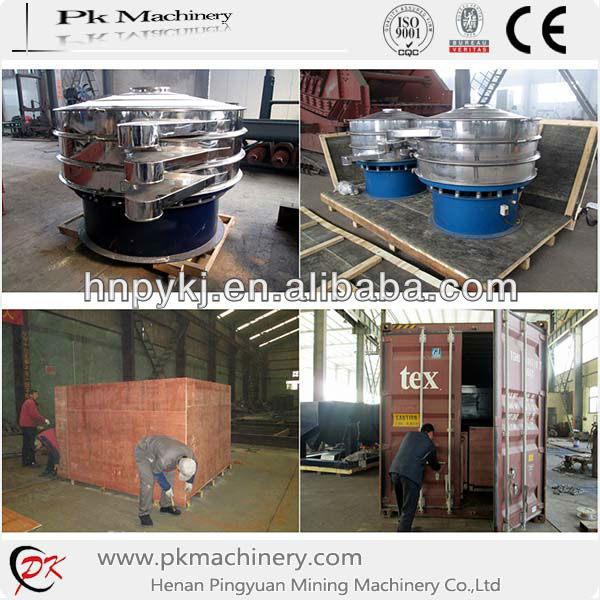

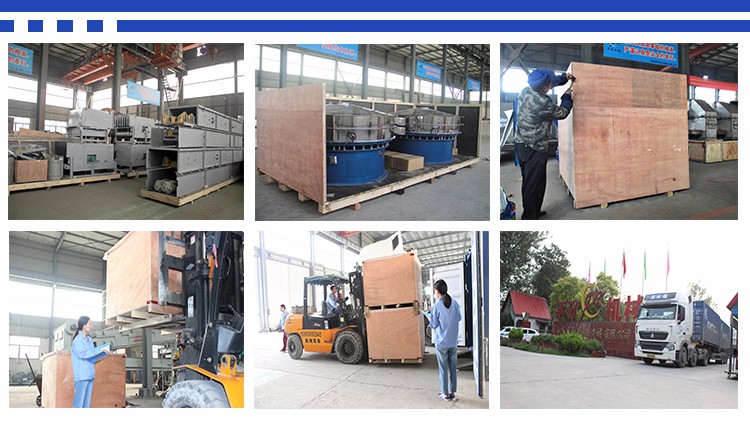

VI Packing and Transportation of Vibrating Sieve

1. Export Packing-Wooden Case and Pallet

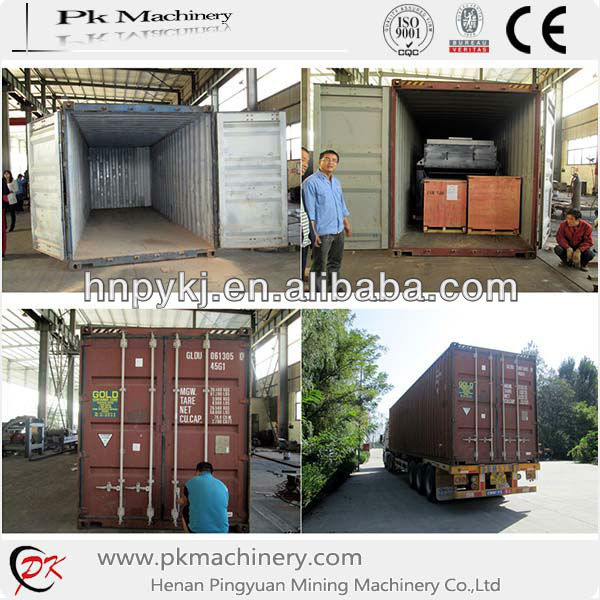

2. Sea Transporation-Packed in 20GP/40GP/40HQ container

Packaging & Shipping



CE certificated vibration screen manufacturer vibrating sieve for wood / flour(Circular Motion)

1.We can deliver the vibrating sieve timely .

2.Standard packing or as per customer 's packing instruction .

3.15-30  days after receiving the deposit .



VII We can choose the most suitable the machine according to customer requirements.

1. Material need to be processed_____?

2. Feeding size____mm and bulk density____t/m3 ?

3. Processing capacity____t/h ?

4. ____layer? mesh opening of every layer____mm?

5. What is the material particle size distribution?



VIII Company Information

1. Company Introduction

Founded in 2004, Henan Pingyuan Mining Machinery Co.,Ltd is a specialized manufacturer with the registered capital of 1.8 million, covering an area of 80,323 square meters. The turnover increases by 15% annually.



2. Certification

ISO9001:2008, BV, SGS, CE certification

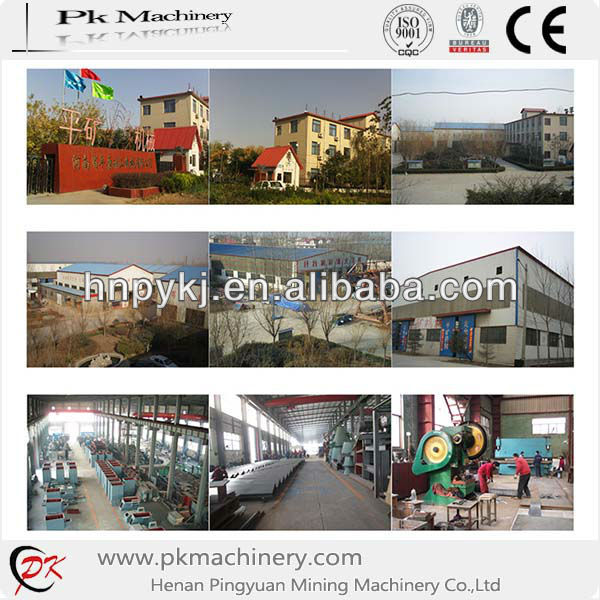

3. Factory Pictures

Our Services

1.Reply your enquiry in 24working hours ,anytime you can contact us .

2.Provide good before-sale / after -sale services.

3.Provide Professional &technical support.

4.View our factory ,sincerely treat per customer's requirement .



If you want to know more the vibrating sieve ,kindly Click Here and send us a requirement.We can be dedicated to serve you.



FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.

Selection Conditions

We have someone who can guide you to know more about the vibrating sieve .

CLICK HERE.  Kindly send us your requirement.

♦Material to be processed: _____♦Max. granule size of the feeding material: _____mm

♦Handling capacity (Ps. It means the total material

capacity feeding from the inlet): _____t/h



♦Layer number: ______

♦Bulk Density: _____t/m3♦Mesh size of each layer: _____mm
♦Material temperature: _____℃;♦Particle distribution percentage:______
♦water content:____%We want to confirm the following information:
♦Material is corrosive or not: ____ (Ps. Yes or No)1)The percentage of X in the whole material:_____%;
♦Material is sticky or not: ____ (Ps. Yes or No)2)The percentage of Y in the whole material:_____%;
♦Working environment is indoor or outdoor: _____3)The percentage of Z in the whole material:_____%;)
♦Working environment temperature: ______ ℃♦Working power supply: _____V ______HZ

♦Upstream equipment (Ps. It means what kind of

equipment is used to feed the material): _____

♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____
