Centrifugal vibration sieve, blueberry round sieve, chemical machine

Centrifugal vibration sieve, blueberry round sieve, chemical machine is one of the machinery equipment aims to improve the screening efficiency by applying the rotary and vibration operational mode to crush and screen the materials into different granular

Technical Feature

  • New
  • Circular
  • centrifugal vibration sieve
  • Henan, China (Mainland)
  • PK
  • XZ chemical machine
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Type
Circular
Application
centrifugal vibration sieve
Place of Origin
Henan, China (Mainland)
Brand Name
PK
Model Number
XZ chemical machine
Voltage
220V,380V,415V,600V or other
Power(W)
0.55-3.7kw
Dimension(L*W*H)
as per order
Weight
200-1100kg
Certification
ISO9001
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Layer
1~3
Keyword
centrifugal vibration sieve
Volume
690*690*600-2430*2430*1500mm
Mesh specification
2-500 mu/inch
Max particle size
less than 20-50mm
Material
Carbon steel, stainless steel
Diameter
400-2000mm
Applicable Material
Flour,salt,sugar,milk,nuts,seeds,grains,oil,fruit juice
Spare parts
rubber ball, frame,spring ect.
Product name
centrifugal vibration sieve

DETAIL DESCRIPTION

Product Description

Centrifugal vibration sieve, blueberry round sieve, chemical machine

Centrifugal vibration sieve, blueberry round sieve, chemical machine is one of the machinery equipment aims to improve the screening efficiency by applying the rotary and vibration operational mode to crush and screen the materials into different granularity products according to the customer's requirement.
Application:

Centrifugal vibration sieve, blueberry round sieve, chemical machine acts as a precise powder sieve to filter medium particles such as sand, powder and mucilage. It mostly applied in chemical and pharmaceutical industries, metallurgy, mining industry, food processing, waste treatment etc.

Performance and Features:

  1. Low energy consumption, low noise,
  2. High screening accuracy, large capacity, simple structure.
  3. Fully enclosed structure, good sealing, prevent dust spillover, automatic discharge, more suitable for assembly line work.
  4. Screen body parts are used copper plate and section welded together (part group between body for bolt connection) overall stiffness is good, strong and reliable.

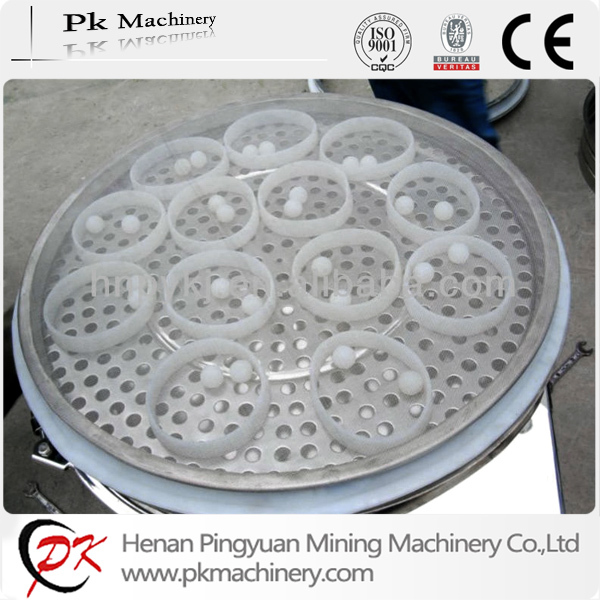

  5. Unique design of screen structure, convenient and quickly to change screen (only 3 to 5 minutes); And her mother screen fully supporting the fine screen, so fine screen can be long life, so as to reduce the consumables cost of the fine screen; In addition this design allows to using all kinds of screen (nylon, special dragon, PP network).
  6. The design of the machine is exquisite and easy to assemble; one person can operate the machine.
Working Principle:

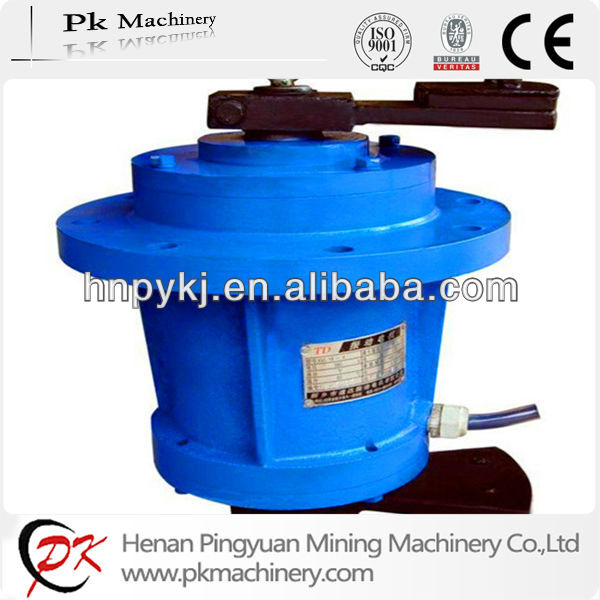

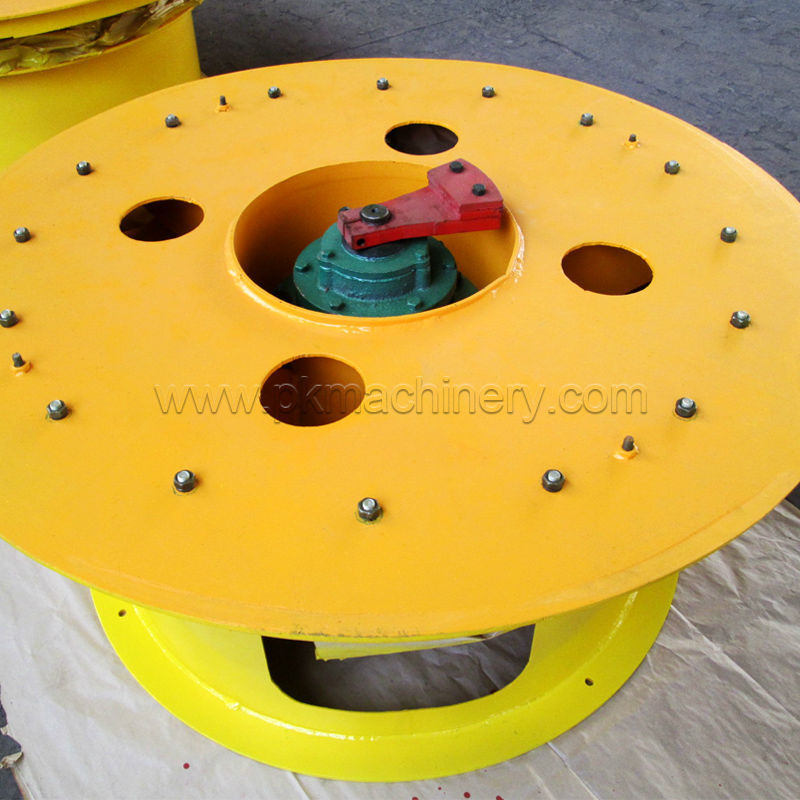

Centrifugal vibration sieve, blueberry round sieve, chemical machine is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source. The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be change by adjusting the phase angle on both top and bottom parts.

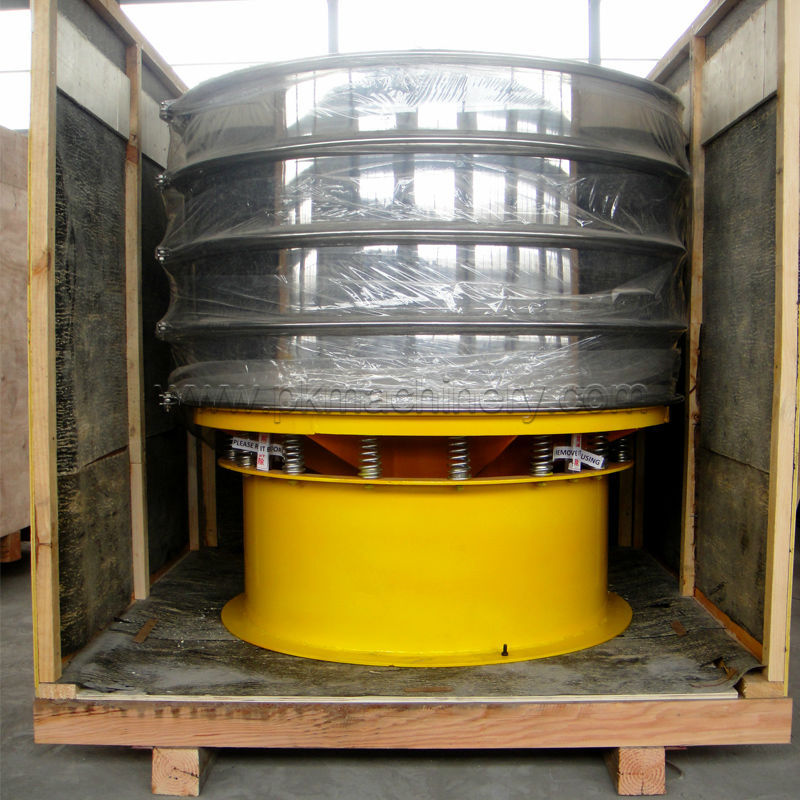

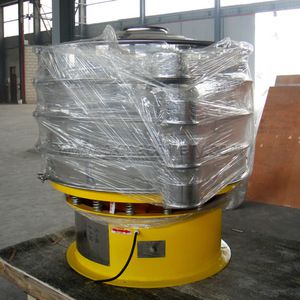

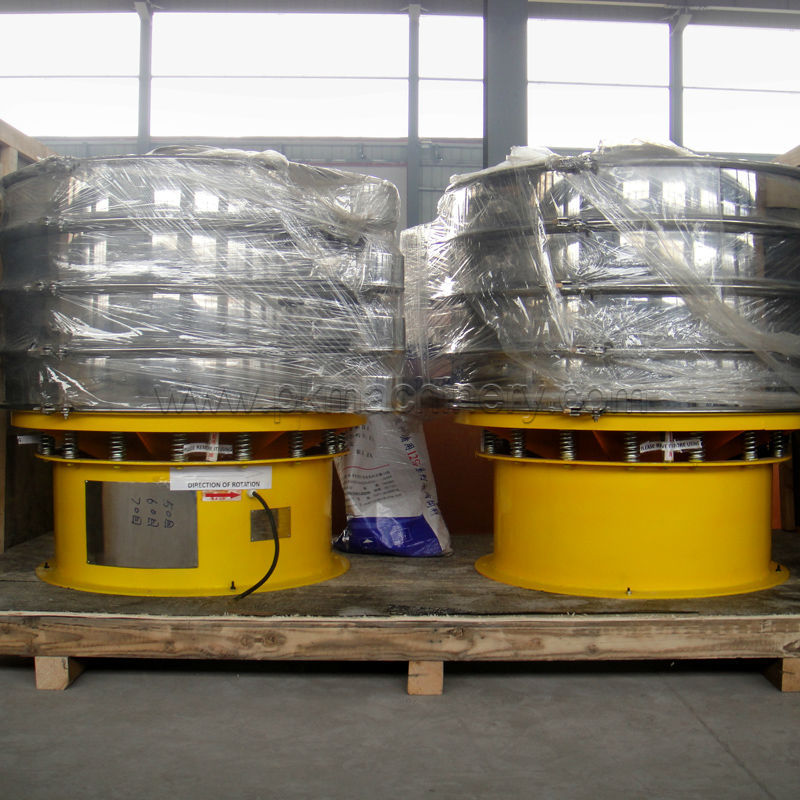

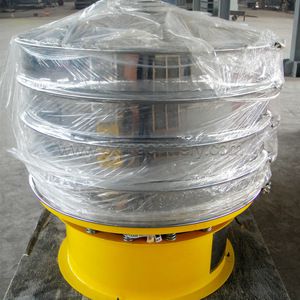

Packaging & Shipping

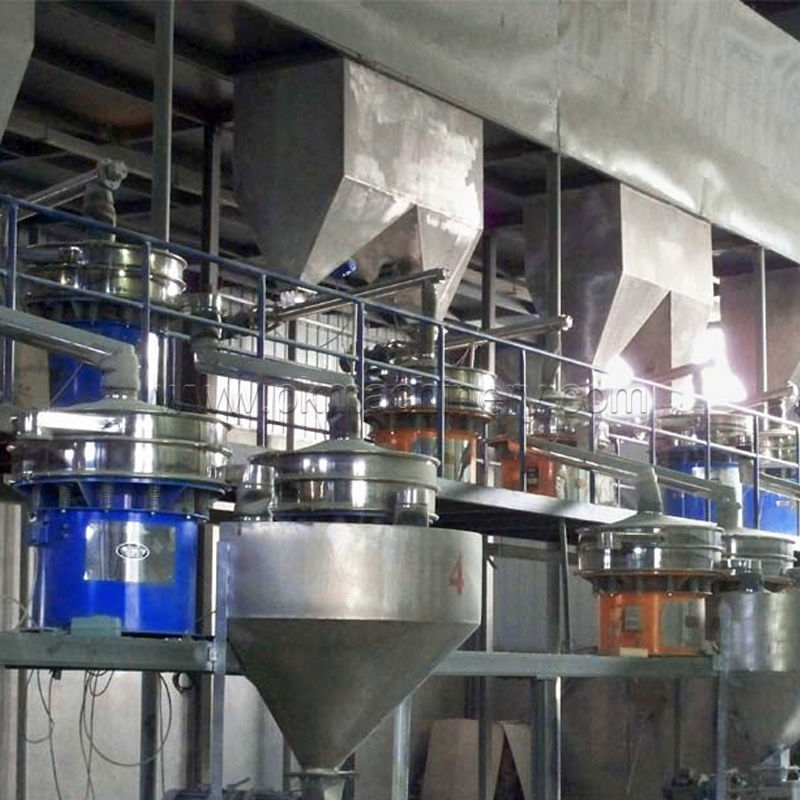

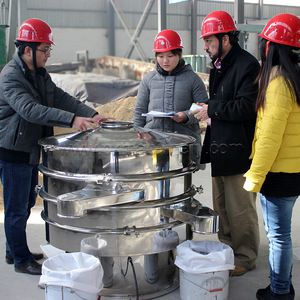

Product Show

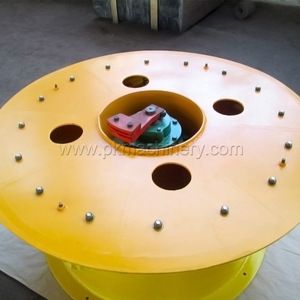

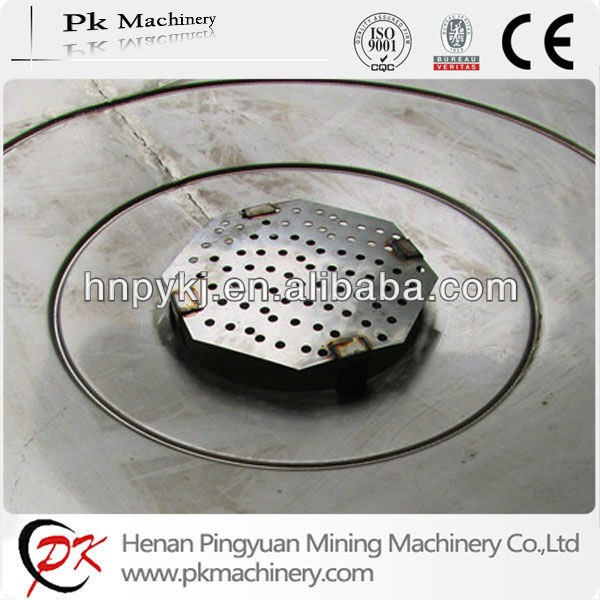

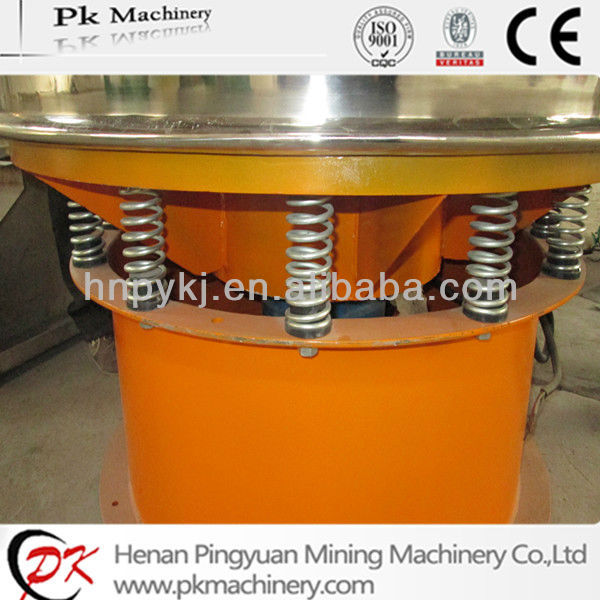

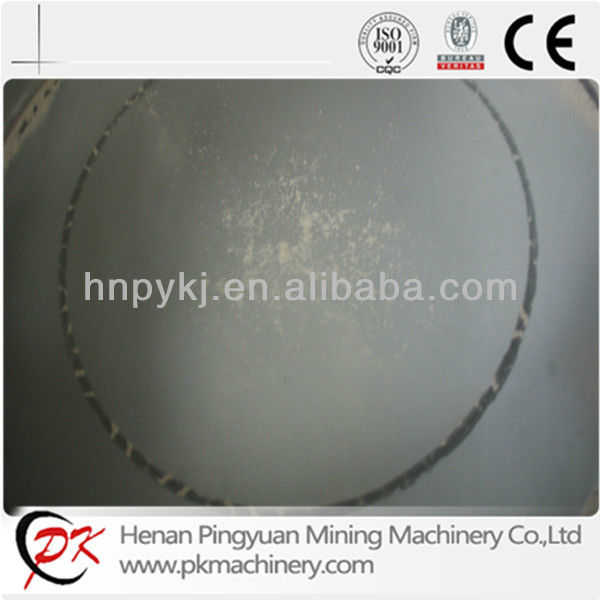

Detail Pictures
Technical Parameters
ModelNominal Diameter
(mm)
Screen Diameter
(mm)
Screen Surface
Area (m3)
Feeding
Size (mm)
SpecificationNo. of
Layers
Frequency
(rpm)
Power
(Kw)
XZ – 4004003400.09<102 - 3251 - 315000.18
XZ – 6006005300.22<1015000.25
XZ – 8008007200.4<2015000.55
XZ – 100010009000.63<2015000.75
XZ – 1200120011000.95<2015001.1
XZ – 1500150014001.5<2015001.5
XZ – 1800180017102.3<3015002.2
XZ – 2000200019102.86<3015003.7
Note: the parameter above is just for reference,it can be customized by different requirment.
Information Needed For The Quotation

To choose the most suitable machine for you ,please provide us more detail information as the followings:

Material

Material name:_____
Feeding size:_____mm
Material density:_____t/m3
Material distribution:_____%
Separation destination:_____

Screen machine
Capacity:_____t/h
Screen deck: _____

Particle size distribution of each layer:
Opening size:_____mm
Construction material:_____



Latest Export News
Bentonite Rotary Vibrating Screen will be Delivered to Poland
Rotary vibrating screen used for bentonite was delivered to Qingdao port from our company and it will be sent to Poland on Sept. 8th, 2015 as planned.
The type of rotary vibrating screen ordered by our Poland customer is XZS-600. At the same time, our customer ordered hopper, support frame and gate valve as a whole screening system. According to the requirements and concrete information of our customer, such as with 50kg/h capacity, 0.75t/m³ density of materials, our engineer designs and selects this kind of rotary vibrating screen. We do believe it will surely satisfy our customer.

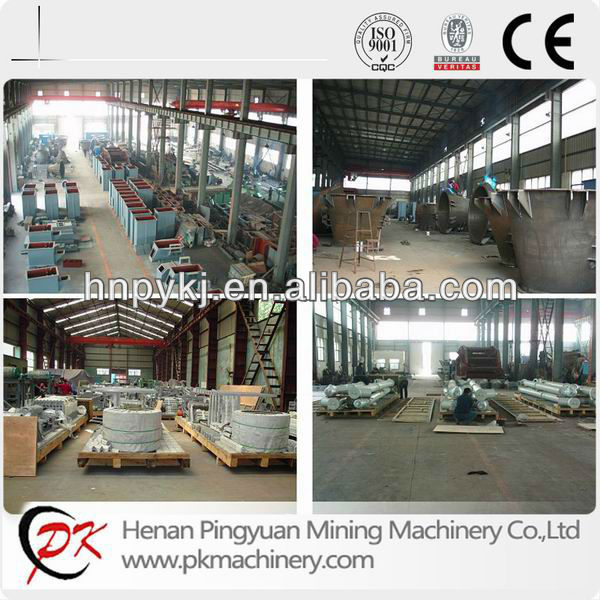

Company Information
Henan Pingyuan Mining Machinery Co.,Ltd had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.
FAQ

1.How long is the delivery time of your equipment?

The delivery time is within 30 working days. But when the project is very big and the customers have special requirement , the delivery could be extended ,based on different situations.

2.How long is the  equipment warranty period?

Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.

3.Can you give me a solution and quotation?

Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.

 4.How could I trust your promise?

A:You may check the qualification on our website certified by the appraisal agency Bureau Veritas;

B:Company inspection always available.Sincerely welcome your visit.

Selection Conditions

We have someone who can guide you to know more about the centrifugal vibration sieve

CLICK HERE.  Kindly send us your requirement.

♦Material to be processed: _____♦Max. granule size of the feeding material: _____mm

♦Handling capacity (Ps. It means the total material

capacity feeding from the inlet): _____t/h



♦Layer number: ______

♦Bulk Density: _____t/m3♦Mesh size of each layer: _____mm
♦Material temperature: _____℃;♦Particle distribution percentage:______
♦water content:____%We want to confirm the following information:
♦Material is corrosive or not: ____ (Ps. Yes or No)1)The percentage of X in the whole material:_____%;
♦Material is sticky or not: ____ (Ps. Yes or No)2)The percentage of Y in the whole material:_____%;
♦Working environment is indoor or outdoor: _____3)The percentage of Z in the whole material:_____%;)
♦Working environment temperature: ______ ℃♦Working power supply: _____V ______HZ

♦Upstream equipment (Ps. It means what kind of

equipment is used to feed the material): _____

♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____
