ZYJ Coconut milk filter screen oscillate sieve machine

including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.

Technical Feature

  • Henan, China (Mainland)
  • Zhenying Wet sieve shaker sediment
  • ZYJ Wet sieve shaker sediment
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • Blue or others
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~4

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Zhenying Wet sieve shaker sediment
Model Number
ZYJ Wet sieve shaker sediment
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Color
Blue or others
Material
SUS304/316L,optional
Current
AC for Coconut milk filter screen oscillate sieve machine
Power
0.18~2.2Kw optional
Voltage
Optional
Rev.
1420rpm
Screen mesh
5~500mesh
Amplitude
2-6mm
Layer
1 layer or optional
Application
Coconut milk filter screen oscillate sieve machine

DETAIL DESCRIPTION

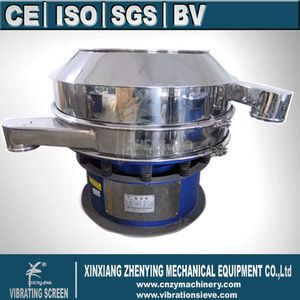

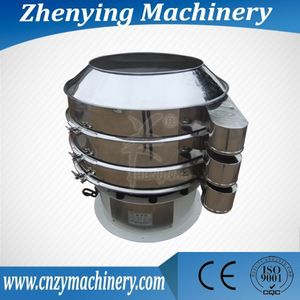

ZYJ Coconut milk filter screen oscillate sieve machine

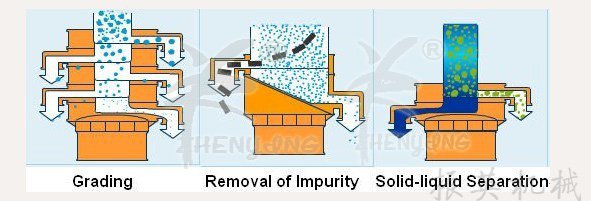

Applied Fields
Various kinds of the materials can be screen Large processing capacity Easy to  install and maintained by the  ZYJ Coconut milk filter screen oscillate sieve machine including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.



Technical Parameters



Model

Power

(Kw)

Sieving diameter

(mm)

Size

(mm)

layer

ZYJ-400-1S

0.18

320

580×580×660

1

ZYJ-600-1S

0.55

550

800×800×780

1

ZYJ-800-1S

0.75

750

900×900×930

1

ZYJ-1000-1S

1.5

950

1160×1160×1030

1

ZYJ-1200-1S

1.75

1150

1360×1360×1160

1

ZYJ-1500-1S

2.2

1450

1850×1850×1330

1

ZYJ-1800-1S

2.2

1750

2200×2200×1460

1














Features

  1. High efficiency, ingenious design, durable and suitable for screening any kinds of the powder and viscous fluid for  powder filter machine.
  2. No jam for the screen net, no powders flying around and no liquid  leaking out whenrunning, fully sealed structure and environmentally friendly.
  3. Small size and can be moved easily for corn starch saperator .
  4. The  ZYJ Coconut milk filter screen oscillate sieve machine are uniquely designed under 500 mesh, and the net.
  5. It only takes 3~5 MINS to replace and clean the net conveniently.
  6. Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations
  7. Stainless steel parts contacting materials.

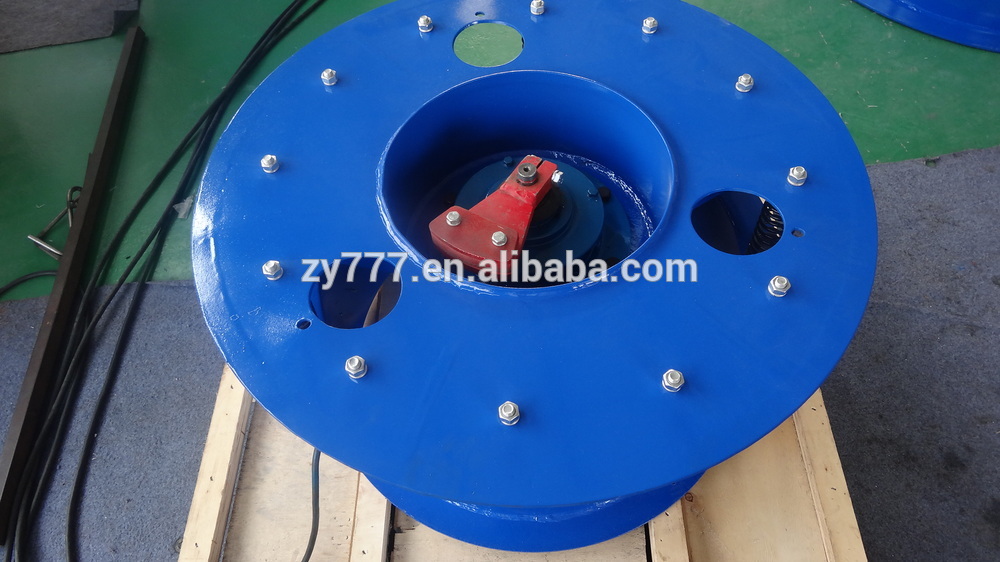

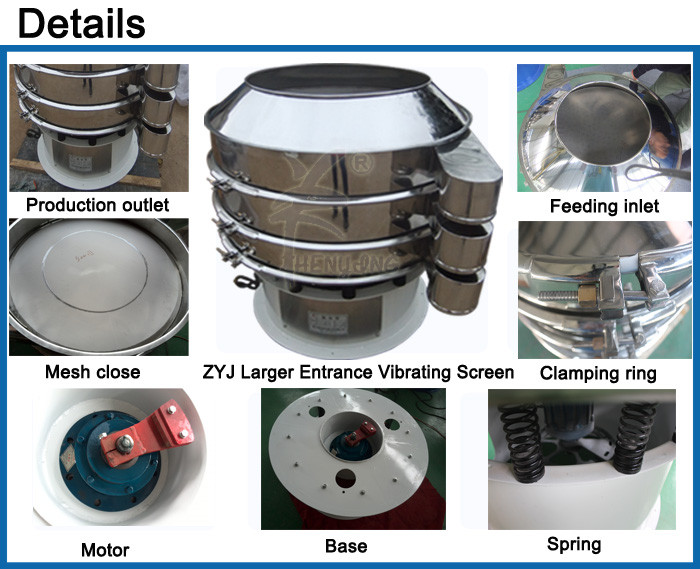

The basement of Coconut milk filter screen oscillate sieve machine .

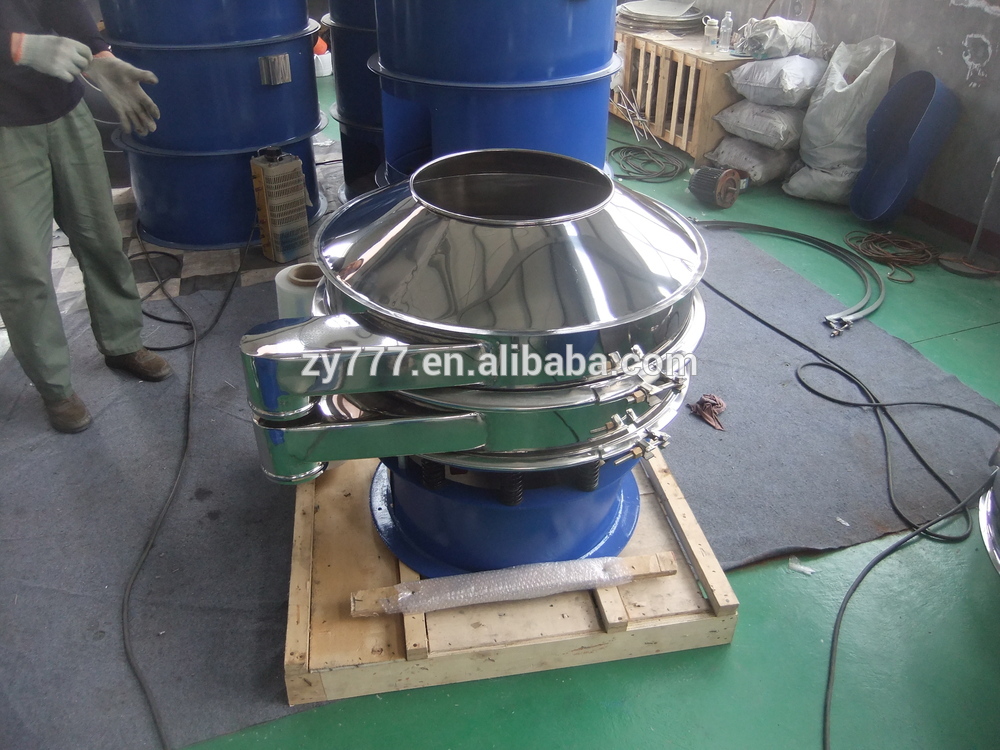

The whole machine for Coconut milk filter screen oscillate sieve machine.
