ZYQW air flow centrifugal sifter shaker sieve manufacturer

com will refund the covered amount of your payment.

Technical Feature

  • New
  • Circular
  • Food Processing
  • Henan, China (Mainland)
  • Zhenying air flow centrifugal sifter shaker sieve manufacturer
  • ZYQW air flow centrifugal sifter shaker sieve manufacturer
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~6

PRIMARY PARAMETERS

Condition
New
Type
Circular
Application
Food Processing
Place of Origin
Henan, China (Mainland)
Brand Name
Zhenying air flow centrifugal sifter shaker sieve manufacturer
Model Number
ZYQW air flow centrifugal sifter shaker sieve manufacturer
Voltage
380V/ as your required
Power(W)
1.5kw or depends on model
Dimension(L*W*H)
Differ from size
Weight
Differ from size
Certification
ISO9001
Warranty
13 Months
After-sales Service Provided
Engineers available to service machinery overseas
Name
ZYD air flow centrifugal sifter shaker sieve manufacturer
Color
Blue ,white or other
Mesh type
Woven/ punching hole
material
SUS304 /316L or Q235
Layer
1-3 layers
Mesh size
5-625 mesh air flow centrifugal sifter shaker sieve manufacturer
Sieving Diameter
350-1750 mm
Cleaning system
Cleaning of bouncing ball/ ultrasonic system Customized Available
Usage
Sieving,classifying, filtering

DETAIL DESCRIPTION



Company Information



Trade by Trade Assurance


100% Product quality protection
100% On-time shipment protection
100% Payment protection


The supplier fails to ship your products on time or the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.

Welcome you to visit Zhenying Machinery

Product Description

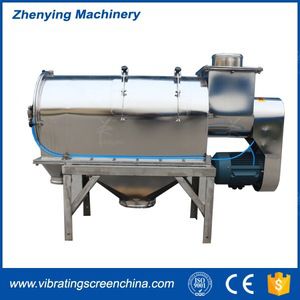

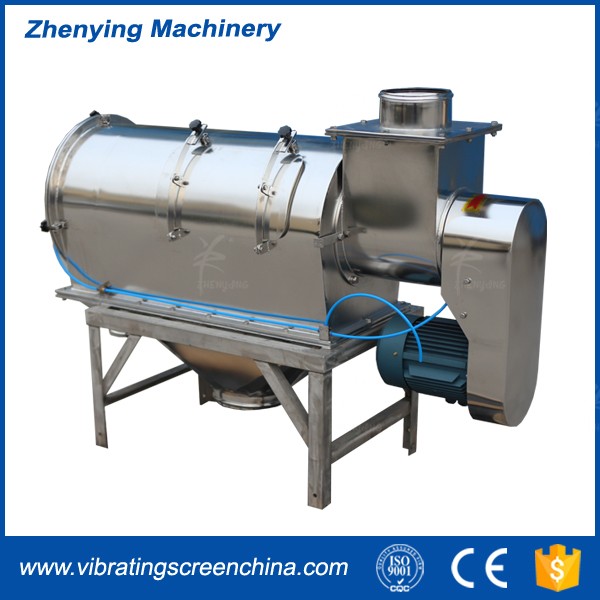

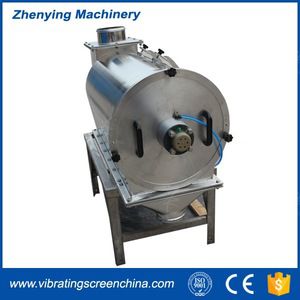

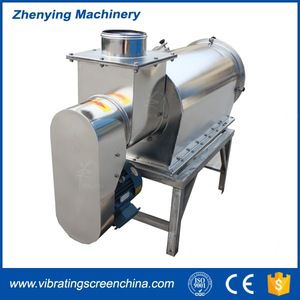

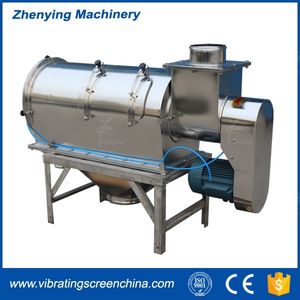

ZYQW air flow centrifugal sifter shaker sieve manufacturer


Please click here → air flow centrifugal sifter shaker sieve manufacturer for the video:

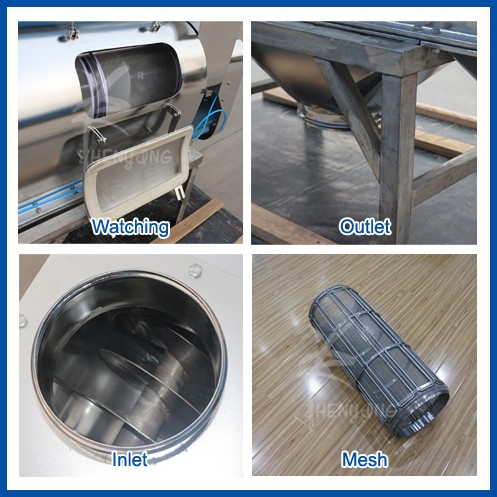

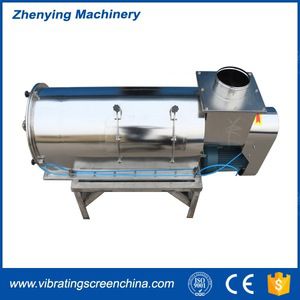

Detail pictures for air flow centrifugal sifter shaker sieve manufacturer:

 Main Axis for air flow centrifugal sifter shaker sieve manufacturer.

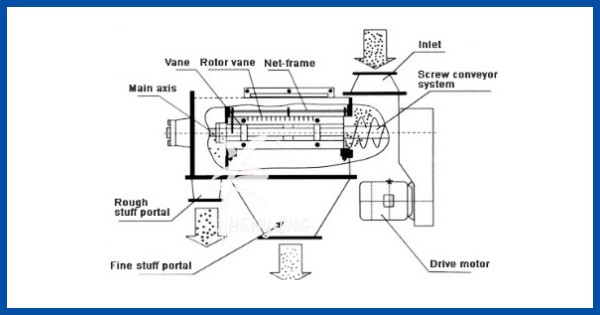

Description

ZYQW air flow centrifugal sifter shaker sieve manufacturer the cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow mixed and atomized after passing the screw conveying system; some of the materials are sprayed through the net and discharged from the fine stuff portal by the

centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube.
Other materials which cannot cross the net, are discharged from the rough stuff portal along the net tube wall.



Application

The soft friable amorphous mineral classifier machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.

Features

1 The whole machine is in a small size and light so that it is stable in operation, free from vibration and noise, 2 and with its good sealed structure, it is free from dust and performs in high efficiency.
3 The shell of machine is in a new design which makes it easy to install and convenient to control.
4 The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
5 The screen-mesh can be cleaned automatically by cyclone.
6 The machine has the function of re-crashing the agglomeration materials.
7 The new type roller bearing can prolong the service life.
8 The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
9 New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
10 It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.
11 The machine can be specially designed to meet special requirements.

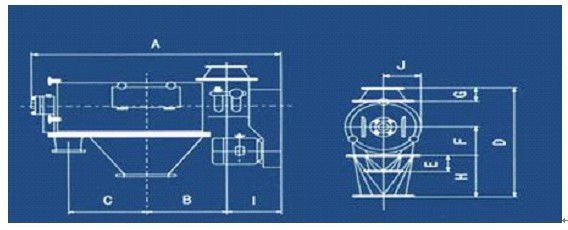

 Parameter



ModelABCDEFGHI J
ZYQW18-65 14304604201005135230250330340210
ZYQW25-85 18456557661240320285300350380290
ZYQW50-130 22308707901775280515150660400485

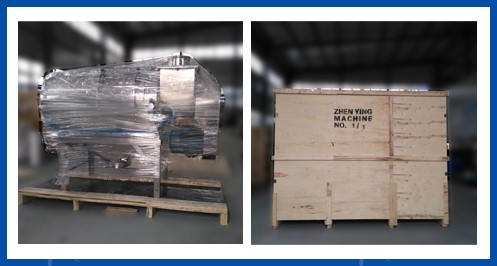

Packaging & Shipping

Standard export package of fumigation-free wooden case for bucket elevator for sale, container or according to your requirement. If you have any special needs please tell us (like "made in China" sprayed on the case).

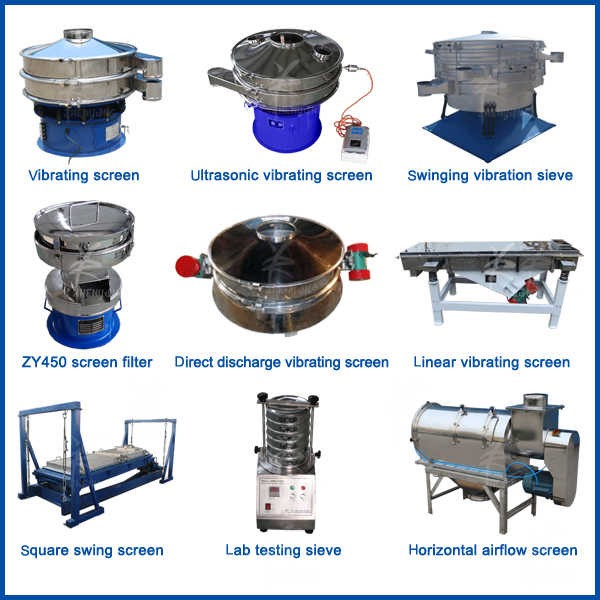

Other products
1.Sieving machine;
2.Conveying;
3.Feeding machine;
4.Related equipments and spare parts.
Welcome inquiry!

Our Advantage

1.Free testing machine

2.Free drawing
3.Customized design

4.Rich experience: More than 20 years experience.
                               More than 7 years exporting experience.
5.Our certifications and patents
CE, ISO9001:2008 and BV Certifications
Ablibaba golden supplier
More than 40 patents
Our Services

1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.


2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise;
devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.


3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4) Engineer go your site to install and maintance.

FAQ

In order to assist you choose a suitable model, please kindly figure out the
following information:

1.What is the product you want to sieve?(Could you send us some pictures)
For example: flour powder.
2.How about the features of product?(Like moisture and bulk density)
Like: 1%-10%; 1.25g/cm³.
3.What's the mesh size(product/particle size) you need?
Answer: 80mesh(0.18mm), 100mesh(0.15mm).
4.How much the capacity(kg/h) you want?
Like: 600-800kg/h.
