Manufacture latest citric acid vibrating screen

Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibrating source.

Technical Feature

  • New
  • Extraction Equipment, Circular
  • Fertilizer
  • Henan, China (Mainland)
  • Zhenying citric acid vibrating screen
  • ZYD citric acid vibrating screen
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~8

PRIMARY PARAMETERS

Condition
New
Type
Extraction Equipment, Circular
Product Type
Fertilizer
Place of Origin
Henan, China (Mainland)
Brand Name
Zhenying citric acid vibrating screen
Model Number
ZYD citric acid vibrating screen
Voltage
380V/220V/Design
Power(W)
0.18~2.2KW
Weight
350Kg
Dimension(L*W*H)
900*900*1080mm
Certification
CE,ISO
Warranty
13 Months
After-sales Service Provided
Engineers available to service machinery overseas
Application
Separating;screening;filtering
Material
Stainless Steel SUS304
Mesh size
5~500mesh
Freqency
50HZ or 60HZ or Optional
Base made of
Carbon steel or stainless steel
Instruction Video
Available
Layer
1-4layers
OEM
Available
Customization
Available

DETAIL DESCRIPTION

Manufacture latest citric acid vibrating screen

Discription



Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibrating source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieve surface. Adjusting the phase angle on the vibrating motor top and bottom can change trajectories of the materials on the screen.







Application

  • Food industry: sugar powder, starch, salt, rice noodles, milk powder, etc.
  • Metals: Metal powder, alloys, ceruse, copper powder, ore alloy powder, etc.
  • Ceramics: Ceramic powders, kaolin clay, lime, alumina, etc.
  • Environment: disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.
  • Coatings: Powder coatings, pigment paints, etc.



Machine details

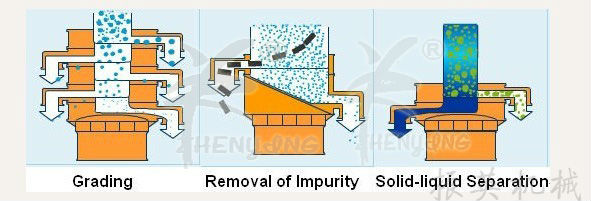

Maily used for filter,remove impurity,classify different size of material.

Detail pictures



Middle Frame

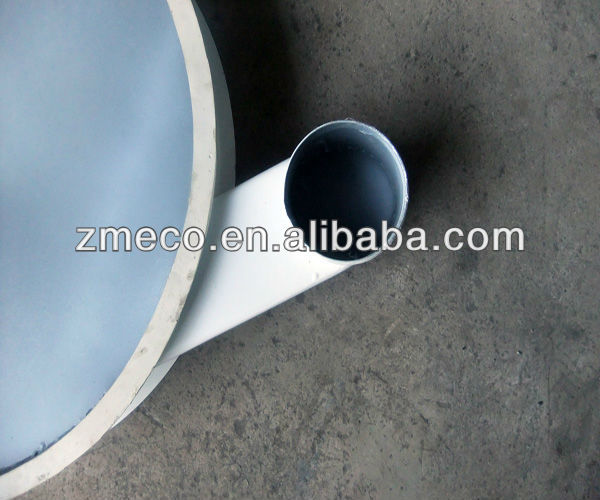

Outlet Of screening machine



Vibrating Base and Spring

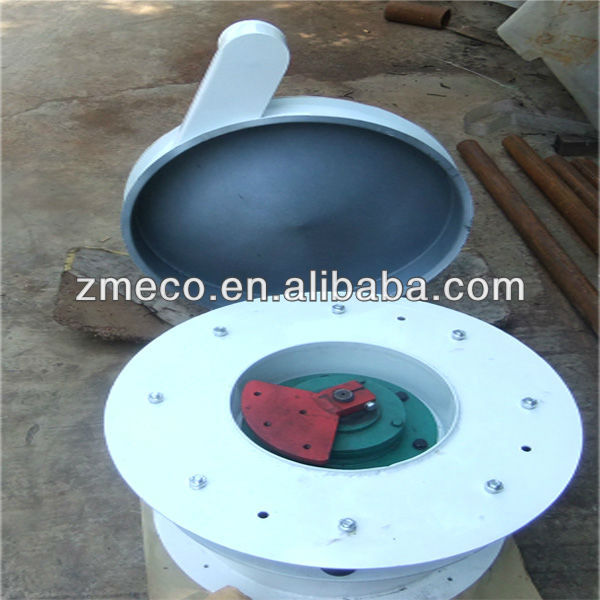

Vibrating base ,Vibration motor and Bottom frame

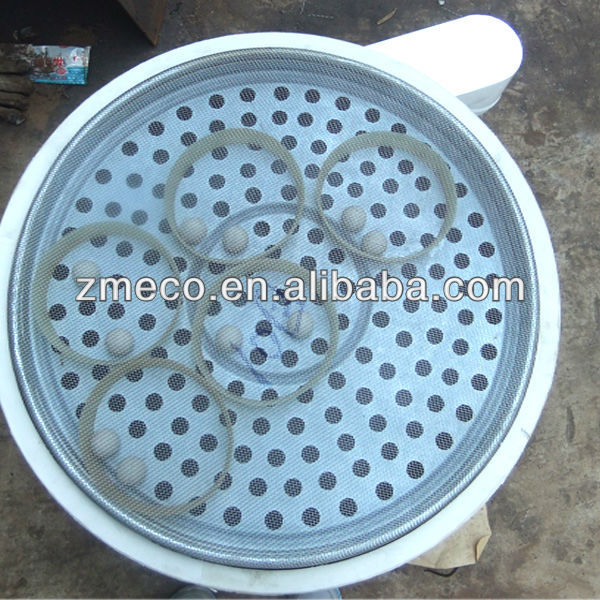

Screen Sieve:Bouning ball,pu ring

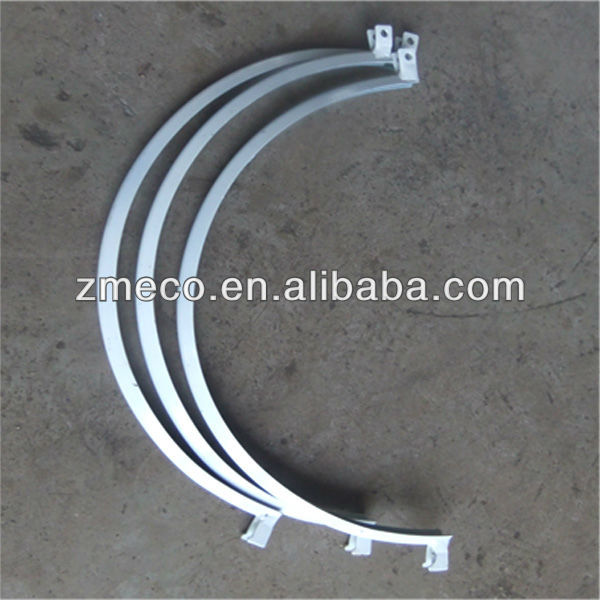

Clamp Ring



Have special requirements,can tell us(like "made in China"need to  be spray in container)



Tech Parameters



Note:Dimension: 400mm,600mm,800mm,1000mm,1200mm,1500mm ,1800mm

Decks: The layer can reach 5 layers,but 3 layers is suggested.



ZYD-1000-1S
Dimension(mm)1160×1100×940
DeckSingle Deck
Sieving Diameter950mm
Voltage380V/50Hz/3 phase/Design
Sieving Area0.785 m³
Material Of machineCarbon Steel/Stainless Steel 304/316L
Power1.5KW
Weight300Kg(G.W)
Bouncing Ball24 for per sieve mesh
Spring12
Screws8 piece M20*60
Nut27
ApplicationHerbal Powder(50Kg-10Kg)



Supply Spare Parts(include extra sieve,motor etc for exchange)

The warranty:13 months from delivery time,not include the wearing parts.



Mainly manufacture screening machine(linear/round rotary sieve shaker,vibrator screen with

ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),feeder,conveyor,

crusher and related products(magnetic separator) etc.
