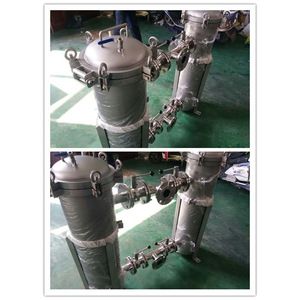

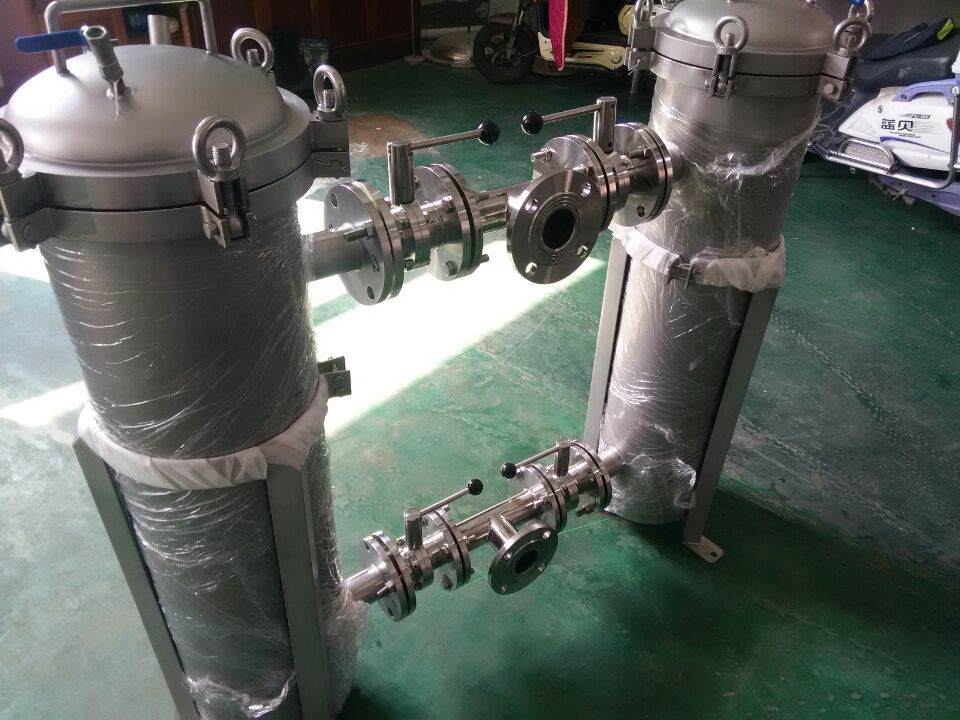

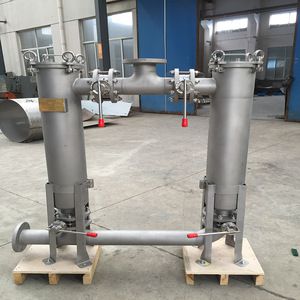

Customized duplex water filter for coating industrial water purification

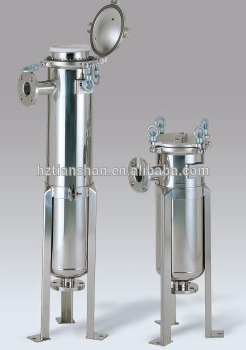

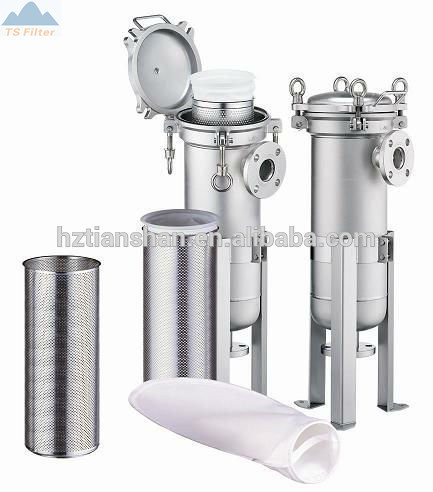

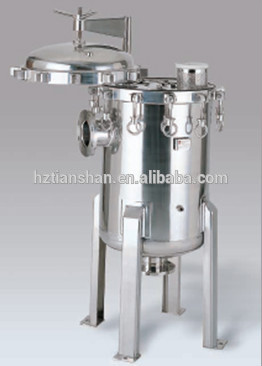

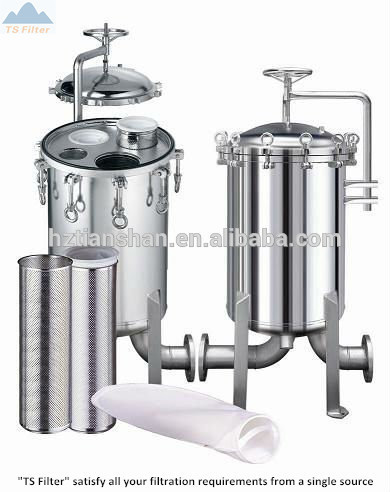

stainless steel bag filter housing(deplex filter) effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products. Bag filter can be used with the standard #1, #2, #3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result. Eye Bolt Closure System. The user friendly, cost effective bag filter housing for high volume, multiple applications and processes. The Max. Flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Main advantages
01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.
06.Filtration bag could be use repeated after cleaning to save cost.
07.bag filter application scope is broad, with flexible operation and multiple installation .
Welcome to inquiry more detail .
Email:lyy(at)tsjmlc.com Whatsapp:+86 18356516590
Technical parameters
| Design pressure: 0.96MPa 30min |
Maximum working pressure:0.60MPa | |
Surface smoothness:Ra≤0.2 | |
Design flow rate:Ra≤0.2 | |
Inlet&outlet type thread or flange | |
Type:single bag & multi bag filter housing | |
Designed for bag filtration system
| Different kinds of bag support baskets to fit for |
wide range of filter bags | |
Complete stainless steel structure | Made of 100% SUS304, SUS316L, PP |
Easy to clean
| Surface is mechanical polished or sand blasting passivation. |
dished end to aid clean down |

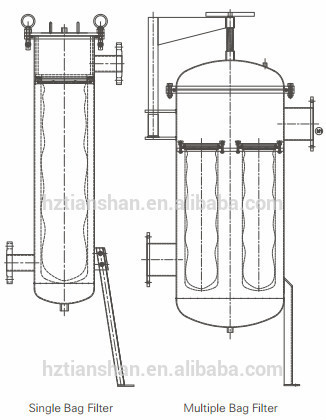

Specifications for single bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD1 | 220 | 550 | 2" thread, clamp, flange | 1 | 20 |
| 2 | BJD2 | 220 | 950 | 2" thread, clamp, flange | 2 | 40 |
| 3 | BJD4 | 130 | 650 | 1" thread, clamp, flange | 4 | 10 |
Specifications for multi bag filter housing
| No. | Size | Diameter | Length | inlet&outlet | Filter bag | Flow rate |
| Code | (mm) | (mm) | size | (m/h) | ||
| 1 | BJD2-2 | 400 | 1600 | 3" thread, clamp, flange | 2*2 | 80 |
| 2 | BJD2-3 | 500 | 1600 | 3" thread, clamp, flange | 2*3 | 120 |
| 3 | BJD2-4 | 550 | 1600 | 4" clamp, flange | 2*4 | 160 |
| 4 | BJD2-5 | 600 | 1600 | 4" clamp, flange | 2*% | 200 |
Ordering Guide
| PRODUCT | Bag Size | Bag Q'ty | Inlet/Outlet | Connection | Surface | Materials |
| BJD | 1 -#1 bag | 01 - Single | A- side in and side out | K-coupling | S- sand blasting | 304 |
| 2 - #2 bag | 02 - Two | B- side in and bottom out | F-bolt | T- polished | 316L | |
| 3 - #3 bag | 03 - Three | C- bottom in and bottom out | S- thread | PP | ||
| 4 - #4 bag | 04 - Four | D- top in and bottom out | How to order ?-example | |||
| 5 - #5 bag | 06 - Six | Bag size: #1; Bag Q'ty: Single | ||||
| 6 - #6 bag | 08 - Eight | Inlet/outlet: side in and side out | ||||
| 7 - #7 bag | 12 - Twelve | Connection: coupling | ||||
| X - other size | Surface: sand blasting | |||||
| Material: SUS304 | ||||||
| Selection code is: BJD101AKS304 |
 |  |  |
Operating Conditions(Bag Filter):
Max.Operating Pressure: 6 bar(87psi) , 10.34bar(150psi)
Max.Operating Temperature: 120°C
Applications(bag filter housing eaton replacement):
| Processing Chemicals | Paints,Inks,Coolants |
| Oils,Edible Oils, Vegetable Oils | Pharmaceuticals |
| Sugar Syrup | Cleaning Fluids |
1,24-hour Response
We responds any request from our clients within 24 hours, saving your time and labor.
2,Supporting System
The system consists of claims systems, technical support system, inquiry system and ordering following system. The system will provide after-sales service in full range.
3,Free Training
We provide free training to all of our clients and distributors. The training will give you ample knowledge of our product, and make it easy for your work.
4,Free Storage Area
We are providing free storage area to our client,to achieve mix loading purposes.
1 How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
