Pleated Depth Media Polypropylene Membrane 0.2 Micron Water Filter

s thermally bonded construction ensures minimal extractable and its high filtration efficiency makes it an excellent choice for use in various industrial applications.

Technical Feature

Zhejiang, China (Mainland)

TS Filter

0.1 Micron Water Filter

0.2 Micron Water Filter

0.1, 0.2, 0.3, 0.45, 1.0, 3.0, 5.0, 10, 50, 100 um

Polypropylene Membrane

Send Standard Inquiry

Add Inquiry List

$3~23

PRIMARY PARAMETERS

Place of Origin

Zhejiang, China (Mainland)

Brand Name

TS Filter

Model Number

0.1 Micron Water Filter

Product type

0.2 Micron Water Filter

Micron

0.1, 0.2, 0.3, 0.45, 1.0, 3.0, 5.0, 10, 50, 100 um

Material

Polypropylene Membrane

Cage, Inner core, Adapter

Length

5, 10, 20, 30, 40 inch

Adapter

Code 7, DOE, 226, 222, etc

Certificate

FDA; SGS,etc.

Application1

Wine, Beer, Mineral Water Plant

Application2

Fine Chemicals, Pharmaceutical

Application3

Food&Beverage, etc

DETAIL DESCRIPTION

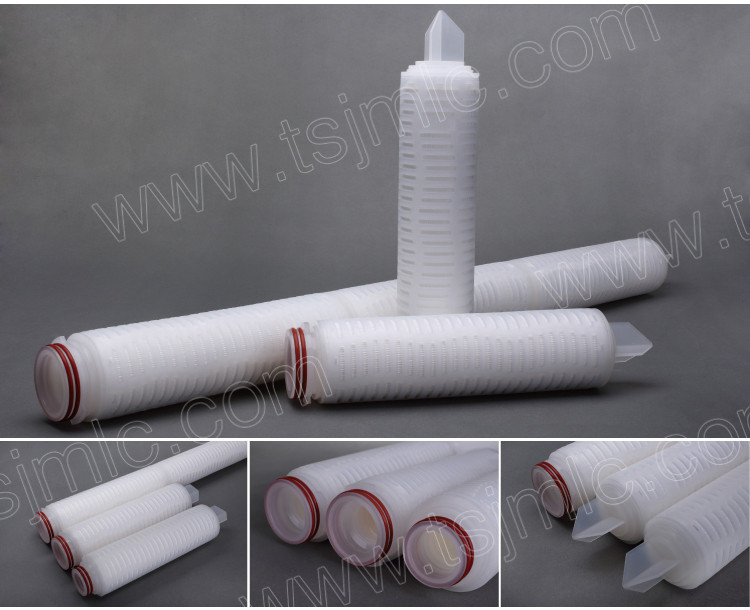

Pleated Depth Media Polypropylene Membrane 0.2 Micron Water Filter

Product Description

The Polypropylene (PP) membrane filter has high flow rate and dirt holding capacity, 100% quality polypropylene construction with excellent chemical compatibility,

It's thermally bonded construction ensures minimal extractable and its high filtration efficiency makes it an excellent choice for use in various industrial applications.

Features and Benefits

1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration;

2. Pleated depth media for high flow rate and maximum dirt holding capacity;

3. 100% polypropylene construction offers broad chemical compatibility;

4. High retention efficiency provide excellent protection of downstream filters;

Applications

> Food & Beverages, Wines, Beer, Mineral Water, etc;

> Pharmaceuticals, API's, Biologics, Buffers, Reagents;

> Fine Chemicals, Inks, Solvents, Photoresists, etc;

> Electronic, Semi-Conductor, LCD Display, Discs;

Specifications

Materials Of Construction	Filter Media:	Polypropylene Membrane
Support Layers:	Polypropylene
Micron Rating:	0.1, 0.20, 0.30, 0.45, 1.0, 3.0, 5.0, 10, 20, 50, 100 um
Cage, Core, End caps:	PP
Seal Method:	Thermal Bonded, No Adhesives
O-rings/gaskets:	Silicone, Nitrile, EPDM, Viton, Teflon
Cartridge Dimensions	Outer Diameter	69 mm
Inner Diameter	33 mm
Length	5, 10, 20, 30, 40 Inch
Filtration Area(m2)	0.65 m² per 10''
Operating Conditions	Normal Operating Temp:	Up to 60℃ (140℉)
Max.Operating Temp:	80℃ (172℉) at P≤1.0 bar (14psi)
Max. Differential Pressure
Normal Flow:	4.2 bar (60 psi) at 25℃ (77℉)
Reverse flow:	2.1 bar (30psi) at 25℃ (77℉).
PH Value compatibility:	1-13
Sterilization:	Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15hours;
Flush with hot water at 82℃(180℉) for 30 minutes, at P≤1.0 bar (14psi) -- Recommended.

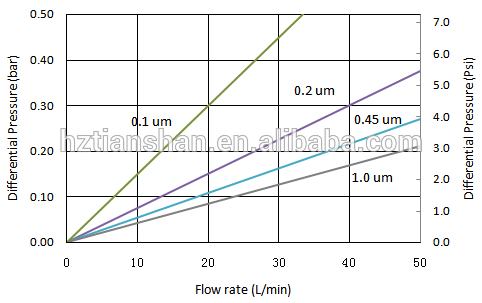

Typical Water Flow Rate (10")
