Professional factory supply low price metal filter disc rotary vacuum filter

Mineral concentrates are the product of ore dressing operations whereby valuable metals recovered through mining operations are separated from waste rock prior to shipment to market.

Technical Feature

  • Jiangsu, China (Mainland)
  • BOYUN
  • BY-30
  • Engineers available to service machinery overseas
  • vacuum filter
  • 30
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$48~5

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
BOYUN
Model Number
BY-30
After-sales Service Provided
Engineers available to service machinery overseas
Product name
vacuum filter
Filter area (m2)
30
Filter plate diameter(m)
1.92
Main size(length*width*height) (m)
3.92x3.45x2.95
Disc Quantity (pcs)
6
Weight (T)
2.9
Power (KW)
19.7
Operating power (KW)
<14.2
Volume of tank
5.3
Certificates
ISO9001

DETAIL DESCRIPTION

Product Description



It has been widely used in concentrates, tailings, coal water copper, iron, gold, silver, tin, aluminum, lead, zinc, nickel, palladium, cobalt, molybdenum, aluminum, phosphorus, coal, sulfur, silicon, quartz, mica, rare earth Zinc Oxide, chemical industry lead oxide, zinc sulfide, electro slag, leaching slag, slag cement dehydration and environmental pollution as well as waste acid treatment. The fineness of materials is from -200 to -450 and avariety of superfine materials.



Mineral concentrates

Mineral concentrates are the product of ore dressing operations whereby valuable metals recovered through mining operations are separated from waste rock prior to shipment to market. After many mining operations people get the mineral slurry, at last they need the dry mineral concentrates that is shipped to refineries to produce metallic products, here need the type of filtration equipment, we offer filtration solutions for:

Tailings

Copper

Zinc

Palladium

Metal salts

Iron ore

Aluminum

Lead

Cobalt

ferrous metals

Coal

Silver

Nickel

Molybdenum

Other concentrates



Environmental protection industry

Boyun has many years of experience in filtration of various rock, such as potash feldspar, soda feldspar, quartz and mica and With the development of solid liquid separation technology, the application of filtration equipments in boyun is more and more extensive. We offer solutions in below industry:

1. Desulfurization and denitrification

2. Stainless steel plants

3. Boiler plants

4. Building material plants

5. Stone plants

6. Ceramic plants



Specification

Filter area (m2)

Disc Quantity (pcs)

Filter plate diameter(m)

Main size

(length*width*height) (m)

Weight (T)

Power (KW)

Operating power (KW)

Volume of tank

BY-1

1

1

1.52

1.7x1.5x1.5

1.4

5.28

<3.08

0.2

BY-2

2

2

1.52

1.9x1.5x1.5

2.1

5.4

<3.2

0.3

BY-4

4

2

1.52

2.5x2.5x2.5

2.6

6

<3.8

0.9

BY-6

6

2

1.52

2.8x2.9x2.5

2.9

7.3

<5.1

1.4

BY-9

9

3

1.52

3.1x2.9x2.5

3.5

12.36

<8.36

1.9

BY-12

12

4

1.52

2.96x2.9x2.5

4.5

13.08

<9.08

2.4

BY-15

15

5

1.92

3.56x2.9x2.5

4.9

13.8

<9.8

2.9

BY-18

18

6

1.92

3.86x2.9x2.5

5.3

14.52

<10.52

3.4

BY-21

21

7

1.92

4.16x2.9x2.5

5.7

15.24

<11.24

3.9

BY-25

25

5

1.92

3.62x3.45x2.95

6.1

16.7

<12.7

4.4

BY-30

30

6

1.92

3.92x3.45x2.95

6.9

19.7

<14.2

5.3

BY-35

35

7

1.92

4.22x3.45x2.95

7.7

20.05

<14.56

6.2

BY-40

40

8

1.92

4.52x3.45x2.95

8.5

22.06

<16.22

7.1

BY-45

45

9

1.92

4.82x3.45x2.95

9.3

25.72

<18.22

8

BY-60

60

12

2.06

5.77x3.45x2.95

11.7

30.46

<22.46

11

BY-80

80

16

2.1

6.97x3.45x2.95

14.9

43.78

<28.78

14

BY-90

90

15

2.1

6.7x4.2x3.5

15.2

51.3

<36.3

16



Filtering is a process of separating solid particles suspended in a gas or liquid.The basic principle is :under the action of the pressure difference,the suspension liquid(or gas) passes through a permeable medium(media),the solid particles are intercepted by medium,so as to realize the separation of liquid and solid





Slurry suction zone: when working, the filter plate submerged in the slurry forms a layer of filter cake on its surface under vacuum pressure in the role of the capillary action. The filtrate goes through filter plate into the distribution valve and the drain pipe


Washing zone: When the cake rolls out the slurry, the filter cake is spray washed.
Drying zone: the filter cake continues to dehydrate under the action of high vacuum force.

Discharge zone: Scraper automatically unloads under the condition of no vacuum,

Backwashing zone: Industrial water or filtrate goes through the distribution valve into the ceramic plate from the inside out for cleaning and washes the clogged pores. After a cycle use of the ceramics plate, it is cleaned by mixing ultrasonic wave with low concentration acid to keep its efficient use.

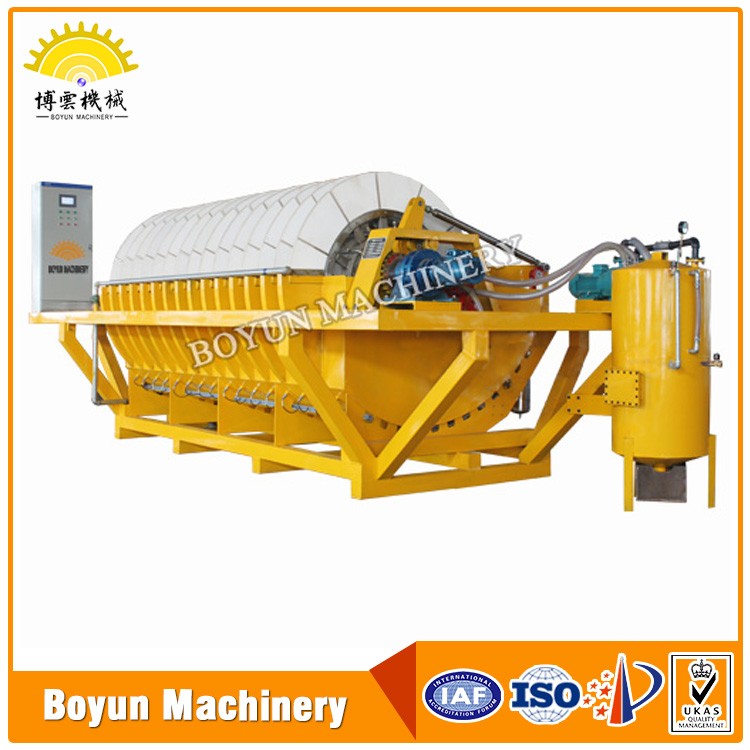

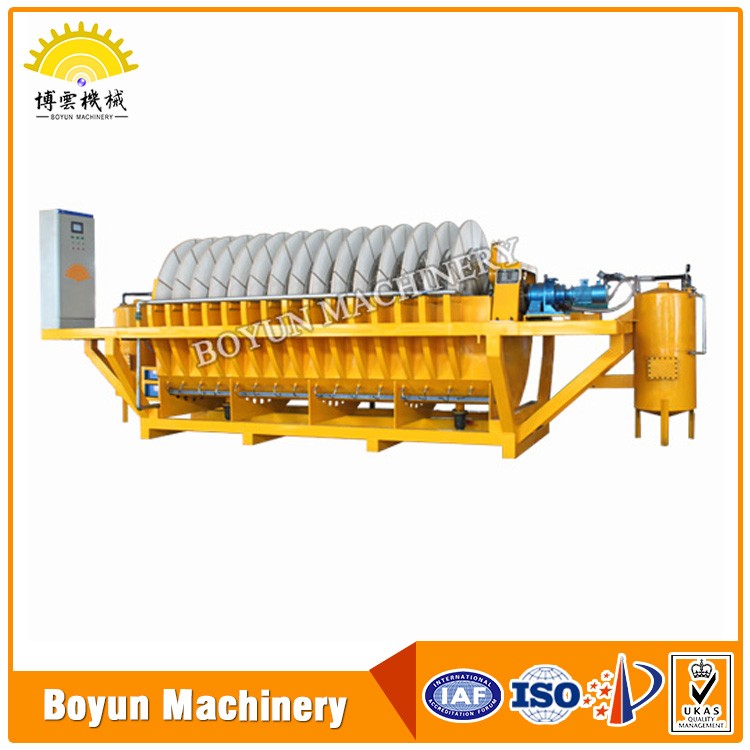

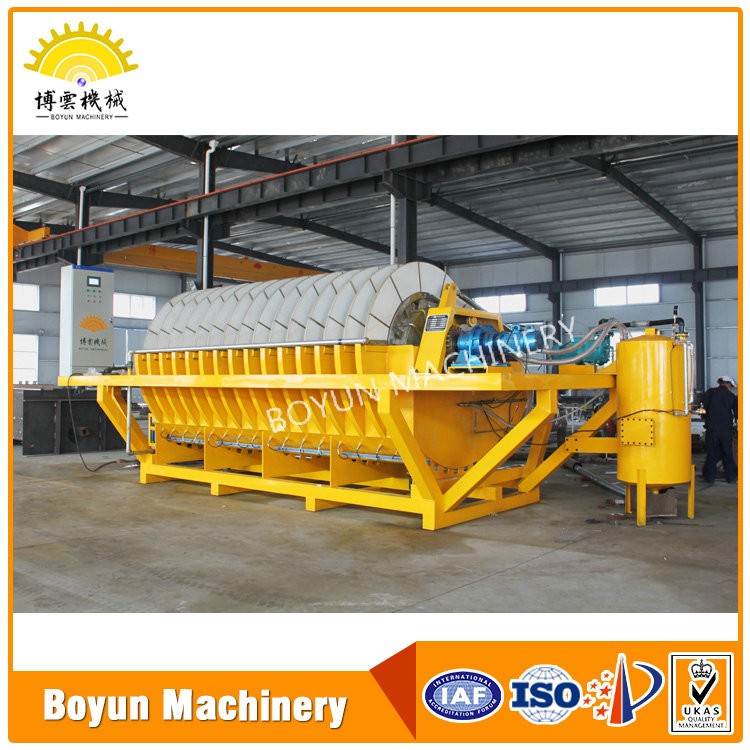

Product Pictures

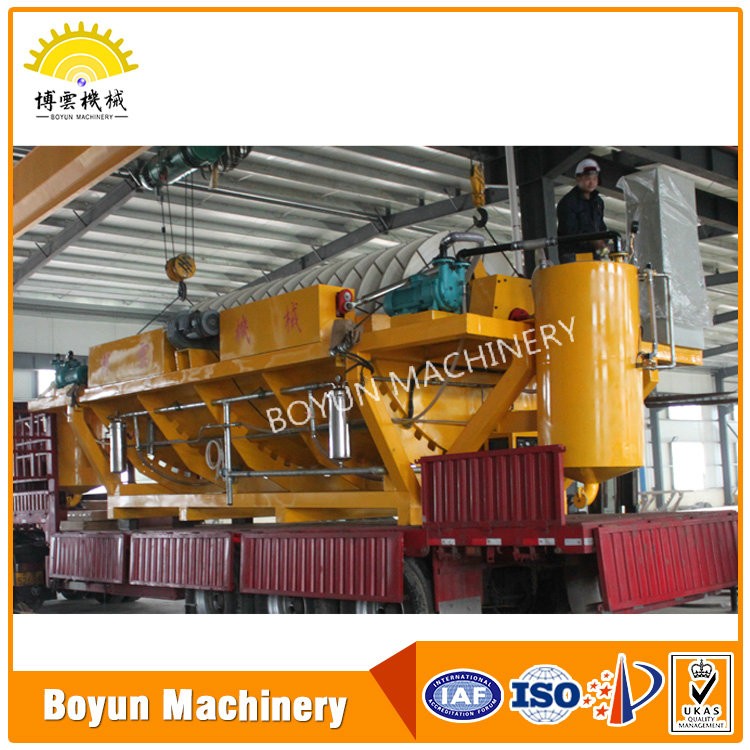

Packaging Shipping





Work Site





Company Introduction







Lian Yungang Boyun Machinery Co., Ltd was founded in 2008. It is mainly involved in designing and manufacturing mining machinery. The company covers 20000 square meters. The company has bigger production capacity and higher product quality so that it can supply reliable products in time. There are many processing equipments in the company, including large-scale numerically controlled lathe, milling machine, sawing machine, drilling machine, grinding machine, steel plate s-hearer, bending machine, NC cutting machine, winding engine, big shaft straightening machine, ore analysis meter, electric welding machine and so on.
The company has supplied quite a lot of mining machinery for large and medium size enterprise all over the world since 2008. The dry magnetic separator, wet type magnetic separator, magnetic pulley, ceramic disc vacuum filter, disc vacuum filter, permanent magnetic vacuum filter, tailings recovery machine and vibrating screen are our main products. They are sold out all over the world with good reputation.
Our company passed ISO9001 in 2008 certification and got quality management system certification. Win-win has come true because of higher quality. Quality first, delivery product in time and win-win are our idea. We serve the customers sincerely with the advanced technology and rational management.



Customer Photo





The Exhibition





Certificate





Our Service



Pre-sale service
1.offer accurate filter model as customer’s specific requirement
2.customize the corresponding products according to customer’s special requirements


In sale-service
1.strict inspection before filter leave the factory
2.Deliver goods according to contract


After-sale service
1 Offer free technical training class
2 according to the purchase contract, our company always offering free guide installation and commissioning through internet and telphone
3 our company will offer quick-wear parts all the time
4 collect customer feedback, formulate the implementation plan in time to solve the practical problems of the customers
