Product Description
- Application
Metal mine disc filter of PG series makes full use of the advantages of similar products abroad. Optimization of the design is carried out between overall performance and parts according to the characteristics of metallic minerals: high density, quick sediment and solid particles in the filtrate pipe with strong impact. The optimization ensures the metal minerals obtain excellent dehydration index in solid-liquid separation. End users’ successful practice improves that the main index and performance of the products have achieved the same achievement level with the products at home and abroad.

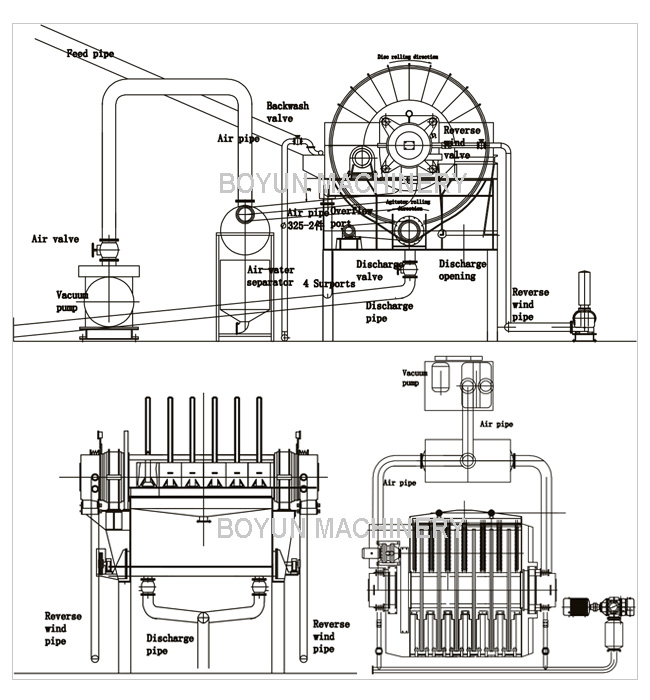

- Working principle
- Work condition
- 1. The particle size of solid in the slurry is -100mesh to -400mesh.
2. The temperature of slurry is 10-50°C, no corrosion.
3. The best concentration of slurry is 35%-65%(metal mineral) or 20%-40%(coal or other lightweight material)
- Technical Parameters
-
Technical Parameters of PG series Disk Vacuum Filter Name
Model
Filter
Area (m2)
Filter
Disc Diameter
(cm)
Filter
Disc Number
(pcs)
Filter
Fans
Number
(pcs)
Main Motor Power (kw) Stirring Power
(kw)
Discharge
Method
Processing
Capacity
(t/h.m2)
Length*
Width*
Height
(cm)
PG5 5 210 1 20 4 5.5 reverse wind 0.7-1.2 254*248*269 PG10 10 210 2 40 4 5.5 reverse wind 0.7-1.2 293*248*269 PG15 15 210 3 60 4 5.5 reverse wind 0.7-1.2 332*248*269 PG20 20 210 4 80 4 5.5 reverse wind 0.7-1.2 371*248*269 PG25 25 210 5 100 4 5.5 reverse wind 0.7-1.2 410*248*269 PG30 30 210 6 120 5.5 7.5 reverse wind 0.7-1.2 449*248*269 PG35 35 210 7 140 5.5 7.5 reverse wind 0.7-1.2 488*248*269 PG40 40 210 8 160 5.5 7.5 reverse wind 0.7-1.2 527*248*269 PG45 45 210 9 180 5.5 7.5 reverse wind 0.7-1.2 566*248*269 PG50 50 210 10 200 5.5 7.5 reverse wind 0.7-1.2 605*248*269 PG48 48 310 4 80 7.5 15 reverse wind 0.7-1.2 460*385*370 PG60 60 310 5 100 7.5 15 reverse wind 0.7-1.2 510*385*370 PG72 72 310 6 120 7.5 15 reverse wind 0.7-1.2 560*385*370 PG84 84 310 7 140 11 18.5 reverse wind 0.7-1.2 610*385*370 PG96 96 310 8 160 11 18.5 reverse wind 0.7-1.2 660*385*370 PG108 108 310 9 180 11 18.5 reverse wind 0.7-1.2 710*385*370 PG120 120 310 10 200 11 22 reverse wind 0.7-1.2 760*385*370 Note: the technical parameters may vary due to process condition, for reference only.

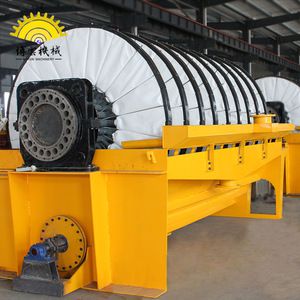

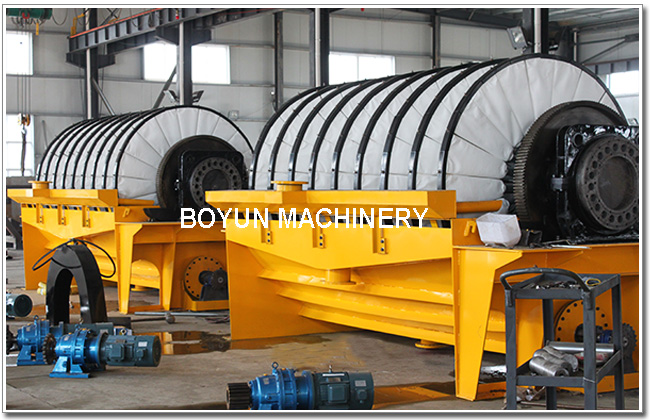

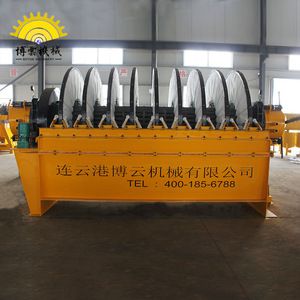

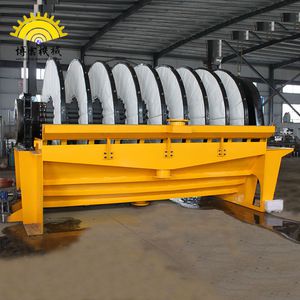

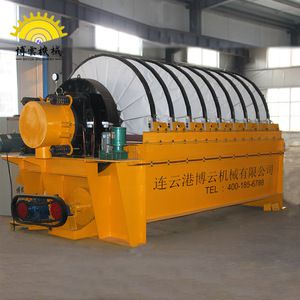

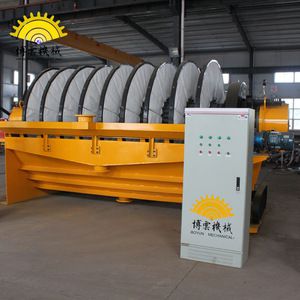

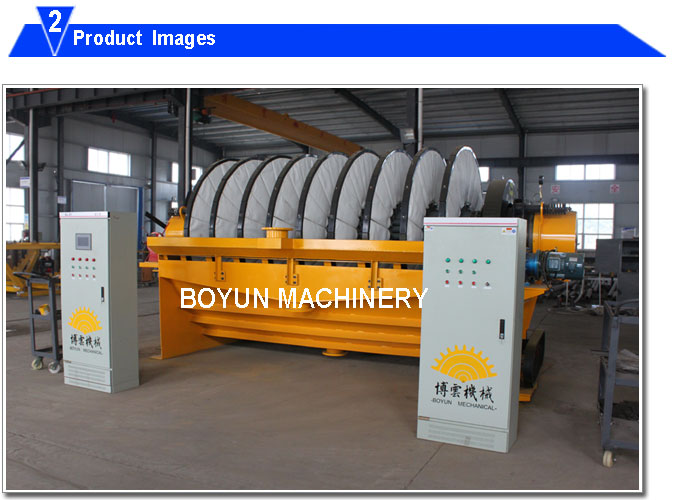

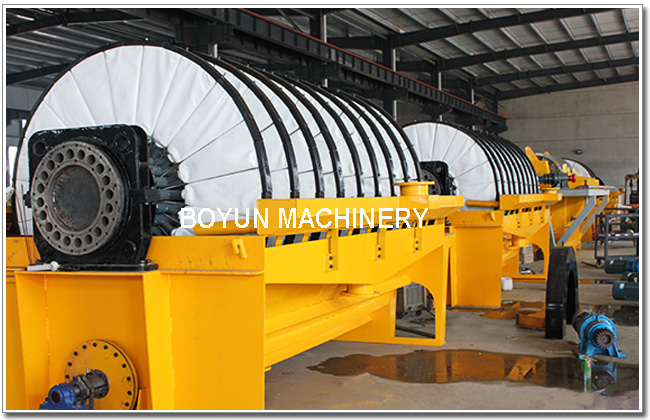

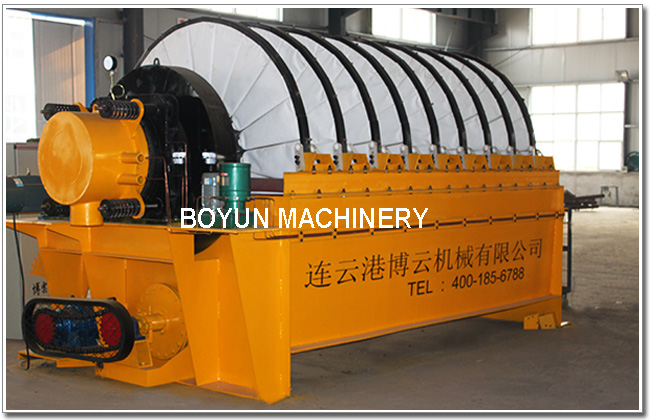

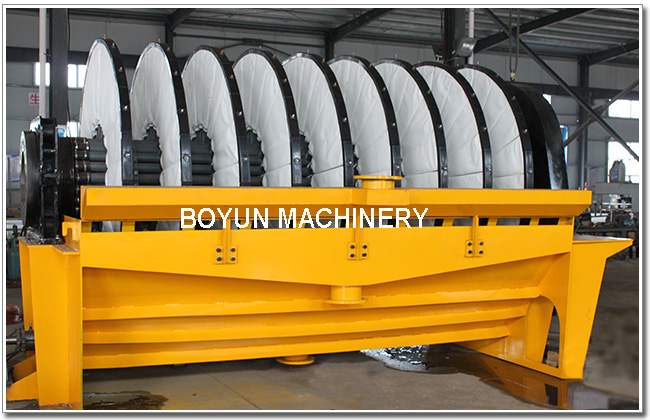

Product Images
- Main Features
1. Dehydration holes of the sector filter plate distribute evenly reasonable porosity.
2. Wear resistant chinlon monofilament or double layer filter cloth makes the filter cake removal rate increased and is not easy to be blocked.
3. Multi-point oil pump lubricates automatically and intensively.
4. The filter cloth has automatic cleaning device and keeps good dewatering effect.
5. Reinforced horizontal stirring at variable speed, shaft and the gear end is sealed with rubber, braided graphite and differential hydro pressure ensuring no leakage of slurry.
6. The main works at stepless speed change according to the concentration and flow of materials (AC speed regulating motor and gearbox) to achieve the ideal working effect.
Packaging & Shipping
- Packaging Details
Nude package combined with standard export wooden case package or as customer's requirements.
Delivery Time:30 days after payment.
Certifications
Our Services
- Pre-Sale Service
- 1. Offer accurate filter model as customer’s specific requirement.
2. Customize the products according to customer’s special requirements.
- After-Sale Service
- 1. Offer free technical training class.
2. Training how to instal the machine, training how to use the machine.
3. Our company will offer quick-wear parts all the time.
4. Engineers available to service machinery overseas.
Company Information
- About us
- Lian Yungang Boyun Machinery Co., Ltd is an enterprise that designs, R&Ds, produces and sells professional mining machinery and offer solution for solid-liquid separation equipment. The vacuum ceramic filter machines and vacuum disc filter machines are our best sellers, obtaining tens of national patents, sold to 36 countries/international regions and favorably commented by the buyers.
- Environmental protection industry
Boyun has many years of experience in filtration of various rock, such as potash feldspar, soda feldspar, quartz and mica and with the development of solid liquid separation technology, the application of filtration equipments in boyun is more and more extensive. We offer solutions in below industry:
1. Desulfurization and denitrification
2. Stainless steel plants
3. Boiler plants
4. Building material plants
5. Stone plants
6. Ceramic plants
