China Produced Starch Milk Dewatering Rotary Drum Vacuum Filter
Application
This machine is vacuum permanent magnet filter which is feeding upwards, filtering outside and cylinder type. It is mainly suitable for dehydration of the relatively coarse-particles magnetic materials.
Technical Data Of Permanent Magnetic Vacuum Filter
Model | GYW-3 | GYW-5 | GYW-8 | GYW-12 | GYW-20 |
Filtering area(m2) | 3 | 5 | 8 | 12 | 20 |
Cylinder diameter(mm) | 1600 |
|
|
|
|
Cylinder length(mm) | 700 | 900 | 1400 | 2000 | 2650 |
Magnetic induction intensity(mT) | 80 | 82 | 87 |
| |
Residue water content(%) | 8-11 | 8-13 | |||
Productive capability(t/h) | 6-9 | 14-18 | 22-43 | 33-65 | 54-108 |
Electromotor power(KW) | 1.5 | 2.2 | 4 | ||
Vauity(MMHG) | 450-600 | ||||
Suckig rate(m3/min2*m2) | 1 | ||||
Blast pressure(continue)(KPa) | 60-80 | ||||
Blast volume(continuely blast) (m3/min2*m2) | 0.2-0.4 | ||||
Filtering removing water area angle | 176 | ||||
Mineral downloaded area angle | 21 | ||||
Tamper angle | 100 | ||||
Weight(t) | 3.262 | 3.935 | 4.754 | 5.420 | 10.6 |
Rotate speed of cylinder(r/min) | 0.5-2 |
Remark: technical data is only referred

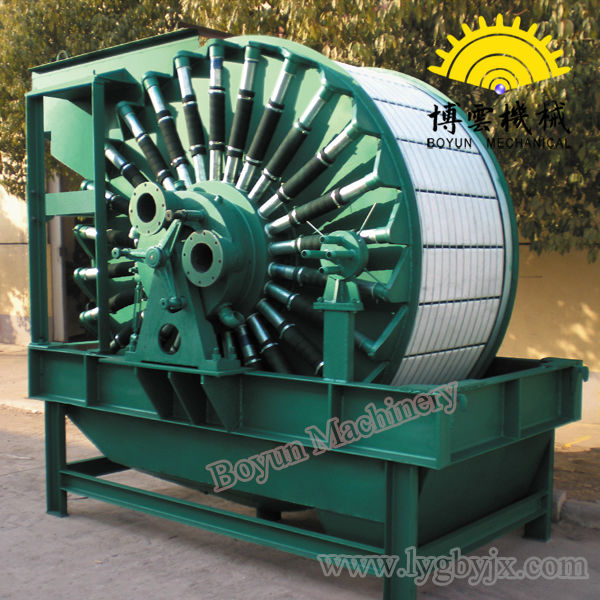

General Structure Of Vacuum Permanent Magnetic Filter
How Does Vacuum Permanent Magnetic Filter Work
1. Strontium ferrite permanent magnetic system inside of the cylinder makes the magnetic particles be adsorbed rapidly onto the fabric surface
2, The upper feeding makes the stratification effect of the concentrate filter cake according to the granularity more obvious
3, Good permeability of the filter cake
4. Magnetic particles in the slurry distribute on the surface of the cylinder in radial pattern because of the magnetic attraction. And the change of polarity magnetic system makes a magnetic stirring effect

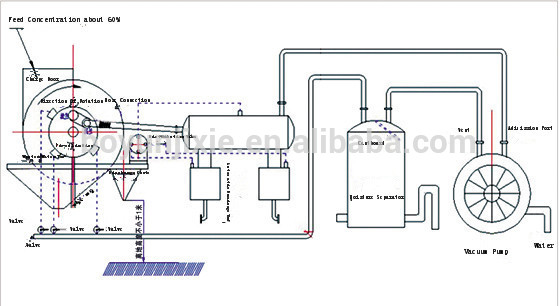

Linked Drawing
Features:
1, the susceptibility of solid particles in the slurry is no less than 3000 × 10-6cm3/g
2, the particle size is 0.15-0.8mm,
3, feeding concentration ≥ 60%
About Us

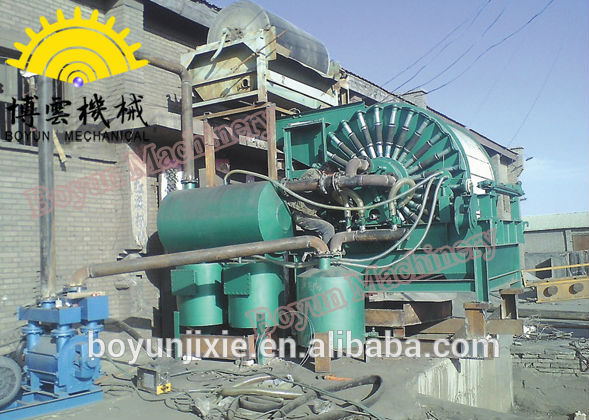

Installation In Customer's Factory
