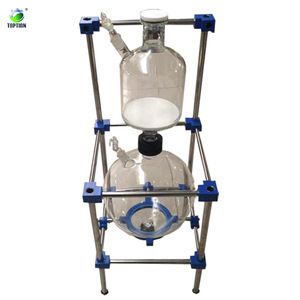

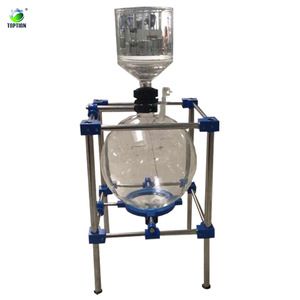

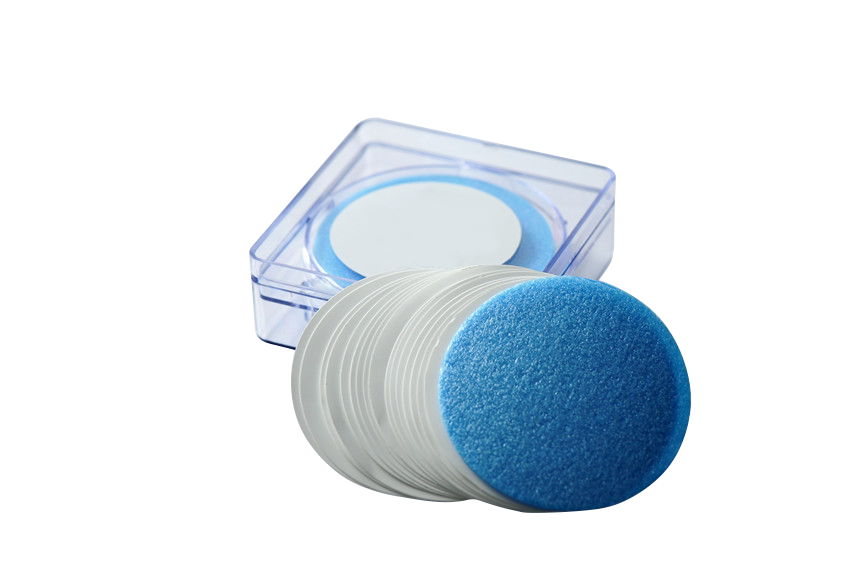

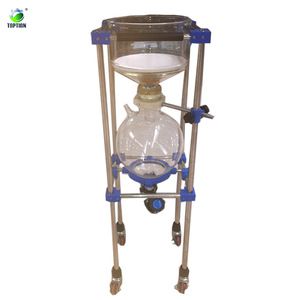

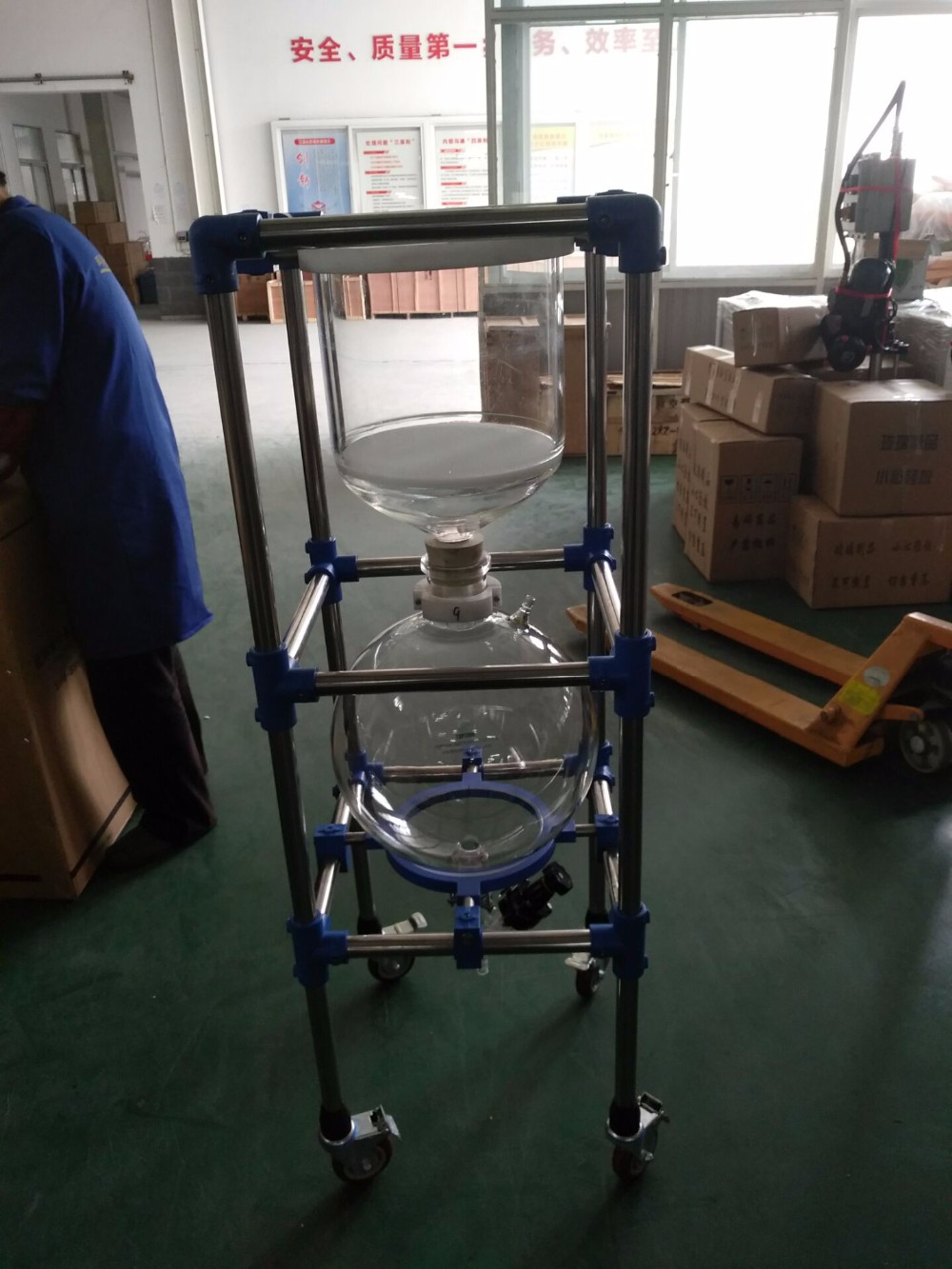

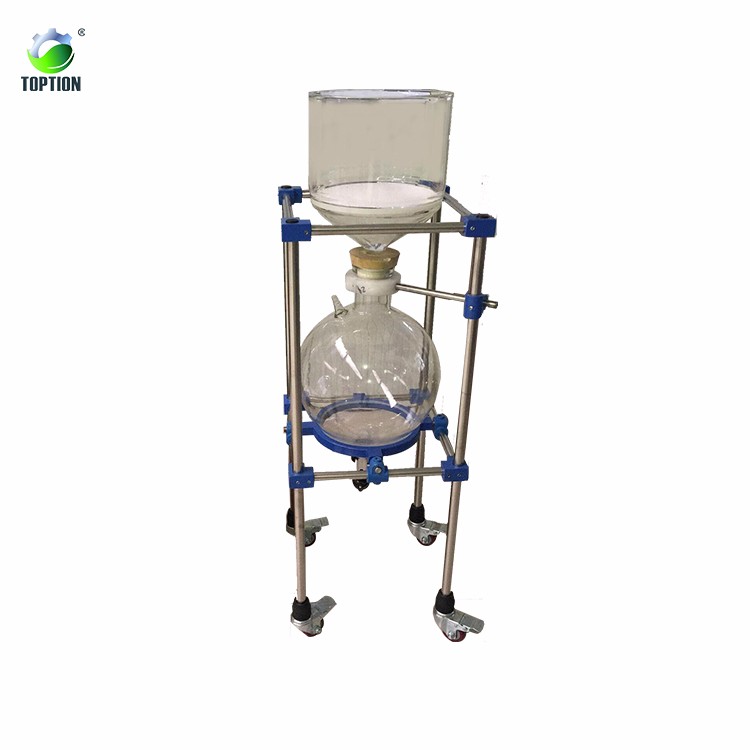

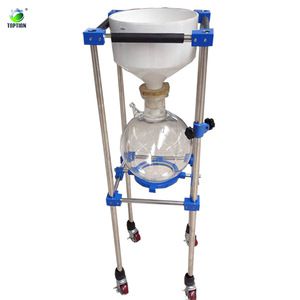

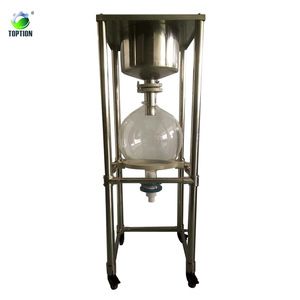

*This is a 10L glass vacuum suction filter system,it comes with a 10 L collection flaks & 282mm*282mm frit disc funnel 15-40 um pore size(can customized) ,282mm filter paper for options.
*The vacuum filter is an upgraded product on base of single layer glass reactor, mainly used for liquid-liquid extraction and normal-temperature reaction. It has been widely used in laboratories nowadays.
Technical Specification | ||||
Model | TP-CL10L(G) | TP-CL20L(G) | TP-CL30L(G) | TP-CL50L(G) |
Glass material | GG17 | |||
Frame material | Stainless steel | |||
Pipe material | 304 Stainless steel | |||
Move mode | Belt caster with brake type | |||
Reaction volume | 10L | 20L | 30L | 40L |
Funnel Inside size(mm) | 282 | 282 | 300 | 300 |
Funnel height(mm) | 160 | 285 | 285 | 300 |
Funnel material | GG17 | |||
Suction filter mouth | Φ16 |
1. The suction filter bottle made of GG17 high borosilicate glass material has excellent chemical and physical properties.
2. Glass buchner funnel, excellent physical and chemical properties.
3. Special PTFE material mixing plug design, perfect technology, high corrosion resistance performance and competitive price.
4. Lower material for glass ptfe valve flange mouth form a complete set of special design, container no dead Angle, removable easy solid material discharging.
5. The whole machine has perfect sealing performance, under the negative pressure can reach 0.095 MPa under stationary state.
6. The whole machine structure science, visual features prominent, innovative and practical.
7. Collect the collection for the spherical sector 10 l a.
8. The suction filter device, the suction filter device for glass, glass funnel bottom diameter, depth, and to make to order according to your actual requirements, can choose ¢200 * 200 mm or other different specifications.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of our products have passed CE certification,the quality can be assured.
Unless otherwise specified, our products are covered by a 1-year warranty from the date of purchase. We will replace any failed components at no charge to the customers for parts or shipping.
Note: Consumable components (like glass components, gaskets or vacuum seals) are not covered in the 1-year warranty.
*We ship worldwide. please contact us for quote on shipping.
*We ship via DHL or UPS from our warehouse. Please provide your phone number for successful delivery.
*We are able to ship most of our standard products within 5 business days. Please contact us about lead time for customization.
*If your package has clearly visible damages during shipment, please take photos for both the packaging and damaged product, have the driver document all damages, and contact us as soon as possible. We will file a claim with the shipping company. Please contact us within 7 days if any internal damages or malfunctions are found while you open the package and operate the product, we will send replacement for the damaged items.
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
