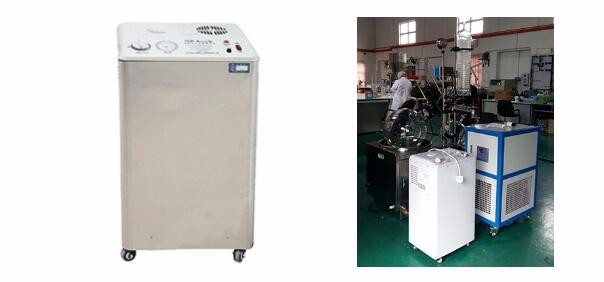

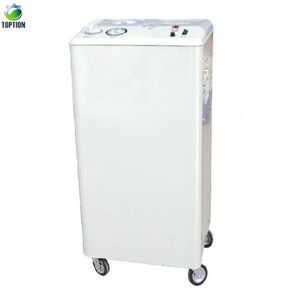

SHB-B95A Laboratory vertical circulating water jet pump water ring vacuum pump
I. Description of the SHB-B95 water jet vacuum pump:
♦Be suitable for the research experiment, small scale test and small scale production process which have the processes such as evaporation, distillation, crystallization, drying, sublimation, filtration and decompression, degassing.
♦ The operation principle is the same as that of desk-top type pump.
♦ Compared with the desk-top type pump, the bleed air flow is more, which applies to the vacuum demands with large bleed air flow.
♦ Five taps can be used alone or in parallel.The bleed air flow is large with five-way pipe iin parallel,which can meet the demand of large scale Rotary Evaporator or Reaction Kettle.
♦ The special machine is made by the famous electric manufacture ODM with fluorine rubber sealing, the inner of which can’t be intruded by corrosive gas.
♦ The body of the flume adopts polyvinyl chloride (PVC) material, the casing adopts carbon constructional quality steel cold rolling plate and the surface adopts electrostatic spraying.
♦ Ejector with copper material, tee junction, back valve and gas-extraction nozzle adopt the PP material.
♦ The pump body and impeller adopt stainless steel plate pressing (SUS standard).
♦ Be furnished with truckles, which is convenient for moving and is suitable for the flexible configuration in labs and workshops.
♦ Need to replace the water in the flume regularly to ensure the purity of water quality, the vacuum degree and to avoid dirt stains.
♦ Can be used to extract corrosive gas, need to shorten the period of water changing.
♦ SHB-B95A: the casing adopts stainless steel material (SUS standard), the rest is the same as SHB-B95.
II Technical parameters of SHB-B95 water jet vacuum pump :
2.Single-head exhaust volume: 10L/min
3.Exhaust the number of heads: 5
4.Tank capacity:57L
5.Circulation flow rate: 80L/min
6.Pump head: 8m
7.Power: 220V 370W
| Model | SHB-B95 | SHB-B95A |
| Power(W) | 550 | |
| Power supply (V/Hz) | 220/50 | |
| Flow(L/min) | 100 | |
| Lift (m) | 12 | |
| Safety functions | Check valve | |
| Materials Of Machine Casing | Static electricity spray | 304 |
| Maximum Vacuum Degree (MPa) | 0.098 | |
| Single Tap Air Sucking Amount(L/min) | 10 | |
| Number of Taps (A) | 5 | |
| Capacity of Water Storage Tank(L) | 57 | |
| Materials of Water Tank | Polyvinyl chloride | |
| Dimensions(mm) | 450L×350W×820H | 450L×350W×820H |
| Weight (kg) | 36 | 36 |
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
Please Click Here to Find Surprise!!!

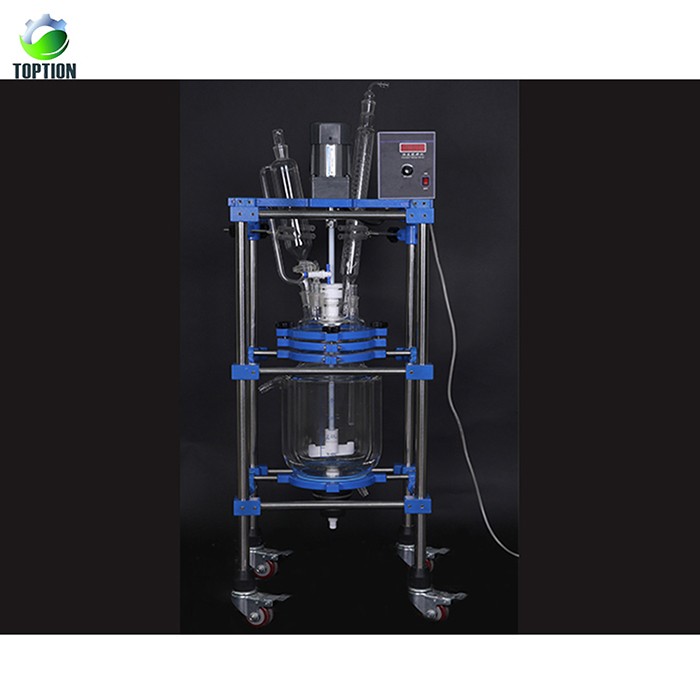

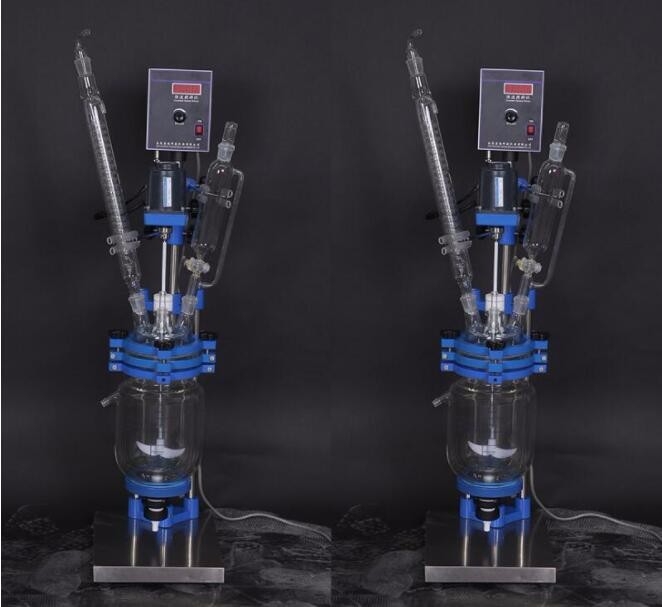

2L jacketed glass reactor
5L jacketed glass reactor
100L jacketed glass reactor

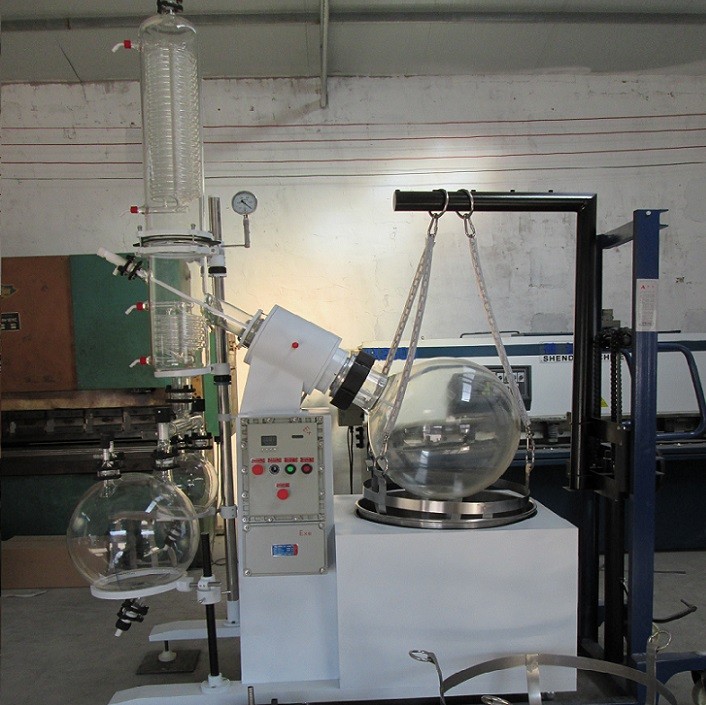

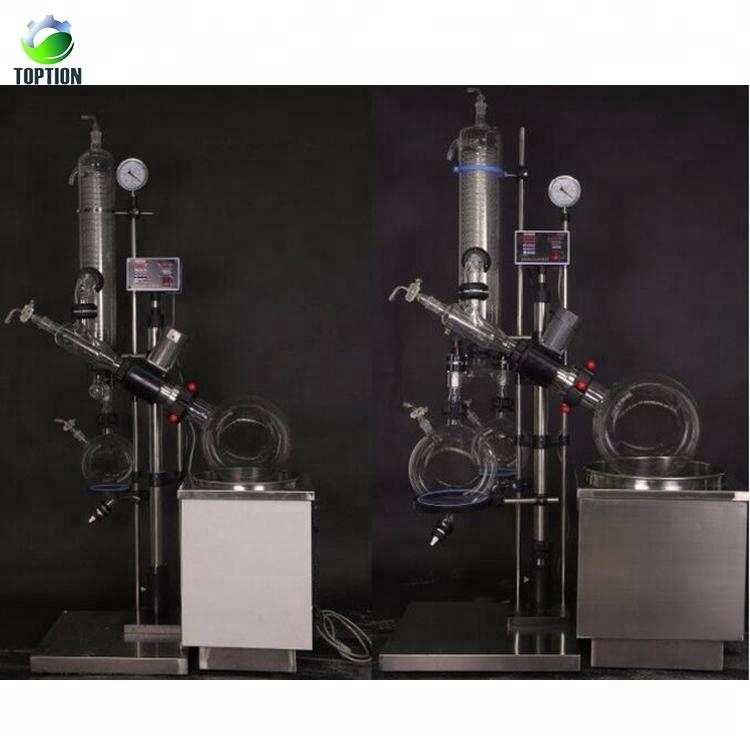

10L advanced rotary evaporator
