TCYL100ZD/100 Industrial wastewatertreatment fully automatic hydraulic filter press

Best quality & best service with competitive price with 15 years rich producing experience.

Technical Feature

  • New
  • Automatic
  • Hunan, China (Mainland)
  • ZLTJ
  • TCYL100ZD/100
  • Customer Requirement
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$29~30

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Place of Origin
Hunan, China (Mainland)
Brand Name
ZLTJ
Model Number
TCYL100ZD/100
Voltage
Customer Requirement
Power(W)
5.5KW
Weight
9700kg
Dimension(L*W*H)
9490x1630x2050mm
Certification
ISO 9001-2000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Application
for solid-liquid separation to get 18-32% moisture content mud
Color
as request
Application scope
ceramic industry
Max feeding pressure
2.0MPa
Feeding type
by variable piston pump
filter area
133 m2
plate number
100 pcs
Hydraulic system working pressure
20~28Mpa

DETAIL DESCRIPTION



Product Description

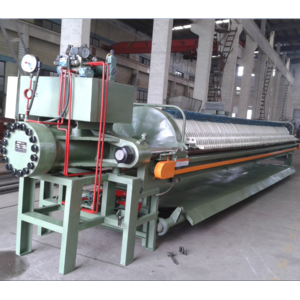

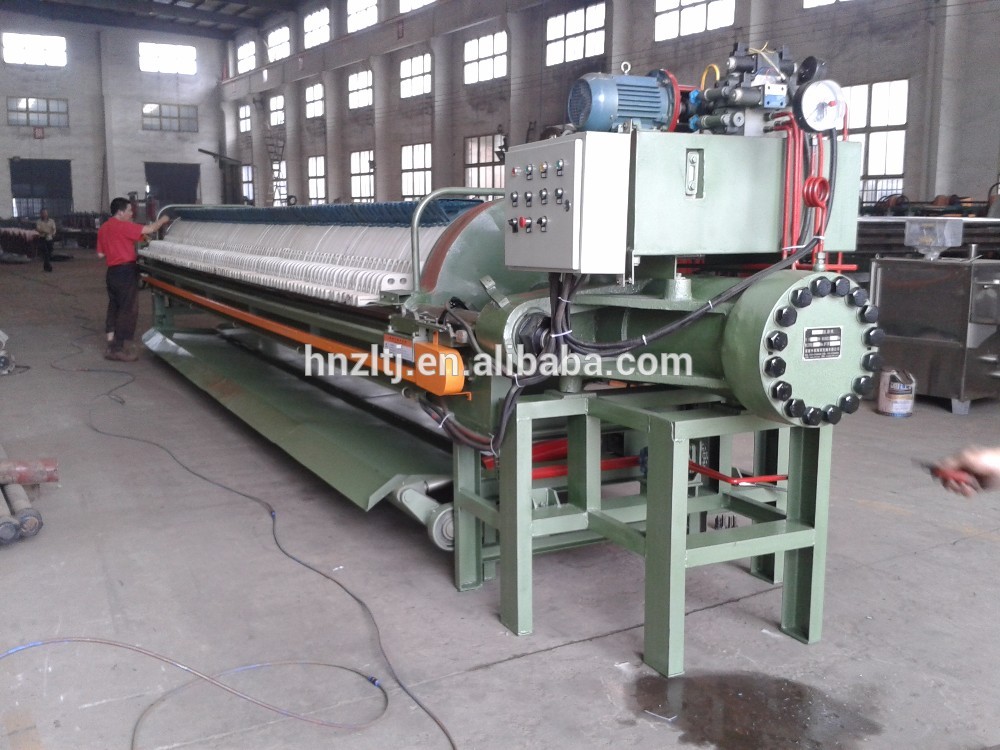

TCYL100ZD/100 Industrial wastewatertreatment  fully automatic hydraulic filter press

The machine is used for slurry dewatering .after dewatering ,water moisture of mud is up to 18% -32%.This machine is used for making plastic mud in ceramic industry ,also in other country .

This machine adopts many advanced technologies in mechanical ,electrical ,hydraulicfield,with the function of automatically pulling plate ,unloading and collecting filtrate by water retaining plate ,operate easily.save labor force for you.



Application:

dewatering for Pottery clay,Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone,

granite furnaces slurry.





Main Technical Parameters:

1,Empty size of filter plate                                                         Φ9235mm

2,Filter plate dia. x quantity                                                        Φ100100 sheet

3,Capacity                                                                                 3.8~4.4 t/batch

4, Moisture content of dewatered slurry                                    1 8%~36%

5,Rated pressure of slurry supplying                                        2.0Mpa

6.Hydrulic system working pressure                                           20~28 Mpa

7, Closing pressure(piston supporting force) Pmax               2500KN

8,Max working stroke of piston                                                  650mm

9,Moving speed : forward                                                         5.4mm/s

                                 backward                                                      11.75 mm/s

 10,Oil pump mode                                         16YCY14-1B  Variable axial plunger pump

   Rated  pressure P                                                    31.5Mpa

     Flow Q                                                                      384 cm3/s

11,Model and power of motor                                 Y132s-4  B35        5.5kw

12,Dimension (Lx W x H)                                        9490×1630×2050mm

13,Weight                                                              9700Kg













See video here: https://www.youtube.com/watch?v=ue-0O_-eEEI&t=264s
