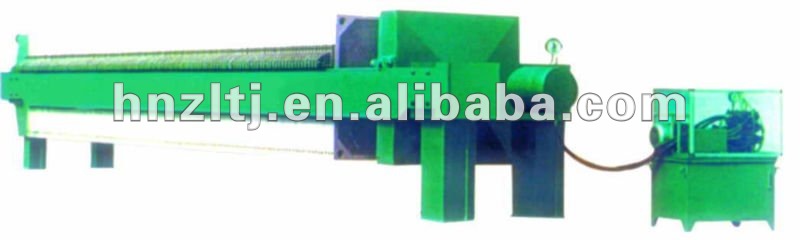

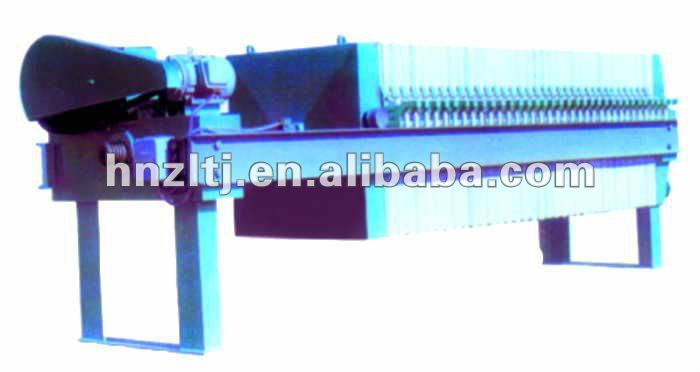

plate frame sludge dewatering filter press
This filter press is a kind of intermittent-operation pressure filtration equipment.It has been widely used for separating suspension from various liquid slurries and dewatering industrial waste sludge in the petroleum, chemical, stone, ceramics, mining, metallurgy,coal washing, paper, dyes, food, environmental protection and other industries.The filter plates of this machine are pressed by pressing mechanism,and the suspension is inputed into filter chambers made of the plates by the input pump.Under the pressure of pump,the purpose of solid-liquid separation arrives with filter cloth as filter media.The machine has multiple transmission:manual, mechanical, hydraulic and other types.There is a variety of choices of the plates's material,such as polypropylene,ultra-high molecular polypropylene,rubber,rubber diaphragm and so on.
Main Technical Parameters
Model | Frame size(mm) | Filter area(m2) | Cake thickness(mm) | Into the plasma pressure(Mpa) | Motor Power(KW) | Transmission |
XS450 | 450×450×45 | 2-10 | 20 | 0.4 | 0 | Manual |
XJ630 | 630×630×50 | 5-40 | 25 | 1.5 | Machinery | |
XY630 | 630×630×45 | 5-40 | 1.5 | Hydraulic pressure | ||
XJ800 | 800×800×55 | 10-80 | 0.6 | 1.5 | Machinery | |
XY800 | 800×800×55 | 10-80 | 2.2 | Hydraulic pressure | ||
XJ1000 | 1000×1000×60 | 20-100 | 30 | 2.2 | Machinery | |
XY1000 | 1000×1000×60 | 20-100 | 2.2 | Hydraulic pressure | ||
XZ1000 | 1000×1000×60 | 20-100 | 2.2 | Automatic drawing board | ||
XY1250 | 1250×1250×65 | 50-300 | 1.0 | 3 | Hydraulic pressure | |
XZ1250 | 1250×1250×65 | 50-300 | 3 | Automatic drawing board | ||
XG1250 | 1250×1250×70 | 50-300 | 3 | Rubber diaphragm | ||
XY1600 | 1600×1600×70 | 100-500 | 3 | Hydraulic pressure | ||
XZ1600 | 1600x1600x70 | 100-500 | 3 | Automatic drawing board |
