Introduction
Filter press is an effective type of dewatering equipment working in batches, applicable to various solid-liquid separation. Filter press is effective, easy to use, suitable for large filtration plants that requires a high degree of automation or centralized control, with filter pressure of 0.8 Mpa min.. The whole machine is designed with integration of machine, electricity and liquid, can realize automatic pressing, filtering, draining, squeezing, loosening, drawing board, and so on, with a high degree of automation, large production capacity, low liquid content in filter cake, high unit output, requiring only very limited area for installation&operation. Widely used in petroleum, chemical industry, dye, metallurgy, pharmacy, food, paper making, coal washing,water treatment and sewage treatment and so on all kinds of solid-liquid separation is required.
Automatic filter press is on the basis of the pressure filter, according to user's different requirements for filter press equipment automation degree, choose to increase automatic plate system, auxiliary varicose arm of discharging slag system, single lever water flushing system, flap hydraulic system, PLC control system and other auxiliary facilities, in order to reduce the workers labor intensity, improve production efficiency.
Our Filter Press for mining tail pulp treatment was designed with high pressure, robust structure for harsh working conditions and long-term reliability.

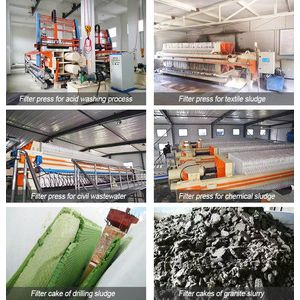

Applications:
- Stone Fabrications
- Mining & Energy
- Chemical Processing
- Industrial Wastewater
- Municipal Wastewater
- Power
- Lime Softening
- Metal Finishing
- Ready Mixed Concrete
- Car & Truck Washes

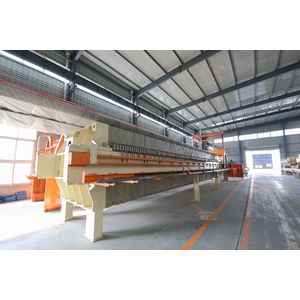

Main Structure
Frame: The steel frame acts as a clamping device for the filter plates.

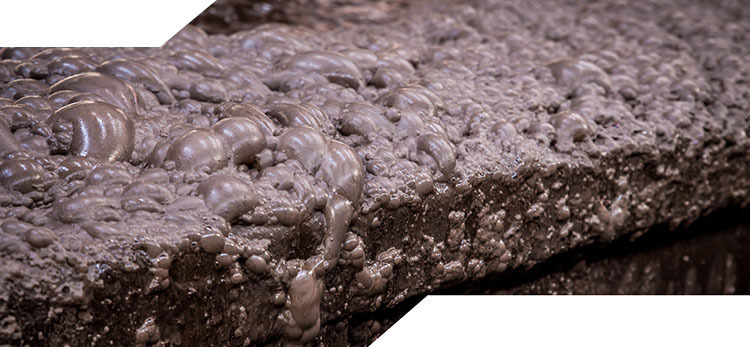

Filter Plates: A filter cake forms in the chambers between filter plates.
Filter Cloth: A cloth filter that is attached to both sides of a filter plate. Solids build up on cloth to form a filter cake, separating liquids from solids.
Available options according to:
Closing mode: manual, gear drive, hydraulic;
filter plate structure: recessed plate, diaphragm squeeze (membrane) plate; plate &frame
filter plate material: PP, rubber, cast iron, stainless steel;
Filter Plate size(mm): 320, 450, 630, 800,1000, 1250, 1500,2000
Typical Membrane Filter Press Models & Technical Data
Model | Filter area (m2) | Plate size (mm) | Cake thickness (mm) | Filter chamber volume (L) | Number of plates (pcs) | Filtration pressure (MPa) | Motor power (Kw) | Total weight (kgs) | Overall dimension LxWxH(mm) |
XGZ30/870-U | 30 | 870×870 | <= 35 | 498 | 23 | >=0.8 | 2.2 | 3046 | 3880*1250*1300 |
XGZ40/870-U | 40 | 623 | 30 | 3593 | 4270*1250*1300 | ||||
XGZ50/870-U | 50 | 789 | 38 | 4057 | 4790*1250*1300 | ||||
XGZ60/870-U | 60 | 955 | 46 | 4597 | 5310*1250*1300 | ||||
XGZ70/870-U | 70 | 1121 | 54 | 5136 | 5830*1250*1300 | ||||
XGZ80/870-U | 80 | 1287 | 62 | 5636 | 6350*1250*1300 |
XGZ50/1000-U | 50 | 1000 ×1000 | <=35 | 776 | 28 | >=0.8 | 4 | 4352 | 4270*1500*1400 |
XGZ60/1000-U | 60 | 943 | 34 | 4480 | 4770*1500*1400 | ||||
XGZ70/1000-U | 70 | 1109 | 40 | 5263 | 5130*1500*1400 | ||||
XGZ80/1000-U | 80 | 1275 | 46 | 5719 | 5560*1500*1400 | ||||
XGZ100/1000-U | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | ||||
XGZ120/1000-U | 120 | 1941 | 69 | 7466 | 7260*1500*1400 |
XGZ80/1250-U | 80 | 1250 x1250 | <= 40 | 1560 | 29 | >=0.8 | 5.5 | 10900 | 4830*1800*1600 |
XGZ100/1250-U | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | ||||
XGZ120/1250-U | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | ||||
XGZ150/1250-U | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | ||||
XGZ160/1250-U | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | ||||
XGZ200/1250-U | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | ||||
XGZ240/1250-U | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | ||||
XGZ250/1250-U | 250 | 4783 | 91 | 17020 | 9570*1800*1600 |
XGZ200/1500-U | 200 | 1500 x1500 | <=40 | 3809 | 49 | >=0.8 | 11 | 26120 | 7140*2200*1820 |
XGZ250/1500-U | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | ||||
XGZ300/1500-U | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | ||||
XGZ350/1500-U | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | ||||
XGZ400/1500-U | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | ||||
XGZ450/1500-U | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | ||||
XGZ500/1500-U | 500 | 9446 | 123 | 33380 | 13240*2200*1820 |
XGZ600/2000-U | 600 | 2000 x2000 | <= 40 | 11901 | 85 | >=0.8 | 15 | 54164 | 13030*3000*2500 |
XGZ700/2000-U | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | ||||
XGZ800/2000-U | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | ||||
XGZ900/2000-U | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | ||||
XGZ1000/2000-U | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 |

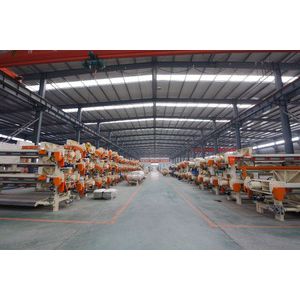

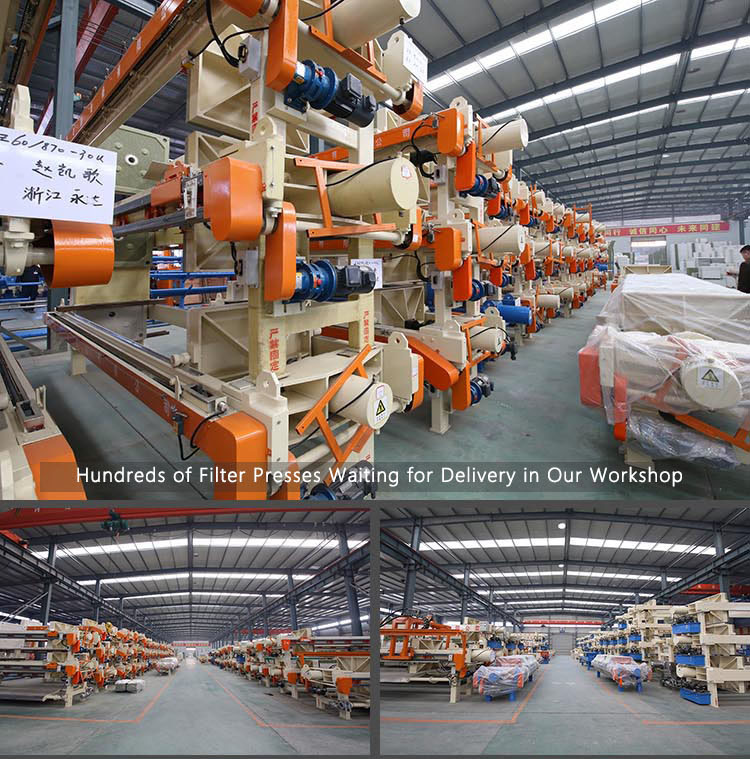

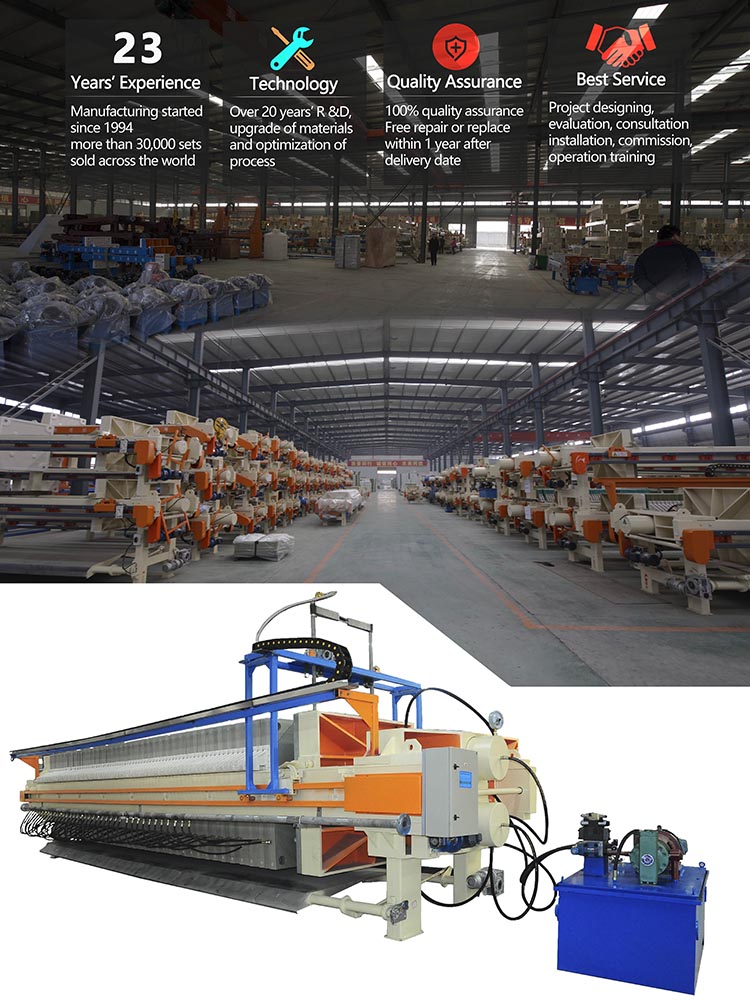

Our Filter Press Workshop |

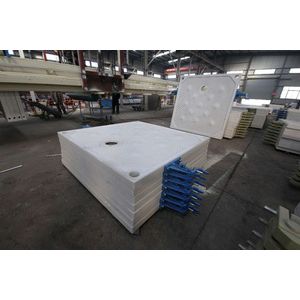

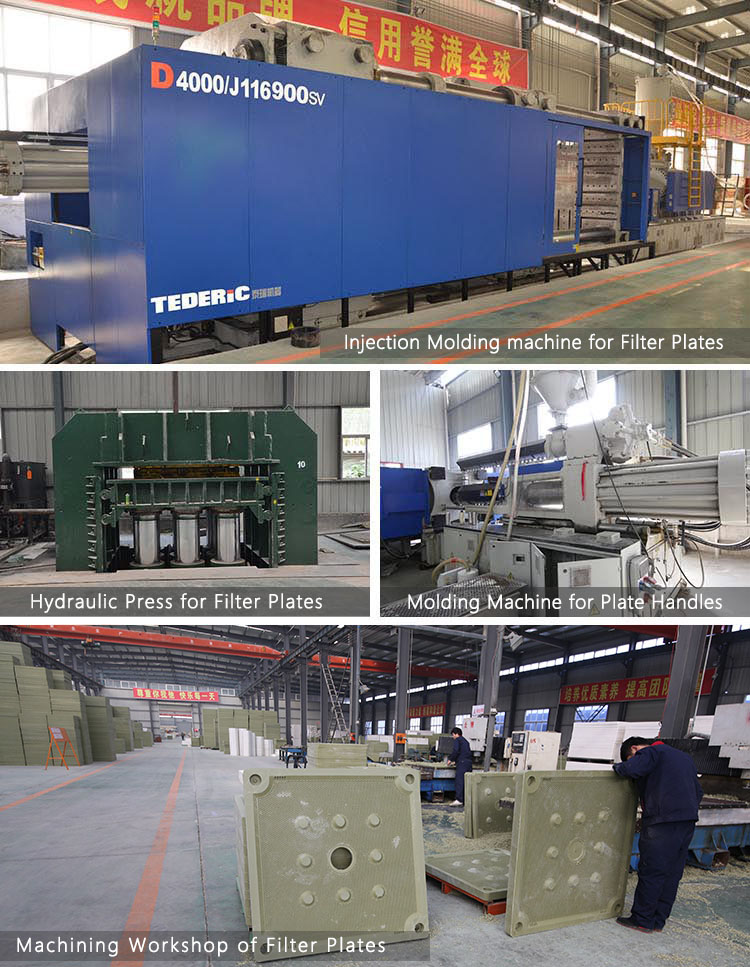

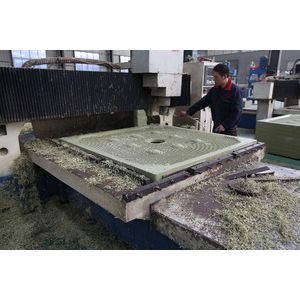

Filter Plate Production |

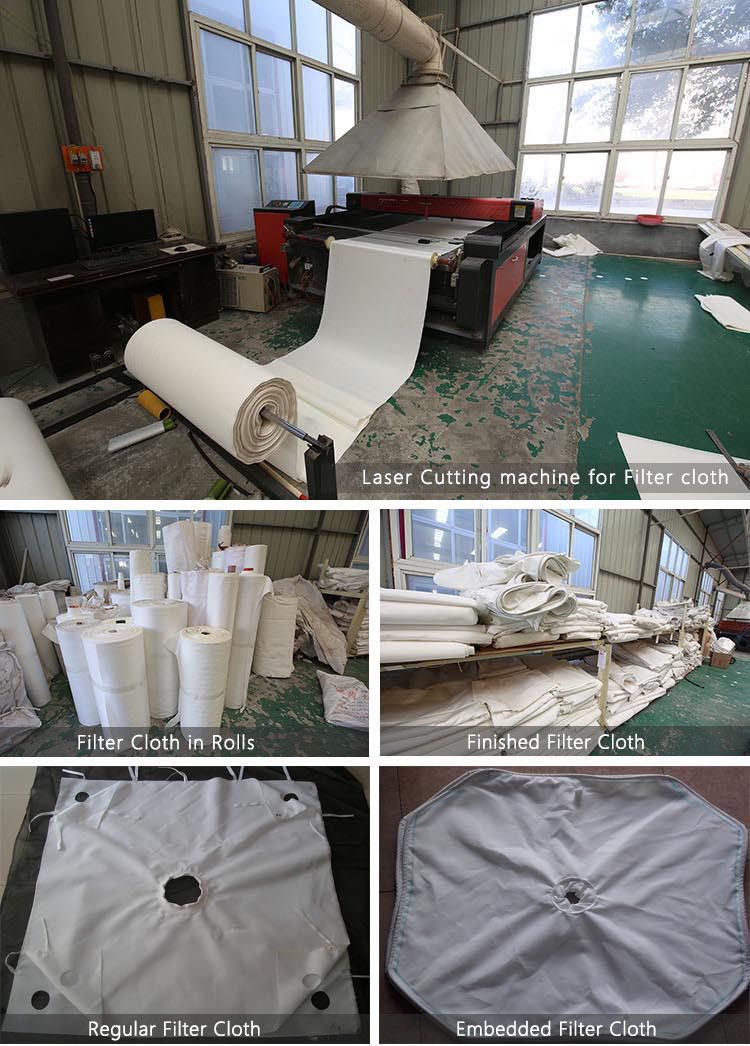

Filter Cloth Production |

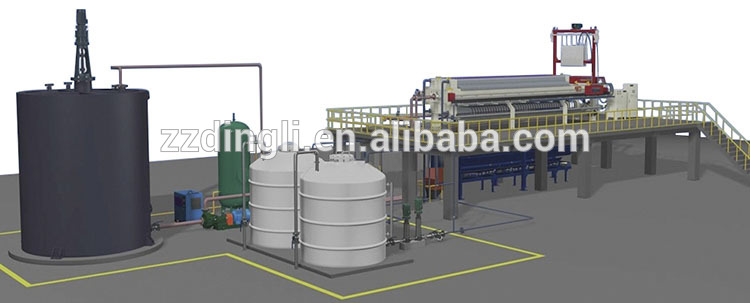

Typical layout Plan of Filter Press System |

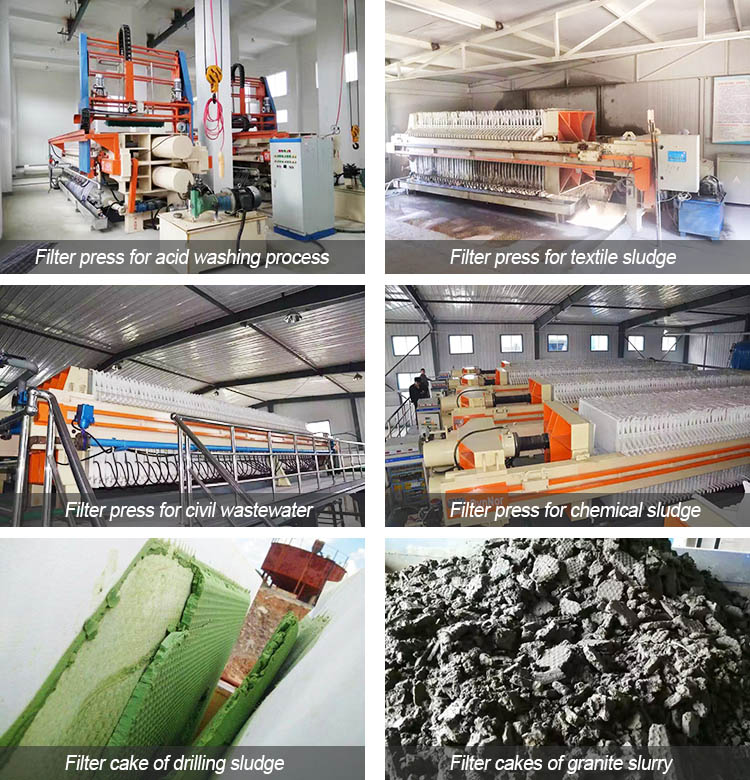

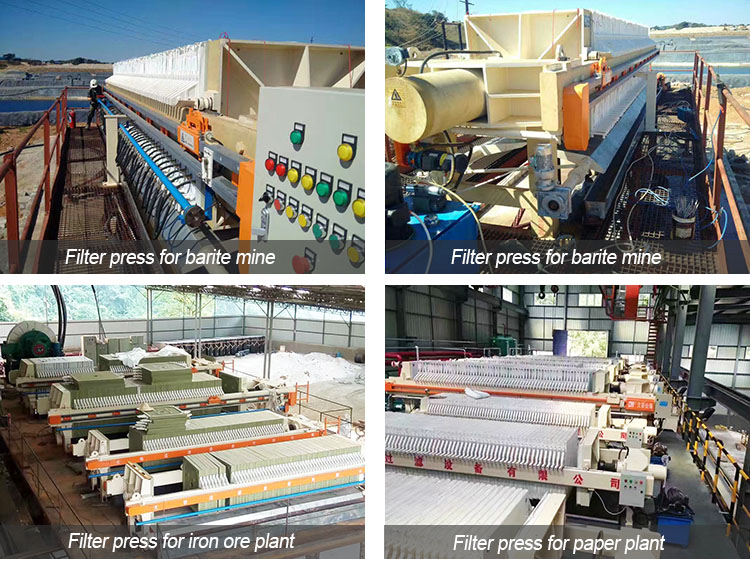

Customer Cases |
