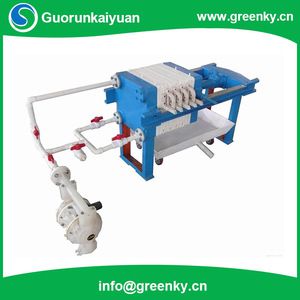

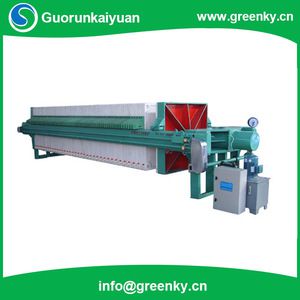

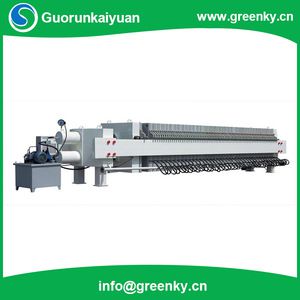

Plate and frame filter press description
Plate and frame filter press is very mature dehydration equipment. The filter plate and filter frame are arranged alternately in parallel, and each filter plate and filter box are sandwiched with filter cloth. The plate and frame are pressed by the pressing end, so that a filter pressing chamber is formed. The sludge enters from the feed port, the water is discharged through the filter plate, and the mud cake is accumulated on the filter cloth. The mud cake is very easy to peel off when the plate and frame released.
Technical characteristics of plate and frame filter press
- Made of high quality carbon steel Q235 which has high tensile strength, it makes the filter press can be operate more safe and stable.
- Main beam is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.
- All the spare parts that need painted are dealed with high speed centerfugal ball blast descaling and iron scale.
- Polypropylene (PP) filtration plates, made by CNC lathes, which tested by 27Mpa high pressure bofore delivery.
- Pressing plate and thrust plate are formed by carbon dioxide protection weiding.
Application of plate and frame filter press
Widely used in a variety of industries in the dehydration operation.
- Mining industry--coal washing, tailings dewatering, wastewater treatment.
- Cheminal industry, metal industry-- petroleum filtration, pharmaceutical industry, pigments & dyeing, papermaking, food & beverage industry, oil industry, etc.
- Effluent Treatment Plants---Textile, Paper, Leather, Jute Sewages, Industrial & municiple waste water.
Fillter plate
The sludge cake after filter press
Parameter of chamber filter press
