High Pressure Round Plate Ceramic Slurry Filter Press Special Offer 5% Off

Our Ceramic filter press is specially designed with higher pressure to dewater ceramic raw materials.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Henan, China (Mainland)
  • XYD1100/185
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~35

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Henan, China (Mainland)
Model Number
XYD1100/185
Voltage
380V
Power(W)
4 KW
Weight
9500 kgs
Dimension(L*W*H)
9680x1500x1925
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Application
slurry dewatering in ceramic plants

DETAIL DESCRIPTION

Product Description

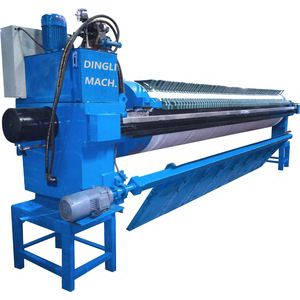

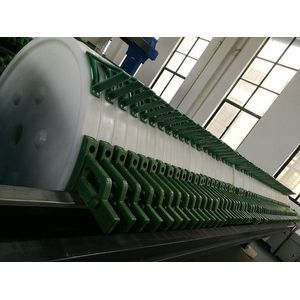

Our Ceramic filter press is specially designed with higher pressure to dewater ceramic raw materials. this filter press features round filter plate,which can realize much higher filtration pressure than standard shaped plate filter press, thus residue cake moisture can be reduced to minimum content. It is mainly used for stone machining wastewater, ceramics, kaolin, construction materials, etc..



Typical Technical Data



Modelfilter area
(m2)
plate diameter
(mm)
Cake thickness
mm
Filter Chamber Volume (L)Plate NumbersFiltration pressure(Mpa)Motor Power(Kw)Weight (kgs)Dimension
L*W*H(mm)
XYD1100/125125110030187581<=2.04.077007,280*1,500*1,925
XYD1100/140140110030210091<=2.04.082007,880*1,500*1,925
XYD1100/1551551100302325101<=2.04.087008,480*1,500*1,925
XYD1100/1851851100302520121<=2.04.095009,680*1,500*1,925

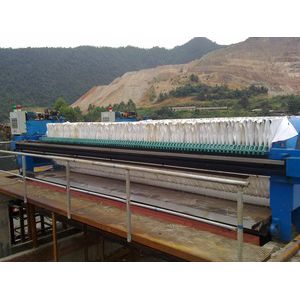

Global Brands Using Our Filter Press

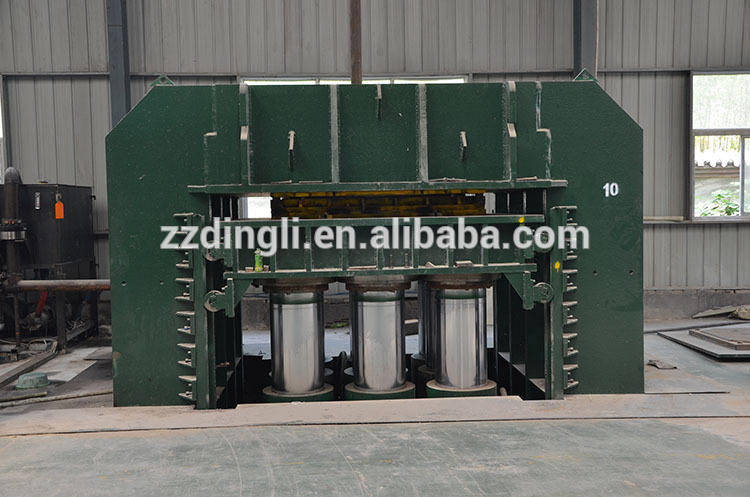

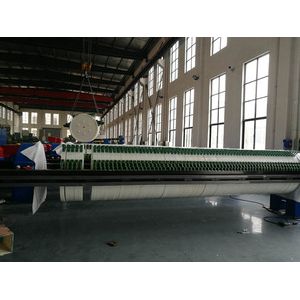

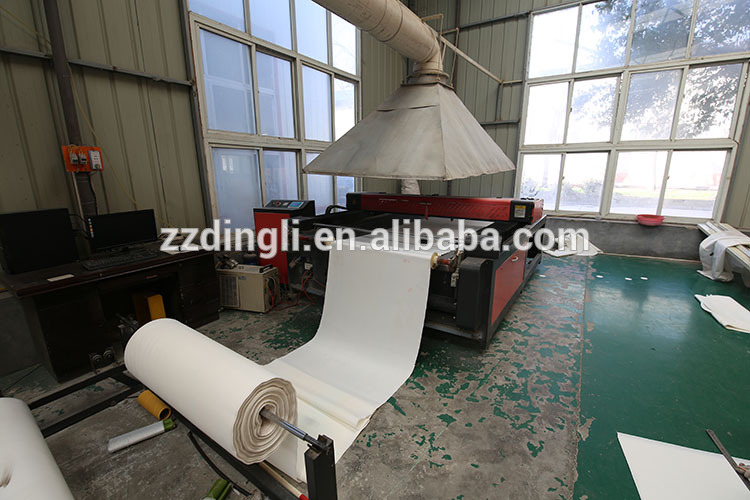

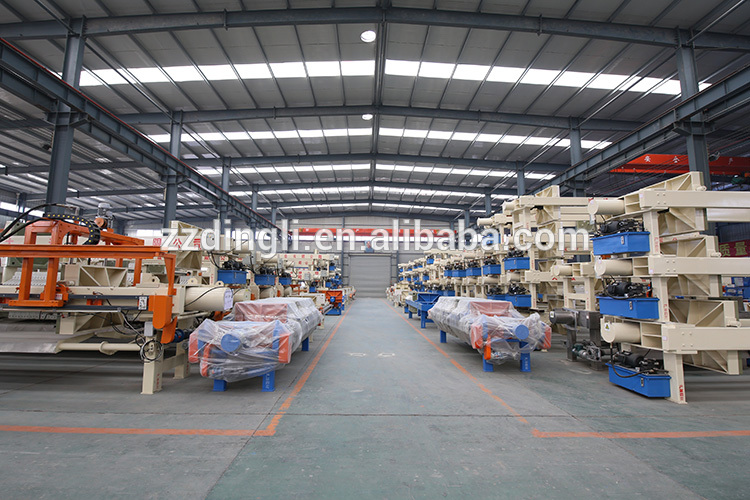

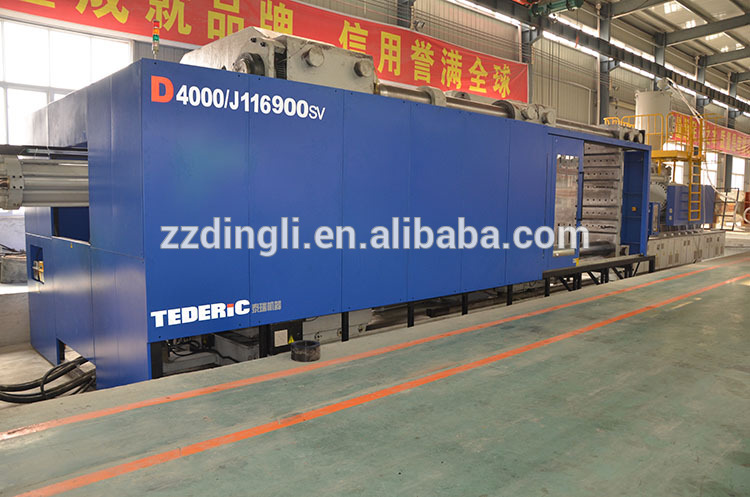

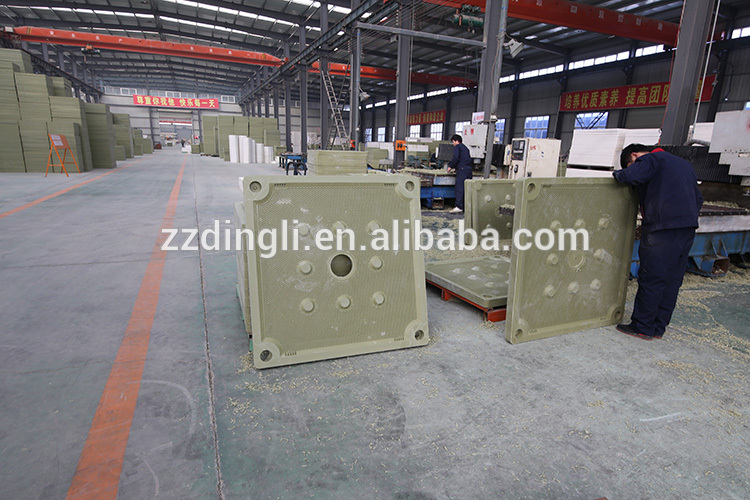

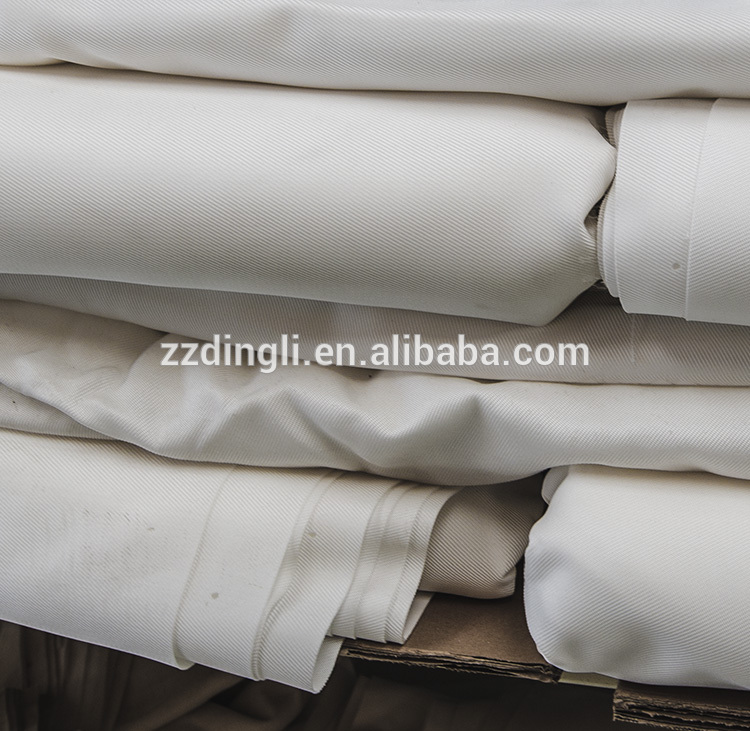

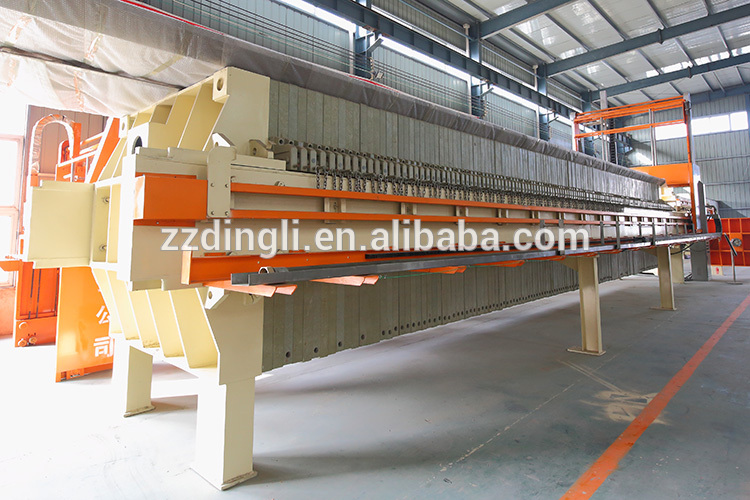

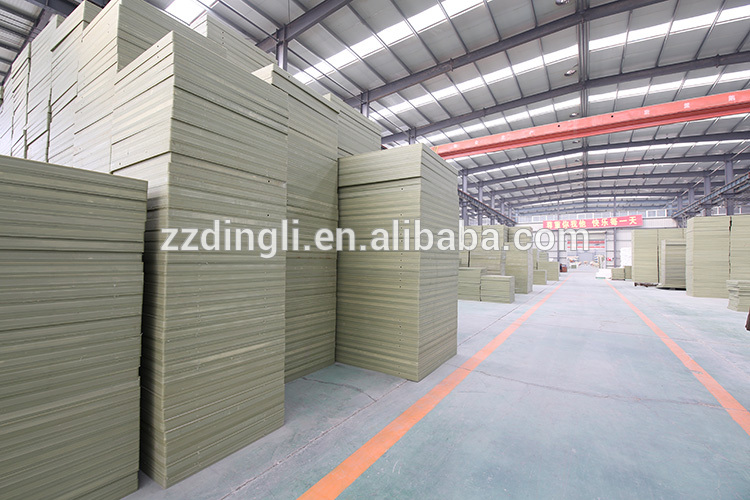

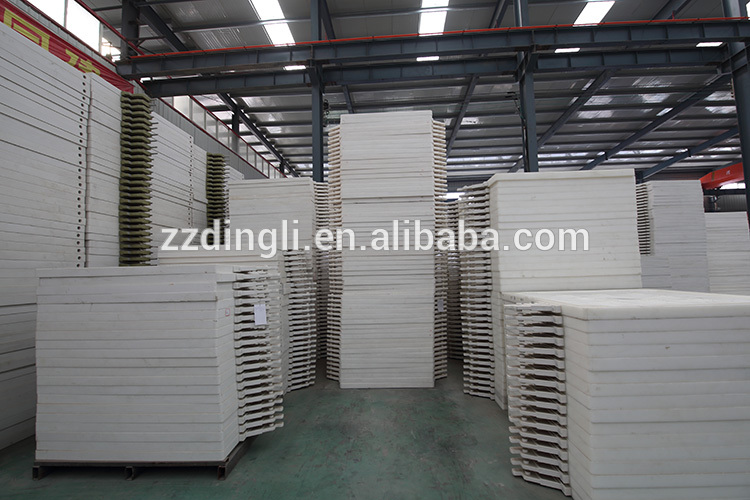

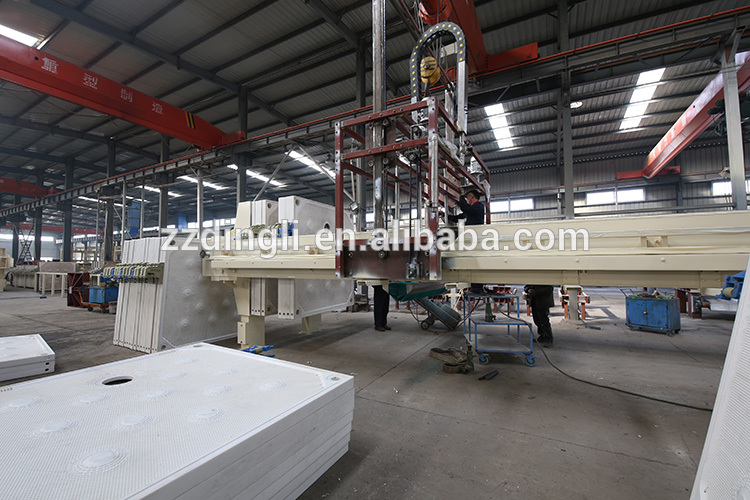

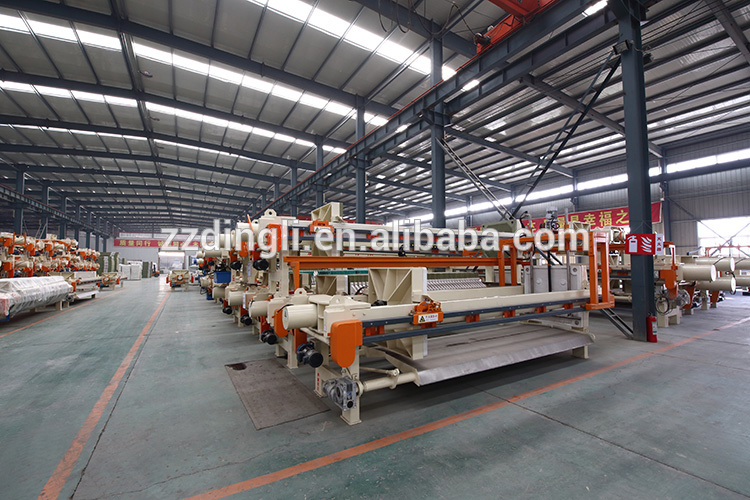

Our Workshop & Facility
