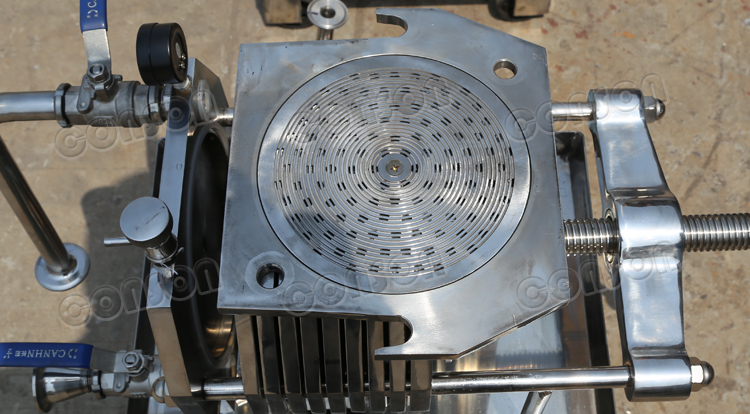

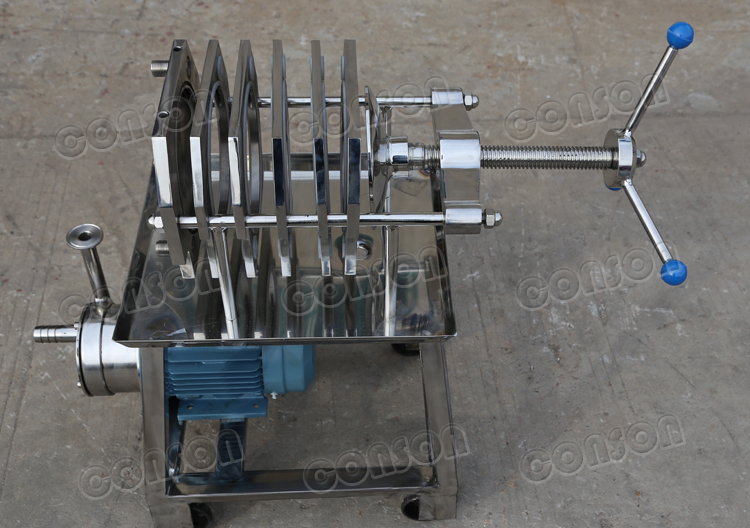

The plate and frame filter press is composed of 11pcs of movable stainless steel plate and 10 pcs of filter membrane, After loading the filter membrane on to the filter plate, It is tighten by the wheels and pressed together.
plate filter press is used in various industries including pharmaceutical, chemical, cosmetic, food & beverage. Plate and frame filter presses provide the lowest cost of filtration per unit of fluid processed.
| membrane filter press parameters | |
| Material | 304SS; 316(L)SS |
| Membrane Material | PP |
| Membrane Diameter | Φ100;Φ150;Φ200;Φ300;Φ400 |
| Membrane Quantity | Standard: 10 pcs. Could be customized. |
| Centrifugal pump | 0.3 mpa Working pressure |
| We also customize filter housing accordingly to customer's requirement | |
| Please email us to know more |
small plate and frame filter press model sheet
| Model | Membrane diameter | Membrane Qty | Flow rate |
| FP100 | Φ100 | 10 | 0-200L/Hour |
| FP150 | Φ150 | 10 | 0-300L/Hour |
| FP200 | Φ200 | 10 | 0-500L/Hour |
| FP300 | Φ300 | 10 | 0-800L/Hour |
| FP400 | Φ400 | 10 | 0-1200L/Hour |
| Bigger size could be customized |
