Factory wholesale Stainless steel Crystallizing tank
Introduction:

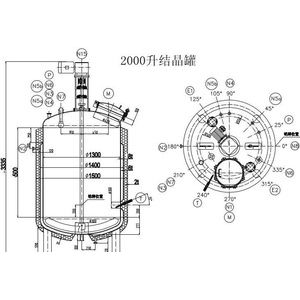

Stainless steel crystallization tank (known as crystallization kettle)
After the material mixing reaction, use jacket’s chilled water or refrigerant cooling water to cooling and crystallizing ., the key point is the cooling area, mixer structure and material outlet form, tank High-precision polishing, as well as cleaning the tank without dead corner to meet the requirements of process conditions. It is widely used in dairy industry, food industry, chemical industry, beverage industry and so on. It is widely used in the mixing and cooling of pharmaceuticals, freezing and crystallizing.
Features of our Crystallizing tank:
1. Crystallizing tank is made of stainless steel 316L or 304.
2.Internal surface finish adopts electrolytic polishing or mechanical mirror polishing ra<0.4um
External wall uses all-welded structure for thermal insulation, with PU or perlite. The surface finish is mirror polished too .
3.Crystallizing tank is equipped with sanitary vent filter 0.2um
4.The tank Can withstand 121 degree high temperature sterilization, with sanitary pressure gauge.
5. The crystallizing tank has a temperature monitoring device, two sight glasses, cleaning ball and nitrogen inlet.
6.Shaft seal using a special sanitary mechanical seal, to ensure that the material is not contaminated.
7.The frequency control device can be used in crystallizing tank, with a wide adjust range of stirring shaft speed.
Main technical parameter:
Type specifications | 100L | 200L | 500L | 1000L | 2000L | 5000L | 10000L | 20000L |
Diameter(mm) | 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 |
Pressure in the tank(Mpa) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Jacket pressure(Mpa) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Quantity of mixer blade | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 |
r/min Rotate speed(r/m) | 30-1000RPM | |||||||
KwMotor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 3 | 5.5 | 7.5 | 7.5 |
Cooling modes |
jacket |
Tube |
