wine and beer cooled stainless conical fermenter
Please contact us with your specification of the stainless steel tank you want, Our engineering team will give you the best solutions and drawings to confirm the design, We provide excellent finish tanks, all weldings ground smoth to meet the highest requirement for food grade application.
Our products range including whole brewing system , Fermenter tank, Jacket kettle ,mash tun ,with high or low pressure, Jacketed or Non jacketed.
Fittings of cooled stainless conical fermenter
Shadowless Manway: side manway or top manway
· 360 degrer rotating spray ball
· CIP Lines
· Tri-clamp butterfly valve for CIP
· Pressure Relief/Vaccumm Valve
· Rotating Racking Arm with butterfly Valve
· Tri-clamp Butterfly for Drain
· Thermometer
· Thermowell
· Sample Valve
· Duel zone cooling jacket
· Pressure Gauge
· Insulated Polyurathane Filled
· Mirror polished,no rough edges
cooled stainless conical fermenter main parameters
Tank Material | Sanitary stainless steel 304 |
Tank thickness | inner tank-3-4mm, jacket-1.5-2mm,cladding-1.5-2mm |
Agitator: | Raking system conneted into a top reducer |
Bottom head type | Saccharifing Units--- Flat bottom or 120º~185º cone |
Fermention tank---- Conical degree 60-75°c | |
Jacket type | Dimple jacket on the cylinder and cone parts |
External surface | Stainless steel 2B board/Mirro polish/Matt wiredrawing processing, |
Thickness=2mm,if need,could choose copper for outside |
Main technical parameters | CF-2BBL | CF-7BBL | CF-10BBL | CF-15BBL | CF-20BBL | CF-25BBL | CF-30BBL | CF-40BBL | CF-50BBL | CF-60BBL | CF-90BBL | CF-120BBL |
Working volume(BBL) | 2 | 7 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 90 | 120 |
Material | All stainless steel SUS304 | |||||||||||
The diameter of inner cylinder(mm) | 650 | 1000 | 1100 | 1200 | 1450 | 1500 | 1600 | 1750 | 1750 | 1900 | 2150 | 2150 |
Cylinder height (mm) | 600 | 1000 | 1000 | 1220 | 1220 | 1500 | 1500 | 1500 | 2000 | 2000 | 2440 | 3500 |
The diameter of outter cylinder(mm) | The diameter of inner cylinder+The thickness of insulation*2 | |||||||||||
Reference height (mm) | 1850 | 2500 | 2700 | 3050 | 3250 | 3600 | 3700 | 3900 | 4400 | 4500 | 4800 | 5800 |
Conical degree | 60º-90º | |||||||||||
Surface roughness of inner shell | Ra≤0.22μm | |||||||||||
Surface roughness of outter head | Mirror polished or matt polish or wire-drawing processing | |||||||||||
Head Type | DHA or DHB or according to your reqiurement | |||||||||||
Jacket type | Efficient use of Maitreya plate jacket heat technology, heating rate is greatly improved, 1.5mm thick, welding aperture 12mm, adjacent hole center distance 80mm, clamping sleeve height 15mm | |||||||||||
Cooling area(m²) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 9 | 11 | 13 | 16 | 19 |
The material of insulation | Anti - aging polyurethane Pearl(PU) | |||||||||||
The thickness of insulation(mm) | 50/80/100 | |||||||||||
Outside skin | 2B Plate,or mirror polish,matt polish,wiredrawing processing,thickness=2mm | |||||||||||
Manway | Top manway | DN300,DN350,DN400,DN500,DN600 could be chose | ||||||||||
Side-manway | ellipse manway:580X480,530X430,500X400 could be chose | |||||||||||
Adjustable feet | 3 or 4 | |||||||||||
Adjustable outlet | Tri-clamp Φ51/Φ63/Φ76/Φ89(rotating part),360°adjustable,Flexible rotation | |||||||||||
CIP cleaning piping | Tri-clamp Φ32/Φ38/Φ51, | |||||||||||
Lifting ears | According with HG/T 21574-2008 | |||||||||||
Level equipement | Sanitary hose connected pipe cleaning and clear liquid outlet | |||||||||||
Spray ball | Tri-clamp Φ63/Φ76/Φ89, | |||||||||||
Inlet/outlet | Tri-clamp Φ25/Φ32/Φ38/Φ51/Φ63, | |||||||||||
Safty valve | Tri-clamp Φ51 | |||||||||||
In let yeast | Tri-clamp Φ76/Φ89/Φ102/Φ133/Φ159 | |||||||||||
Thermometer | M12X1.5(digital display)/M27X2 or Tri-clamp Φ32 | |||||||||||
Pressure gauge | M20X1.5/ Tri-clamp Φ32 | |||||||||||
Sample Valve | Tri-clamp Φ25 | |||||||||||
Carbonation stone | Tri-clamp Φ51/Φ63/Φ76/Φ89 | |||||||||||
Vent hole | Tri-clamp Φ25/Φ32/Φ38/Φ51 | |||||||||||
Jacket inlet/outlet | Female screw/Male screw | |||||||||||
Brand | Laser engraving, detailed | |||||||||||
Accorssies | Themometer,thermo-well,sampling valve,pressure gauge,pressure/vaccum relief valve, | |||||||||||
Notes | It can be made according to customers'special requirements. |

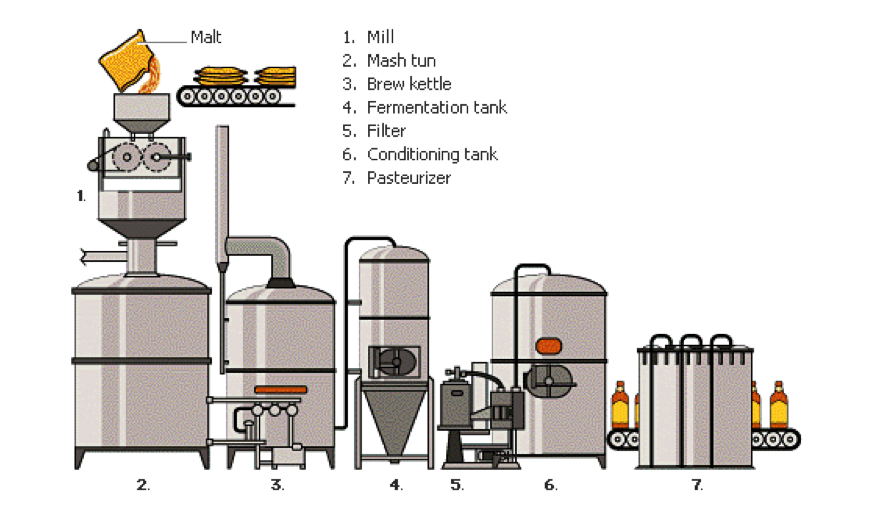

Other Brewing equipment we can offer as following:
Main items | Main machine |
Malt milling system | Double rollers malt miller machine |
Mash system | Mash tun/kettle boiler, lauter tun/whirlpool tun, wort pump, Mirror polishing Mechanical agitation: Stirring moter adopts variable frequency stepless speed control, improve wort preparation time. |
Fermenting system | Fermentation tank, inner tank adopts international standard food grade SUS.304 All welding us double-sided welding argon gas protection, double-sided forming can improve the weld ability if under pressure. Mirror polishing |
Heating system | Electric heating/ steam heating/ direct fire heating |
Control system | Control cabinet, touch screen. Simens /LG PLC control |
Chiller system | Ice water tank, cold water tank and pumps, plate heat exchanger, chiller |
Filter system (Opional) | Membrane filtration or plate filter machine or Diatomite filter |
Storage system (Customized) | Beer bright tank, beer storage tank |
Cleaning system | CIP cleaning system, include alkali tank and disinfection tank, cleaning pump. Cleaning ball: internal comprehensive cleaning, improve the quality of internal cleaning. |
Filling system (Opional) | Manual and automatic bottle filling line, keg filler and washer machine |
