Multi-layer Stainless Steel Press Filter

Stainless Steel Press Filter is designed for fine filtration.

Technical Feature

  • New
  • Manual
  • 3 t/h
  • Henan, China (Mainland)
  • DynNor
  • BAS200-10
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~850

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Manual
Production Capacity
3 t/h
Place of Origin
Henan, China (Mainland)
Brand Name
DynNor
Model Number
BAS200-10
Voltage
380V
Power(W)
1.1 kw/h
Weight
175 kgs
Dimension(L*W*H)
650x500x900
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Application
Liquid filtration

DETAIL DESCRIPTION

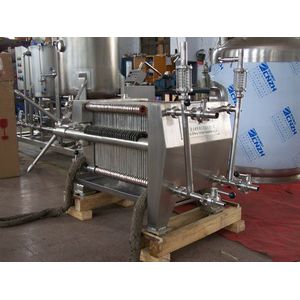

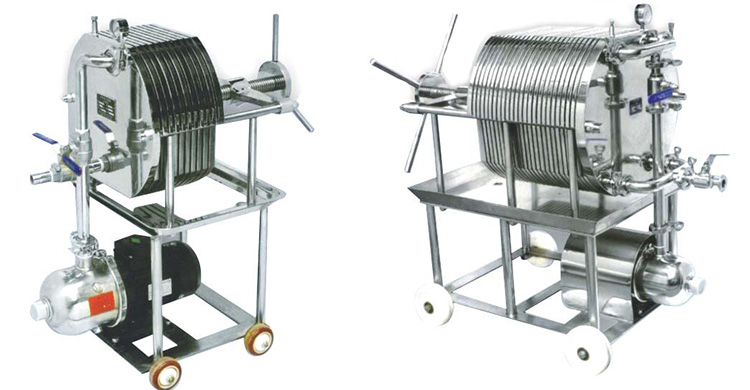

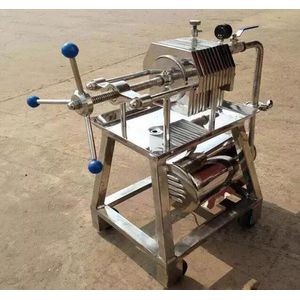

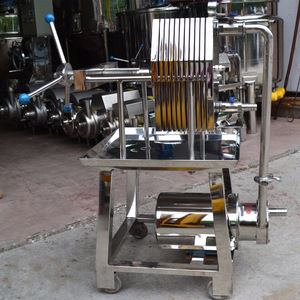

Stainless Steel Multi-layer Press Filter

Stainless Steel Press Filter is designed for fine filtration. its surface is polished, has excellent sealing, and normally installed with stainless steel feeding pump. main applications as follows: laboratory, fine chemicals, medicine, food, etc..



Typical technical data:

ModelBAS150-10BAS200-10BAS300-10BAS400-10
Plate size150mm200mm300mm400mm
number of plates10 pcs10 pcs10 pcs10 pcs
Flow rate1.5t/h3t/h5t/h8t/h
Power1.1Kw/h1.1Kw/h1.5Kw/h2.2Kw/h
total weight156 kgs175 kgs226 kgs257 kgs
Dimension(LxWxH)600x500x800mm650x500x900mm650x500x1050mm700x600x1200mm



Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

Zhengzhou DynNor Industrial Machinery Co., Ltd.

Industrial dryers,Packing machines,Mining machines,filter press,refractories &engineering

China
Supplier Page Contact Supplier

Products From Supplier

Wet Brewers' Grain Dryer, complete drying system &solution at competitive prices

spent grain is a byproduct of the brewing process.

China Roller Shell Type Single Cylinder Three Drum Rotary Sand Dryer for Drying River Sand, Cement, Blast Sand!

and according to final their applications, they are always specific requirements for final dried sand.

China Turnkey Service Roller Dryer Three Cylinder Dryer Rotary Drum River Sand Dryer!

River sand dryers are also called sand dryer, river sand dryer, sand drying machine, yellow sand dryers, dry mortar dryers, etc.

FREE Installation & Operation Training Rotary Drum Type Small Aggregate Dryer!

River sand dryers are also called sand dryer, river sand dryer, sand drying machine, yellow sand dryers, dry mortar dryers, etc.

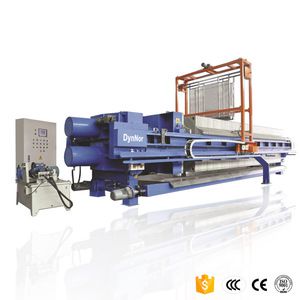

Professional Automatic Filter Press for mining tail pulp treatment Special Offer 5% Off !
