Manual Chamber Filter Press Good For Water Treatment Filter Press Juice Filter

The membrane filter press filter chamber is composed of diaphragm plate and chamber filter plate.

Technical Feature

  • New
  • Automatic
  • Henan, China (Mainland)
  • GRKY
  • BY30/870-30U
  • 220V/380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Place of Origin
Henan, China (Mainland)
Brand Name
GRKY
Model Number
BY30/870-30U
Voltage
220V/380V
Power(W)
2200
Weight
2580kg
Dimension(L*W*H)
3517*1385*1300
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Filter area (m2)
30
Filter plate size (mm)
630*630
Filter cake thickness (mm)
30
Filter chamber Volume (L)
460
Filter palte number (pcs)
23
Filtrating pressure (Mpa)
0.6
Frame No. (pcs)
24

DETAIL DESCRIPTION

Manual Chamber Filter Press Good For Water Treatment Filter Press Juice Filter

Product Description

 Membrane filter press dsecription

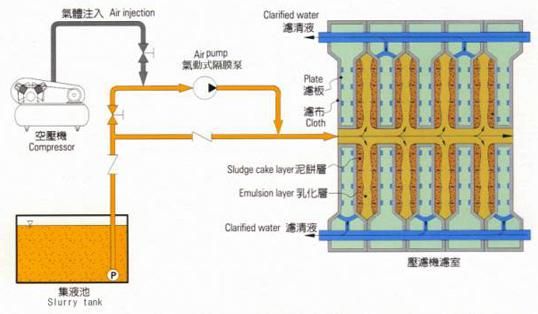

The membrane filter press filter chamber is composed of diaphragm plate and chamber filter plate. The slurry is fed into the filter chamber under the pressure of the feed pump and the solids and liquid in slurry are separated by means of a filter medium ( filter cloth) . When the solid in the filter chamber is fully pressed, and the water content is reduced.







Typical characteristics of chamber press filter

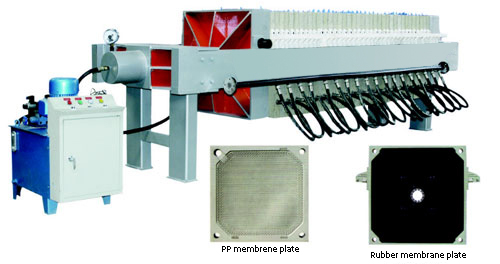

Chamber press filter for viscous materials require higher moisture and for users of this machine have their unique characteristics. Plate with enhanced molded polypropylene, polypropylene plate with diaphragm mounted together, sturdy, not easy fall off, long service life.

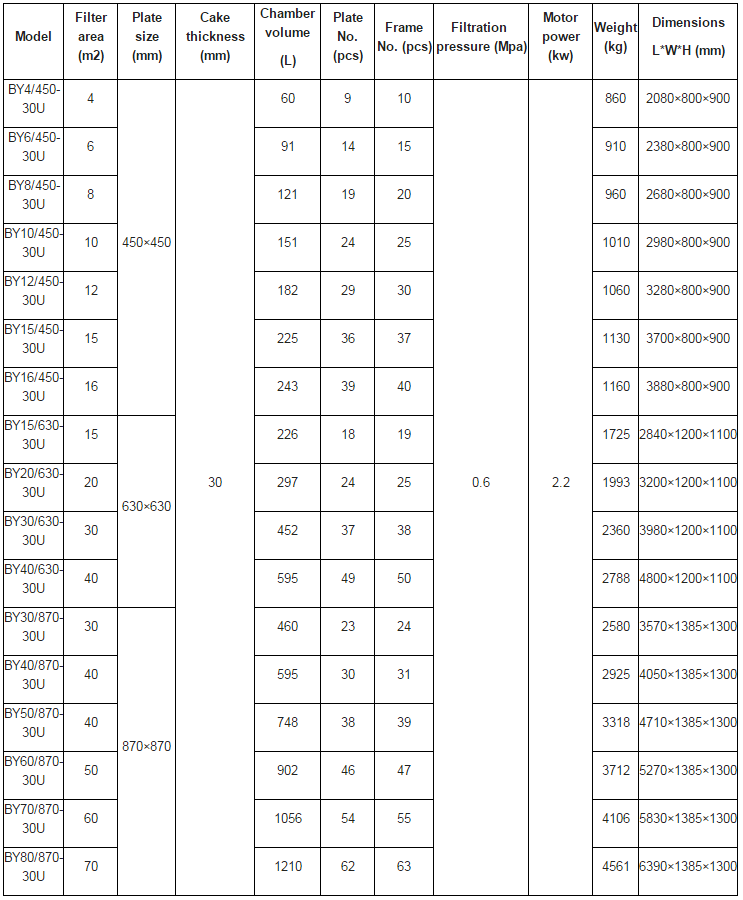

Parameter of membrane filter press
