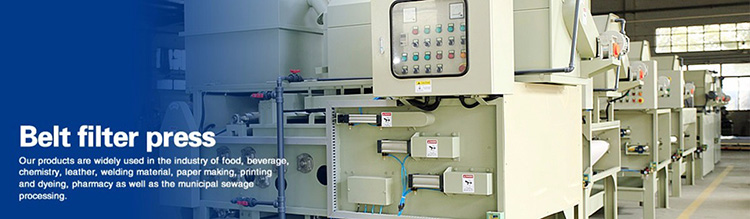

Dyeing sewage treatment sludge press filter

The principal part adopts stainless steel as its material and possesses high strength.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Shanghai, China (Mainland)
  • Qilee
  • QTB-1500L
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$18~20

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Shanghai, China (Mainland)
Brand Name
Qilee
Model Number
QTB-1500L
Voltage
380v/220v
Power(W)
1850w
Weight
2200kg
Dimension(L*W*H)
3300*2150*2500
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product name
sludge press filter
Belt Width(mm)
1500
Treating Capacity(m3/hr)
12~20.5
Dried Sludge(kg/hr)
180~308
Inlet Consistency(%)
1.5~2.5
Water Content's Rate(%)
75~84.5
Powder Consumption(kw)
1.85kw
Dimensions(mm)
3300*2150*2500
Base Dimension L1*W1(mm)
2450*1860
Reference Weight(kg)
2200

DETAIL DESCRIPTION





Dyeing sewage treatment sludge press filter

Product Introduction





 Sludge dewatering equipment Featurs:

1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.

2. The filter cloth  imported from Swiss, to provide the best performance and long service life.

3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.

4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense

5. Low energy consumption,high efficiency ,low revolutions,low noise75dB(A)

6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.



 Selection of models:

Model QTB-500QTB-750 QTB-1000QTB-1250QTB-1500QTB-1500L QTB1750 QTB-2000
Belt Width(MM) 50075010001250 1500 150017502000

Treating Capacity( m³/hr )

Inlet Consistency(ss0.5~1.5%)

3.0~5.24.5~7.56.5~10.57.5~12.59.5~1612~20.515~24.5

18~30

Dried Sludge(kg/hr) 45~7868~11398~158113~188143~240180~308225~368270~450
Water Content's Rate(%) 63~84.563~84.563~84.563~84.563~84.563~84.563~84.563~84.5
Power Consumption (HP)Driving Motor 1/21/21/21/21/2 11
Disposal Agitaor Motor1/41/41/21/23/43/43/4 1
Drum Thickener 1/41/41/21/21/23/43/43/4
Lower Collecting Tray For Pressed FiltrateYesYesYesYesYesYesNoNo
External Dimensions (Reference) (MM)L26002600260026002700330033003400
W10501300155018002150215024002650
H21502350235023502500250025002600
Base Dimension(L1*W1,MM)  2100*8302100*10802100*13302100*15802100*18302450*18602580*21102580*2360
Reference Weight(Kg)  830100012101450185022002450

2850

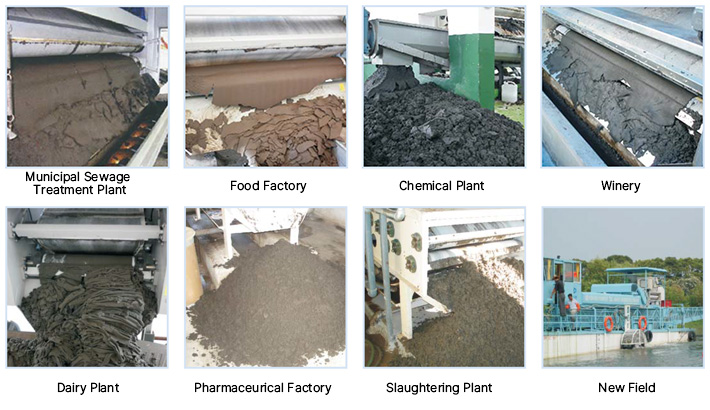

 Product Application:



1.    Sludge dewatering of various industrial waste water.

2.    Sludge dewatering of butchery, husbandry.

3.    Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.

4.    Sludge dewatering of city sewage, excretion, water purifying industries.

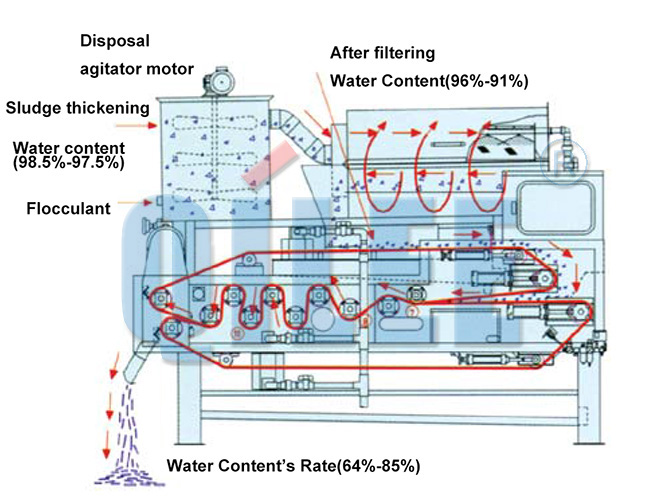

Product Treatment Flowchart:





Product Structure:







Related Products




FAQ
Q

What’s the application scope of sludge dewatering machine price ?

A

It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.

Q

What can I get the price?

A

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q

How to choose the model

A

Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.


Q

What’s the equipment used together with sludge dewatering machine price?

A

Sludge pump, polymer dosing pump, washing pump, air compressor.
