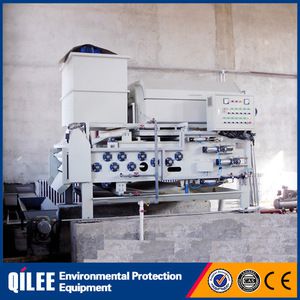

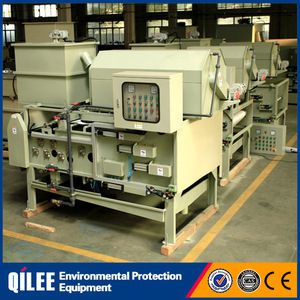

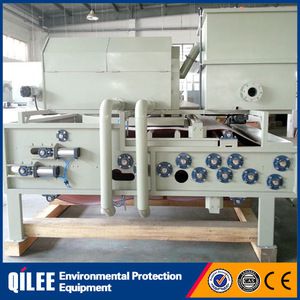

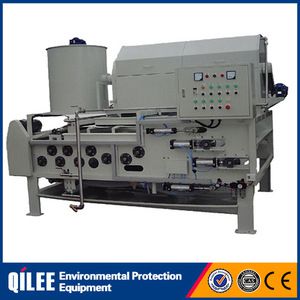

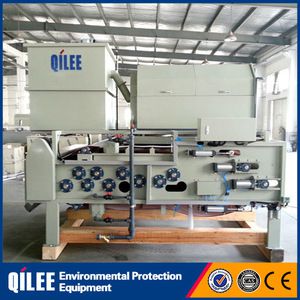

Full automatic sewage treatment sludge filter press

The principal part adopts stainless steel as its material and possesses high strength.

Technical Feature

  • New
  • Automatic
  • 100%
  • Shanghai, China (Mainland)
  • QILEE
  • QTBH-2000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$11~40

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
100%
Place of Origin
Shanghai, China (Mainland)
Brand Name
QILEE
Model Number
QTBH-2000
Voltage
380v/220v
Power(W)
2800
Weight
3150kg
Dimension(L*W*H)
3500*2650*2700(mm)
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Power
2800W
Treating Capacity(m3/h)
37.5~49
Dried Sludge(kg/h)
150~312
Water Content's Rate(%)
78~85
Material
SS304
Operating Type
fully automatic
Reference Weight(kgs)
3150
Base Dimension(L1*W1,MM)
2580*2400
Lower Collecting Tray for Filtrate
Yes
Key words
belt filter press

DETAIL DESCRIPTION

Product Introduction

Full automatic sewage treatment sludge filter press





1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.

2. The filter cloth  imported from Swiss, to provide the best performance and long service life.

3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.

4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense

5. Low energy consumption,high efficiency ,low revolutions,low noise75dB(A)

6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.

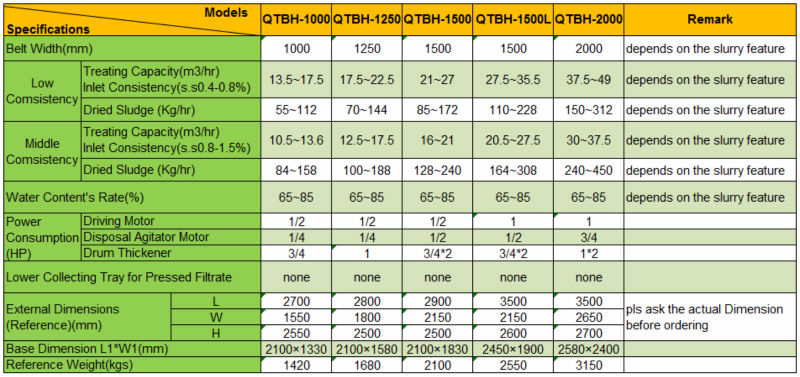

Product Parameters





Product Addlication

1.    Sludge dewatering of various industrial waste water.

2.    Sludge dewatering of butchery, husbandry.

3.    Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.

4.    Sludge dewatering of city sewage, excretion, water purifying industries.





Product Flowchart







Product Examples







Product Processing







Data Sheet





Packing Products
