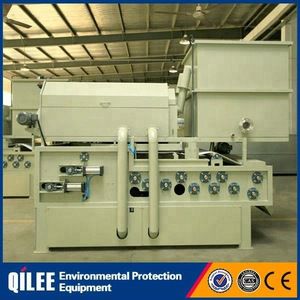

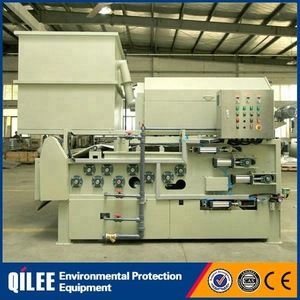

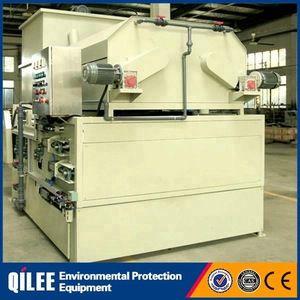

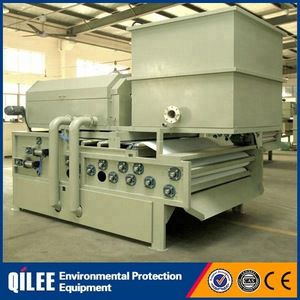

Food factory sludge dewatering equipment belt filter press for wastewater treatment
Belt filter press Features:
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Selection of models:
Model | QTE3-1000 | QTE3-1250 | QTE3-1500 | QTE3-2000 | QTE3-2500 | QTE3-3000 | |
Belt Width(mm) | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | |
Low Consistency | Treating Capacity(m3/hr) Inlet Consistency(s.s.0.4-0.8%) | 19-25 | 26-38 | 38-50 | 55-80 | 80-100 | 95-125 |
Dried sludge(kg/hr) | 76-150 | 104-210 | 152-300 | 240-480 | 300-600 | 380-750 | |
Middle Consistency | Treating Capacity(m3/hr) Inlet Consistency(s.s.0.8-1.5%) | 15.5-19 | 20.5-26 | 25.5-45 | 45-60 | 60-75 | 70-95 |
Dried sludge(kg/hr) | 124-233 | 164-308 | 244-458 | 400-750 | 512-960 | 640-1200 | |
Water Content’s Rate(%) | 62-85 | 62-85 | 62-85 | 62-85 | 62-85 | 62-85 | |
Powder Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1 | 2 | 3 | 3 |
Disposal Agitator Motor | 1/4 | 1/2 | 3/4 | 3/4 | 3/4 | 3/4 | |
Drum Thickener | 1/2 | 1/2 | 3/4 | 1 | 1 | 2 | |
Lower Collecting Tray for Pressed Filtrate | None | None | None | None | None | None | |
External Dimensions (Reference)(mm) | L | 4900 | 4950 | 5800 | 7000 | 7200 | 7200 |
W | 1600 | 1850 | 2150 | 2650 | 3150 | 3650 | |
H | 3000 | 3000 | 3250 | 3400 | 3450 | 3550 | |
Base Dimension L1*H1(mm) | 3900*2630 | 3900*2420 | 4900*2420 | 5800*2600 | 5900*2600 | 5900*2600 | |
Base Dimension L2*W1(mm) | 2580*1420 | 2580*1670 | 3350*1920 | 4065*2440 | 4065*2940 | 4065*3440 | |
Reference Weight(kgs) | 1750 | 2050 | 2800 | 4300 | 4700 | 5600 |
Product Application:
1. Sludge dewatering of various industrial waste water.
2. Sludge dewatering of butchery, husbandry.
3. Slurry and water separation in food& beverage industry, chemical industry, mining and other industries.

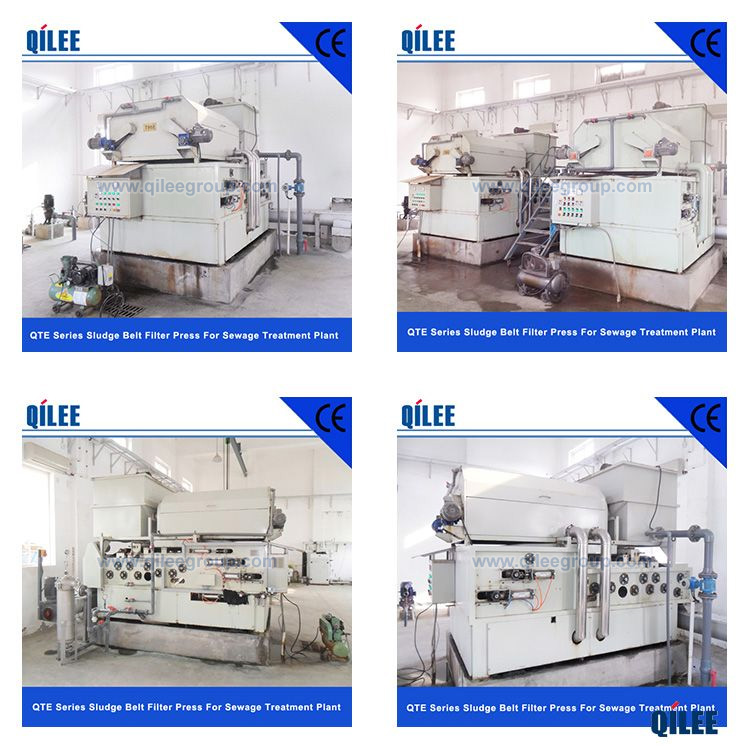

4. Sludge dewatering of city sewage, excretion, water purifying industries.

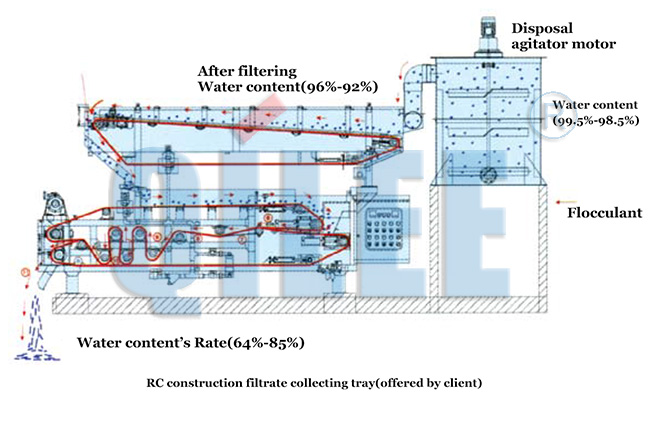

Treatment Flowchart:
What’s the application scope of sludge belt filter press equipment price ?
It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.
What’s the material of sludge belt filter press equipment price ?
It is SUS304.
What’s the equipment used together with sludge belt filter press equipment price?
Sludge pump, polymer dosing pump, washing pump, air compressor.
How to choose the model?
Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
