Feature of jacks comression pressure filter
1. PP or and glass fiber polypropylene material plate and frame
2. Plate and frame type, box type
3. No need power supply.
4. Filter plate pressed by hoisting jack.
5. Opening filter plate manually
| Model | XQ6/520-20U jacks comression pressure filter |
| Filtering area (m*m) | 6 |
| nner dimension of frame (mm) | 520*520 |
| Cake thickness (mm) | 20 |
| Volume of filter chambers (L) | 60 |
| Numbers of filter plates (PCS) | 14 |
| Filtering press (Mpa) | 0.6 |
| Machine weight (kg) | 630 |
| External dimension(mm) | 1960x700x860 |
Structure Features of jacks comression pressure filter press

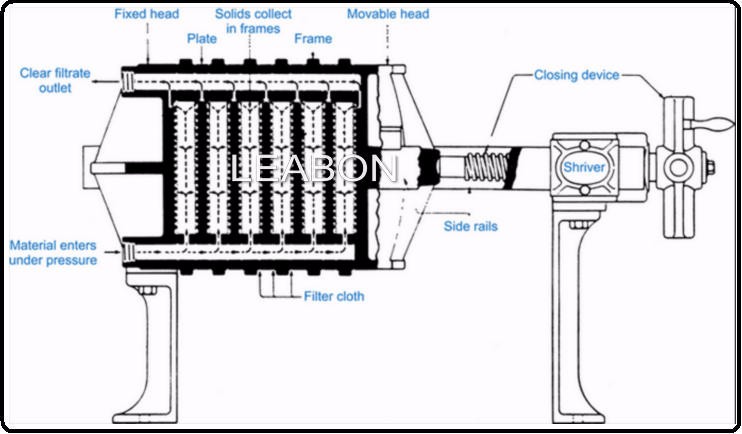

1.Hoisting Jack Filter Press has a screw jack as its compressor device, featuring simple structures, easy operation unnecessary power, being practical and economical.
2. Usually it is applied in the press whose filter area is 1-40m2.
The filter plate of this kind has two types: plate and frame type, box type.

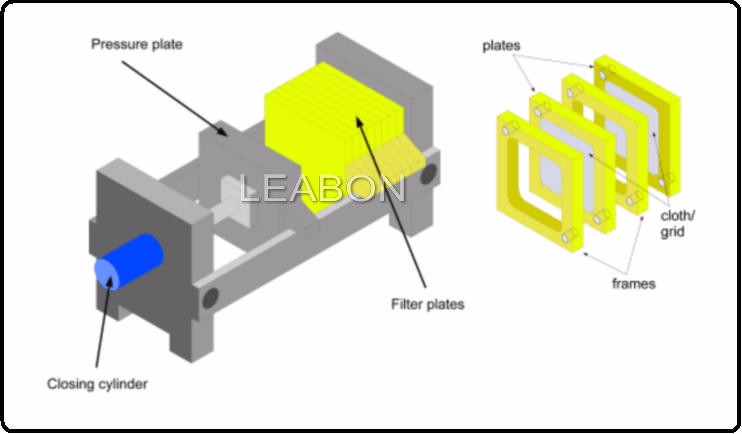

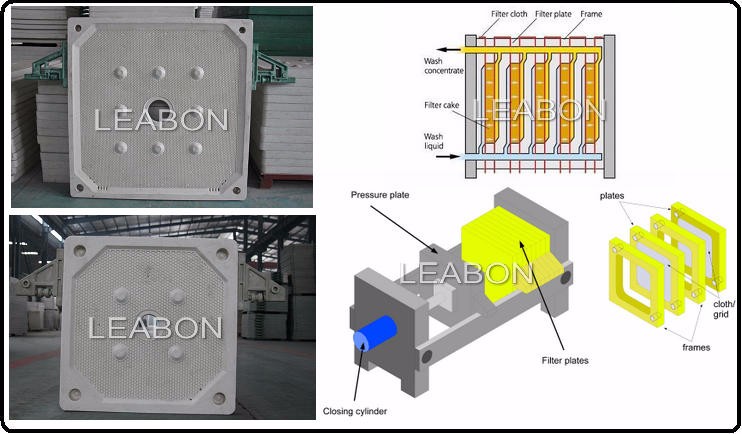

3.The plate and frame type has filter plates frames as a filter unit. Filter cloth can be easily fixed. It can find its application in products that need filter medium (filter paper, filter membrane and settling plate).
