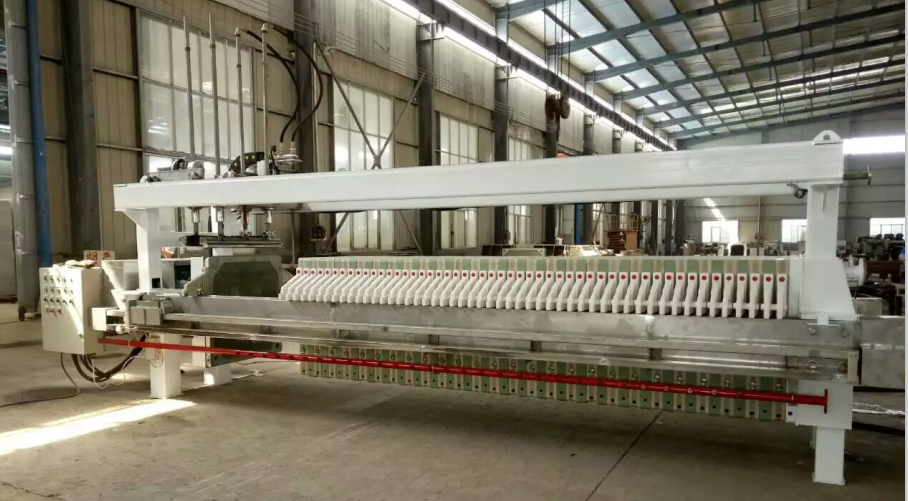

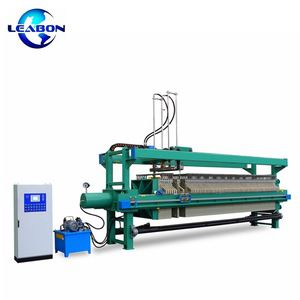

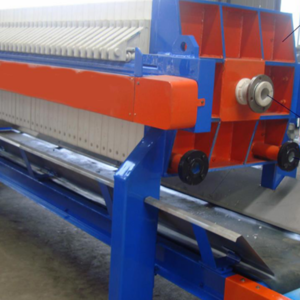

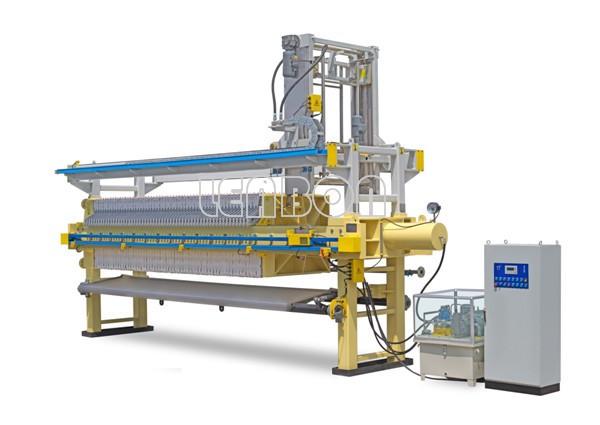

1.  Automatic Drawing Board Filter press

XMZG filter press is a kind of new solid-liquid separation equipment which are mainly used to replace vacuum filters to handle filtering dehydration of flotation concentrate with fine particles of below 0.5. It has characteristics such as small occupying area, high productivity, and low energy consumption. Such filter presses can also be used for solid-liquid separation in fields such as chemicals, building materials, and environment protection.

2. Flush the Filter Cloth Features :

1) Solve the filter cloth washing problems such as differcult , often change the filter cloth

2) At the same time , save labor , save water resources , reduces the filter washing time

3) To make it stronger filter cloth water permeability , improve the filtering speed , prolonged the service life of filter cloth .

Specification:

1. wholly Automatic program-controlled as bellow:

2. Automatic press

3. Automatic feeding (double feeding) and filtrating

4. Automatic squeezing

5. Automatic cake washing

6. Automatic air blowing

7. Automatic open

8. Automatic plate shifting (by groups) and auto cake discharging.

9. Automatic cloth washing--- The washing cycles can be set according to requirements (can be regulated on site)

10. Automatic drip tray close when cloth washing and filtrating, automatic open when cake discharging.

 It is widely applied in many fileds , such as coal washing industry , peroleum industry , chermical industry , ceramic industry , pharmacy , food industry , texible industry , prnting and dueing industry , paper making industry , waste water treament industry etc.

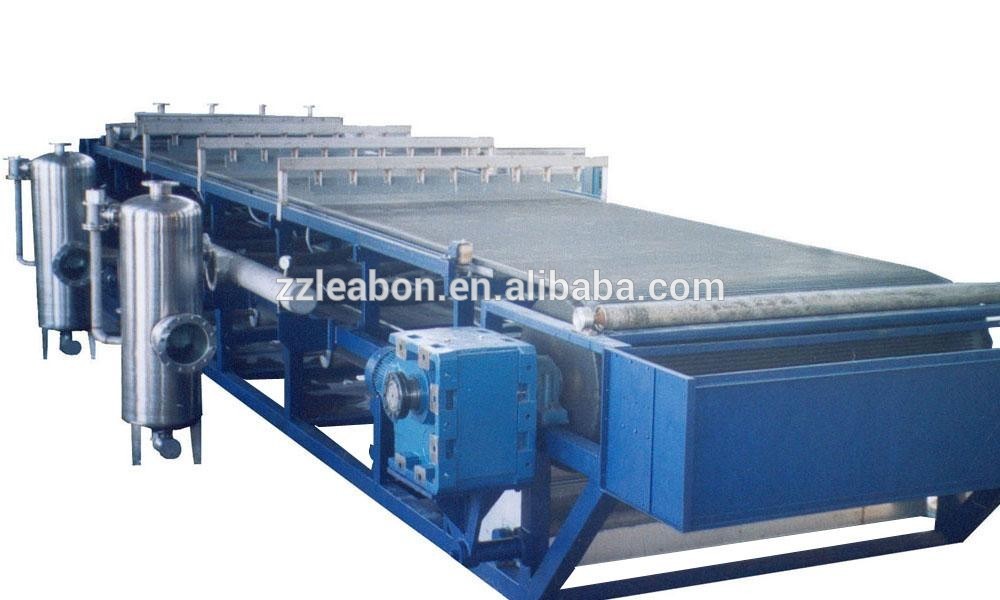

 1. Belt Conveyor

( Belt Conveyor can be determined according to the size of the filter press specifications )

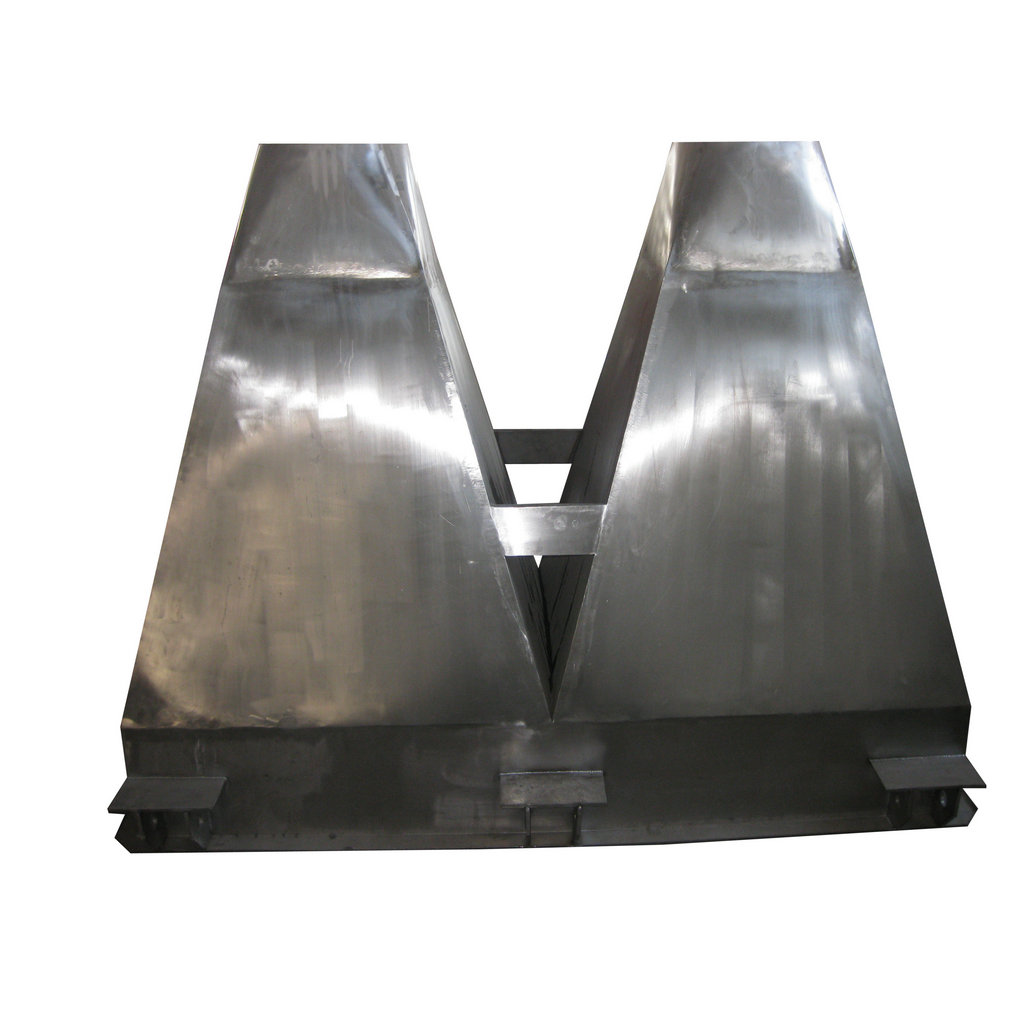

2.Automatic storge dump

( We can design according to customer requirements , open mode is divided into two kinds of electric and pneumatic .)

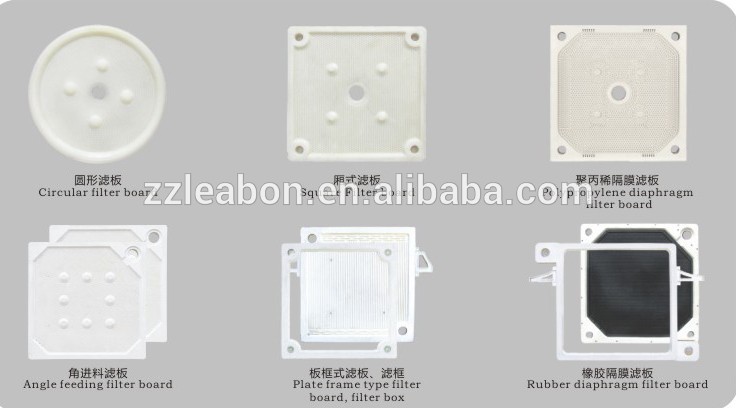

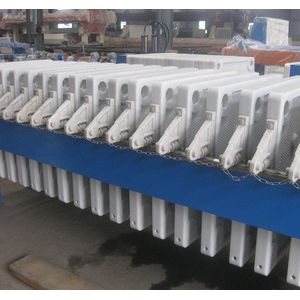

3.Filter Plate

 Wood package and according to customer requirements .

You are welcomed to visit our company and know the products. We are very pleased to provide you sincere service.

1)We can provide you the one year warranty but without the spare parts.

2) The professional and timely 24 hours after-sale service.

 3) The relative video of the machine installation and instruction will be provided for you.

4) We can provide you the different mould to meet your different requirements.

 5)We can also meet the special voltage demand

 6) The engineer is available to service machinery oversea
