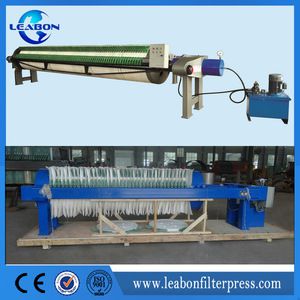

Product Description
As a intermittent pressure filtration equipment, it’s used to separate the solid and liquid of suspension. Since the excellent effect of separation and convenient to use, it’s widely used in petroleum, chemical, dyestuff, metallurgy, pharmacy, food, paper making, coal washing and sewage disposal and various industry which separation is needed.
Auto press and open by hydraulic
Auto feeding
Auto plate shifting
Auto bomb door and drip tray open and close

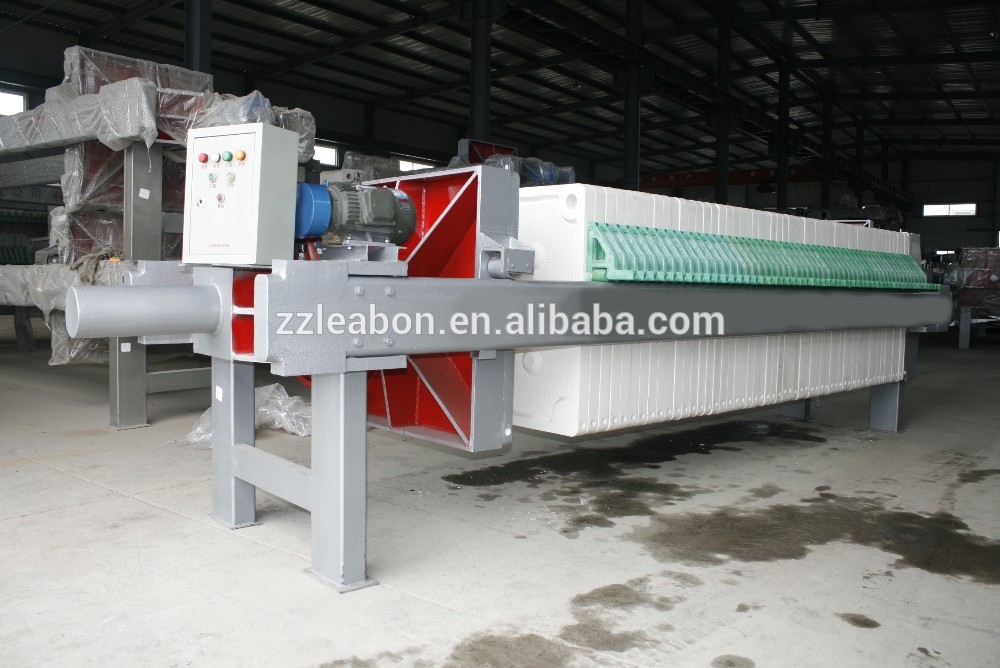

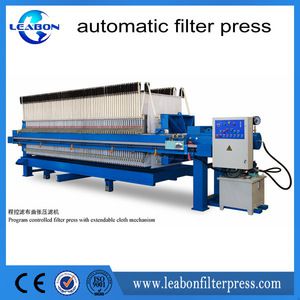

Automatic program-controlled chamber filter press has such features as follows:
| Model | XMZY50/800-30UB |
| Filter area(M2) | 50 |
| filter cake(mm) | 30 |
| filter chamber volume(L) | 621 |
| Filter plate number(pcs) | 50 |
| The filter room number(pcs) | 50 |
| Filter plate size(mm) | 800*800*65 |
| Filter plate materia | Reinforced pp with 1.0-2.5MPa filtration pressure |
| Filter cloth material | Resistance to acid and base |
| Number of filter cloth(pcs) | 50+1 |
| Support beams | Q235 steel welding parts (thicker rectangular tube) |
| Keep plate | Q235 solid steel plate welded pieces |
| The thrust plate | Q235 solid steel plate welded pieces |
| Pressure head | Q235 solid steel plate welded pieces |
| Oil cylinder | 20 steel welding |
| Hydraulic station | Q235B steel welded |
| Filter control cabinet | Carbon paint |
| The whole machine size(mm) | 5530*1100*2265 |
| Weight(Kg) | 5850 |

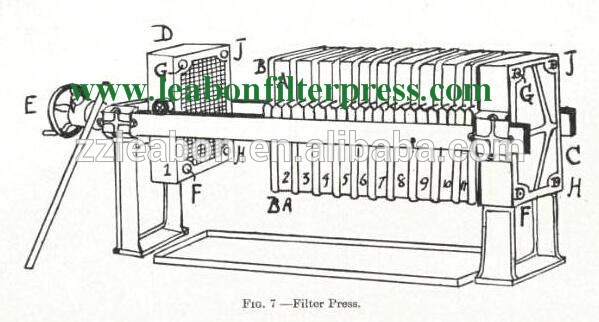

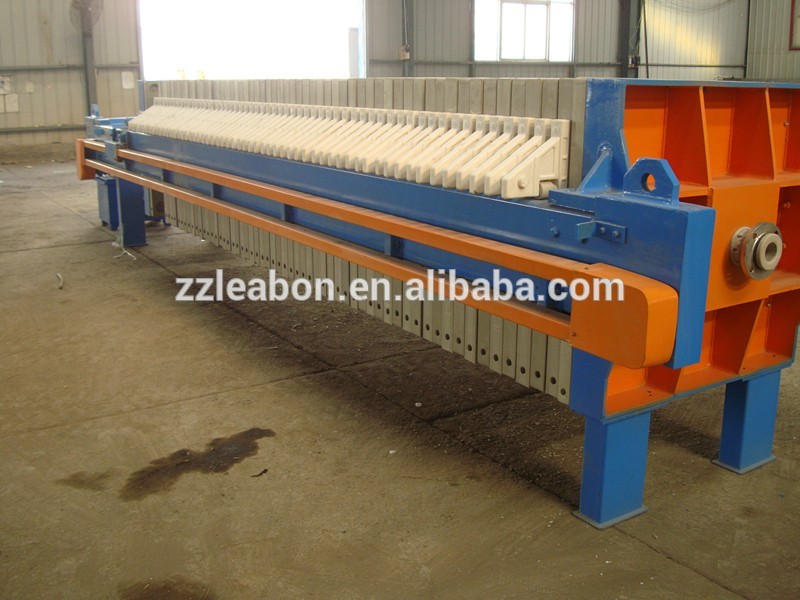

Structure

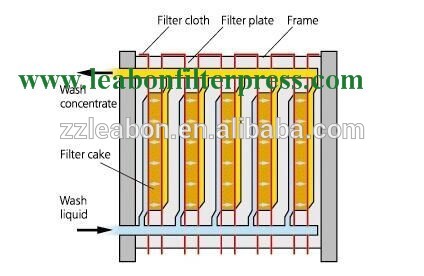

Filter Cake

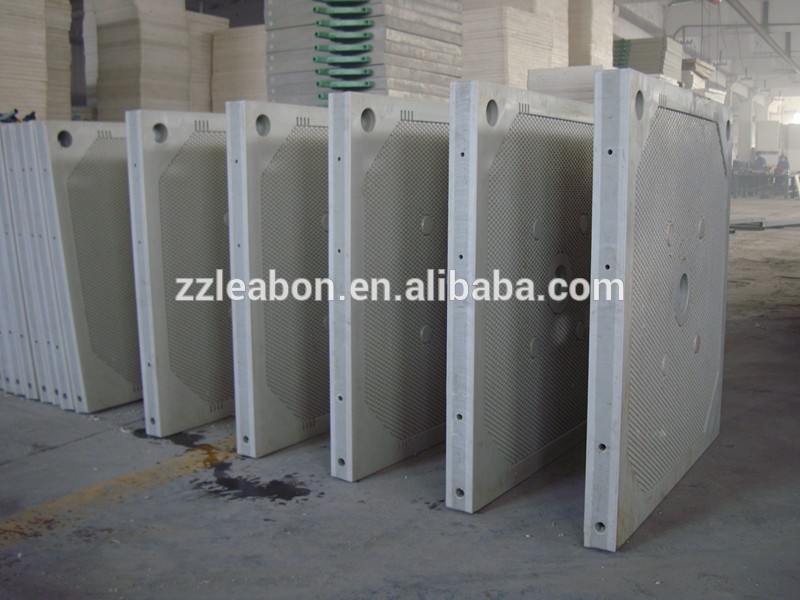

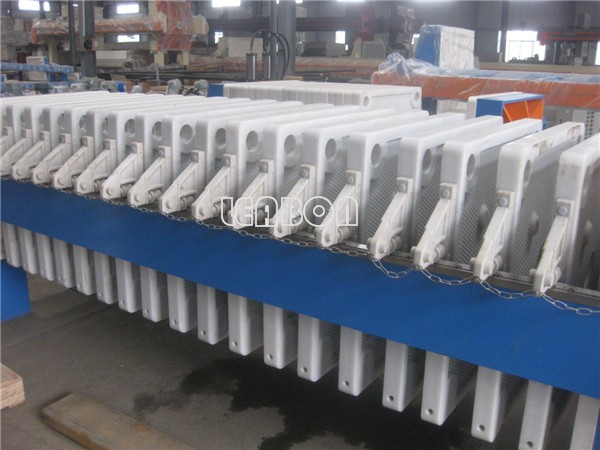

Filter Plate
Filter Cake
