ce certification herbal atomizer spray drying machine TP-S30

china 3l spray dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting.

Technical Feature

  • New
  • Spray Drying Equipment
  • Shaanxi, China (Mainland)
  • TOPTION
  • TP-S30
  • 220v/380v
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$8~8

PRIMARY PARAMETERS

Condition
New
Type
Spray Drying Equipment
Place of Origin
Shaanxi, China (Mainland)
Brand Name
TOPTION
Model Number
TP-S30
Voltage
220v/380v
Power(W)
6KW
Dimension(L*W*H)
880*980*1550mm
Weight
250kg
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Overseas service center available
Product name
ce certification herbal atomizer spray drying machine
Max capacity
3000ml/h
Temperature range of inlet air
30u00b0C ~ 300u00b0C Adjustable
Precision of temperature
u00b11u2103
Dryer time
1.0 ~ 1.5S
Spray system
Centrifugal nozzle/ Two fluid nozzle
Atomizer speed
40000rpm/ min

DETAIL DESCRIPTION

ce certification herbal atomizer spray drying machine TP-S30









Technical Specification

Item

Unit

TP-S30 3l spray dryer

Max capacity

ml/h

3000

Temperature range of inlet air

30°C ~ 300°C

Adjustable



Yes

Temperature range of outlet air

30°C ~ 140°C

Precision of temperature

±1

Dryer time

S

1.0 ~ 1.5

Speed of squirt pump

ml/h

3000

Spray system

/

Centrifugal nozzle/ two fluid nozzle,   base on your needs

Spray direction

/

Downwards co-current

Heat source

/

Electric

Total power

/

6KW 220V

Dried powder restoring rate

%

≥95

Atomizer speed

rpm

40000

Dimemsion

mm

880*980*1550mm

Remark

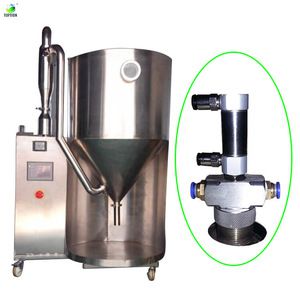

Standard is with High Speed   Centrifugal Nozzle;

Two Liquid nozzle is optional

SS316L Material is optional



Introduction

 3l spray dryer is the latest type of TOPTION which adopts advanced international technology and spare parts.

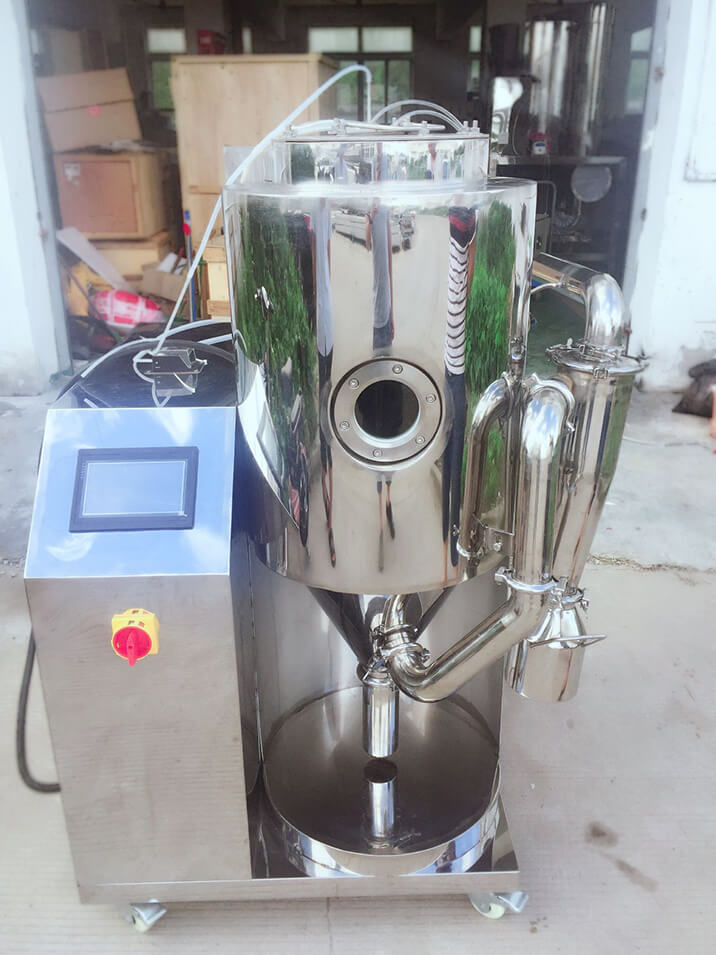

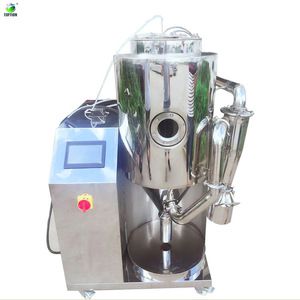

china 3l spray dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.





Advantage

1.Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.

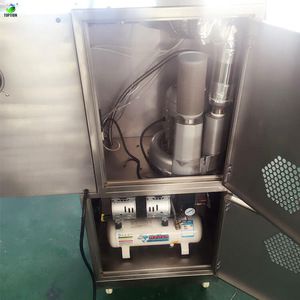

4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.





Packaging & Shipping

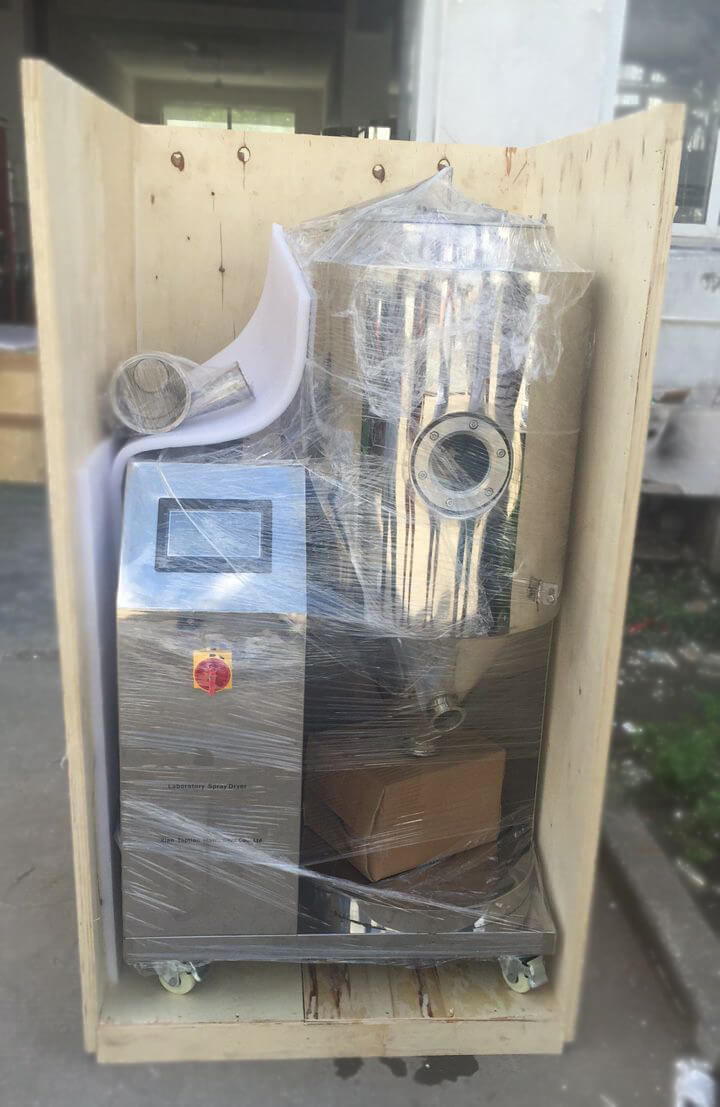

 -Standard wooden case.
-Both neutral and customized packaging can be available.





-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own forward.





Company Information









Contanct us

Welcome to contact us : Nora
Tel: 0086-029-88763980
Fax: 86-029-88990306 ext 8006
Skype/Wechat/Whatsapp:8615129932240
Email: noraATtoptionlab.com
Web: www.toptionlab.com


FAQ

Q: What is your MOQ?
A:1 set.


Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.

Q: How to choose suitable equipment ?
A:tell us your Working speed and Maximum capacity ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.

Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
